Description
HFX 820 Series
Product information
-

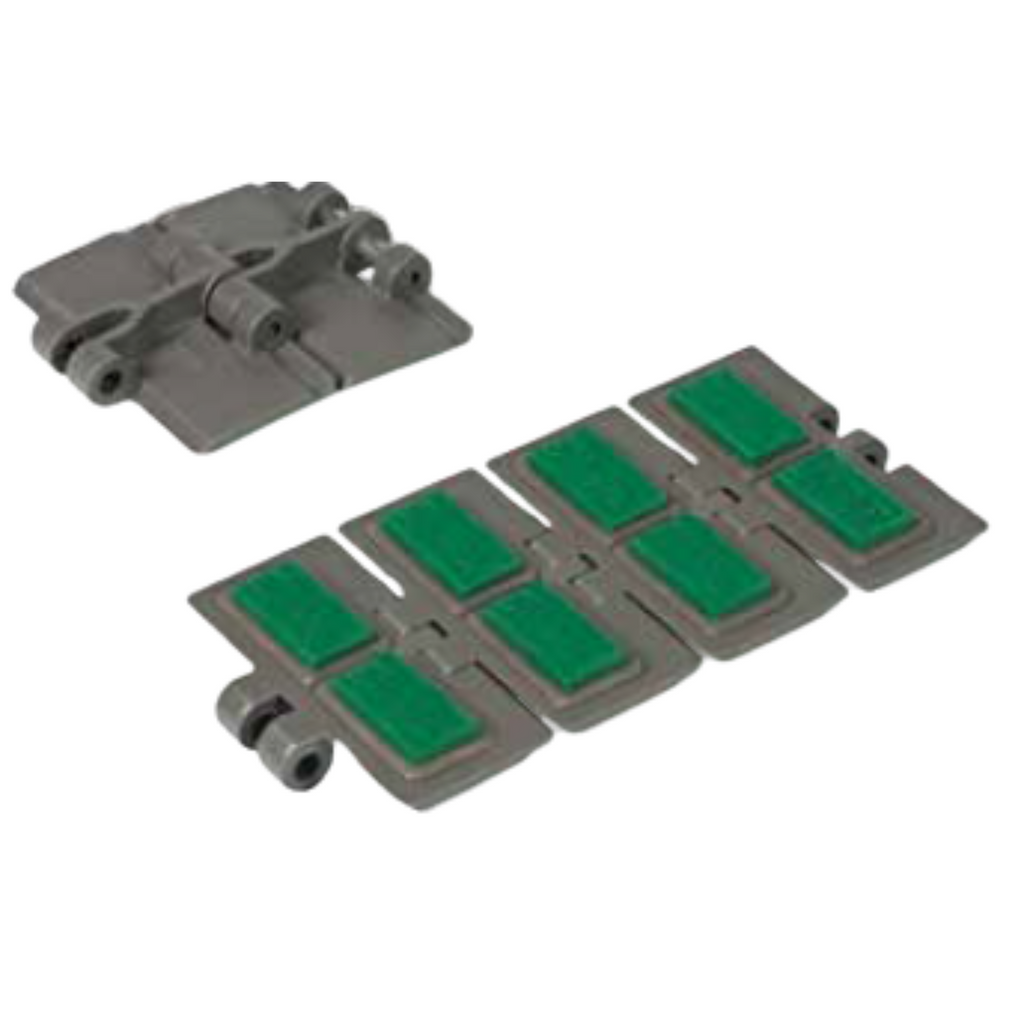

Straight running rubber top
-
Single hinge
-

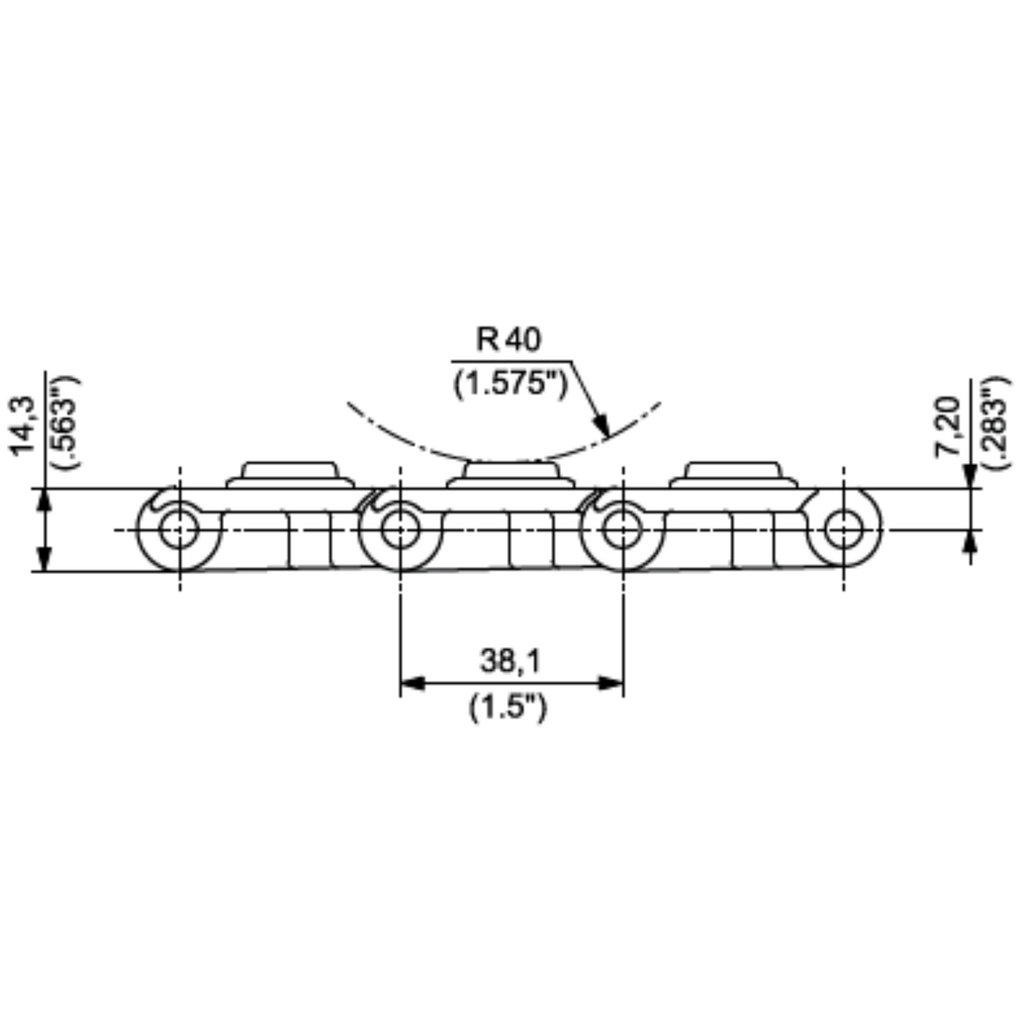

Pitch 1 ½” (38.1mm)
-

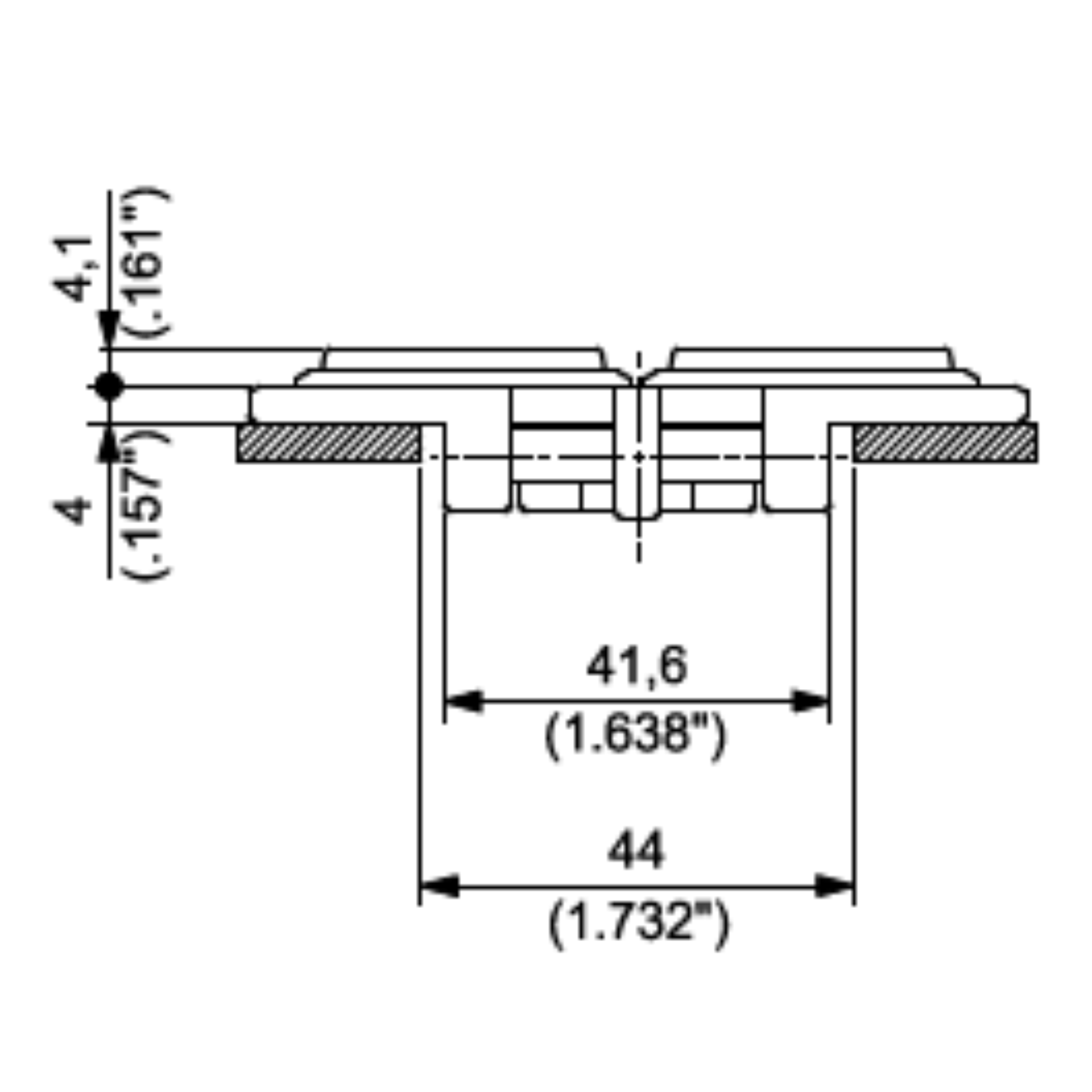

Thickness 4mm (0.157”)
-
Hinge 41.6mm (1.638”)
Standard packaging: Rolls of 3.048 meters

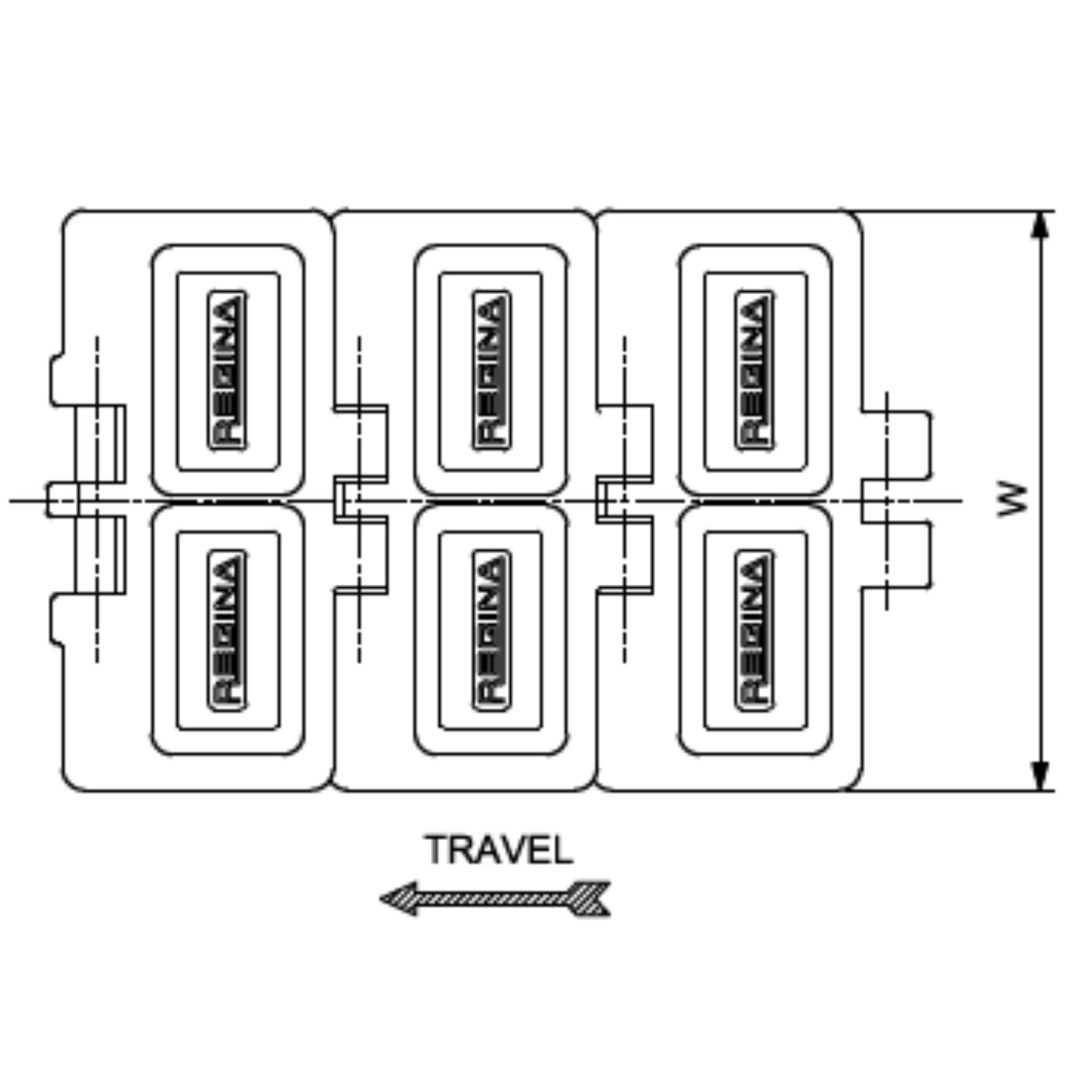

Information: Actual width can be up to 0.5% greater than nominal width
For information on rubber pad positioning, please refer to the catalogue.
| Plate | Pin | Rubber | Item Description | Part Number | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Working Load (N) | Working Load (lbs) | Weight (kg/m) | Weight (lbs/ft) | Stock |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | Thermoplastic TPE, Hardness: 70 ShA | HFX 820 UP K 3¼ | HFX820KD/000 | 82.6 | 3.25 | 4.0 | 0.16 | 1600 | 360 | 1.00 | 0.67 | Available on Request |
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | Thermoplastic TPE, Hardness: 70 ShA | HFX 820 UP K 4 | HFX820KF/000 | 101.6 | 4.00 | 4.0 | 0.16 | 1600 | 360 | 1.09 | 0.73 | Available on Request |
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | Thermoplastic TPE, Hardness: 70 ShA | HFX 820 UP K 4½ | HFX820KG/000 | 114.3 | 4.50 | 4.0 | 0.16 | 1600 | 360 | 1.17 | 0.79 | Available on Request |
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | Thermoplastic TPE, Hardness: 70 ShA | HFX 820 UP K 6 | HFX820KH/000 | 152.4 | 6.00 | 4.0 | 0.16 | 1600 | 360 | 1.45 | 0.97 | Available on Request |
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | Thermoplastic TPE, Hardness: 70 ShA | HFX 820 UP K 7½ | HFX820KL/000 | 190.5 | 7.50 | 4.0 | 0.16 | 1600 | 360 | 1.60 | 1.07 | Available on Request |
