Description
HFX 821 Series
Product information
-

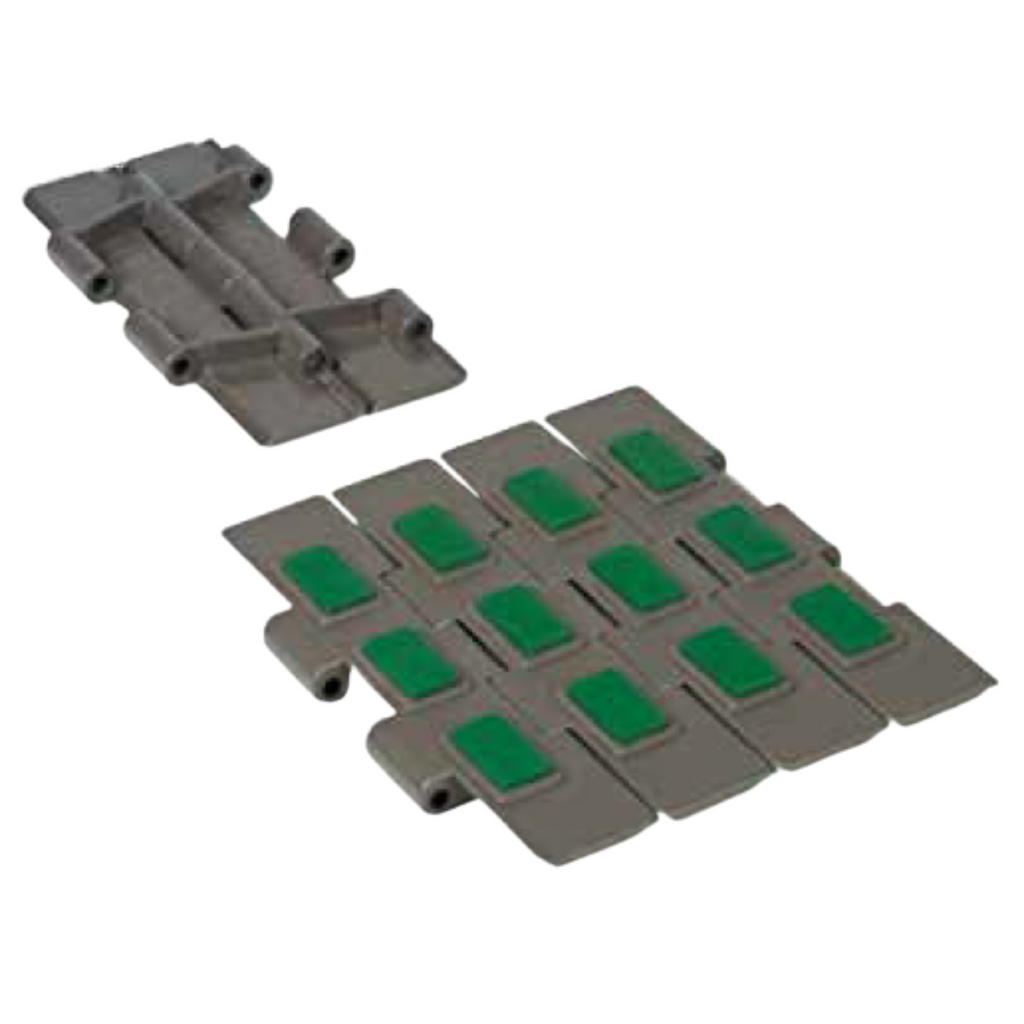

Straight running rubber top
-
Double hinge
-

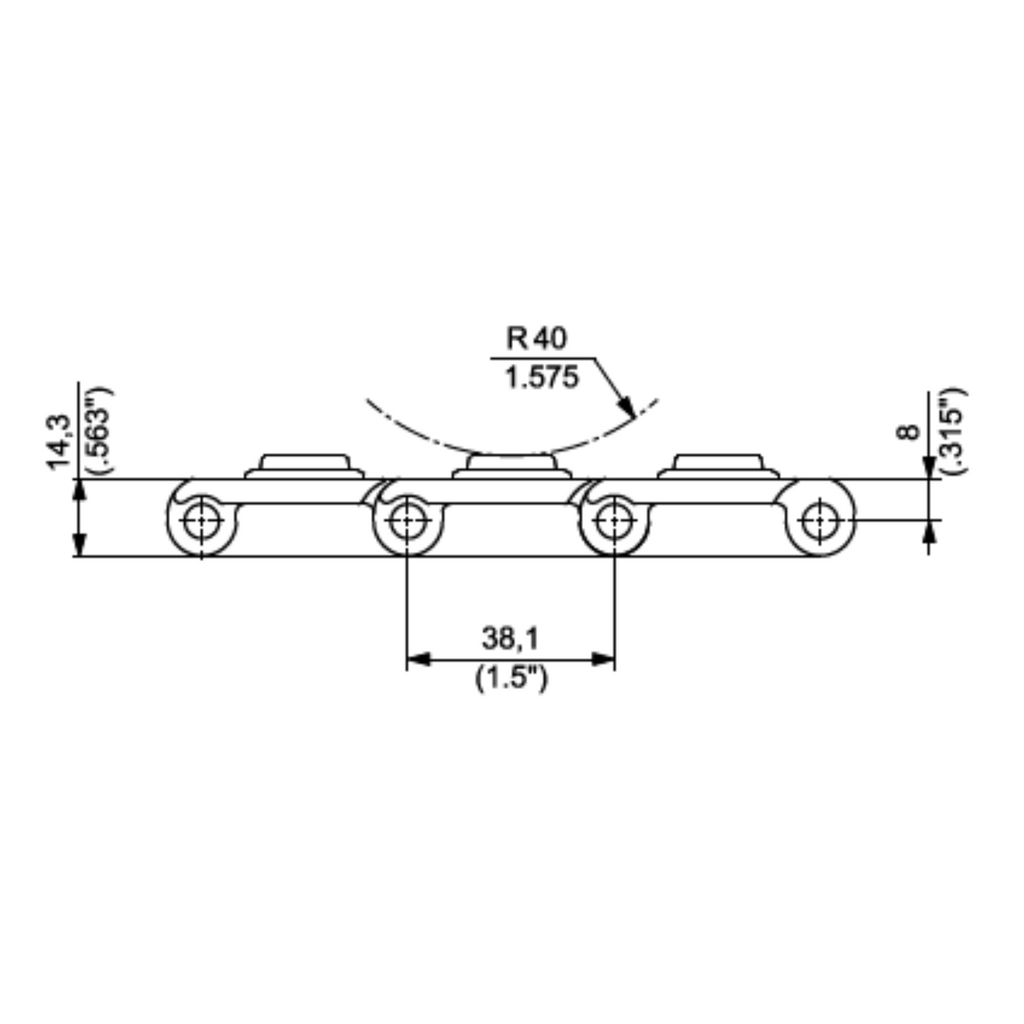

Pitch 1 ½” (38.1mm)
-

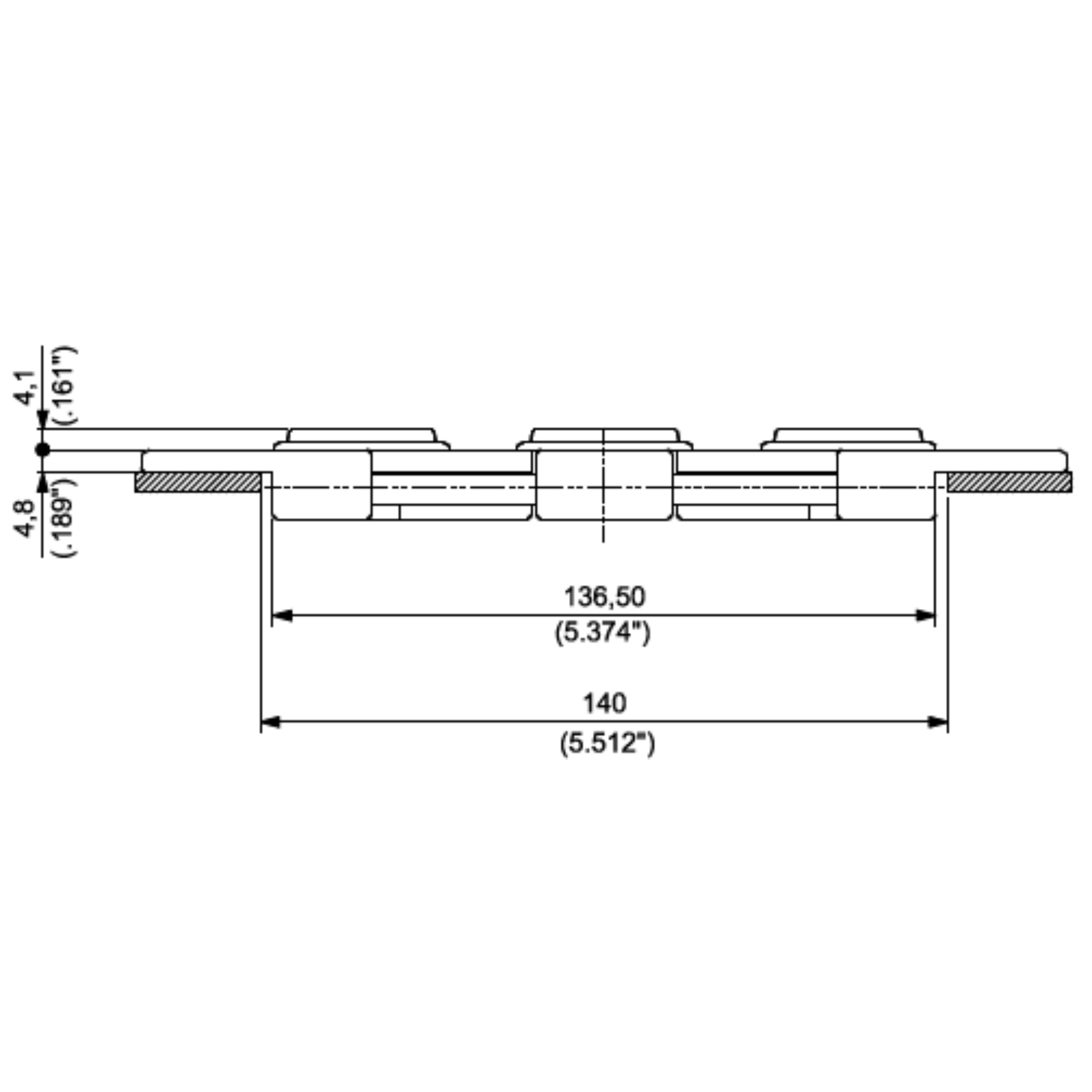

Thickness 4.8mm (0.189”)
-
Hinge 136.5mm (5.374”)
Standard packaging: Rolls of 3.048 meters

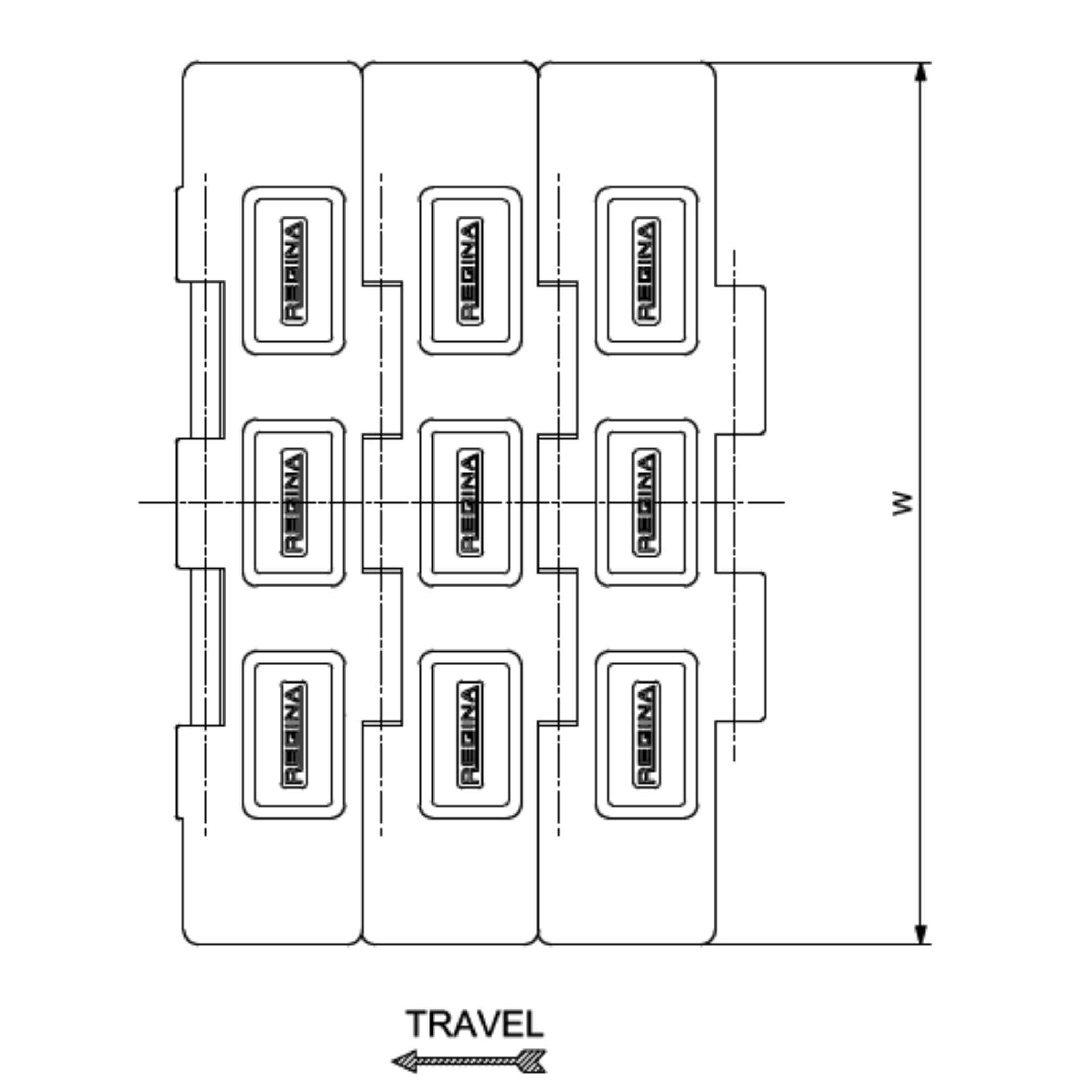

Information: Actual width can be up to 0.5% greater than nominal width
For information on the rubber pad positioning, refer to the catalogue.
| Plate | Pin | Rubber | Item Description | Part Number | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Stock |
|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin® | Austenitic Stainless Steel | Thermoplastic TPE, Hardness: 70 ShA | HFX 821 UP K 7½ | HFX821KL/000 | 190.5 | 7.50 | 4.8 | 0.19 | Available on Request |
| Ultra Performance Homopolymer Delrin® | Austenitic Stainless Steel | Thermoplastic TPE, Hardness: 70 ShA | HFX 821 UP K 10 | HFX821KM/000 | 254.0 | 10.00 | 4.8 | 0.19 | Available on Request |
| Ultra Performance Homopolymer Delrin® | Austenitic Stainless Steel | Thermoplastic TPE, Hardness: 70 ShA | HFX 821 UP K 12 | HFX821KN/000 | 304.8 | 12.00 | 4.8 | 0.19 | Available on Request |
