Description

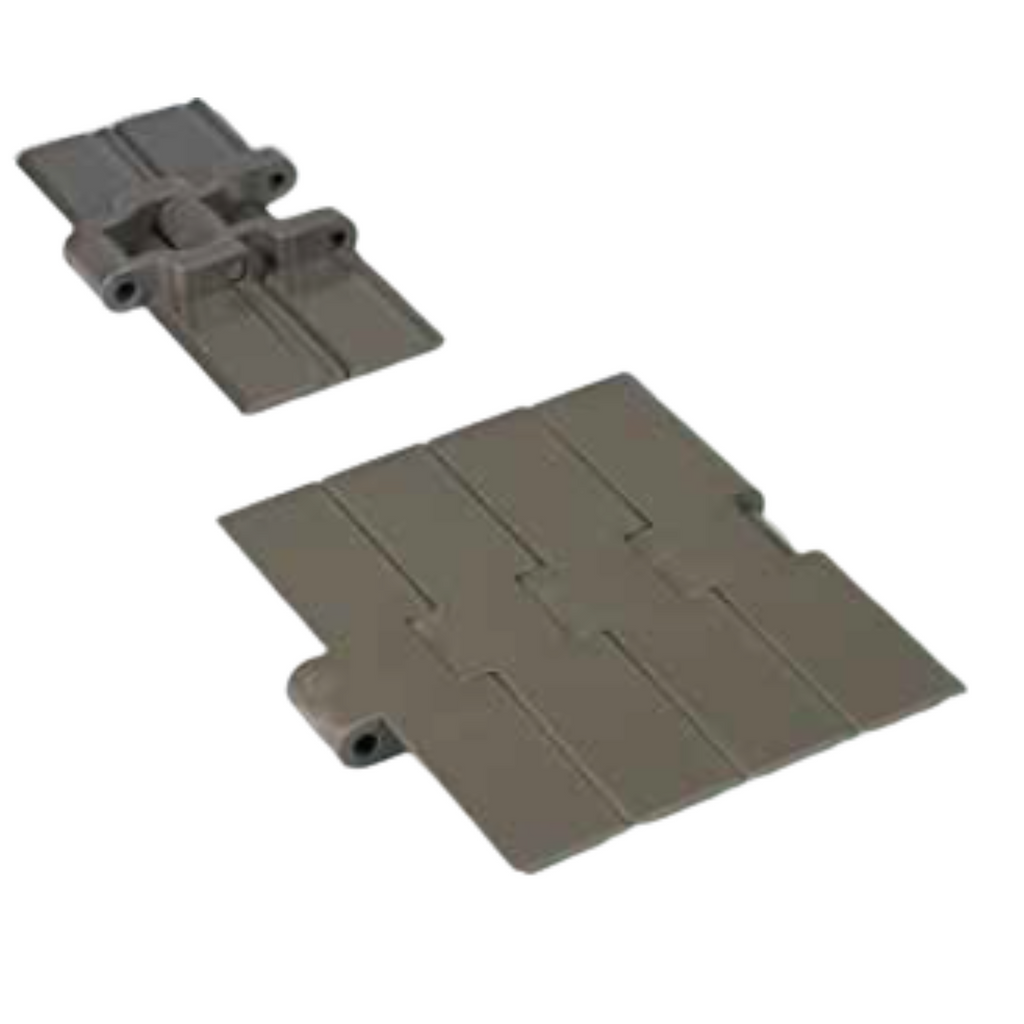

8257 Series
Product information
-
Straight running
-
Heavy duty dingle hinge
-

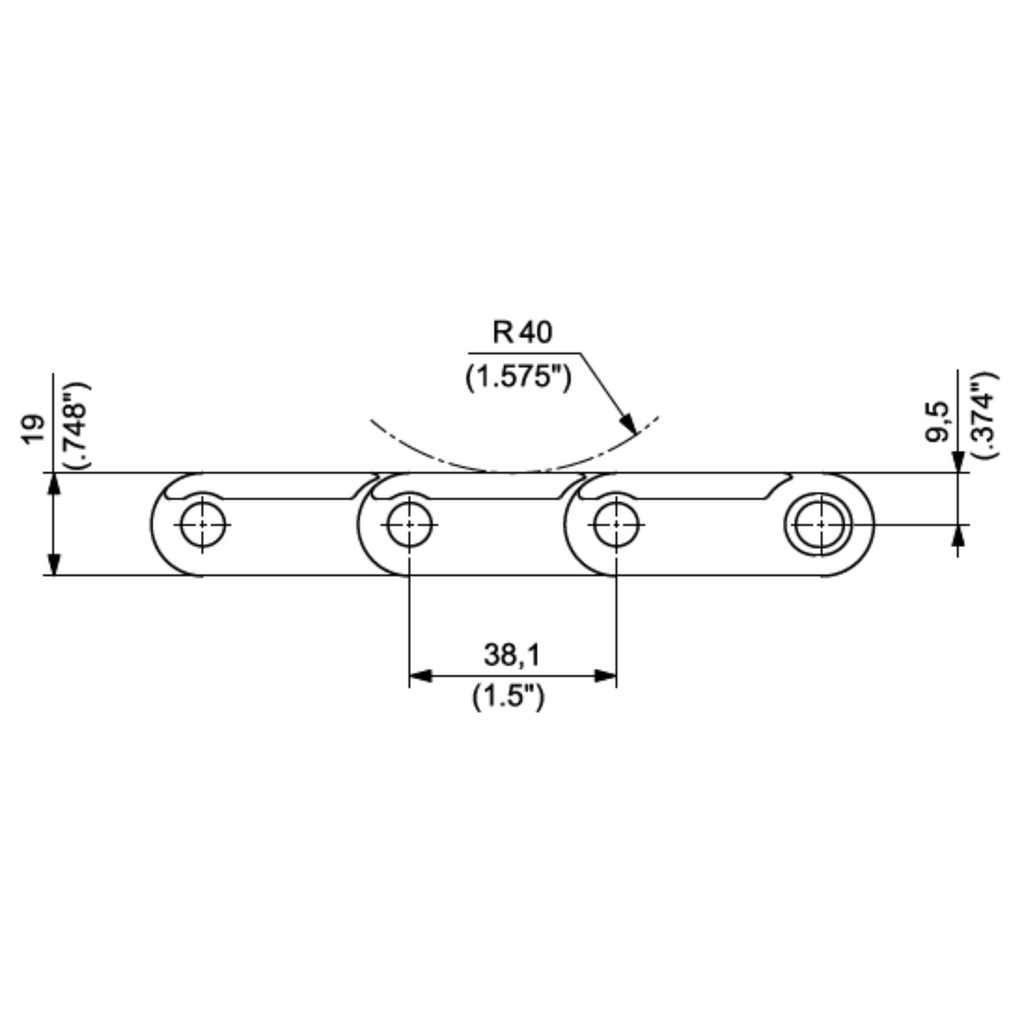

Pitch 1 ½” (38.1mm)
-

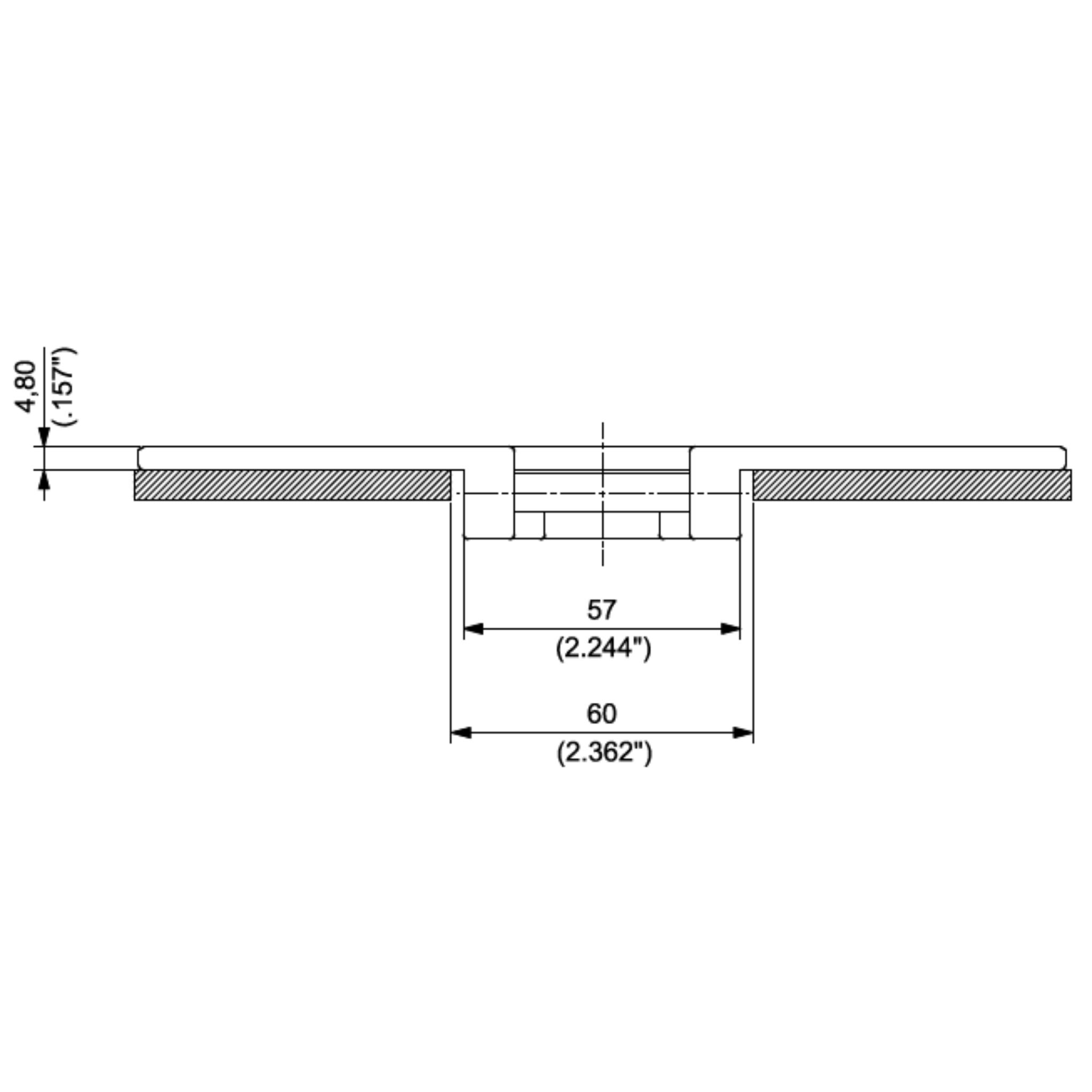

Thickness 4.8mm (0.189”)
-
Hinge 57mm (2.244”)
Standard packaging: Rolls of 3.048 meters

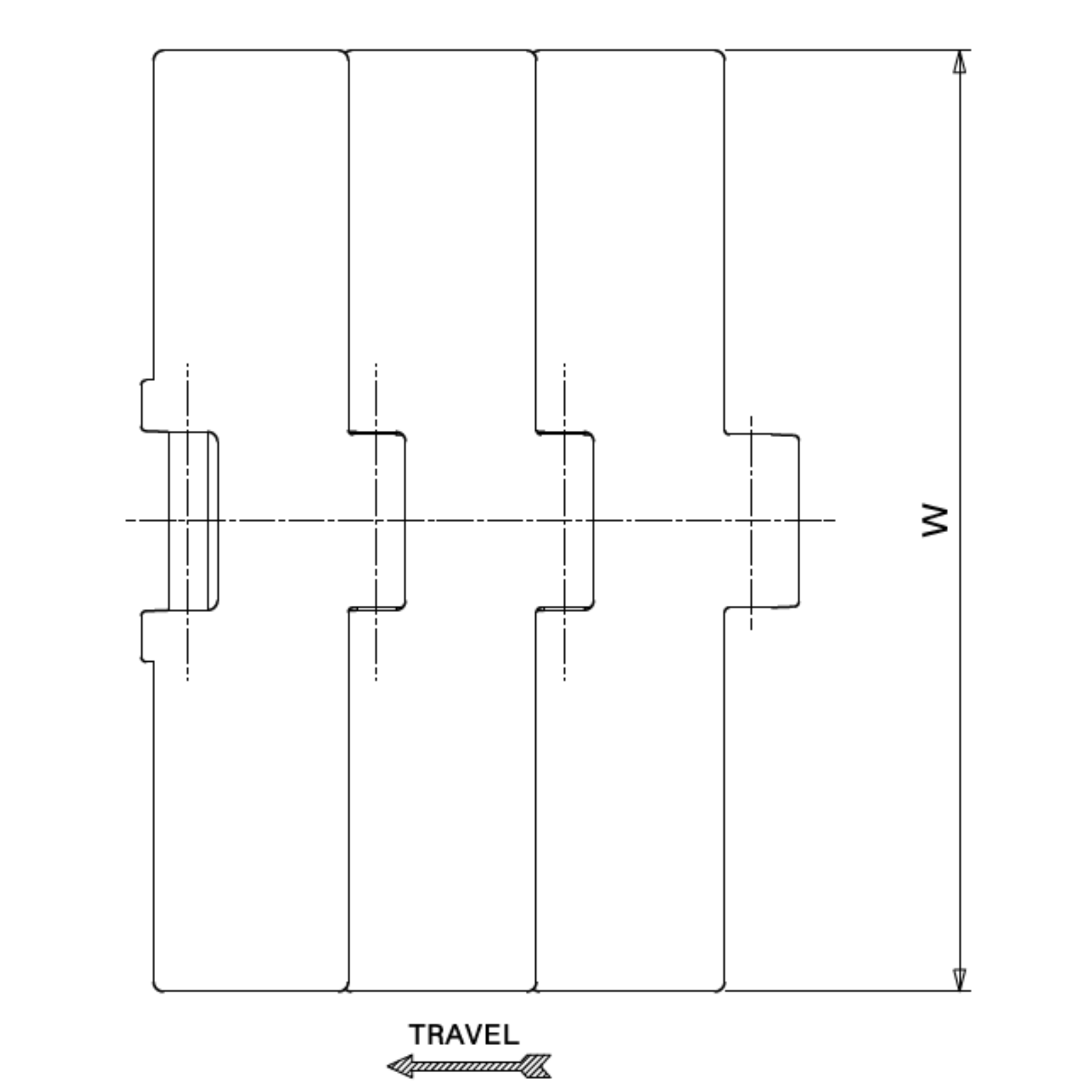

Information: Actual width can be up to 0.5% greater than nominal width
| Plate | Pin | Item Description | Part Number | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Stock |
|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin® | Austenitic Stainless Steel | UP 8257 K 7 ½ | UP8257KL/000 | 190.5 | 7.50 | 4.8 | 0.19 | Available on Request |
| Ultra Performance Homopolymer Delrin® | Austenitic Stainless Steel | UP 8257 K 10 | UP8257KM/000 | 254.0 | 10.00 | 4.8 | 0.19 | Available on Request |
| Ultra Performance Homopolymer Delrin® | Austenitic Stainless Steel | UP 8257 K 12 | UP8257KN/000 | 304.8 | 12.00 | 4.8 | 0.19 | Available on Request |
