Description

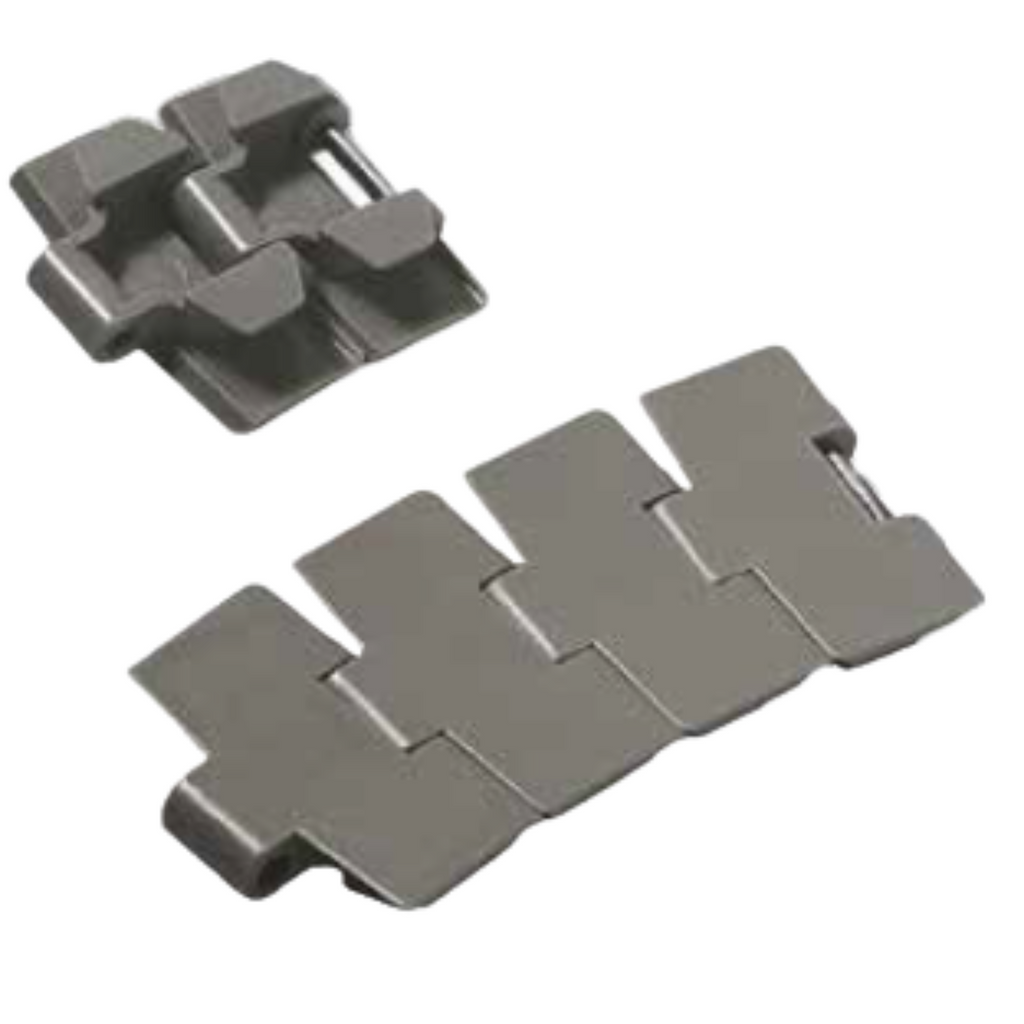

879T Series
Product information
-

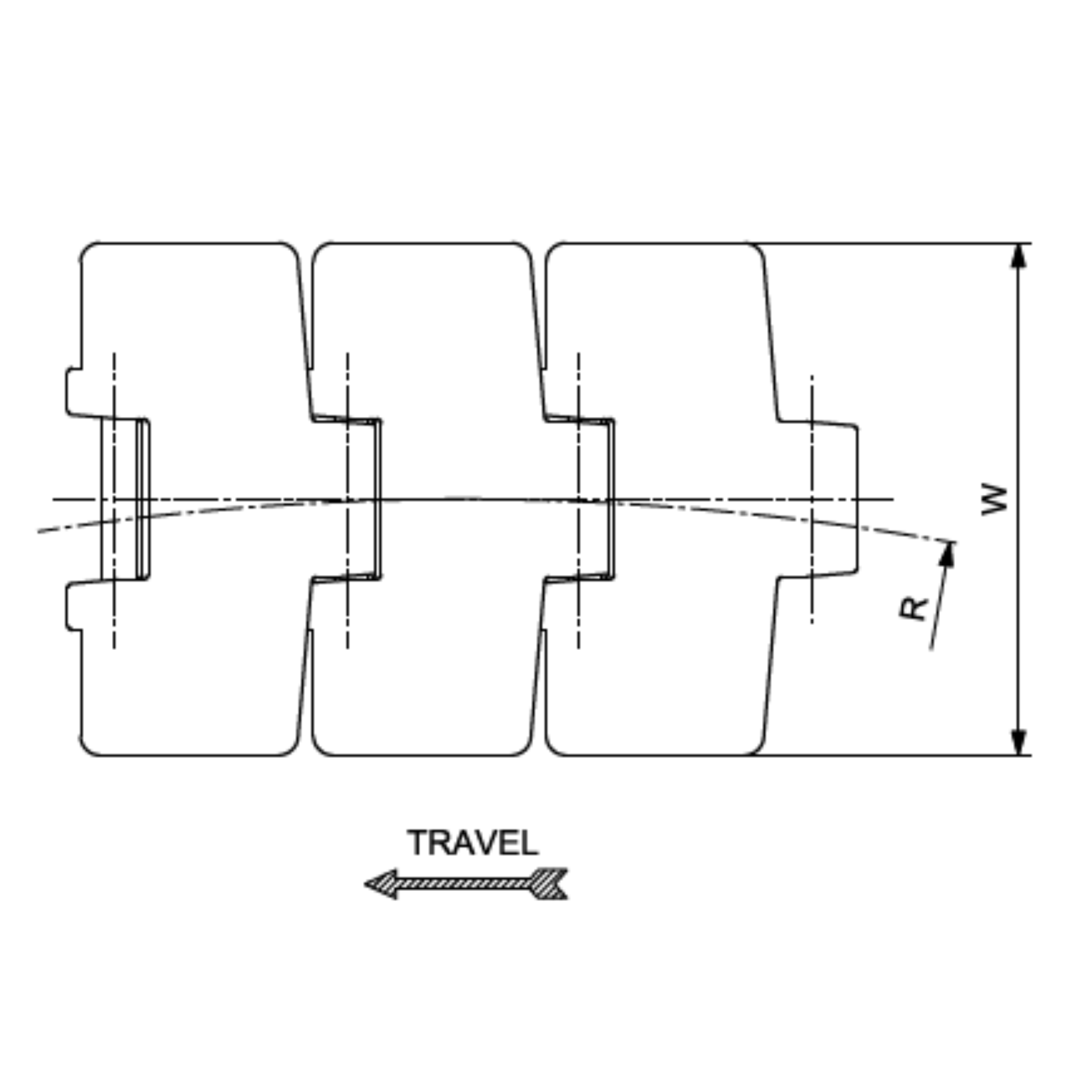

Sideflexing
-
TAB
-

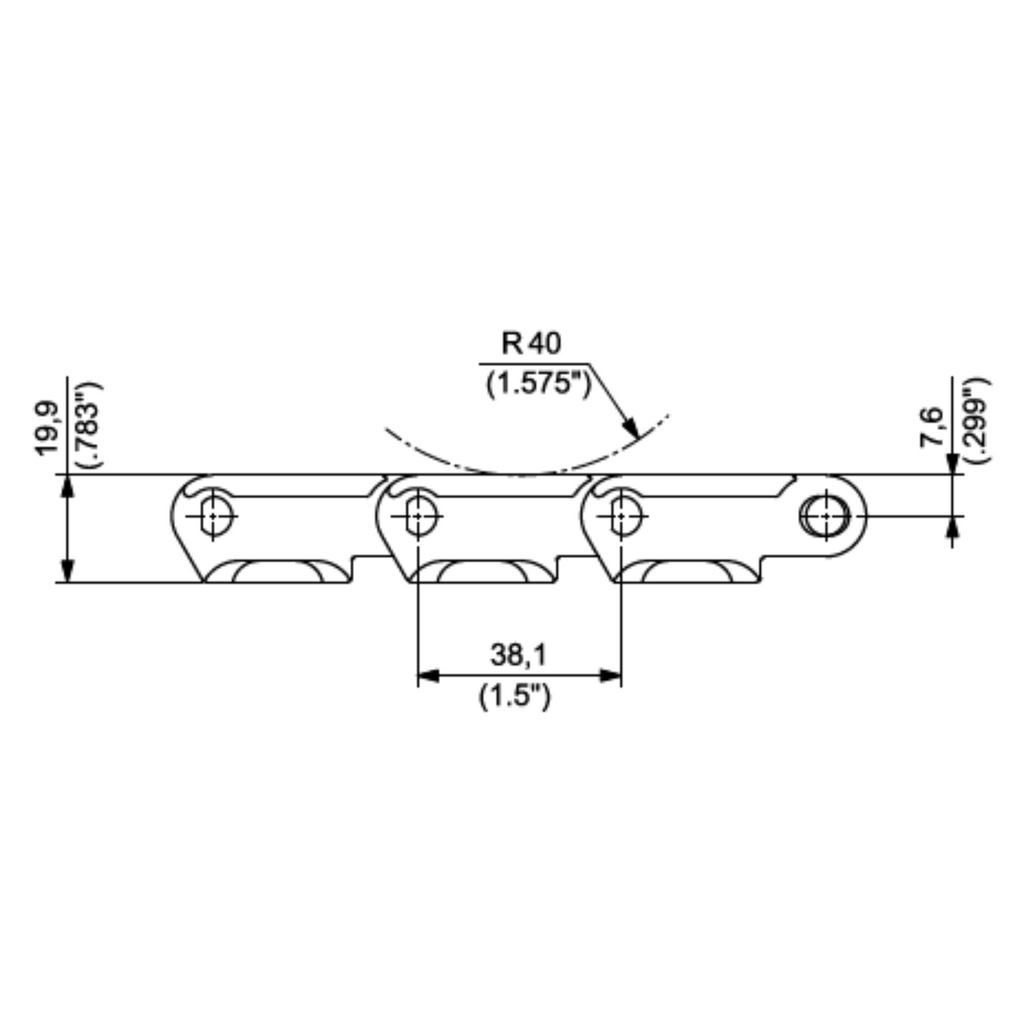

Pitch 1 ½” (38.1mm)
-
Thickness 4.8mm (0.188”)
-

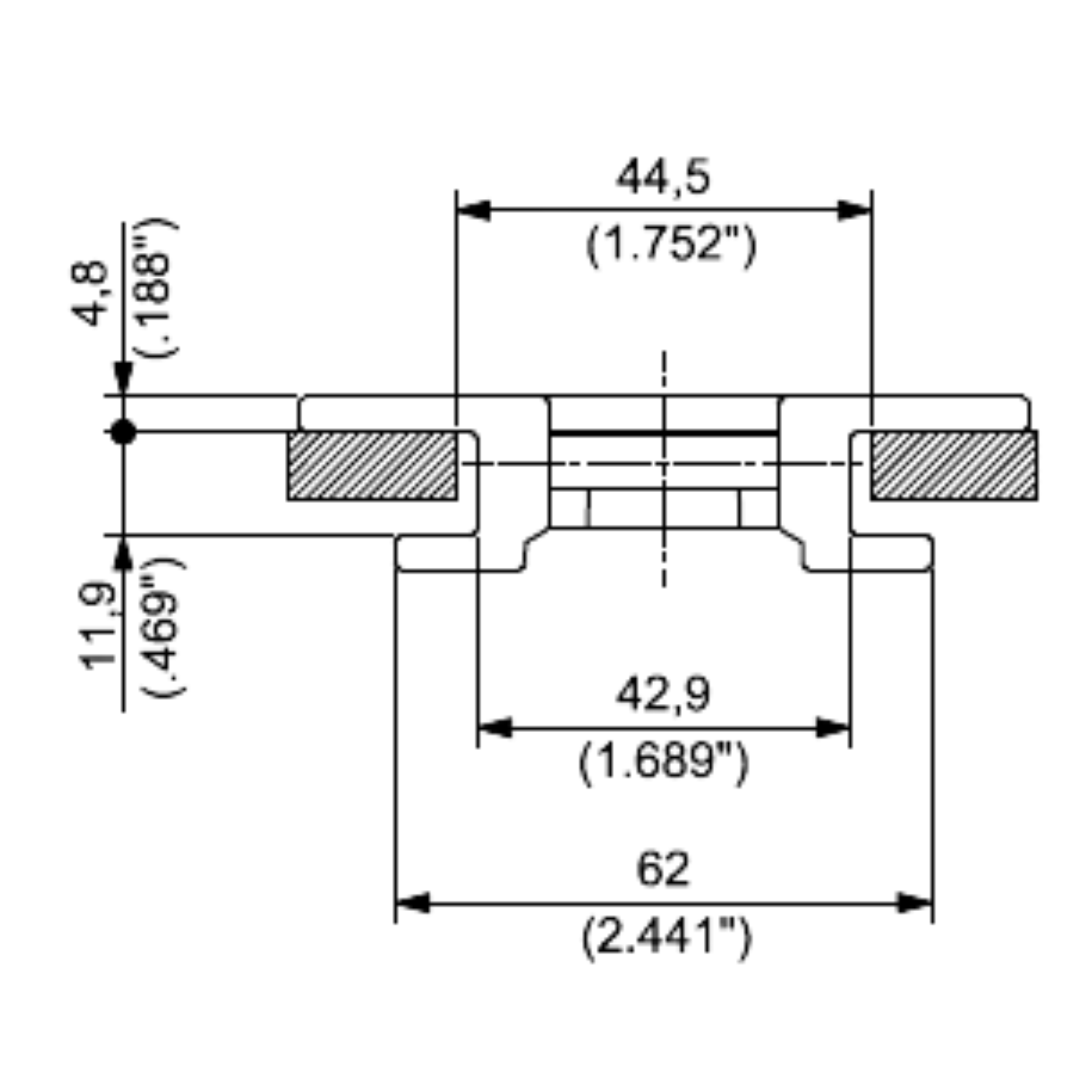

Hinge 42.9mm (1.689”)
Standard packaging: Rolls of 3.048 meters
Information: Actual width can be up to 0.5% greater than nominal width
| Plate Material | Pin Material | Item Description | Part Number | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Sideflexing Radius (mm) | Sideflexing Radius (inch) | Working Load (N) | Working Load (lbs) | Weight (kg/m) | Weight (lbs/ft) | Stock |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 879T K 3 ¼" | UP879TKD/000 | 82.6 | 3.25 | 4.8 | 0.19 | 457.2 | 18.00 | 2000 | 450 | 0.72 | 0.48 | Available on Request |
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 879T K 3.3/8" | UP879TKRA/000 | 83.8 | 3.31 | 4.8 | 0.19 | 457.2 | 18.00 | 2000 | 450 | 0.73 | 0.49 | Available on Request |
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 879T K 4 ½" | UP879TKG/000 | 114.3 | 4.50 | 4.8 | 0.19 | 500.0 | 19.69 | 2000 | 450 | 0.86 | 0.58 | Available on Request |
| Special Delrin® Reinforced with Kevlar® (D2K) | Austenitic Stainless Steel | D2K 879T K 3 ¼" | D2K879TKD/000 | 82.6 | 3.25 | 4.8 | 0.19 | 457.2 | 18.00 | 2000 | 450 | 0.71 | 0.48 | Available on Request |
| Special Delrin® Reinforced with Kevlar® (D2K) | Austenitic Stainless Steel | D2K 879T K 3.3/8" | D2K879TKRA/000 | 83.8 | 3.31 | 4.8 | 0.19 | 457.2 | 18.00 | 2000 | 450 | 0.72 | 0.49 | Available on Request |
| Special Delrin® Reinforced with Kevlar® (D2K) | Austenitic Stainless Steel | D2K 879T K 4 ½" | D2K879TKG/000 | 114.3 | 4.50 | 4.8 | 0.19 | 500.0 | 19.69 | 2000 | 450 | 0.83 | 0.56 | Available on Request |
