Description

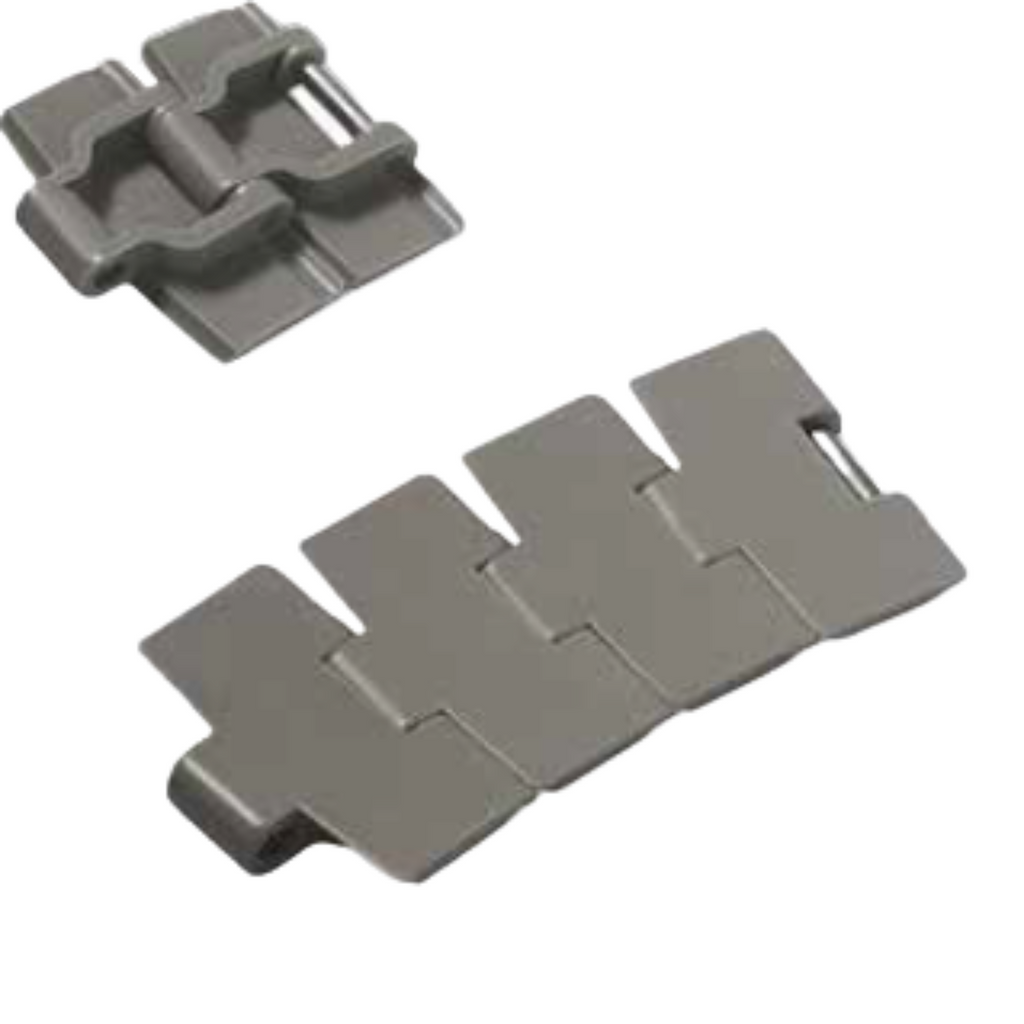

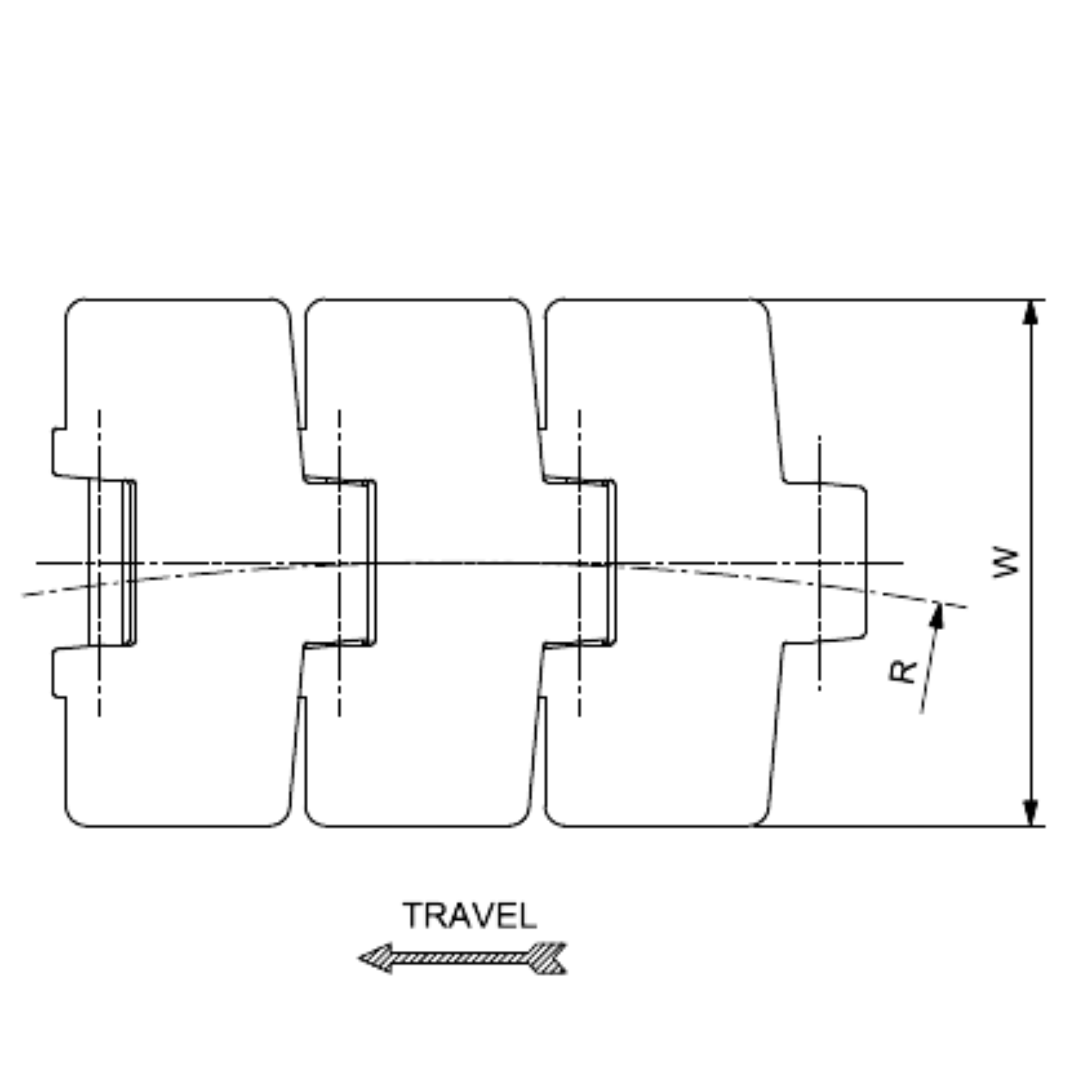

880M RG Series
Product information
-
Sideflexing
-
Magnetic
-

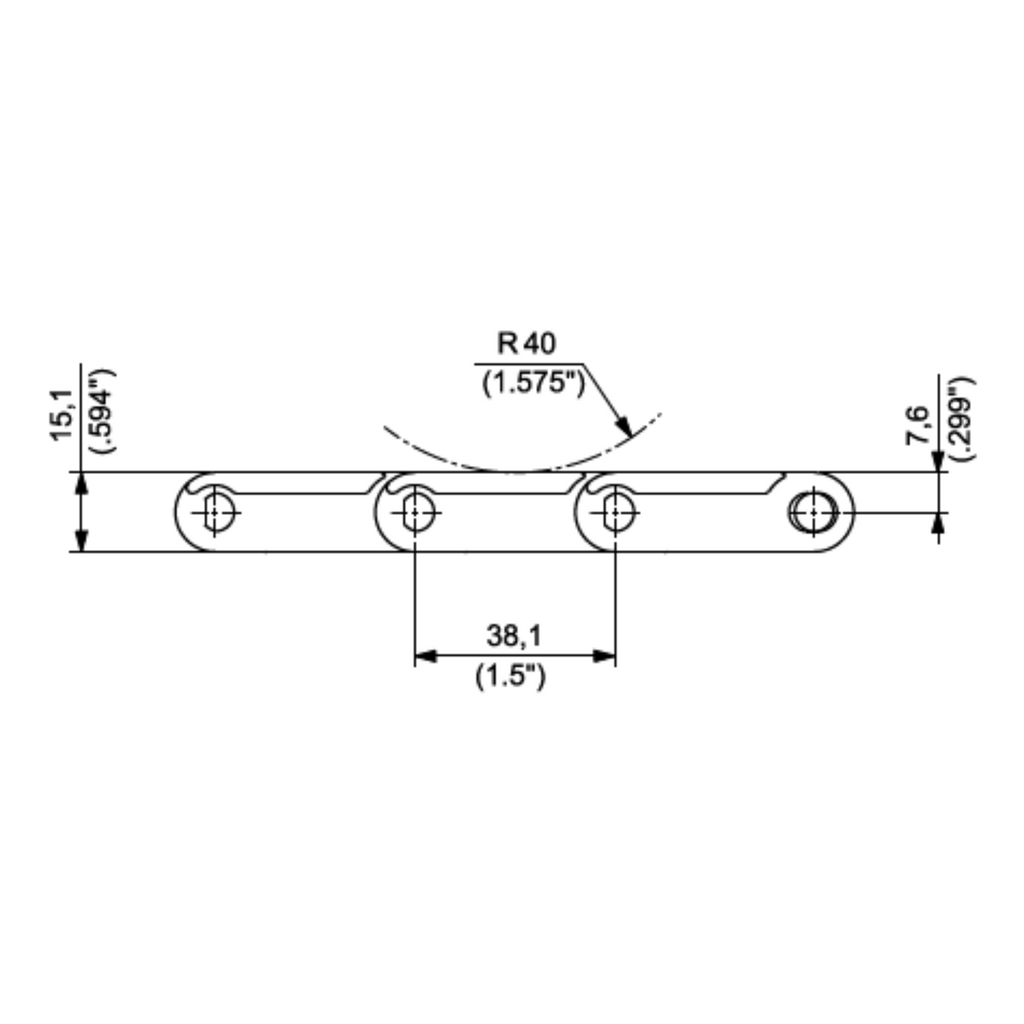

Pitch 1 ½” (38.1mm)
-

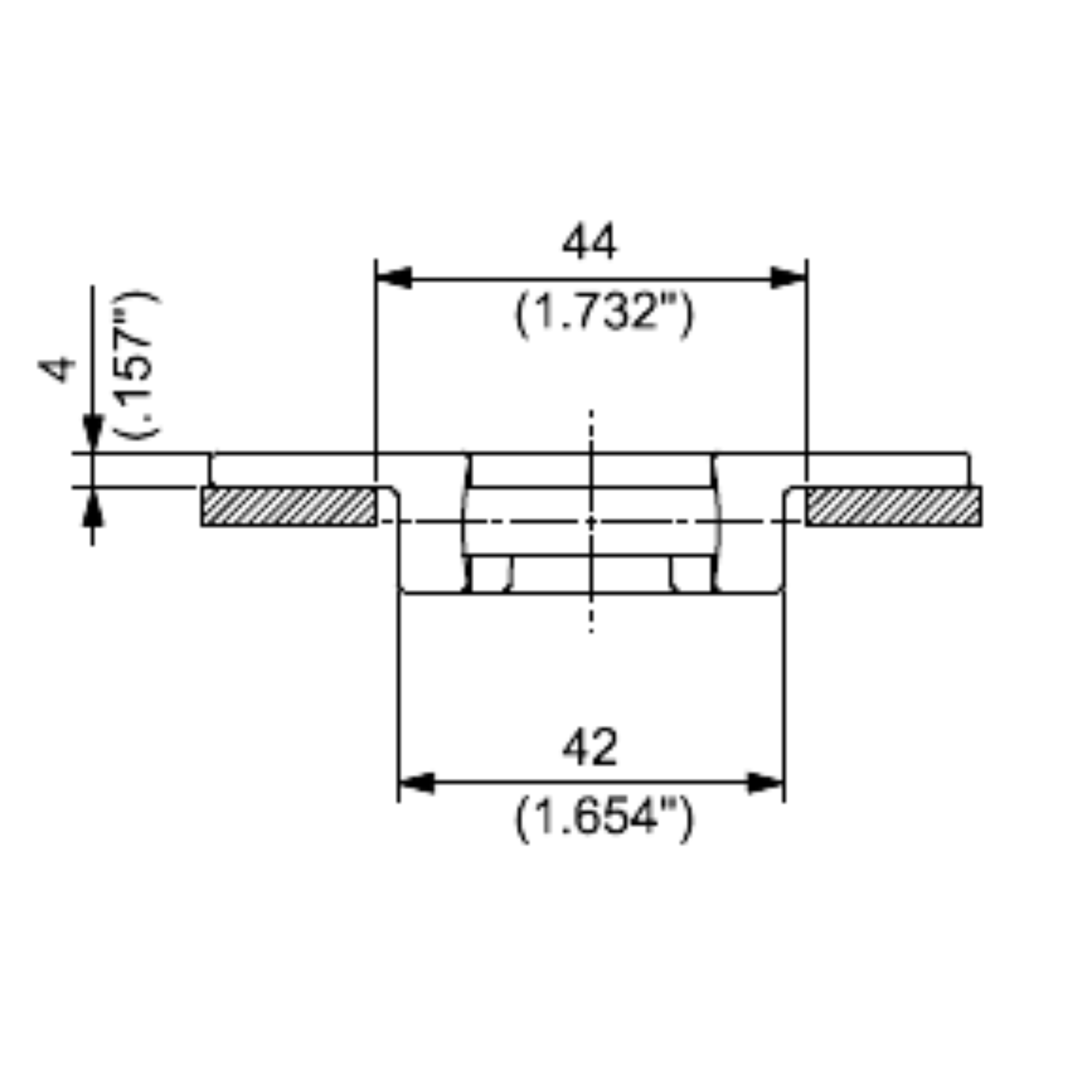

Thickness 4mm (0.157”)
-
Hinge 42mm (1.654”)
Standard packaging: Rolls of 3.048 meters
Information: Actual width can be up to 0.5% greater than nominal width
| Plate Material | Pin Material | Item Description | Part Number | Width (mm) | Plate Thickness (mm) | Sideflexing Radius (mm) | Working Load (N) | Weight (kg/m) | Stock |
|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin® (UP) | Magnetic Stainless Steel | UP 880M RG K 3 ¼" | UP880MRGKD/000 | 82.6 | 4.0 | 500.0 | 2000 | 0.98 | Available on Request |
| Ultra Performance Homopolymer Delrin® (UP) | Magnetic Stainless Steel | UP 880M RG K 3.3/8" | UP880MRGKRA/000 | 83.8 | 4.0 | 500.0 | 2000 | 0.99 | Available on Request |
| Ultra Performance Homopolymer Delrin® (UP) | Magnetic Stainless Steel | UP 880M RG K 4 ½" | UP880MRGKG/000 | 114.3 | 4.0 | 500.0 | 2000 | 1.07 | Available on Request |
| Special Delrin® Reinforced with Kevlar® (D2K) | Magnetic Stainless Steel | D2K 880M RG K 3 ¼" | D2K880MRGKD/000 | 82.6 | 4.0 | 500.0 | 2000 | 0.97 | Available on Request |
| Special Delrin® Reinforced with Kevlar® (D2K) | Magnetic Stainless Steel | D2K 880M RG K 3.3/8" | D2K880MRGKRA/000 | 83.8 | 4.0 | 500.0 | 2000 | 0.98 | Available on Request |
| Special Delrin® Reinforced with Kevlar® (D2K) | Magnetic Stainless Steel | D2K 880M RG K 4 ½" | D2K880MRGKG/000 | 114.3 | 4.0 | 500.0 | 2000 | 1.06 | Available on Request |
| Ecological Friction Abating Thermoplastic (EF) | Magnetic Stainless Steel | EF 880M RG K 3 ¼" | EF880MRGKD/000 | 82.6 | 4.0 | 500.0 | 2000 | 0.94 | Available on Request |
| Ecological Friction Abating Thermoplastic (EF) | Magnetic Stainless Steel | EF 880M RG K 3.3/8" | EF880MRGKRA/000 | 83.8 | 4.0 | 500.0 | 2000 | 0.95 | Available on Request |
| Ecological Friction Abating Thermoplastic (EF) | Magnetic Stainless Steel | EF 880M RG K 4 ½" | EF880MRGKG/000 | 114.3 | 4.0 | 500.0 | 2000 | 1.04 | Available on Request |
| Abrasion Resistant Polyamide® (AR) | Magnetic Stainless Steel | AR 880M RG K 4 ½" | AR880MRGKG/000 | 114.3 | 4.0 | 500.0 | 2000 | 0.73 | Available on Request |
