Description

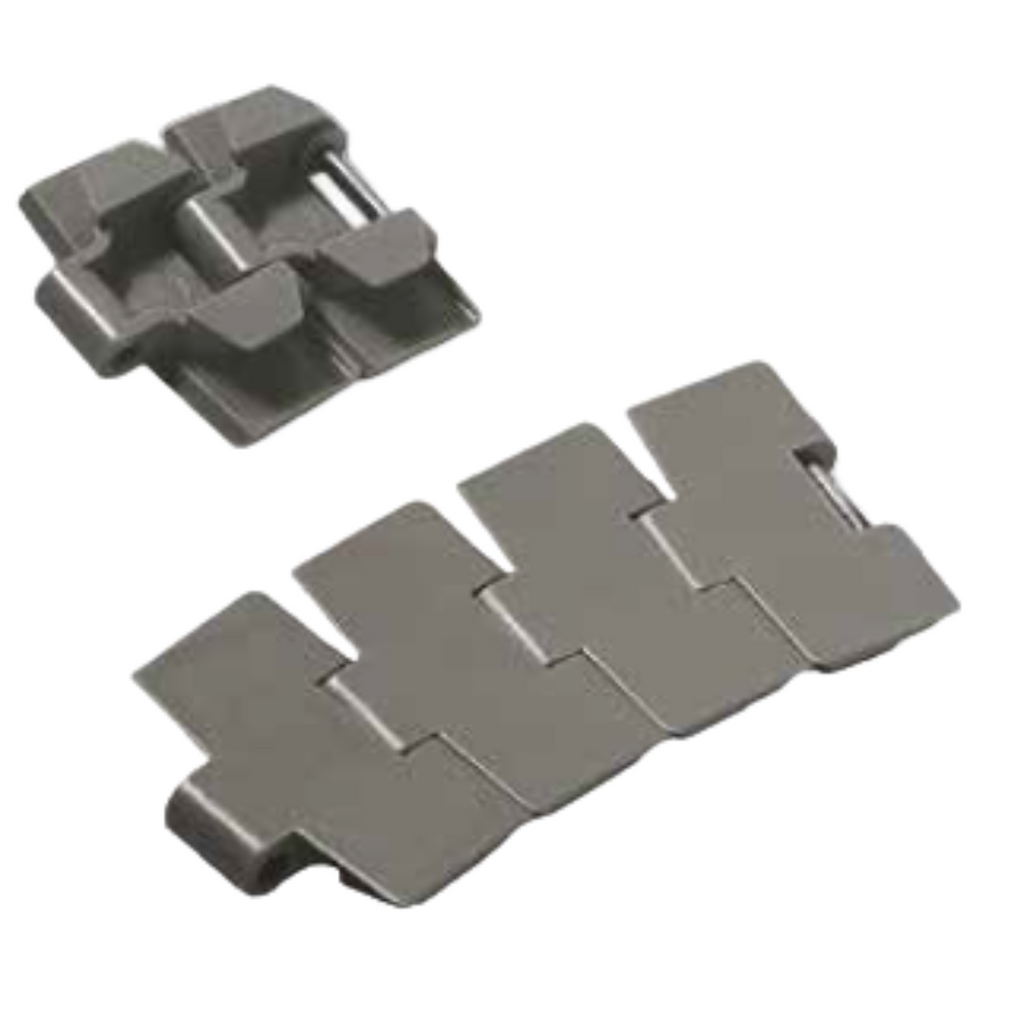

880T Series
Product information
-

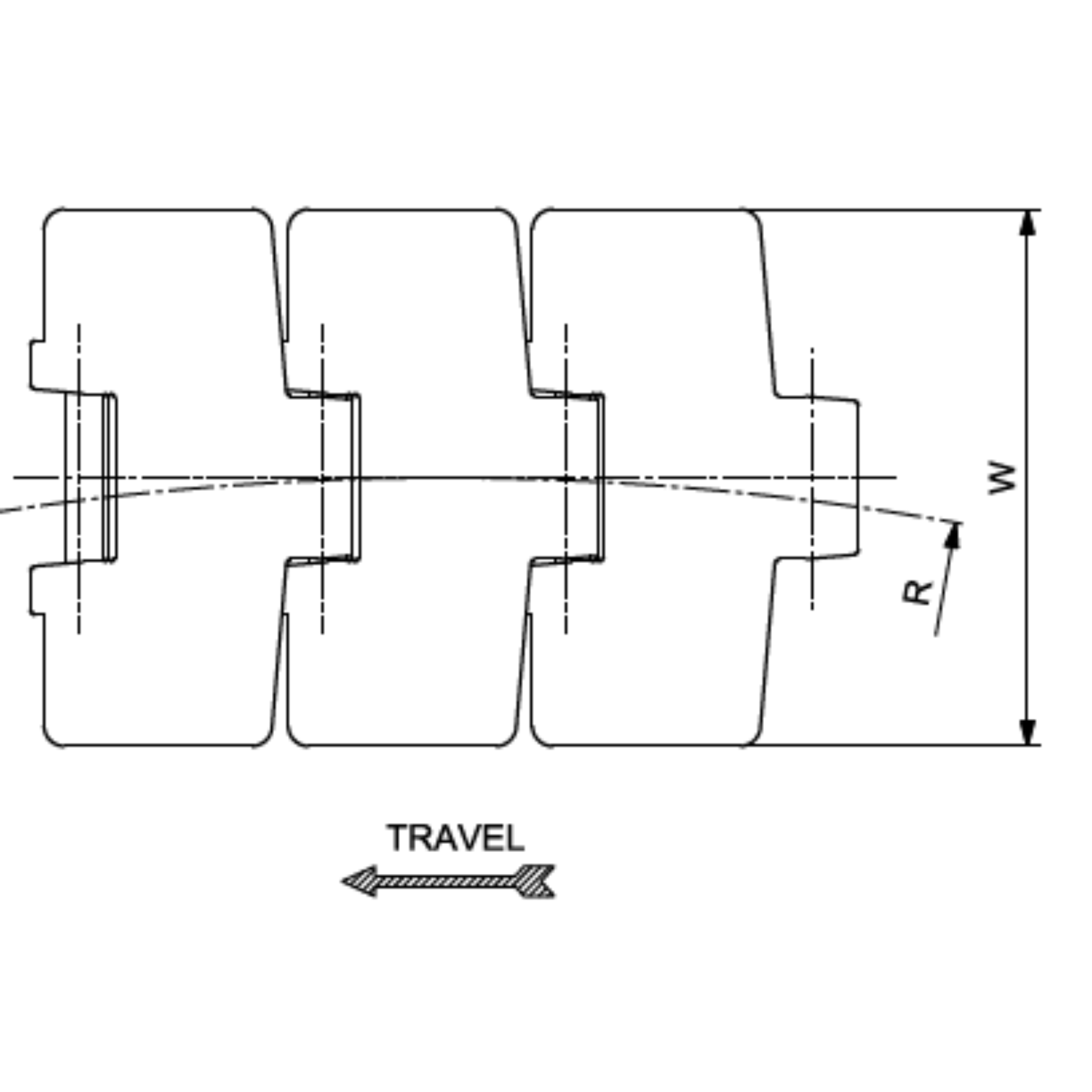

Sideflexing
-
TAB
-

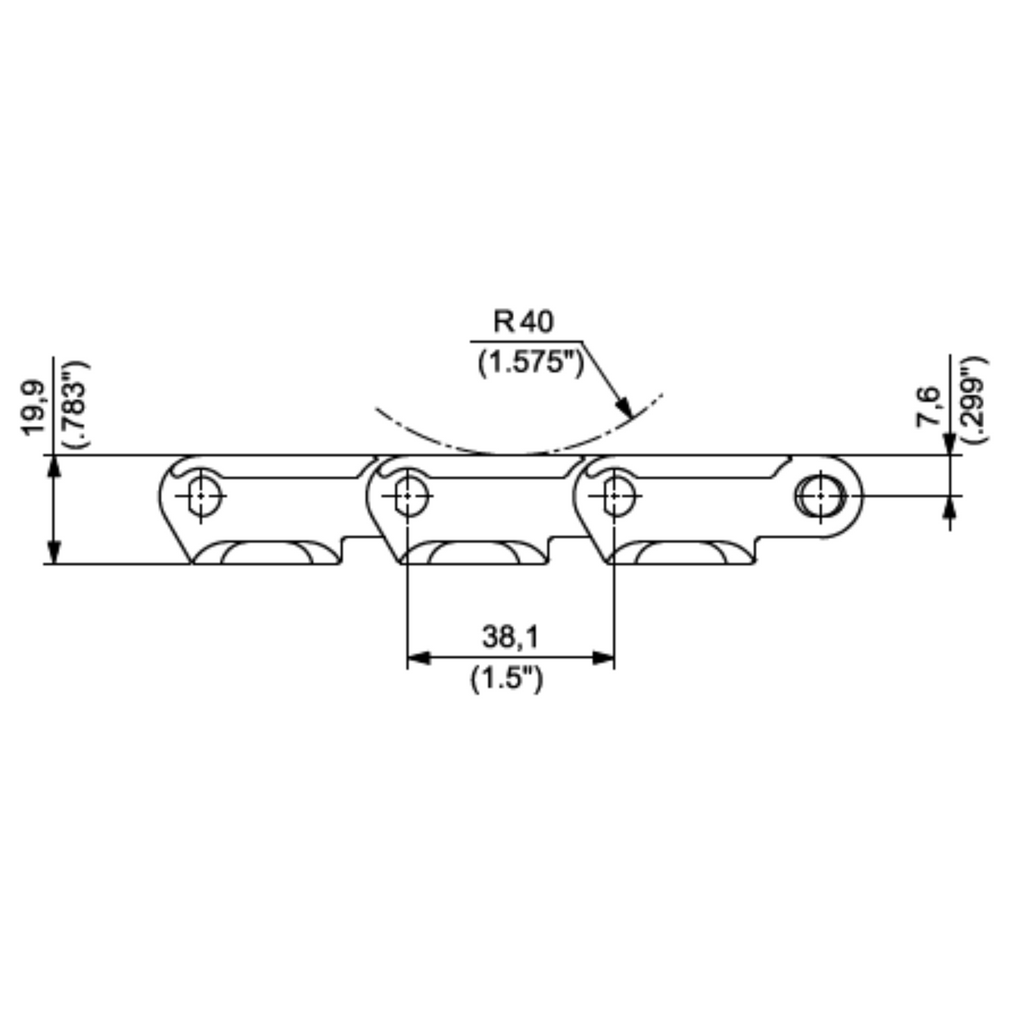

Pitch 1 ½” (38.1mm)
-

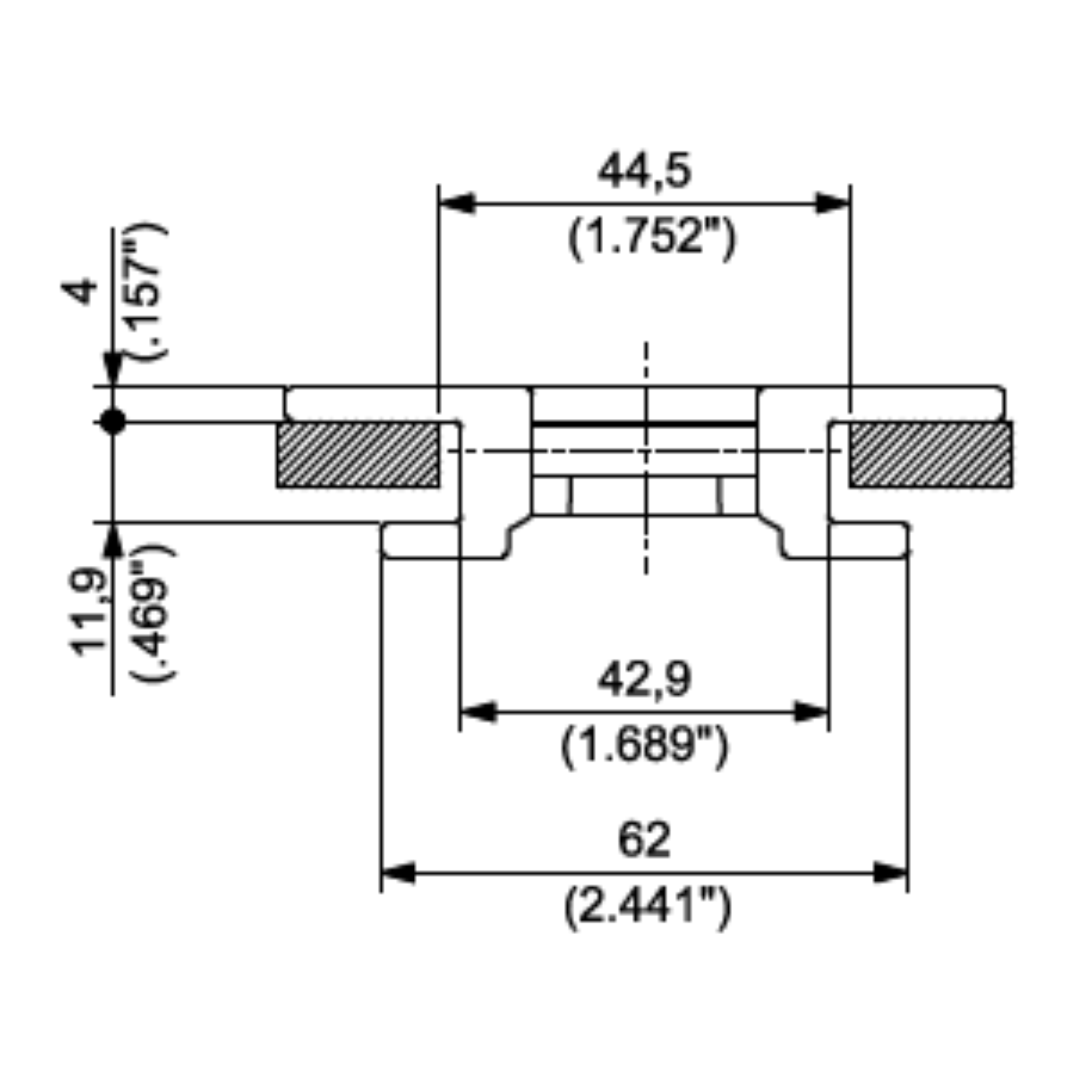

Thickness 4mm (0.157”)
-
Hinge 42.9mm (1.689”)
Standard packaging: Rolls of 3.048 meters
Information: Actual width can be up to 0.5% greater than nominal width
| Plate Material | Pin Material | Item Description | Part Number | Width (mm) | Plate Thickness (mm) | Sideflexing Radius (mm) | Working Load (N) | Weight (kg/m) | Stock |
|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 880T K 3 ¼" | UP880TKD/000 | 82.6 | 4.0 | 457.2 | 2000 | 0.71 | Available on Request |
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 880T K 3.3/8" | UP880TKRA/000 | 83.8 | 4.0 | 457.2 | 2000 | 0.72 | Available on Request |
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 880T K 4 ½" | UP880TKG/000 | 114.3 | 4.0 | 500.0 | 2000 | 0.85 | Available on Request |
| Special Delrin® Reinforced with Kevlar® (D2K) | Austenitic Stainless Steel | D2K 880T K 3 ¼" | D2K880TKD/000 | 82.6 | 4.0 | 457.2 | 2000 | 0.70 | Available on Request |
| Special Delrin® Reinforced with Kevlar® (D2K) | Austenitic Stainless Steel | D2K 880T K 3.3/8" | D2K880TKRA/000 | 83.8 | 4.0 | 457.2 | 2000 | 0.71 | Available on Request |
| Special Delrin® Reinforced with Kevlar® (D2K) | Austenitic Stainless Steel | D2K 880T K 4 ½" | D2K880TKG/000 | 114.3 | 4.0 | 500.0 | 2000 | 0.84 | Available on Request |
| Ecological Friction Abating Thermoplastic (EF) | Austenitic Stainless Steel | EF 880T K 3 ¼" | EF880TKD/000 | 82.6 | 4.0 | 457.2 | 2000 | 0.69 | Available on Request |
| Ecological Friction Abating Thermoplastic (EF) | Austenitic Stainless Steel | EF 880T K 3.3/8" | EF880TKRA/000 | 83.8 | 4.0 | 457.2 | 2000 | 0.70 | Available on Request |
| Ecological Friction Abating Thermoplastic (EF) | Austenitic Stainless Steel | EF 880T K 4 ½" | EF880TKG/000 | 114.3 | 4.0 | 500.0 | 2000 | 0.82 | Available on Request |
| Abrasion Resistant Polyamide® (AR) | Austenitic Stainless Steel | AR 880T K 3 ¼" | AR880TKD/000 | 82.6 | 4.0 | 457.2 | 2000 | 0.68 | Available on Request |
| Abrasion Resistant Polyamide® (AR) | Austenitic Stainless Steel | AR 880T K 4 ½" | AR880TKG/000 | 114.3 | 4.0 | 500.0 | 2000 | 0.69 | Available on Request |
