Description
HFX 880T Series
Product information
-

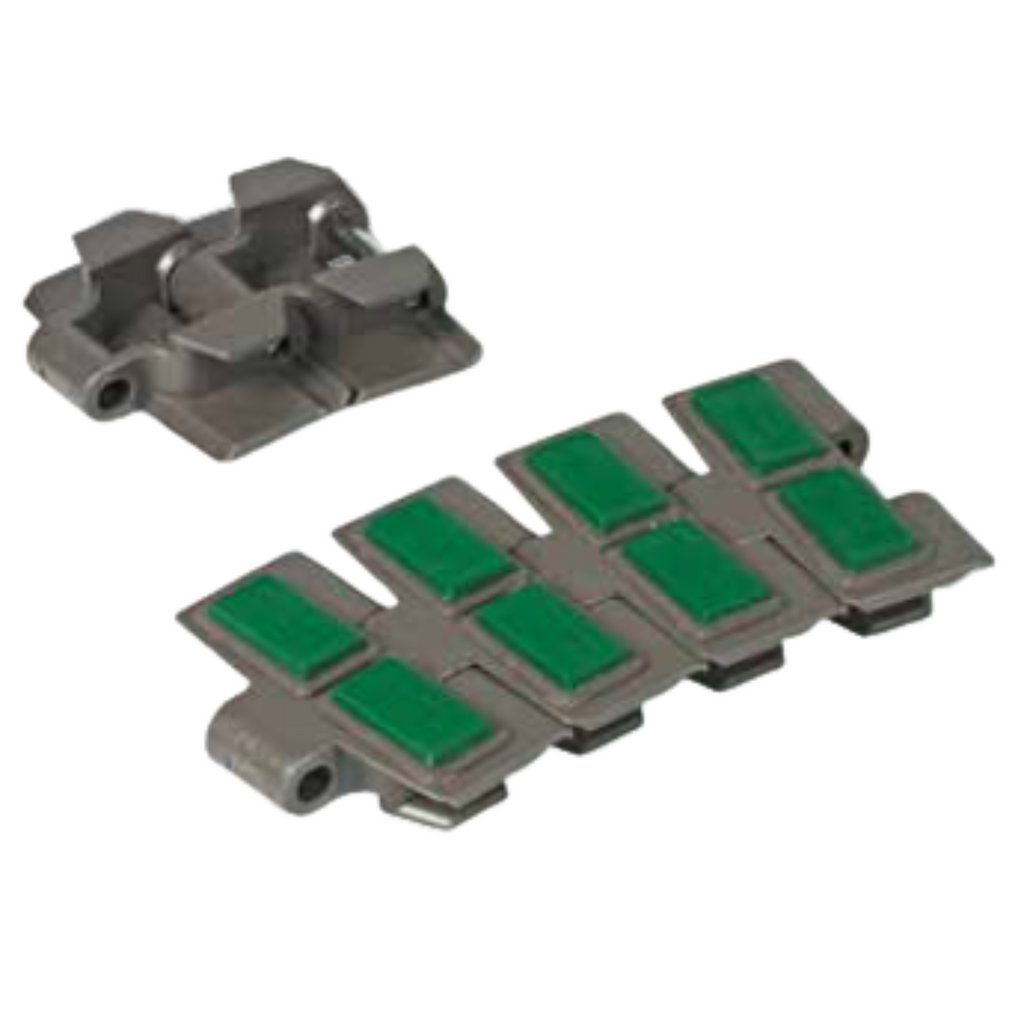

Sideflexing rubber top
-
TAB
-

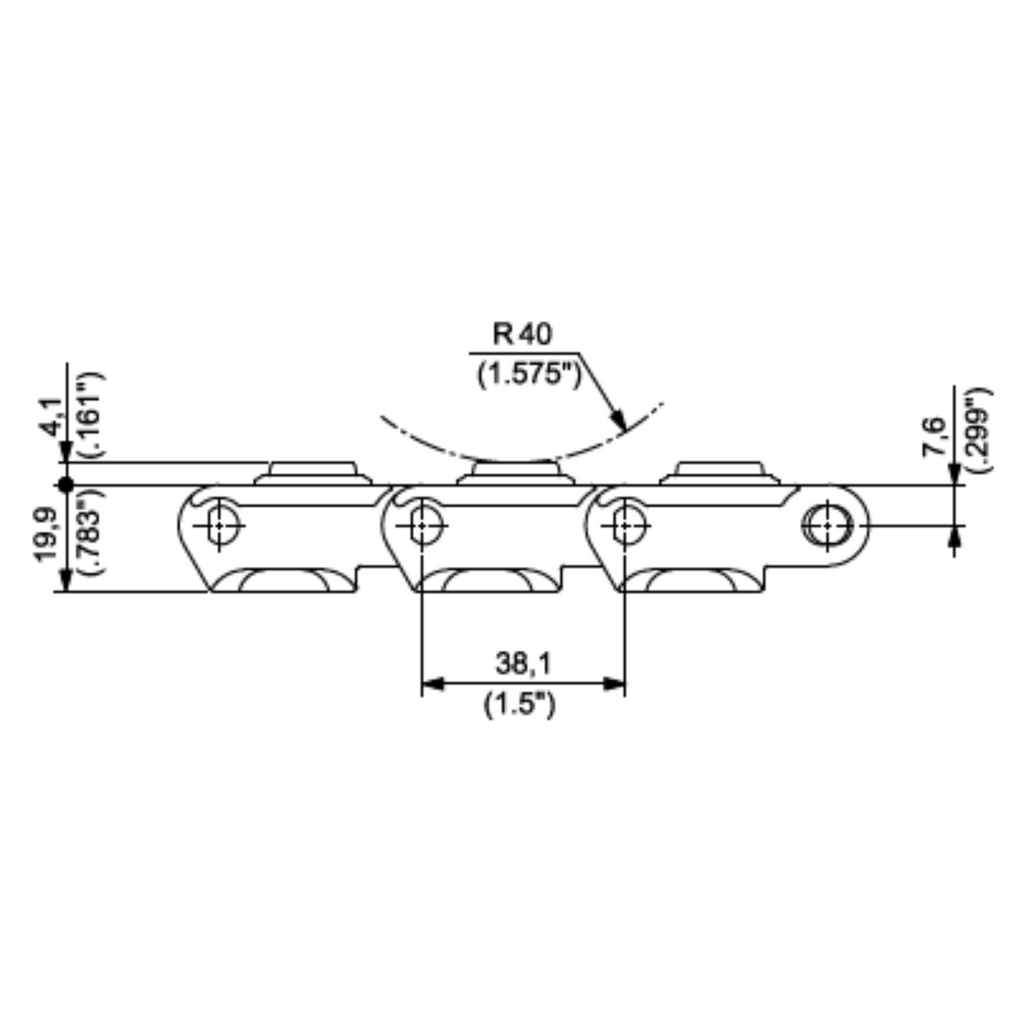

Pitch 1 ½” (38.1mm)
-
Thickness 4mm (0.157”)
-

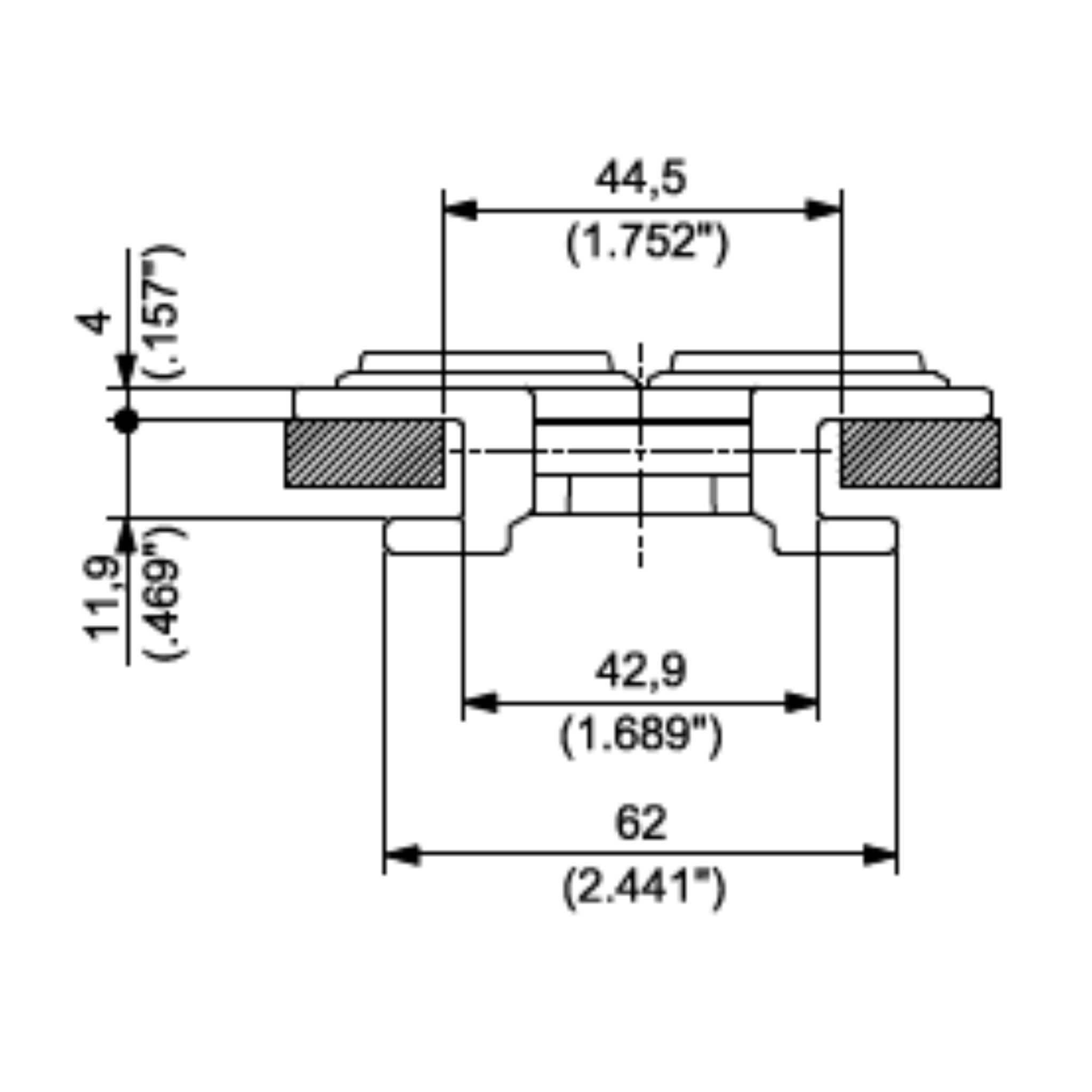

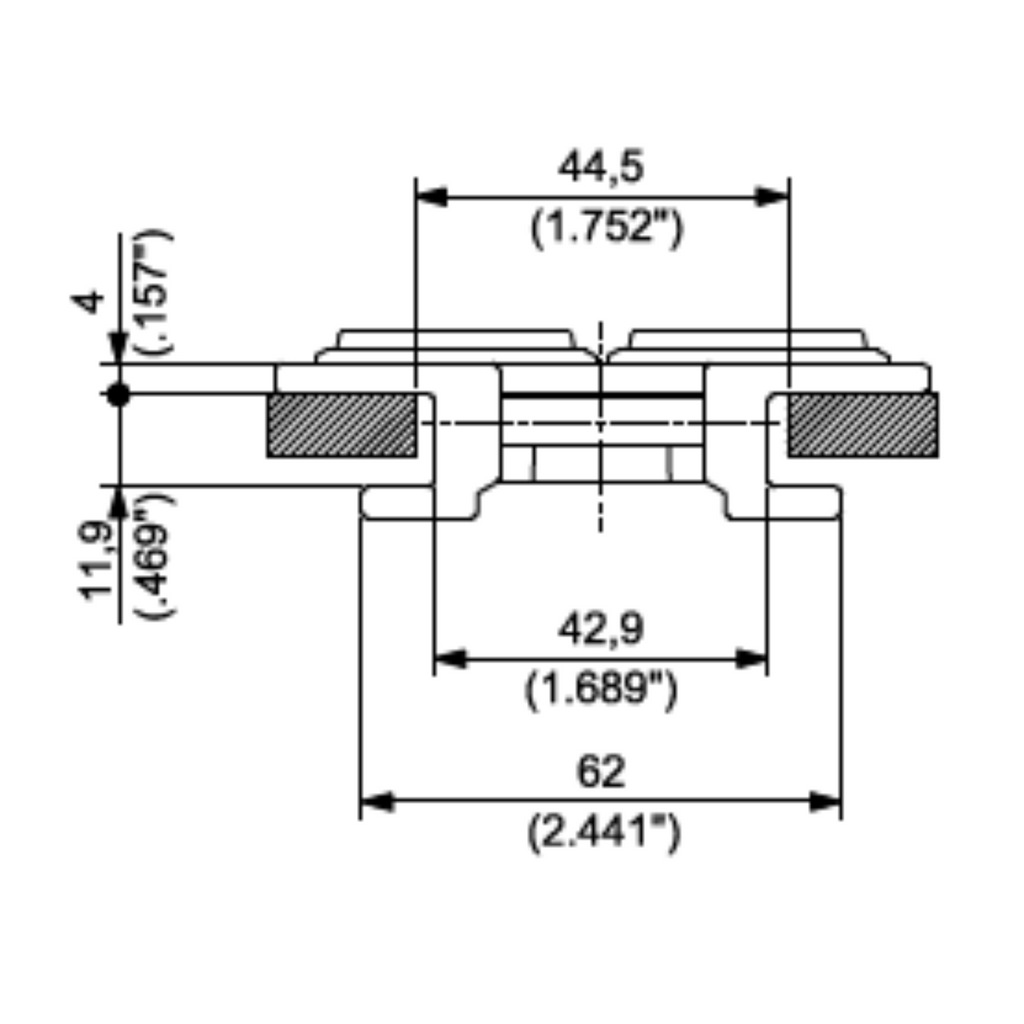

Hinge 42.9mm (1.689”)
Standard packaging: Rolls of 3.048 meters
Information: Actual width can be up to 0.5% greater than nominal width

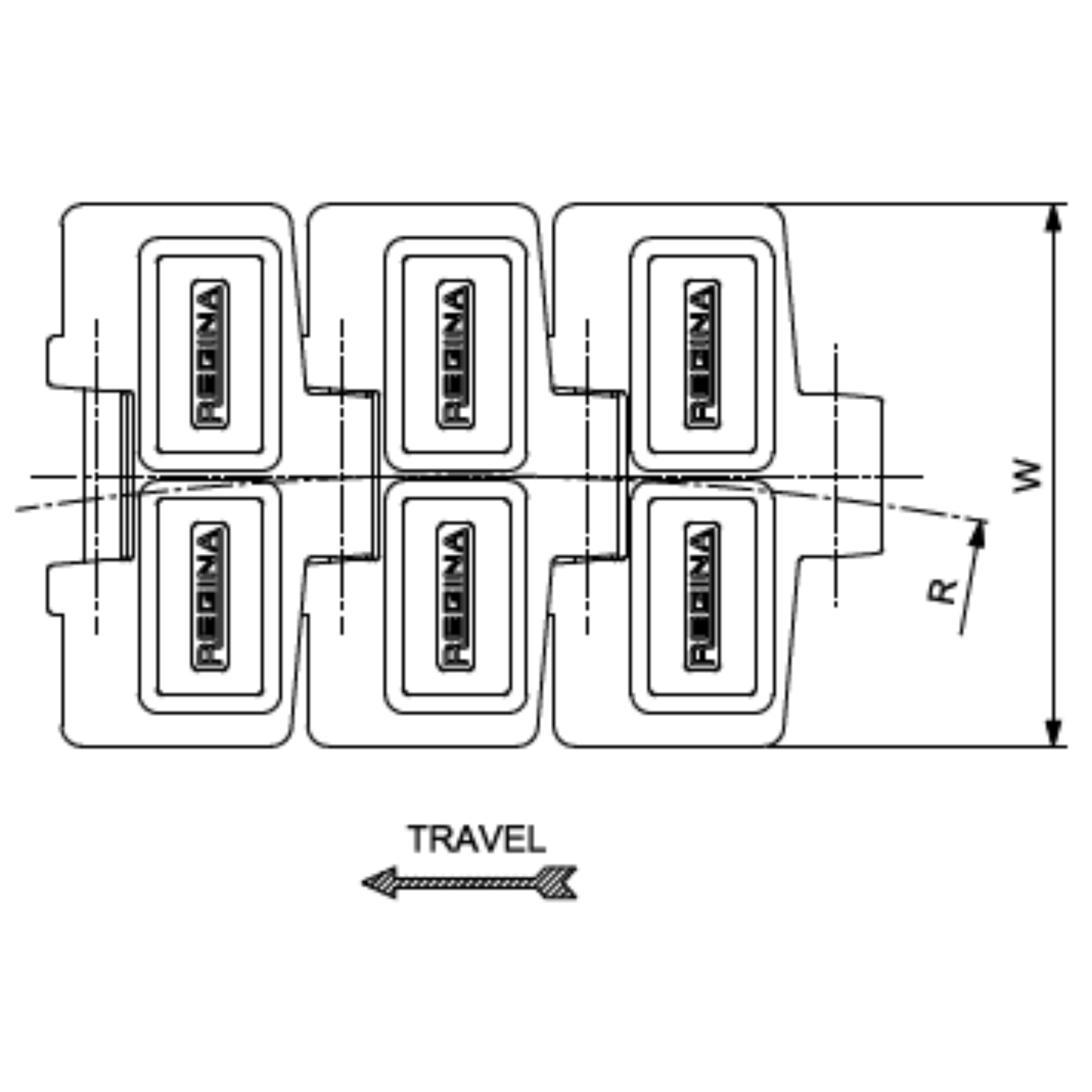

For information on the rubber pad positioning, refer to the catalogue.
| Plate Material | Pin Material | Rubber Material | Item Description | Part Number | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Sideflexing Radius (mm) | Sideflexing Radius (inch) | Working Load (N) | Working Load (lbs) | Weight (kg/m) | Weight (lbs/ft) | Stock |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | Thermoplastic (70 ShA) | HFX 880T UP K 3¼ | HFX880TKD/000 | 82.6 | 3.25 | 4.0 | 0.16 | 457.2 | 18.00 | 2750 | 618 | 1.33 | 0.89 | Available on Request |
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | Thermoplastic (70 ShA) | HFX 880T UP K 4½ | HFX880TKG/000 | 114.3 | 4.50 | 4.0 | 0.16 | 500.0 | 19.69 | 2750 | 618 | 1.50 | 1.00 | Available on Request |
