Description

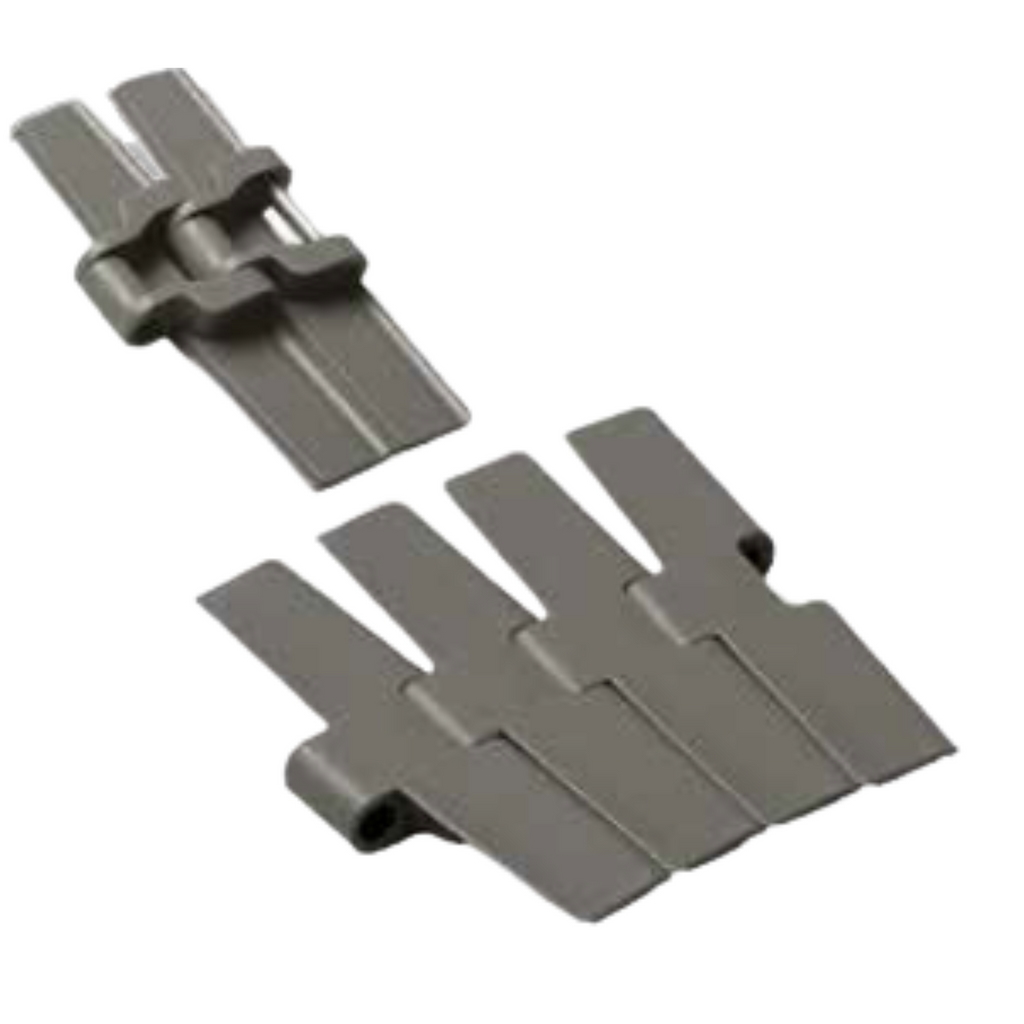

882T Series
Product information
-

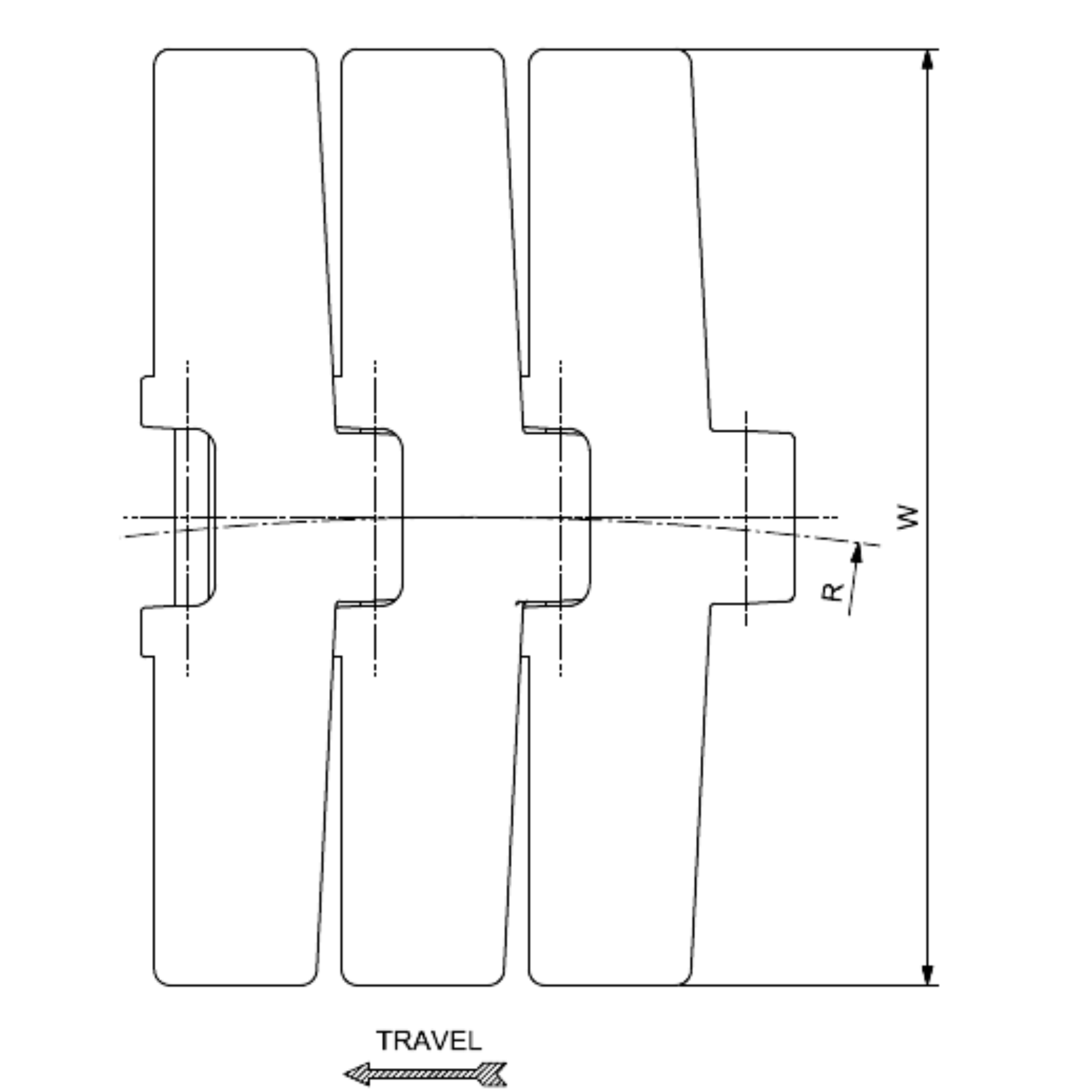

Sideflexing
-
TAB
-
Heavy duty single hinge
-

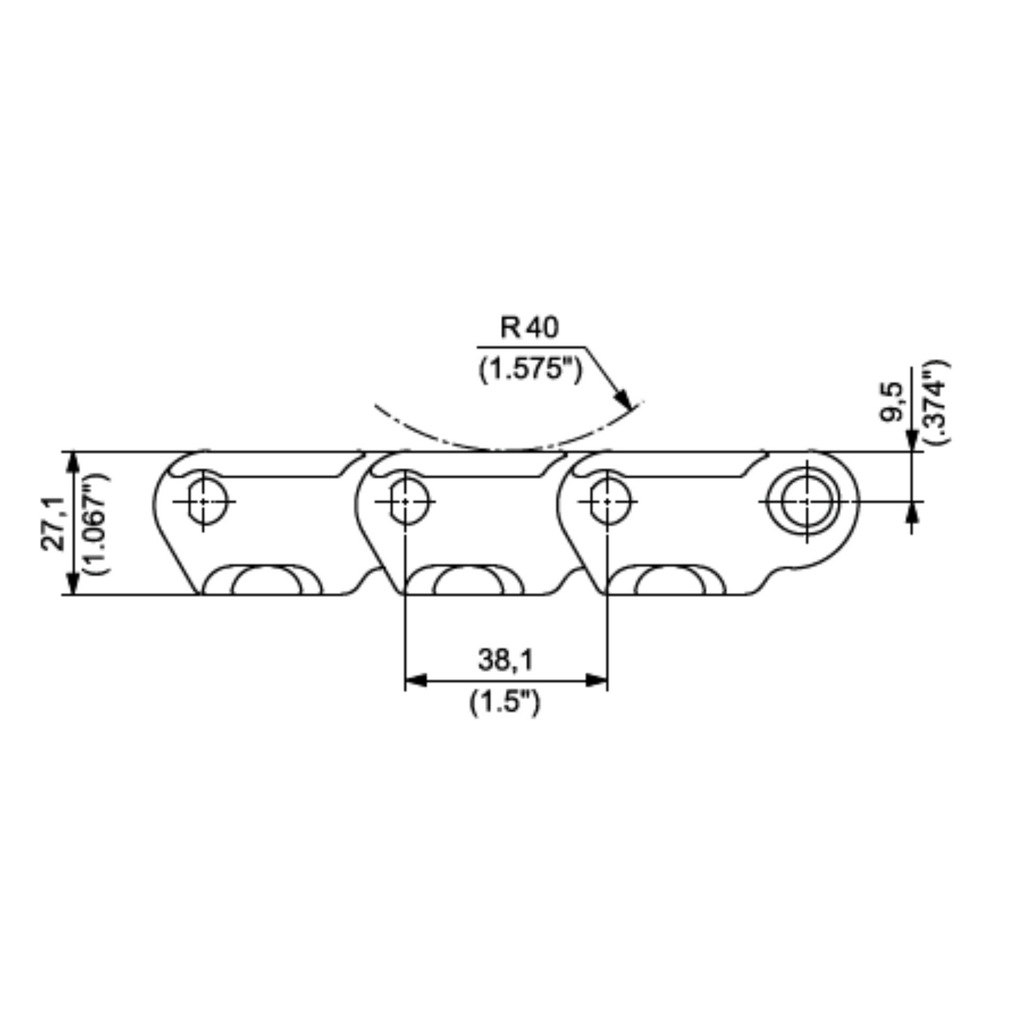

Pitch 1 ½” (38.1mm)
-

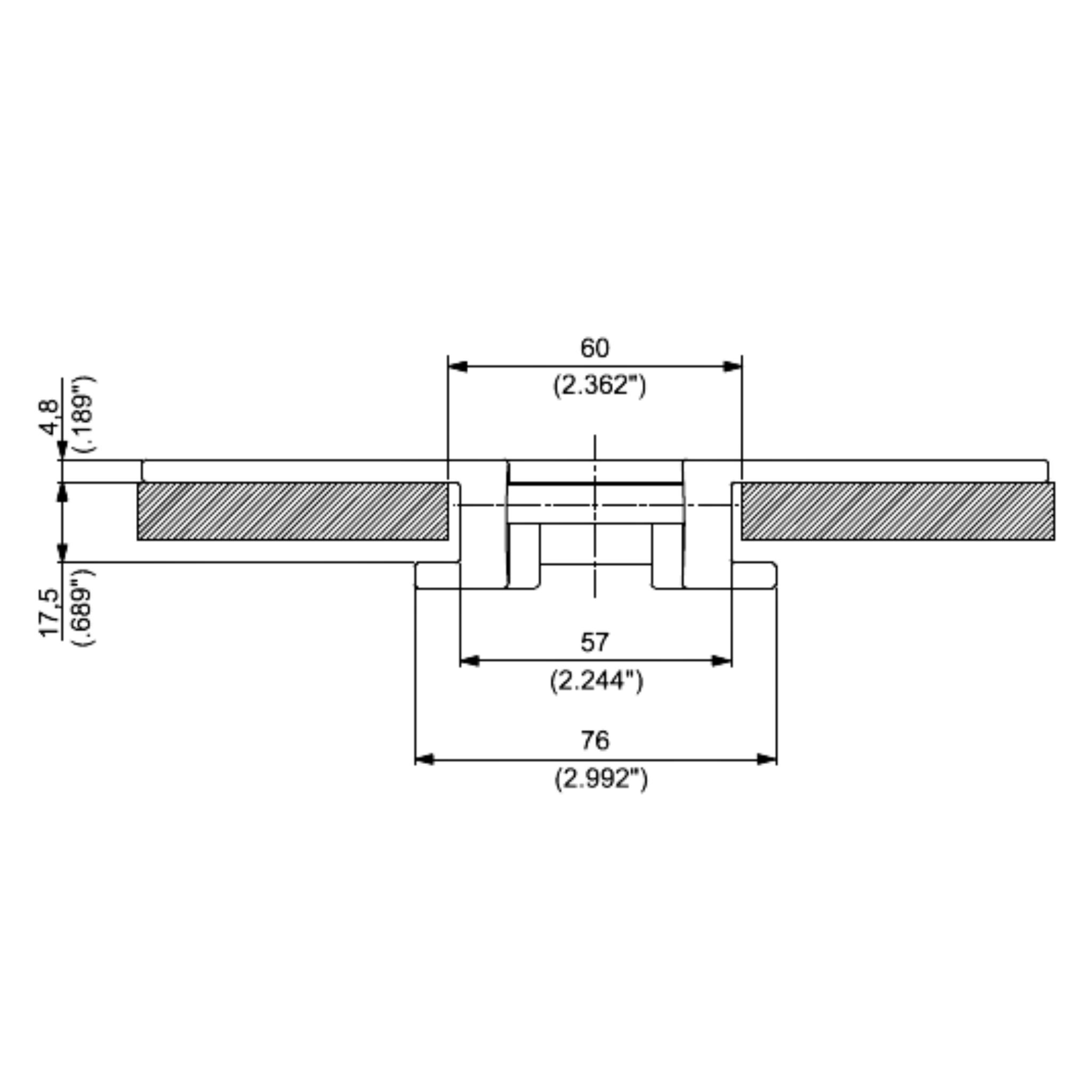

Thickness 4.8mm (0.189”)
-
Hinge 57mm (2.244””)
Standard packaging: Rolls of 3.048 meters
Information: Actual width can be up to 0.5% greater than nominal width
| Plate Material | Pin Material | Item Description | Part Number | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Sideflexing Radius (mm) | Sideflexing Radius (inch) | Working Load (N) | Working Load (lbs) | Weight (kg/m) | Weight (lbs/ft) | Stock |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | UP 882T K 4½ | UP882TKG/000 | 114.3 | 4.50 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.05 | 1.38 | Available on Request |
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | UP 882T K 6 | UP882TKH/000 | 152.4 | 6.00 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.25 | 1.51 | Available on Request |
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | UP 882T K 7½ | UP882TKL/000 | 190.5 | 7.50 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.45 | 1.64 | Available on Request |
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | UP 882T K 10 | UP882TKM/000 | 254.0 | 10.00 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.75 | 1.85 | Available on Request |
| Ultra Performance Homopolymer Delrin (UP) | Austenitic Stainless Steel | UP 882T K 12 | UP882TKN/000 | 304.8 | 12.00 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.99 | 2.01 | Available on Request |
| Special Delrin Reinforced with Kevlar (D2K) | Austenitic Stainless Steel | D2K 882T K 4½ | D2K882TKG/000 | 114.3 | 4.50 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.05 | 1.38 | Available on Request |
| Special Delrin Reinforced with Kevlar (D2K) | Austenitic Stainless Steel | D2K 882T K 6 | D2K882TKH/000 | 152.4 | 6.00 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.25 | 1.51 | Available on Request |
| Special Delrin Reinforced with Kevlar (D2K) | Austenitic Stainless Steel | D2K 882T K 7½ | D2K882TKL/000 | 190.5 | 7.50 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.45 | 1.64 | Available on Request |
| Ecological Friction Abating Thermoplastic (EF) | Austenitic Stainless Steel | EF 882T K 4½ | EF882TKG/000 | 114.3 | 4.50 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.05 | 1.38 | Available on Request |
