Description

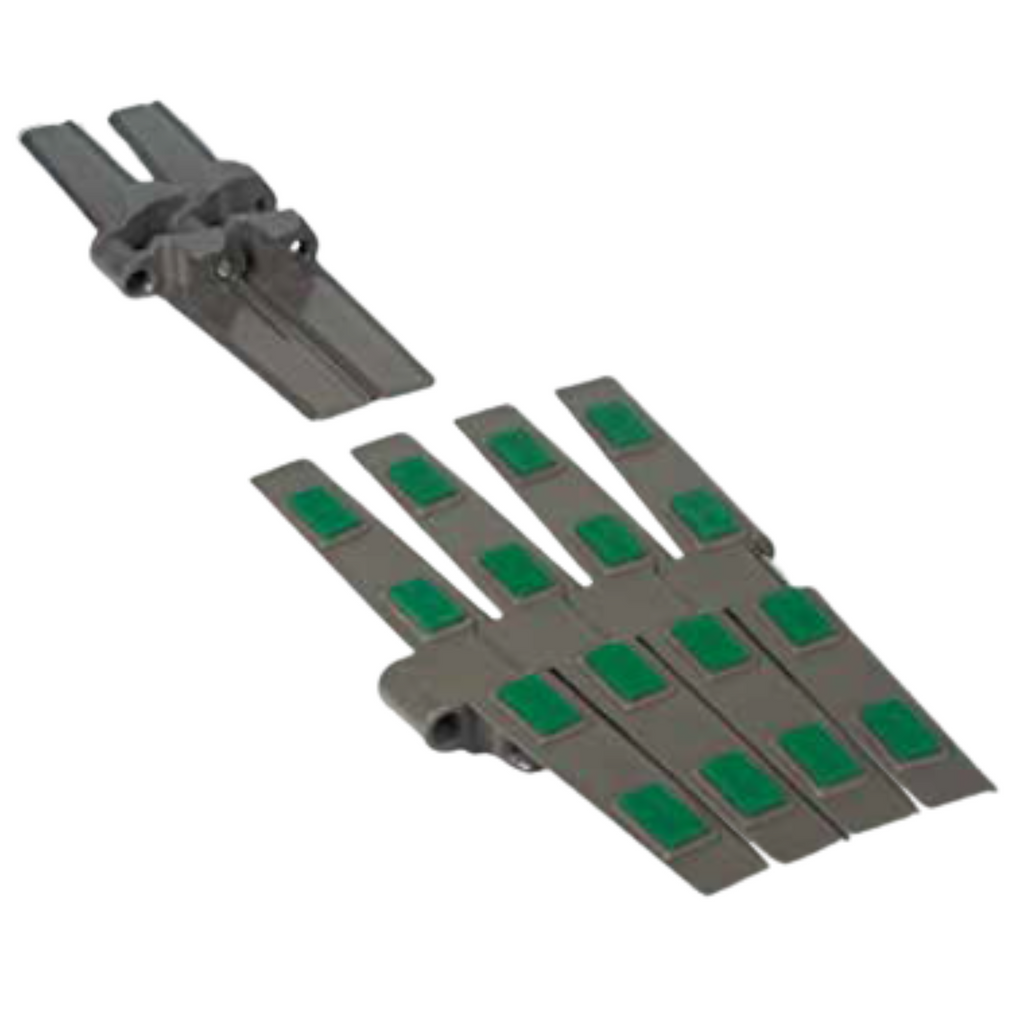

HFX 882T Series
Product information
-

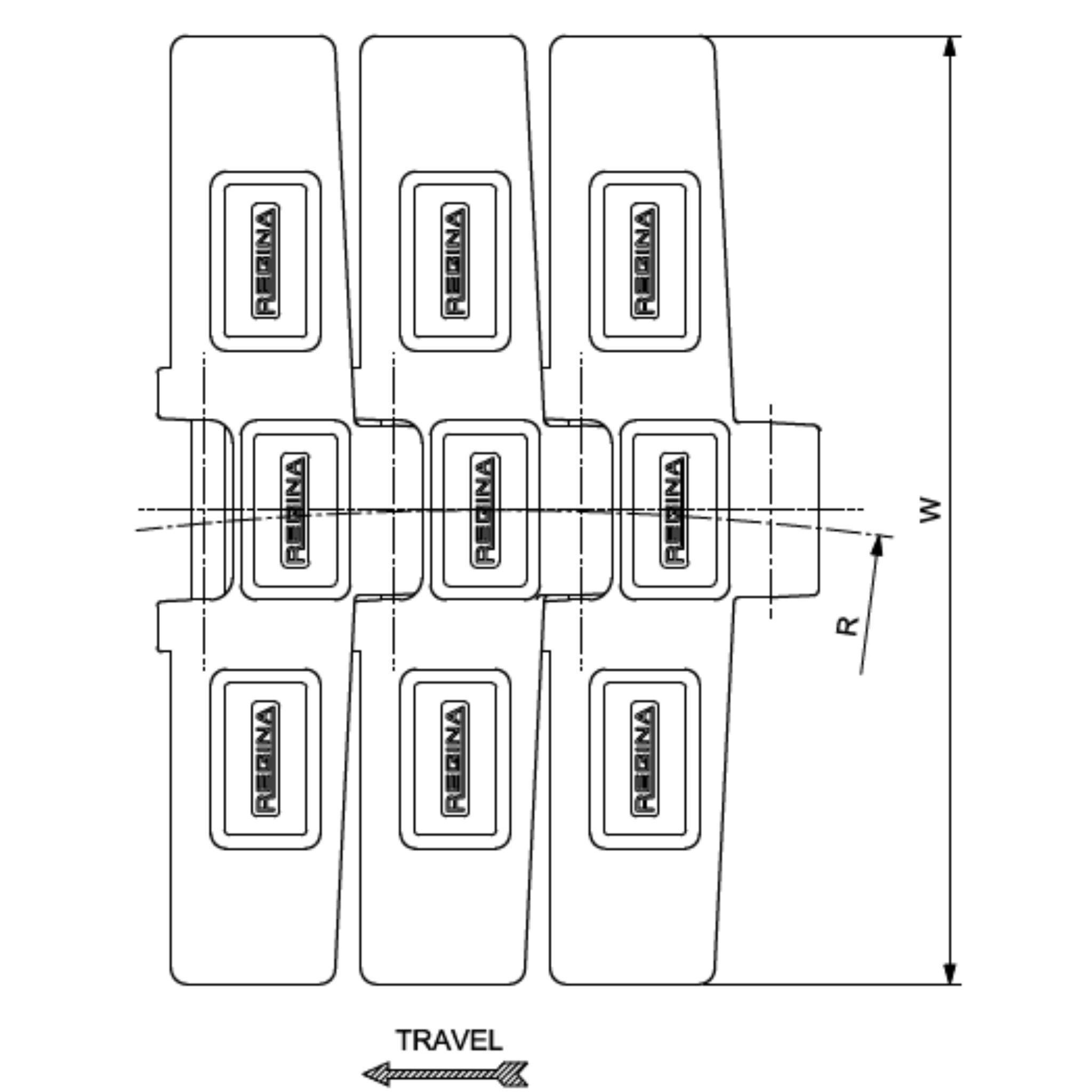

Sideflexing rubber top
-
TAB
-
Heavy duty single hinge
-

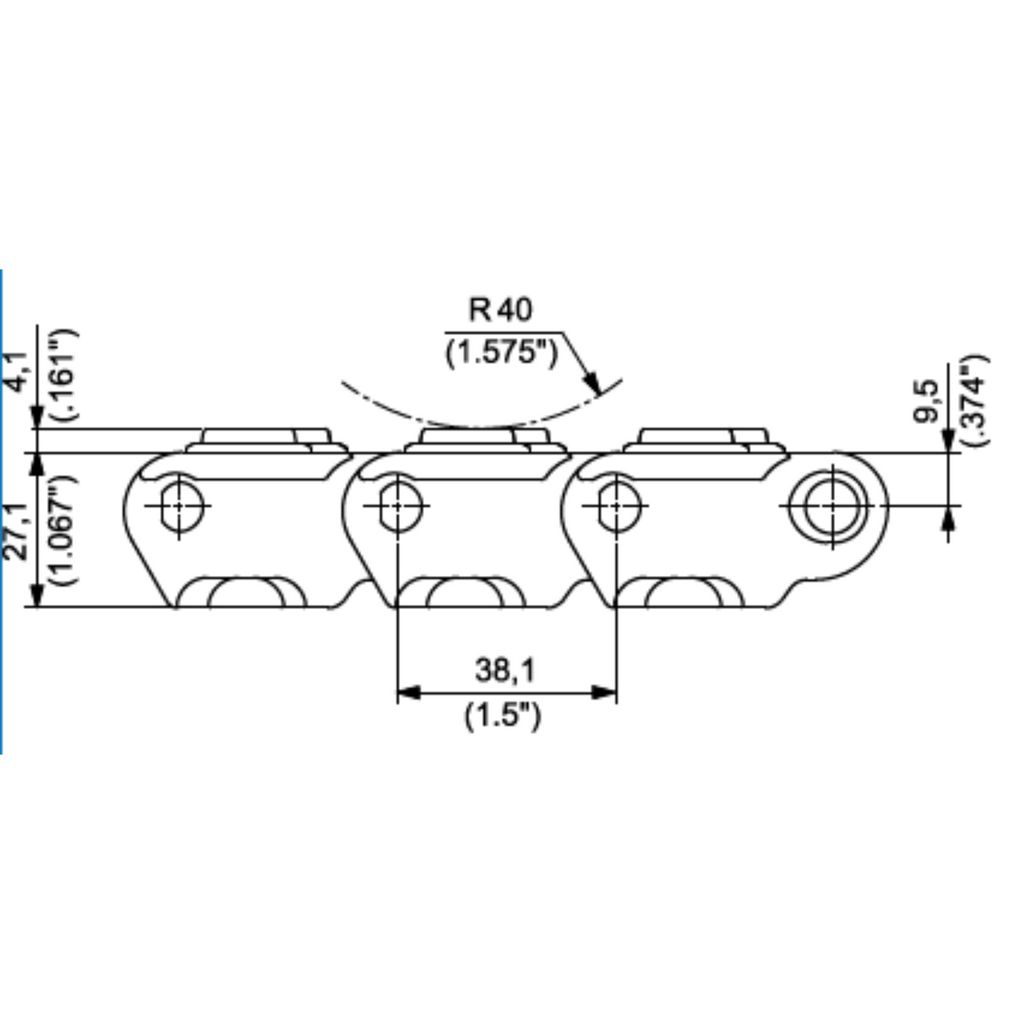

Pitch 1 ½” (38.1mm)
-
Thickness 4.8mm (0.189”)
-

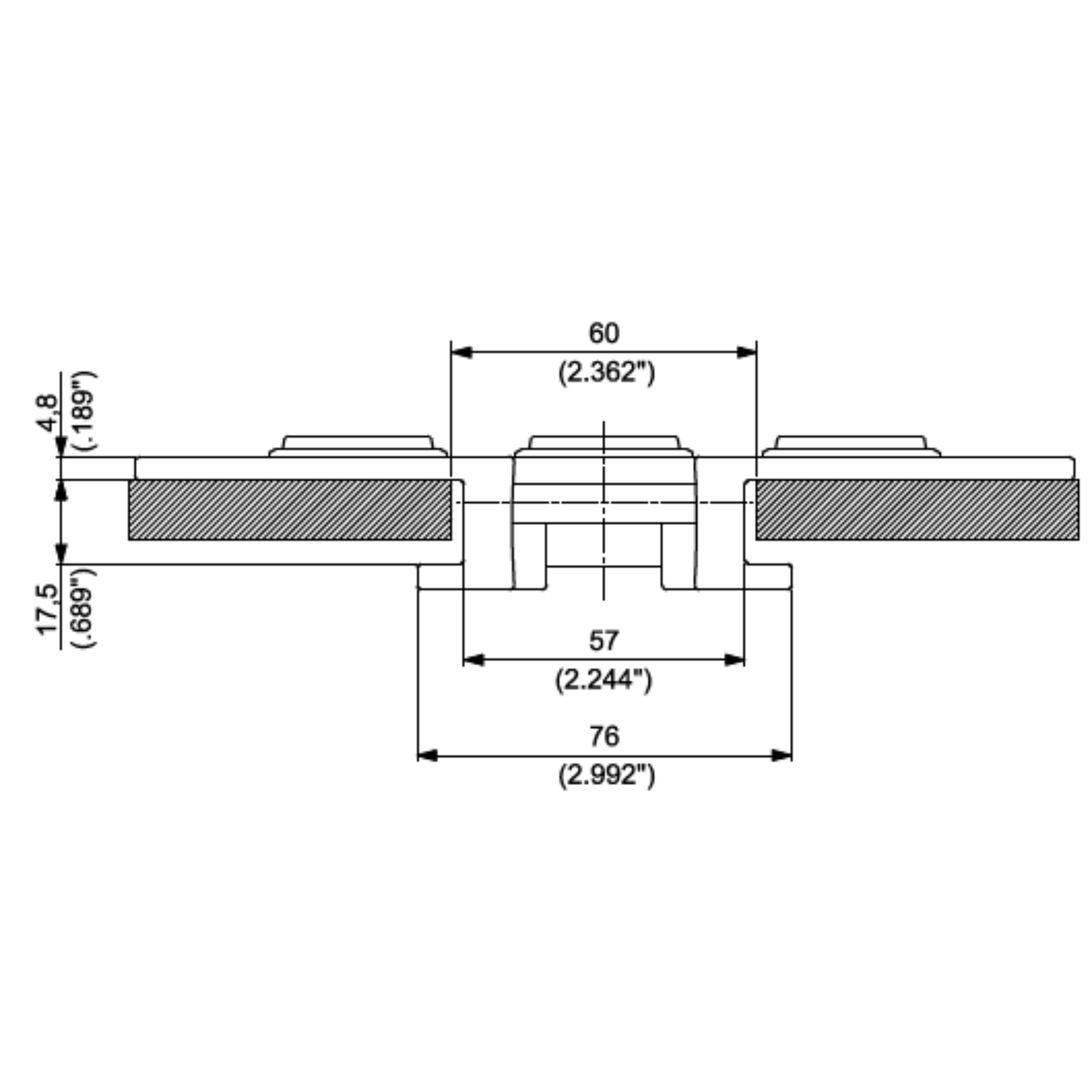

Hinge 57mm (2.244””)
Standard packaging: Rolls of 3.048 meters
Information: Actual width can be up to 0.5% greater than nominal width
For information about the rubber pad positioning, refer to the catalogue.
| Plate | Pin | Rubber | Item | Part No | Width (mm/in) | Plate Thk / Pin Thk (mm) | Sideflex (mm/in) | Load (N/lbs) | Weight (kg/m / lbs/ft) | Stock |
|---|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Delrin | Austenitic SS | Thermoplastic 70 ShA | HFX 882T UP K 4½ | HFX882TKG/000 | 114.3 / 4.50 | 4.8 / 4.8 | 609.6 / 0.19 | 3910 / 879 | 2.25 / 1.71 | Available on Request |
| Ultra Performance Delrin | Austenitic SS | Thermoplastic 70 ShA | HFX 882T UP K 7½ | HFX882TKL/000 | 190.5 / 7.50 | 4.8 / 4.8 | 609.6 / 0.19 | 3910 / 879 | 2.64 / 1.78 | Available on Request |
| Ultra Performance Delrin | Austenitic SS | Thermoplastic 70 ShA | HFX 882T UP K 10 | HFX882TKM/000 | 254.0 / 10.00 | 4.8 / 4.8 | 609.6 / 0.19 | 3910 / 879 | 2.95 / 1.98 | Available on Request |
| Ultra Performance Delrin | Austenitic SS | Thermoplastic 70 ShA | HFX 882T UP K 12 | HFX882TKN/000 | 304.8 / 12.00 | 4.8 / 4.8 | 609.6 / 0.19 | 3910 / 879 | 3.25 / 2.18 | Available on Request |
