Description
HFX 882M Series
Product information
-

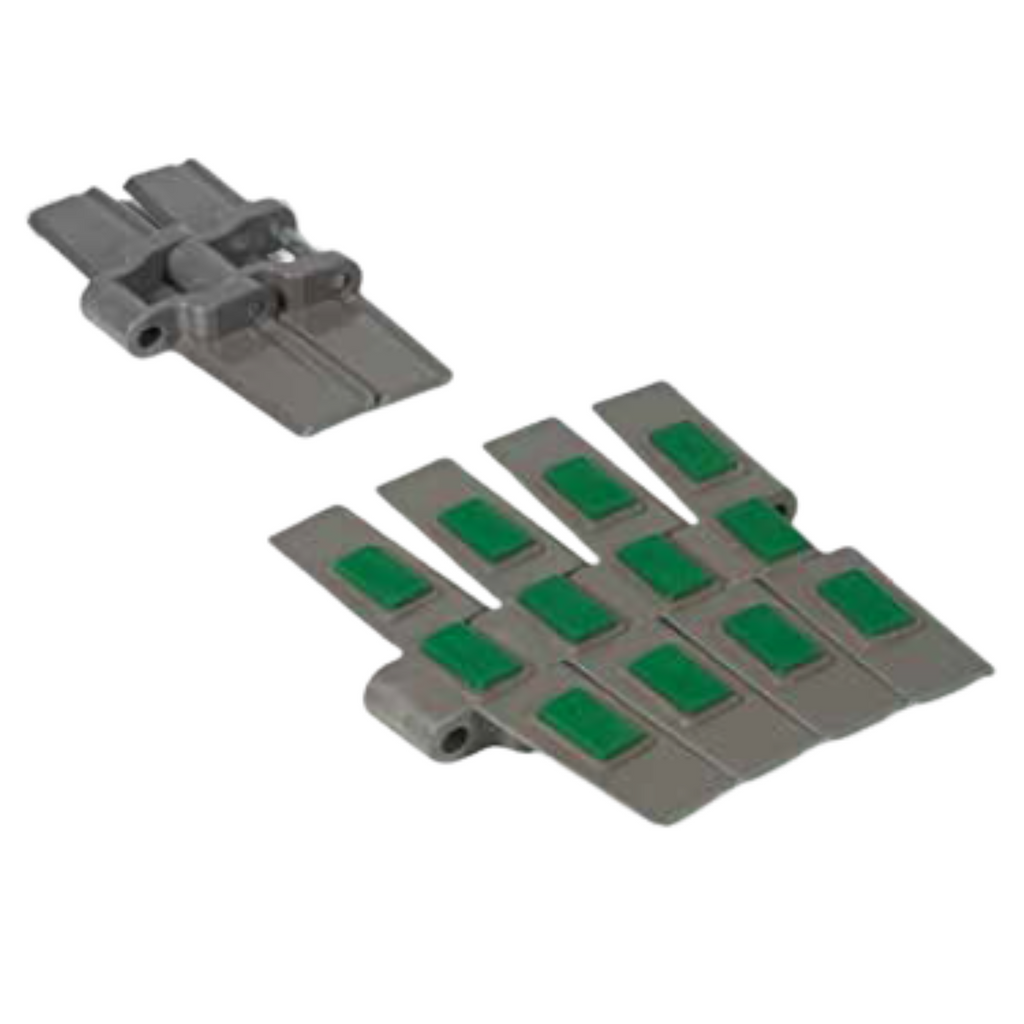

Sideflexing rubber top
-
Magnetic
-
Heavy duty single hinge
-

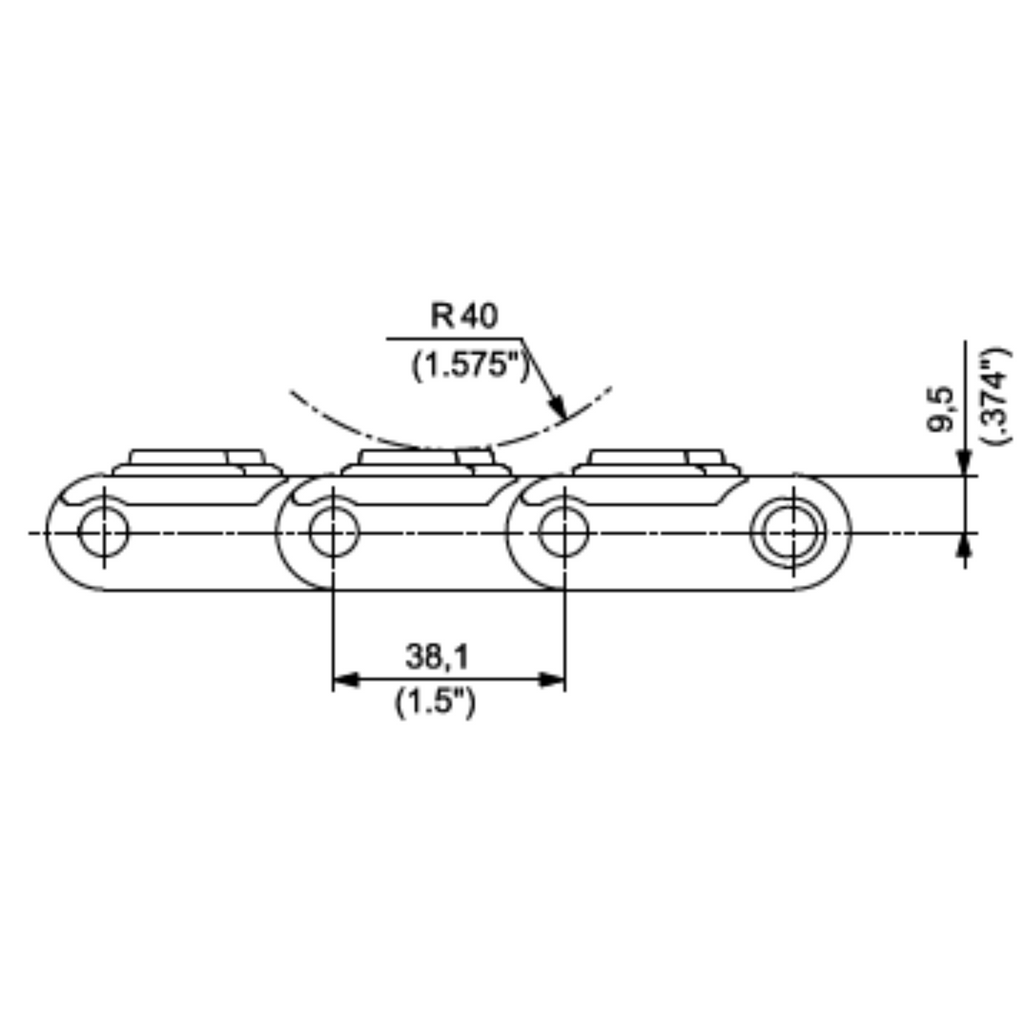

Pitch 1 ½” (38.1mm)
-

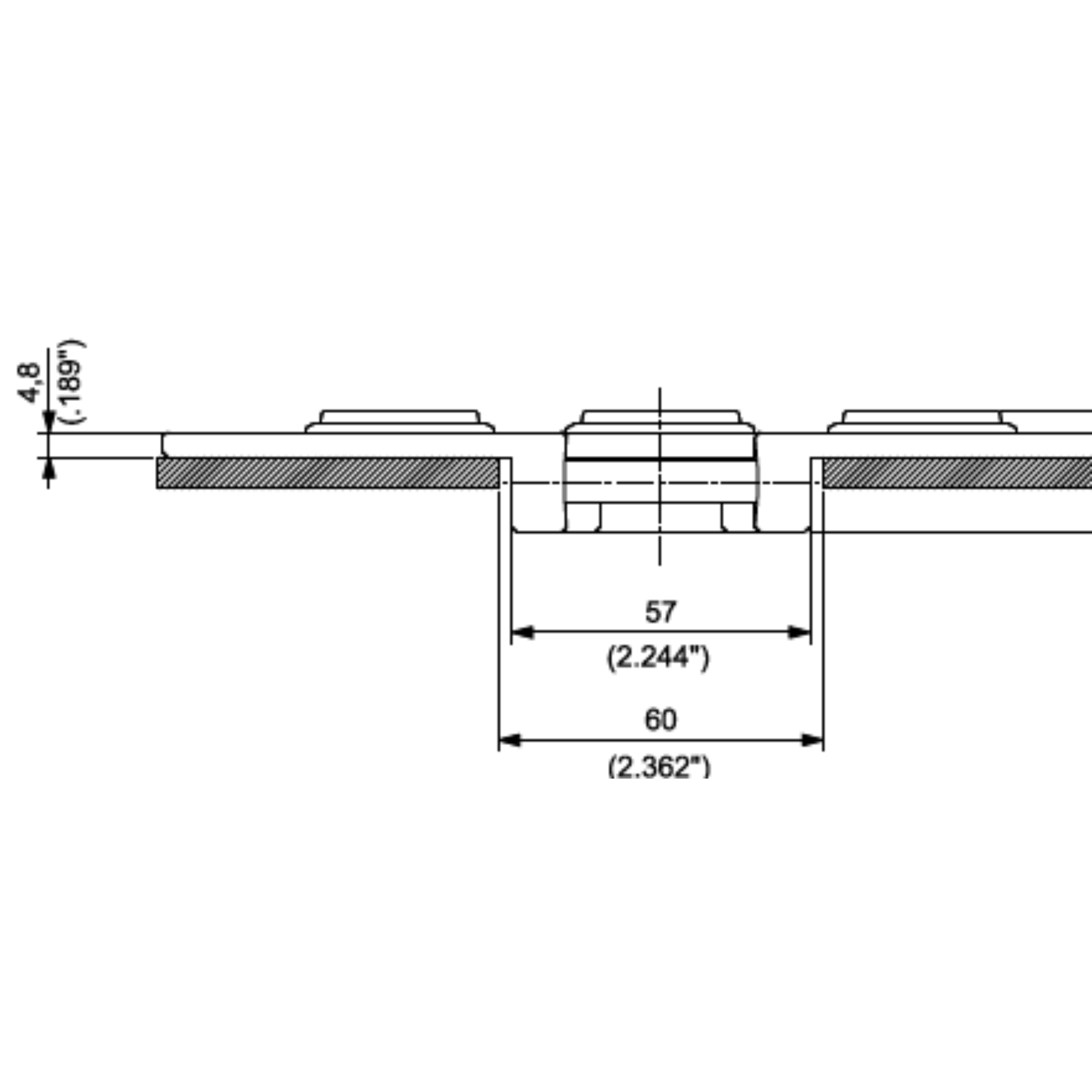

Thickness 4.8mm (0.189”)
-
Hinge 57mm (2.244””)
Standard packaging: Rolls of 3.048 meters

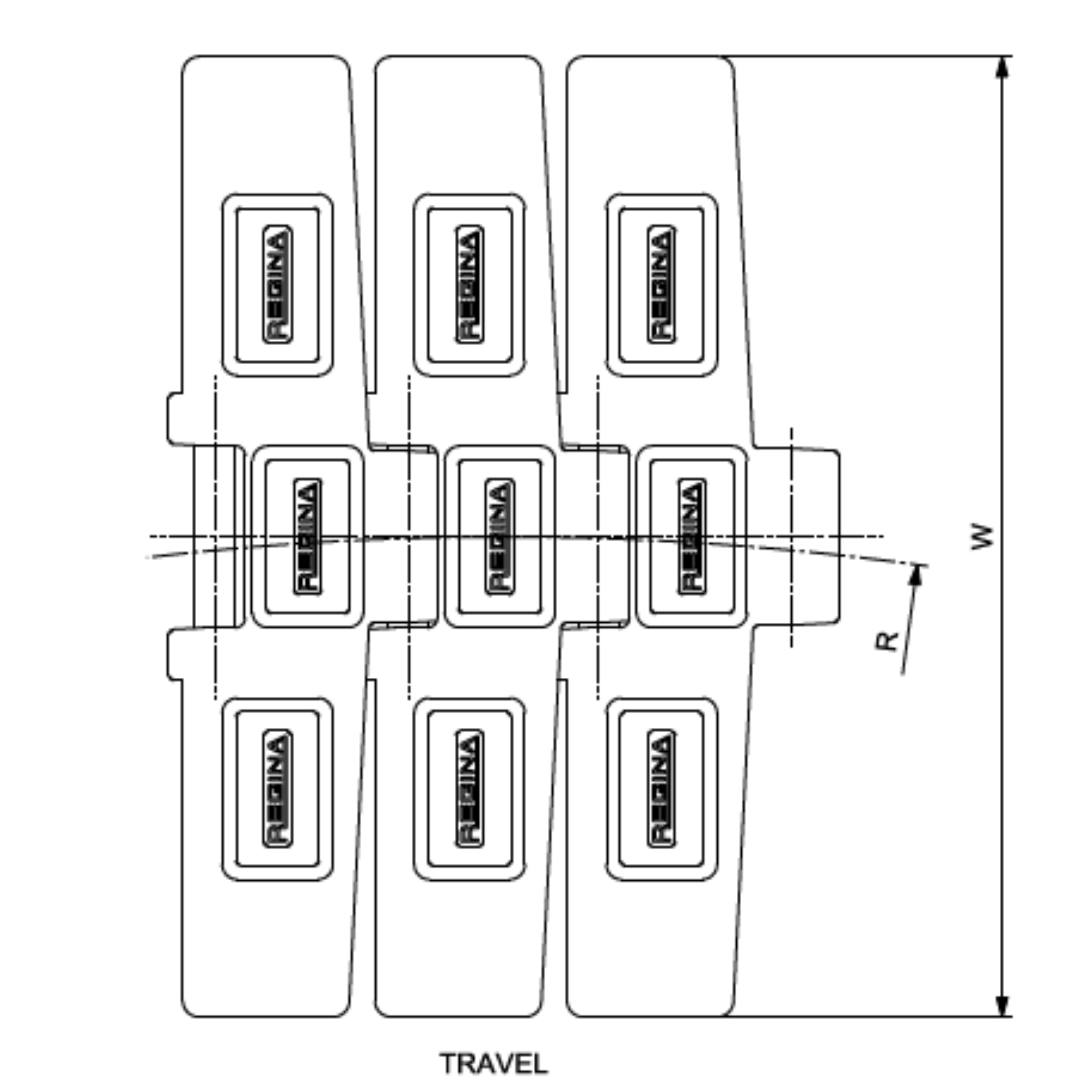

Information: Actual width can be up to 0.5% greater than nominal width
For information on the rubber pad positioning, refer to the catalogue..
| Plate | Pin | Rubber | Item Description | Part Number | Width (mm/in) | Plate Thickness (mm/in) | Sidelength Radius (mm/in) | Working Load (N/lbf) | Weight (kg/m – lb/ft) | Stock |
|---|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymerized POM | Magnetic Stainless Steel | Thermoplastic (TP), Hardness: 70° ShA | HFX 882M UP K 7.5 | HFX882MUPKL/000 | 190.5 / 7.50 | 4.8 / 0.19 | 609.6 / 24 | 3910 / 879 | 2.40 – 1.61 | Available on Request |
| Ultra Performance Homopolymerized POM | Magnetic Stainless Steel | Thermoplastic (TP), Hardness: 70° ShA | HFX 882M UP K 10 | HFX882MUPKM/000 | 254.0 / 10.00 | 4.8 / 0.19 | 609.6 / 24 | 3910 / 879 | 2.71 – 1.82 | Available on Request |
| Ultra Performance Homopolymerized POM | Magnetic Stainless Steel | Thermoplastic (TP), Hardness: 70° ShA | HFX 882M UP K 12 | HFX882MUPKN/000 | 304.8 / 12.00 | 4.8 / 0.19 | 609.6 / 24 | 3910 / 879 | 3.02 – 2.03 | Available on Request |
