Description
821 Series
Product information
-

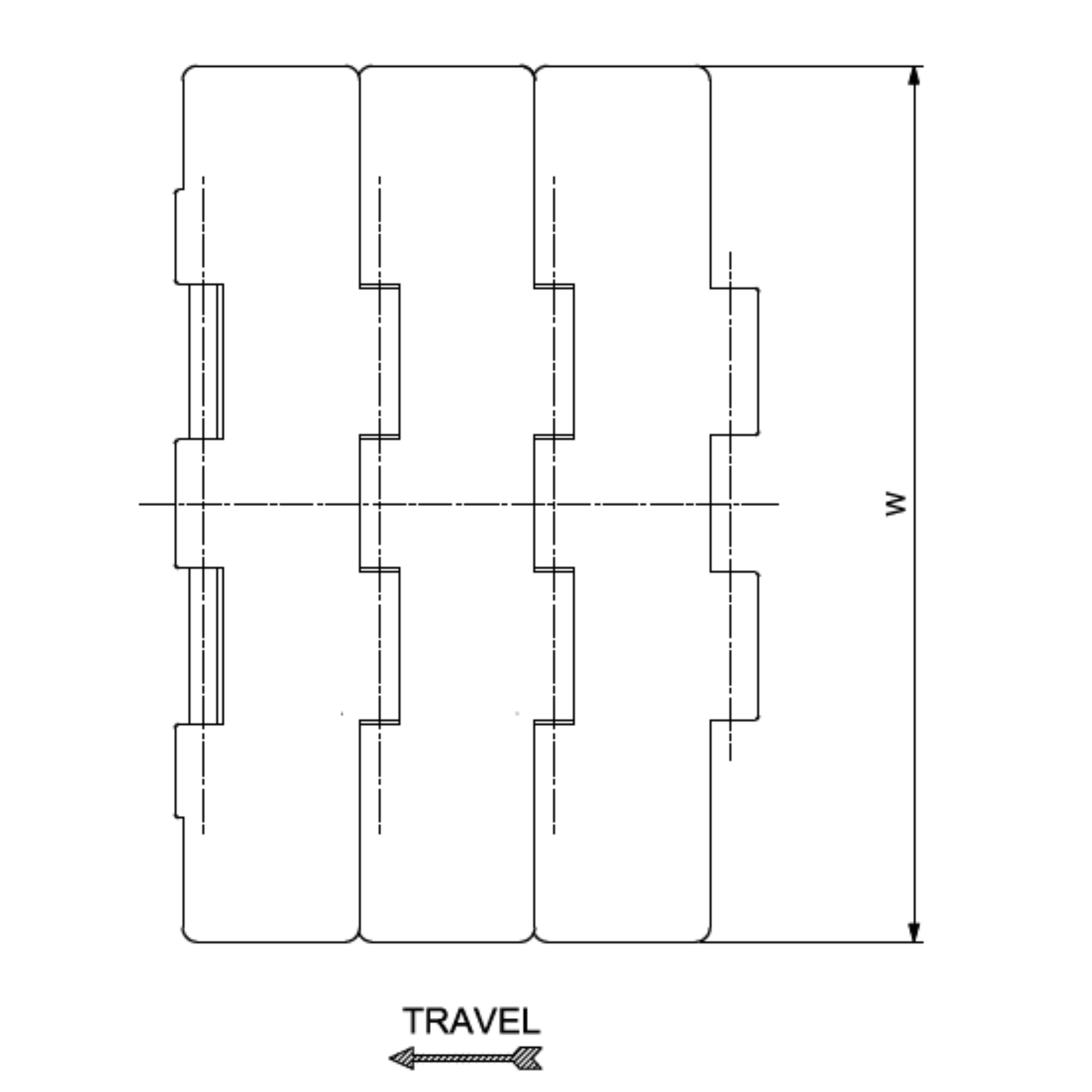

Straight running
-
Double hinge
-

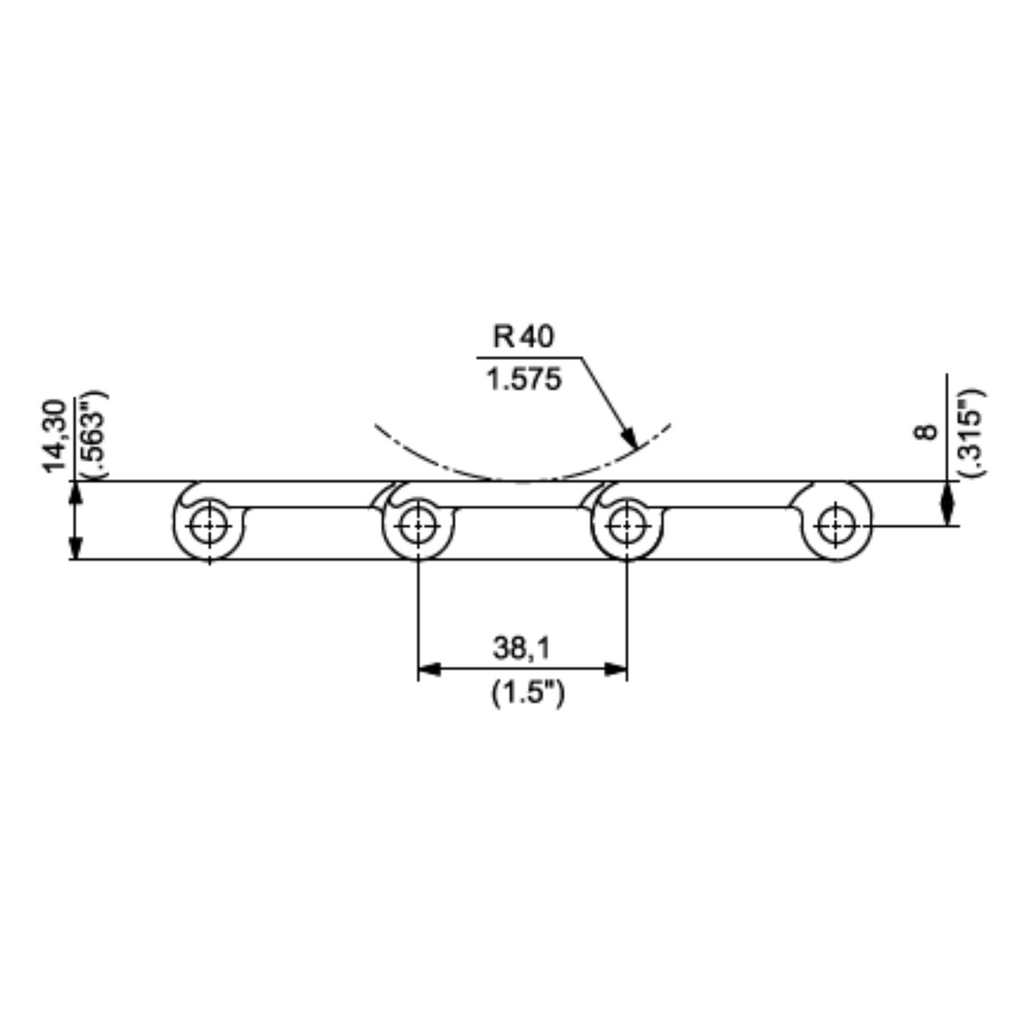

Pitch 1 ½” (38.1mm)
-
Thickness 4.8mm (0.189”)
-

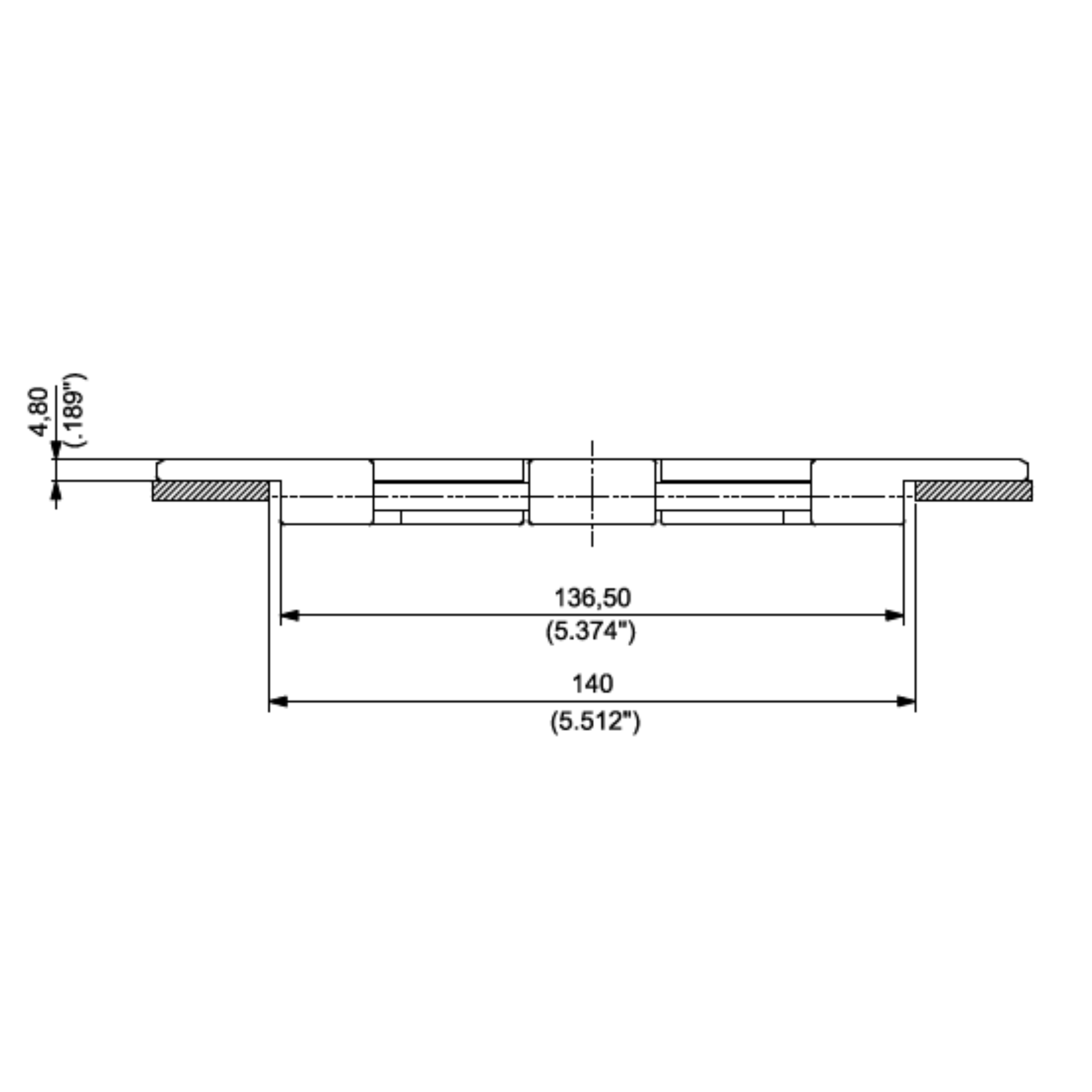

Hinge 136.5mm (5.374”)
Standard packaging: Rolls of 3.048 meters
Information: Actual width can be up to 0.5% greater than nominal width
Availability: On request
| Plate Material | Pin Material | Item Description | Part Number | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Working Load (N) | Working Load (lbs) | Weight (kg/m) | Weight (lbs/ft) | Availability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin | Austenitic Stainless Steel | UP 821K 7½ | UP821KL/000 | 190,5 | 7.50 | 4,8 | 0.19 | 2750 | 618 | 2,48 | 1.67 | Available on Request |
| Ultra Performance Homopolymer Delrin | Austenitic Stainless Steel | UP 821 K 10 | UP821KM/000 | 254,0 | 10.00 | 4,8 | 0.19 | 2750 | 618 | 2,86 | 1.92 | Available on Request |
| Ultra Performance Homopolymer Delrin | Austenitic Stainless Steel | UP 821 K 12 | UP821KN/000 | 304,8 | 12.00 | 4,8 | 0.19 | 2750 | 618 | 3,16 | 2.12 | Available on Request |
| Special Delrin Reinforced with Kevlar | Austenitic Stainless Steel | D2K 821 K 7½ | D2K821KL/000 | 190,5 | 7.50 | 4,8 | 0.19 | 2750 | 618 | 2,47 | 1.66 | Available on Request |
