Description

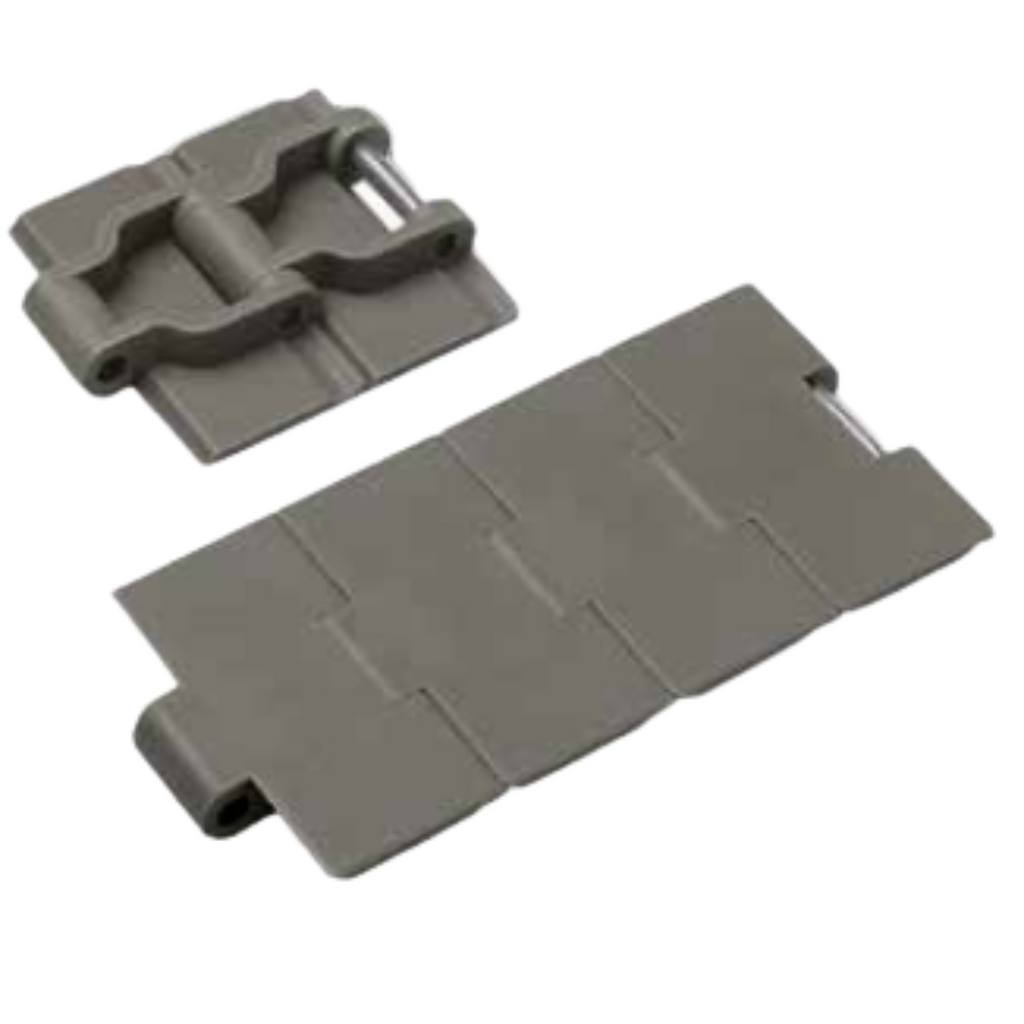

828 Series
Product information
-
Straight running
-
Single hinge
-

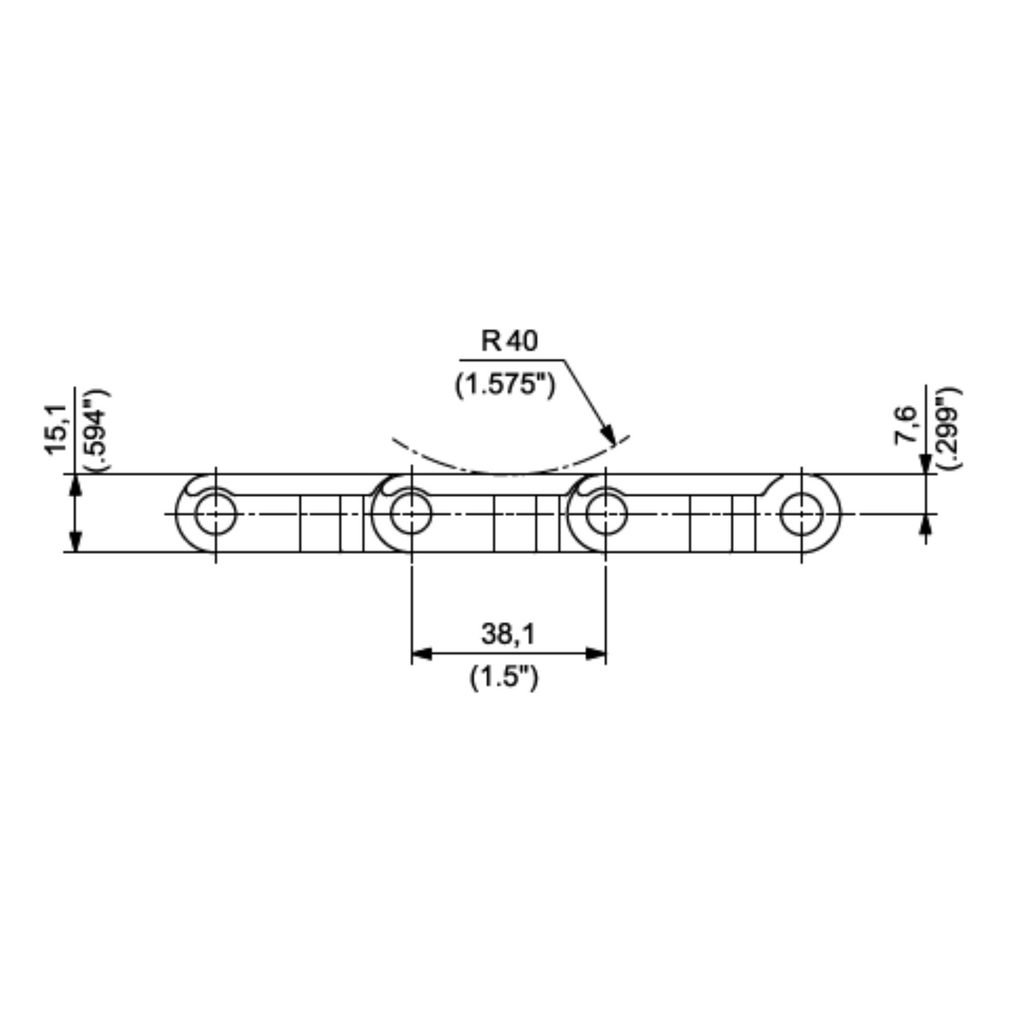

Pitch 1 ½” (38.1mm)
-

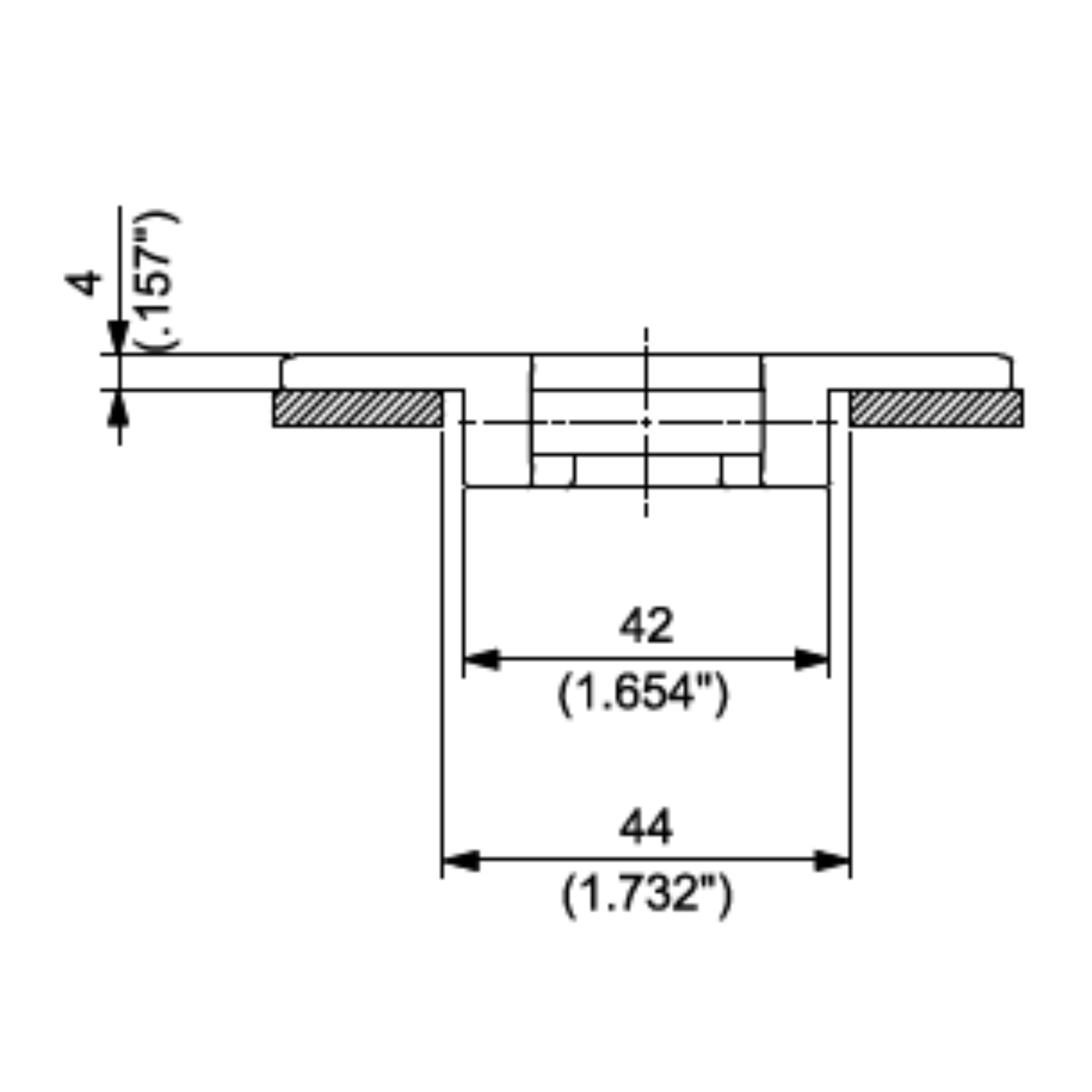

Thickness 4mm (0.157”)
-
Hinge 42mm (1.654”)
Standard packaging: Rolls of 3.048 meters

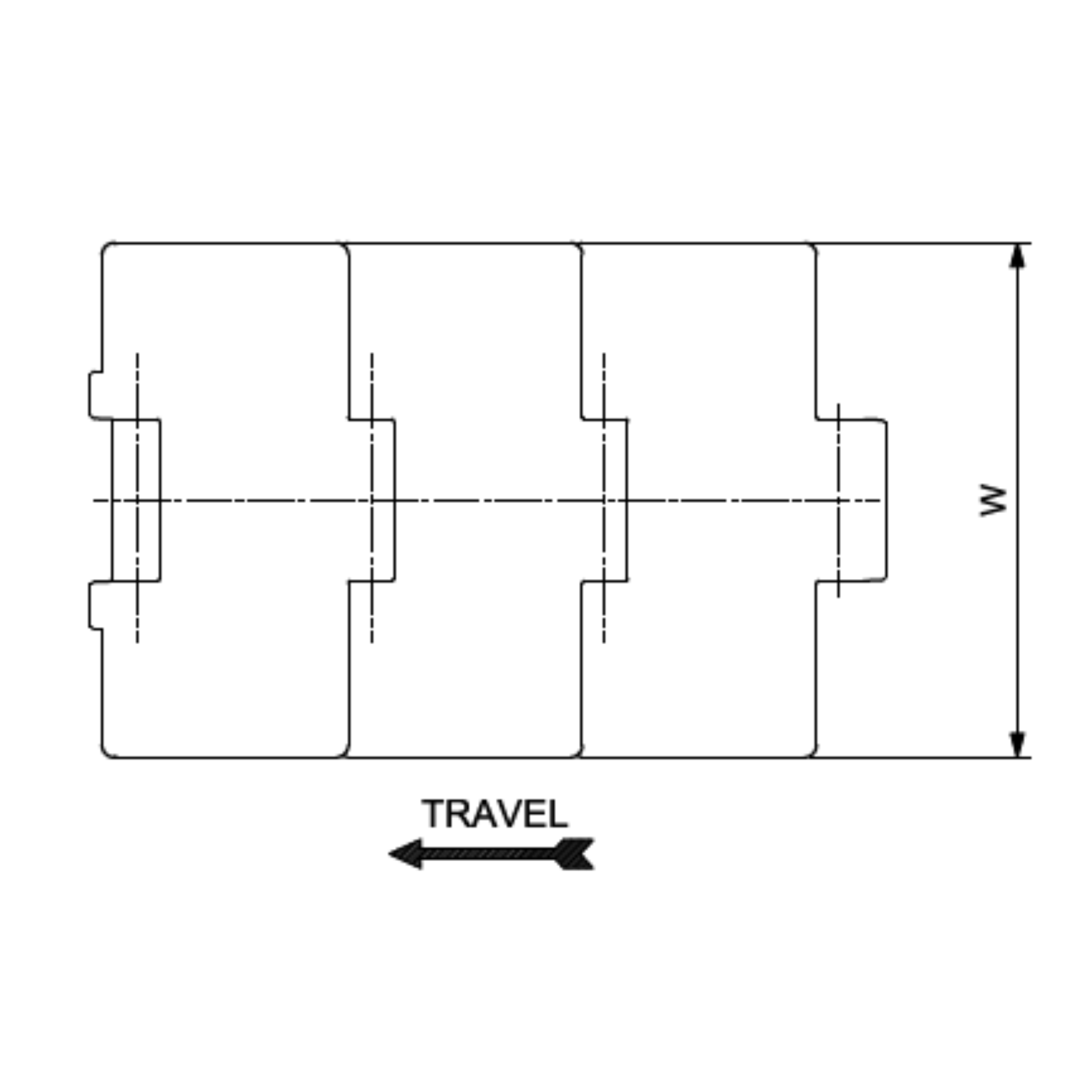

Information: Actual width can be up to 0.5% greater than nominal width
| Plate | Pin | Item Description | Part Number | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Stock |
|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin® | Stainless Steel | UP 828 K 3 ¼ | UP828KD/000 | 82.6 | 3.25 | 4.0 | 0.16 | Available on Request |
| Ultra Performance Homopolymer Delrin® | Stainless Steel | UP 828 K 3,3 ⁸ | UP828KRA/000 | 83.8 | 3.30 | 4.0 | 0.16 | Available on Request |
| Ultra Performance Homopolymer Delrin® | Stainless Steel | UP 828 K 4 ½ | UP828KG/000 | 114.3 | 4.50 | 4.0 | 0.16 | Available on Request |
| Special Delrin® Reinforced with Kevlar® | Stainless Steel | D2K 828 K 3 ¼ | D2K828KD/000 | 82.6 | 3.25 | 4.0 | 0.16 | Available on Request |
| Special Delrin® Reinforced with Kevlar® | Stainless Steel | D2K 828 K 3,3 ⁸ | D2K828KRA/000 | 83.8 | 3.30 | 4.0 | 0.16 | Available on Request |
| Special Delrin® Reinforced with Kevlar® | Stainless Steel | D2K 828 K 4 ½ | D2K828KG/000 | 114.3 | 4.50 | 4.0 | 0.16 | Available on Request |
| Ecological Friction Abating Thermoplastic (E-FAST®) | Stainless Steel | EF 828 K 3 ¼ | EF828KD/000 | 82.6 | 3.25 | 4.0 | 0.16 | Available on Request |
| Ecological Friction Abating Thermoplastic (E-FAST®) | Stainless Steel | EF 828 K 3,3 ⁸ | EF828KRA/000 | 83.8 | 3.30 | 4.0 | 0.16 | Available on Request |
| Ecological Friction Abating Thermoplastic (E-FAST®) | Stainless Steel | EF 828 K 4 ½ | EF828KG/000 | 114.3 | 4.50 | 4.0 | 0.16 | Available on Request |
| Abrasion Resistant Polyamide | Stainless Steel | AR 828 K 3 ¼ | AR828KD/000 | 82.6 | 3.25 | 4.0 | 0.16 | Available on Request |
| Abrasion Resistant Polyamide | Stainless Steel | AR 828 K 4 ½ | AR828KG/000 | 114.3 | 4.50 | 4.0 | 0.16 | Available on Request |
