Description

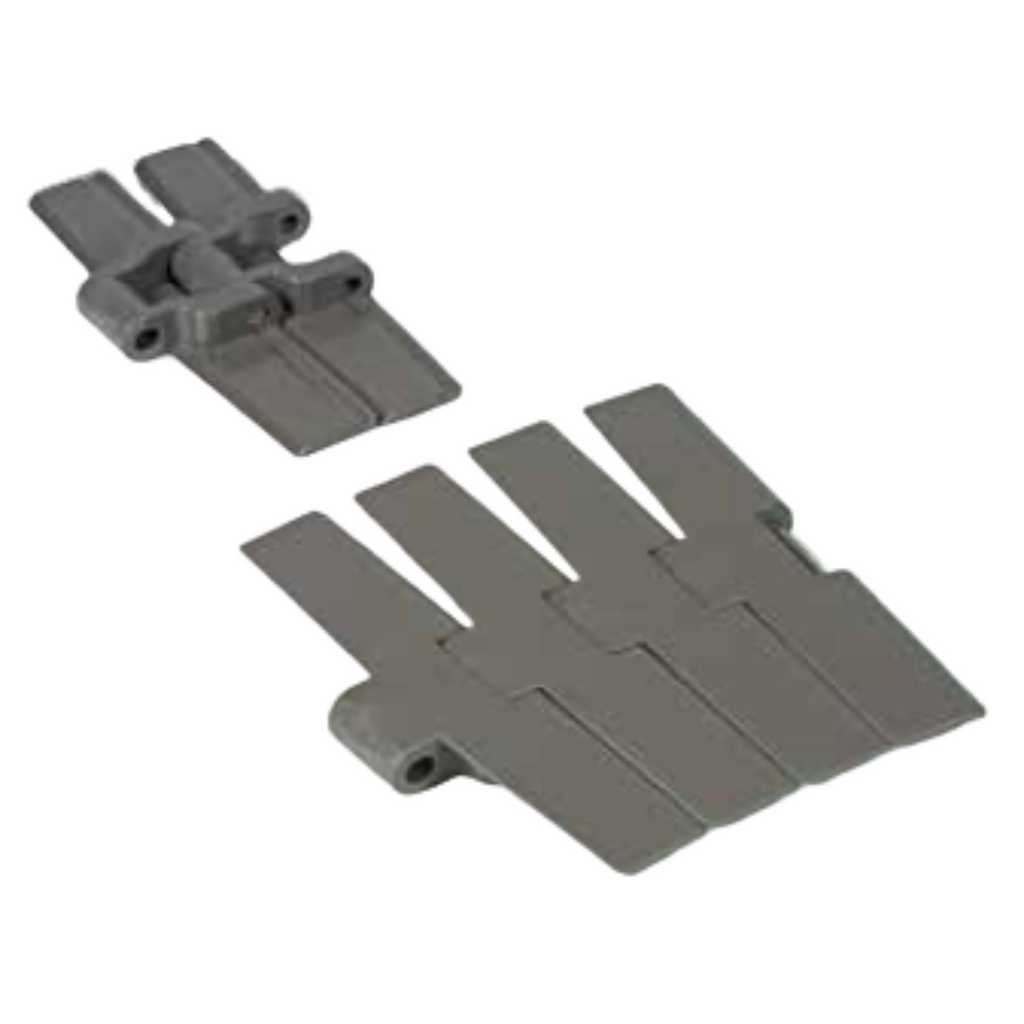

882M Series
Product information
-

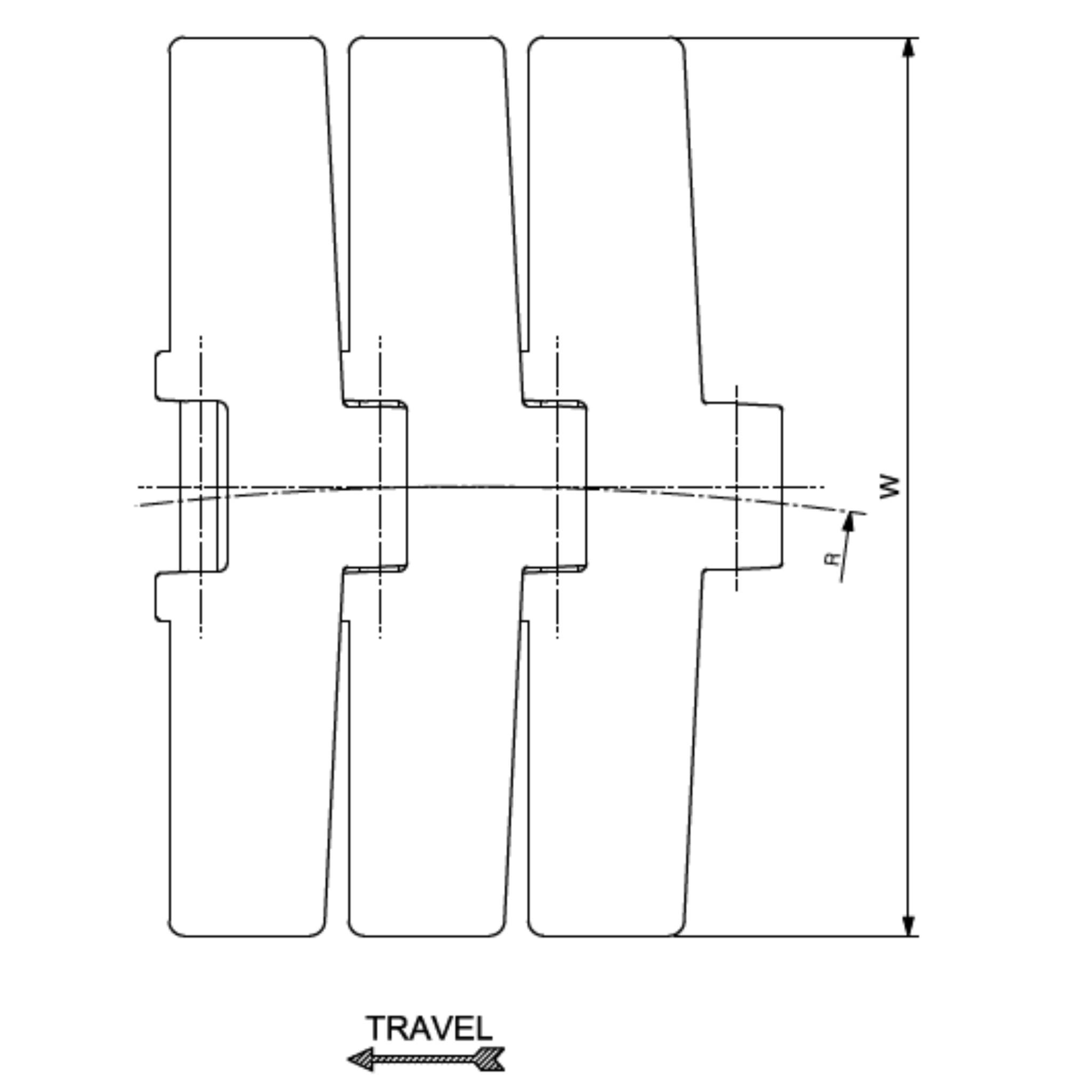

Sideflexing
-
Magnetic
-
Heavy duty single hinge
-

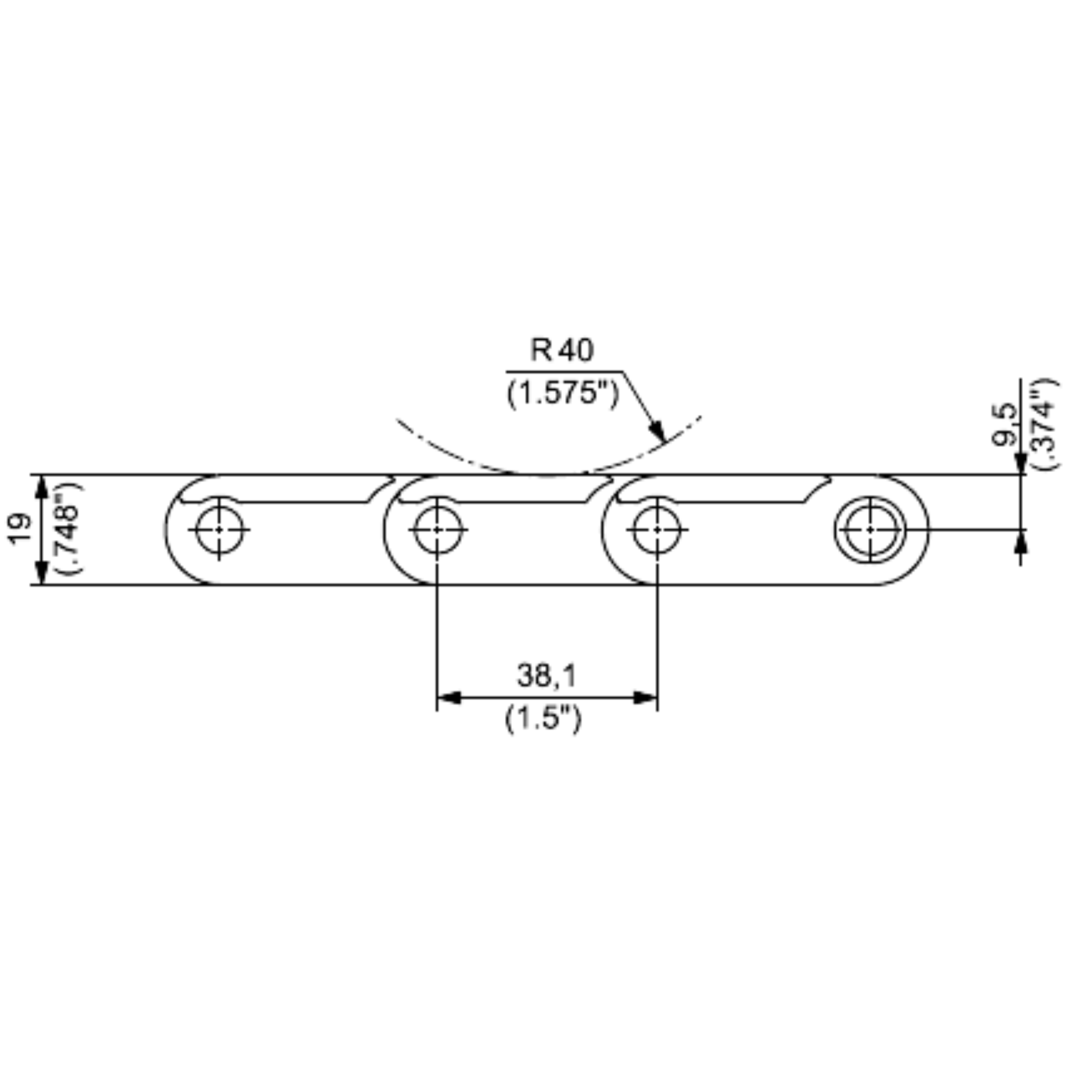

Pitch 1 ½” (38.1mm)
-
Thickness 4.8mm (0.189”)
-
Hinge 57mm (2.244””)
Standard packaging: Rolls of 3.048 meters
Information: Actual width can be up to 0.5% greater than nominal width
| Plate Material | Pin Material | Item Description | Part Number | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Sideflexing Radius (mm) | Sideflexing Radius (inch) | Working Load (N) | Working Load (lbs) | Weight (kg/m) | Weight (lbs/ft) | Stock |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin (UP) | Magnetic Stainless Steel | UP 882M K 7½ | UP882MKL/000 | 190.5 | 7.50 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.21 | 1.48 | Available on Request |
| Ultra Performance Homopolymer Delrin (UP) | Magnetic Stainless Steel | UP 882M K 10 | UP882MKM/000 | 254.0 | 10.00 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.52 | 1.69 | Available on Request |
| Ultra Performance Homopolymer Delrin (UP) | Magnetic Stainless Steel | UP 882M K 12 | UP882MKN/000 | 304.8 | 12.00 | 4.8 | 0.19 | 609.6 | 24 | 3910 | 879 | 2.76 | 1.85 | Available on Request |
