Description

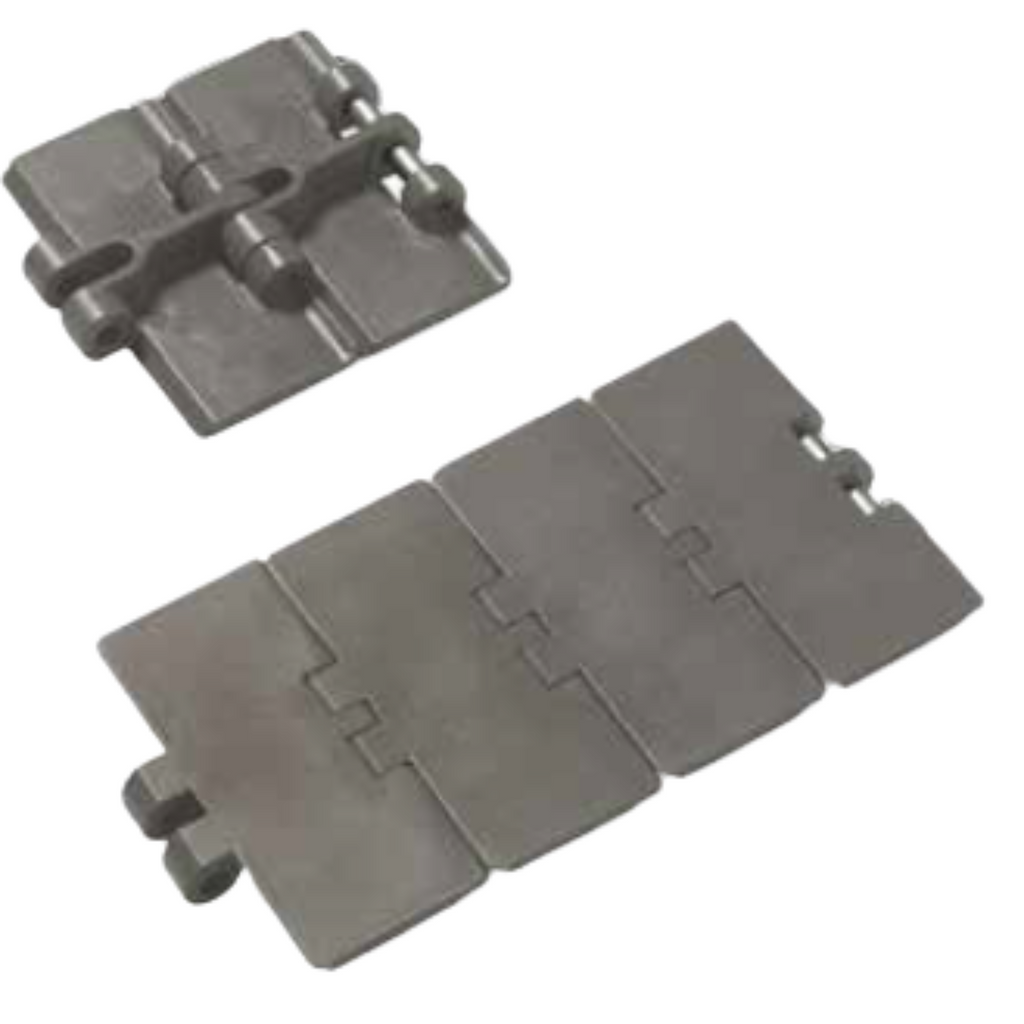

820 Series
Product information
-

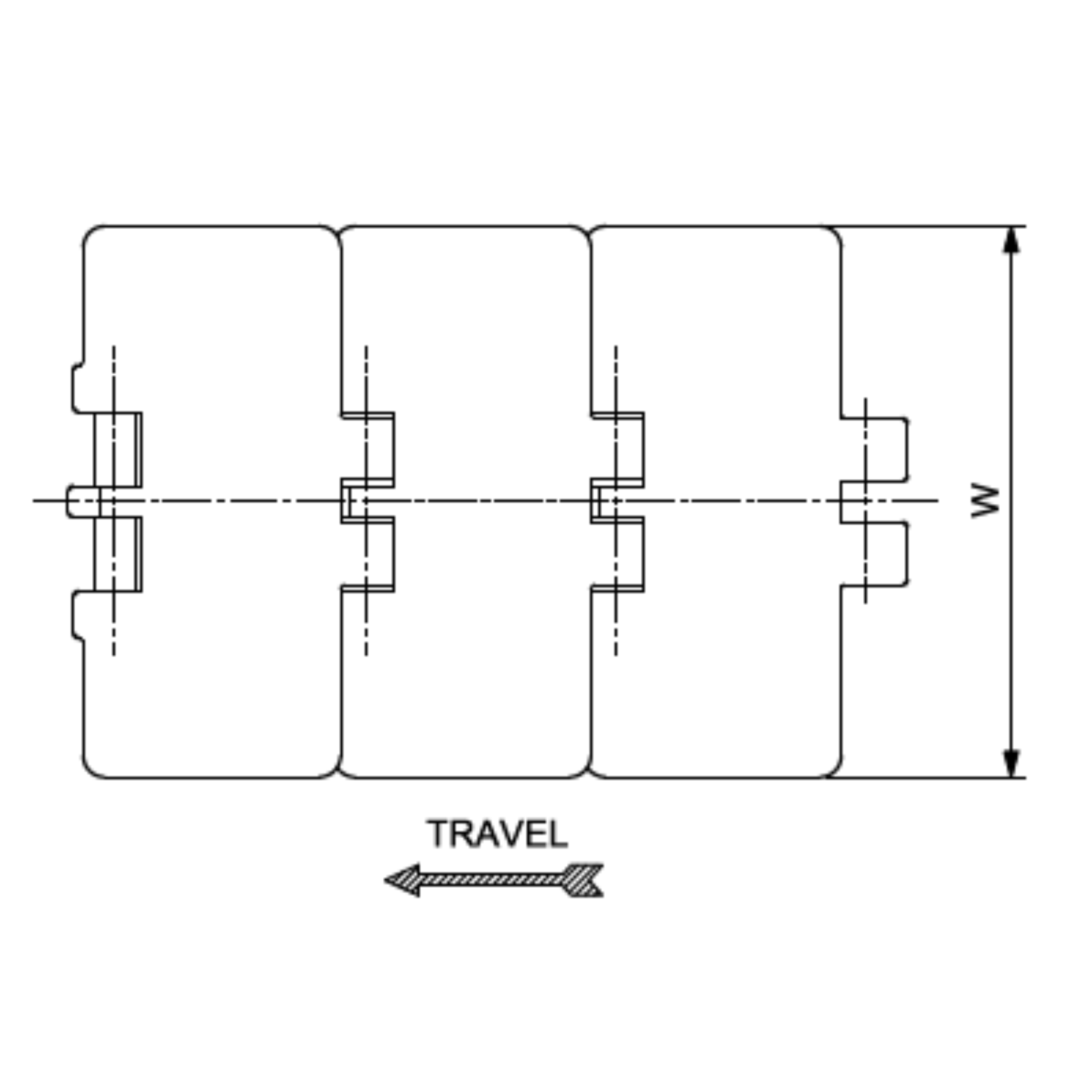

Straight running
-
Single hinge
-

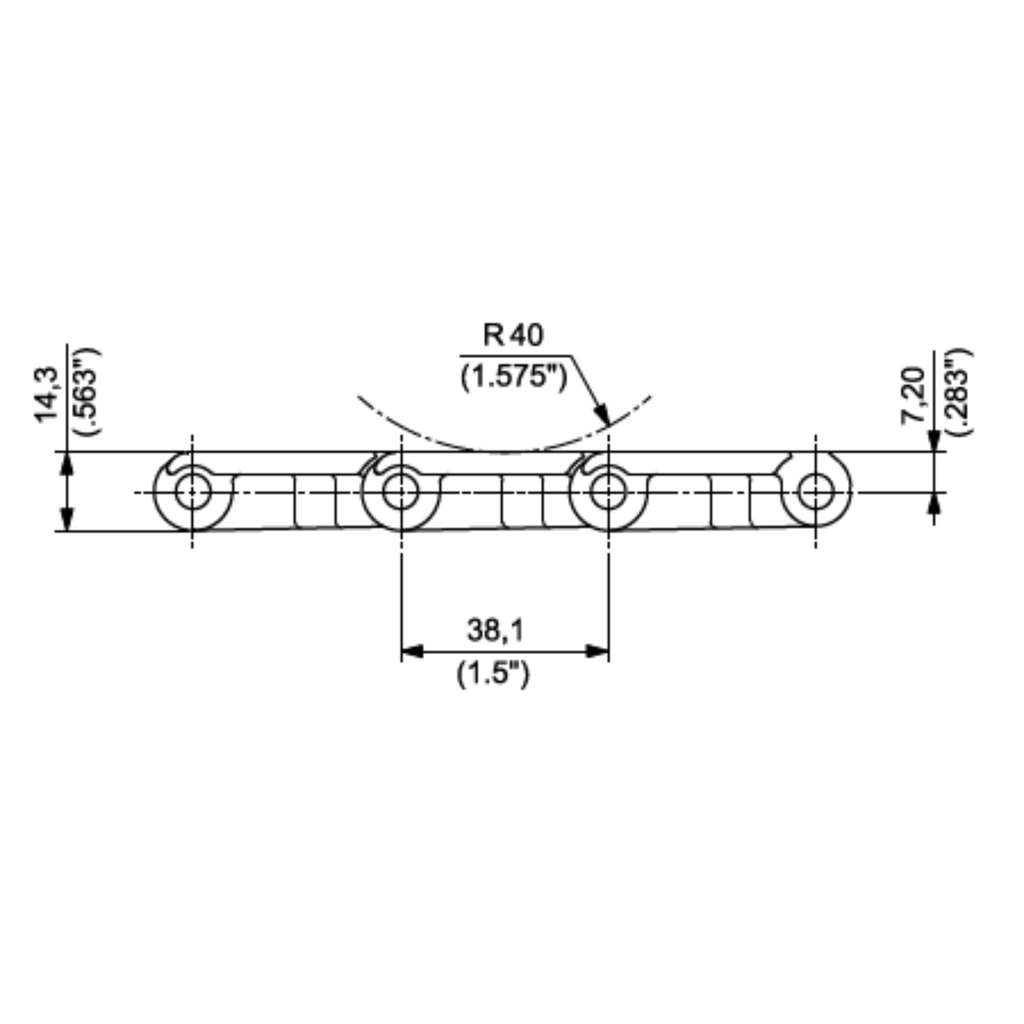

Pitch 1 ½” (38.1mm)
-

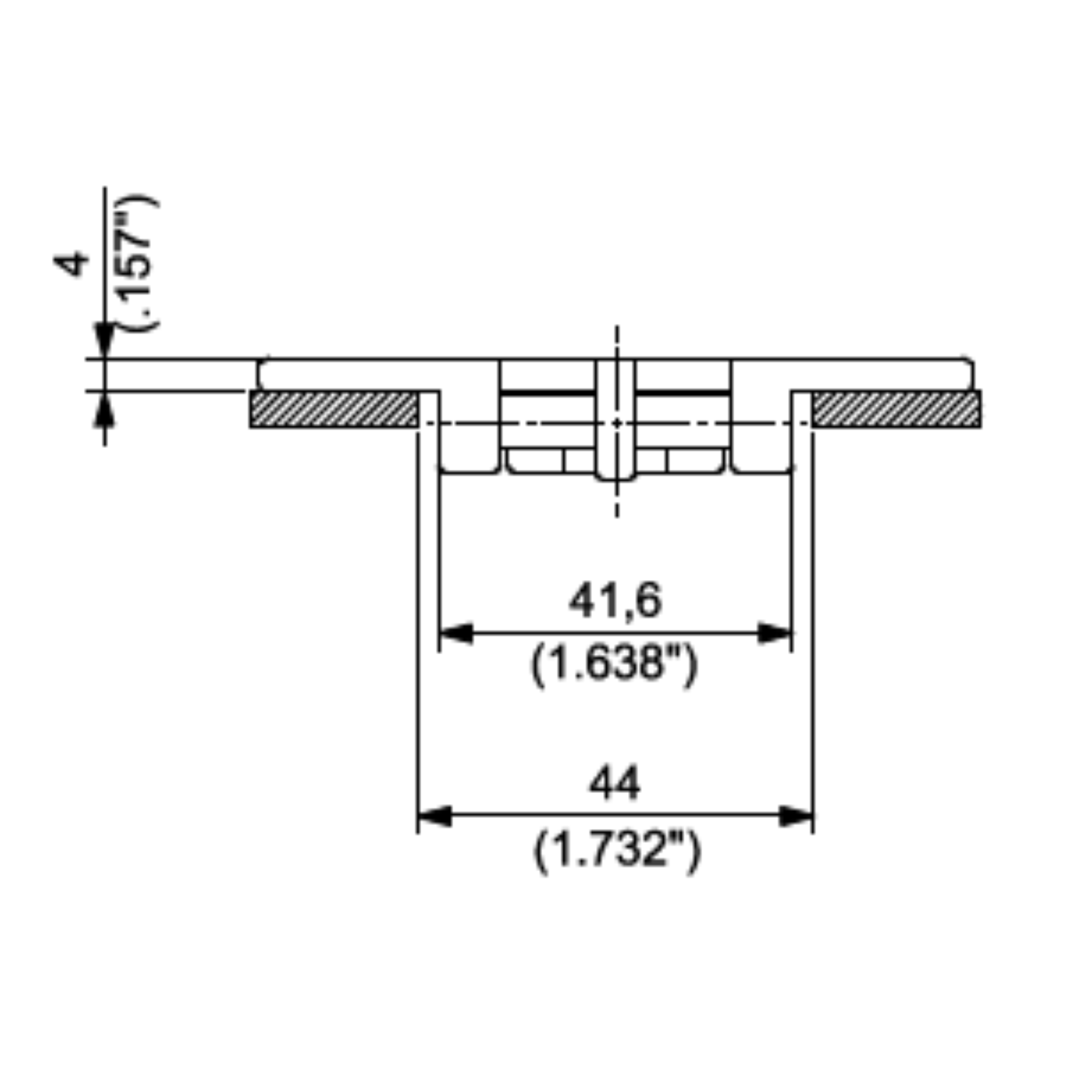

Thickness 4mm (0.157”)
-
Hinge 41.6mm (1.638”)
Standard packaging: Rolls of 3.048 meters
Information: Actual width can be up to 0.5% greater than nominal width
| Plate | Pin | Item Description | Part Number | Width (mm/in) | Plate Thickness (mm/in) | Working Load (N/lbs) | Weight (kg/m / lbs/ft) | Stock |
|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 820 K 3¼ | UP820KD/000 | 82.6 / 3.25 | 4.0 / 0.16 | 1600 / 360 | 0.87 / 0.58 | Available on Request |
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 820 K 3.3/8 | UP820KRA/000 | 83.8 / 3.30 | 4.0 / 0.16 | 1600 / 360 | 0.88 / 0.59 | Available on Request |
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 820 K 4 | UP820KF/000 | 101.6 / 4.00 | 4.0 / 0.16 | 1600 / 360 | 0.95 / 0.64 | Available on Request |
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 820 K 4/2 | UP820KG/000 | 114.3 / 4.50 | 4.0 / 0.16 | 1600 / 360 | 1.03 / 0.69 | Available on Request |
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 820 K 6 | UP820KH/000 | 152.4 / 6.00 | 4.0 / 0.16 | 1600 / 360 | 1.25 / 0.84 | Available on Request |
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 820 K 7/2 | UP820KL/000 | 190.5 / 7.50 | 4.0 / 0.16 | 1600 / 360 | 1.35 / 0.90 | Available on Request |
| Special Delrin® Reinforced with Kevlar (D2K) | Austenitic Stainless Steel | D2K 820 K 3/4 | D2K820KD/000 | 82.6 / 3.25 | 4.0 / 0.16 | 1600 / 360 | 0.85 / 0.57 | Available on Request |
| Special Delrin® Reinforced with Kevlar (D2K) | Austenitic Stainless Steel | D2K 820 K 3.3/8 | D2K820KRA/000 | 83.8 / 3.30 | 4.0 / 0.16 | 1600 / 360 | 0.86 / 0.58 | Available on Request |
| Special Delrin® Reinforced with Kevlar (D2K) | Austenitic Stainless Steel | D2K 820 K 4/2 | D2K820KG/000 | 114.3 / 4.50 | 4.0 / 0.16 | 1600 / 360 | 1.00 / 0.67 | Available on Request |
| Special Delrin® Reinforced with Kevlar (D2K) | Austenitic Stainless Steel | D2K 820 K 7/2 | D2K820KL/000 | 190.5 / 7.50 | 4.0 / 0.16 | 1600 / 360 | 1.36 / 0.90 | Available on Request |
| Ecological Friction Abating Thermoplastic (EF) | Austenitic Stainless Steel | EF 820 K 3 ¼ | EF820KD/000 | 82.6 / 3.25 | 4.0 / 0.16 | 1600 / 360 | 0.85 / 0.57 | Available on Request |
| Ecological Friction Abating Thermoplastic (EF) | Austenitic Stainless Steel | EF 820 K 83.8 | EF820KRA/000 | 83.8 / 3.30 | 4.0 / 0.16 | 1600 / 360 | 0.86 / 0.58 | Available on Request |
| Ecological Friction Abating Thermoplastic (EF) | Austenitic Stainless Steel | EF 820 K 4 ½ | EF820KG/000 | 114.3 / 4.50 | 4.0 / 0.16 | 1600 / 360 | 1.00 / 0.67 | Available on Request |
| Abrasion Resistant Polyamide (AR) | Austenitic Stainless Steel | AR 820 K 3 4 | AR820KD/000 | 82.6 / 3.25 | 4.0 / 0.16 | 1600 / 360 | 0.85 / 0.57 | Available on Request |
| Abrasion Resistant Polyamide (AR) | Austenitic Stainless Steel | AR 820 K4/2 | AR820KG/000 | 114.3 / 4.50 | 4.0 / 0.16 | 1600 / 360 | 0.98 / 0.66 | Available on Request |
