Description
Part 215
Brand: Tecom

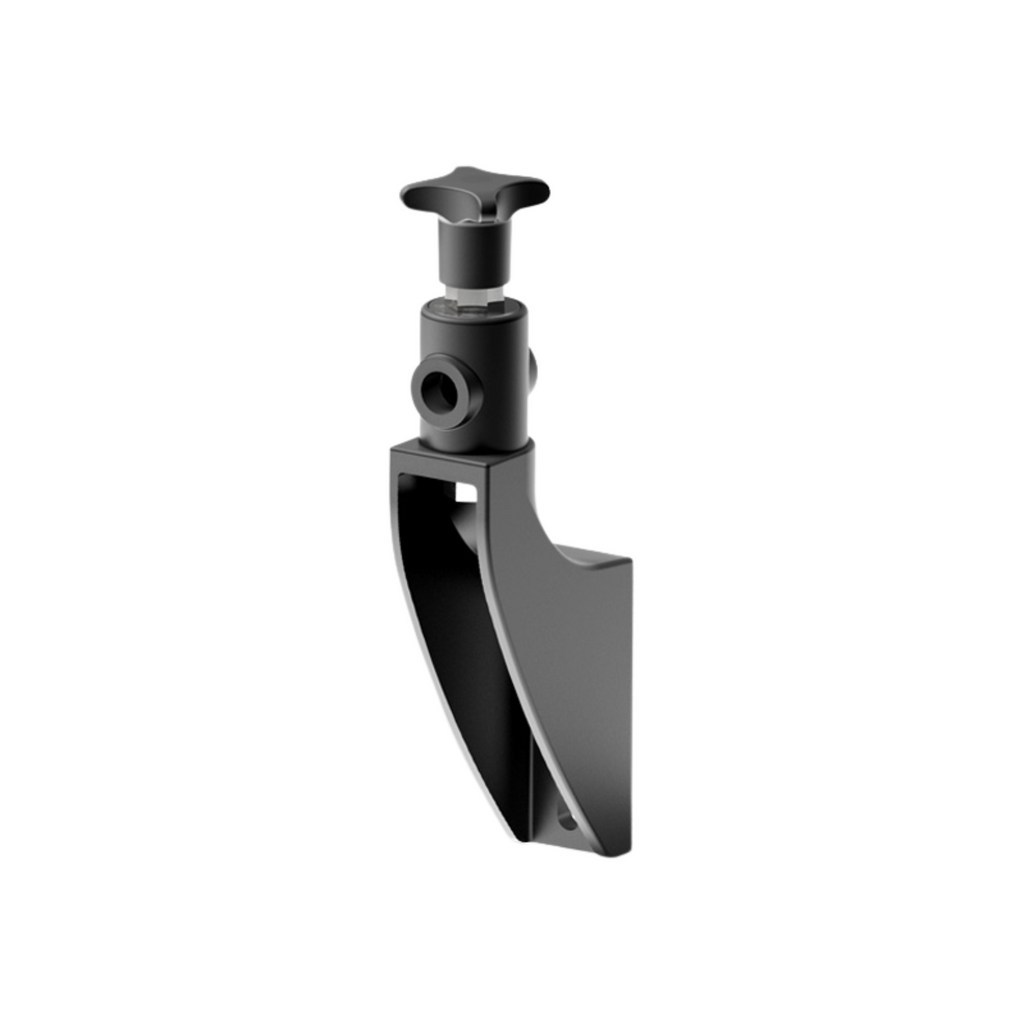

Guide Rail Bracket
Material: Bracket and knob made of reinforced polyamide. Hexagonal insert made of nickel plated brass. Eyebolt, screw, nut and washer made of stainless steel AISI 304.
Colour: Black
Information: Max tightening torque 4 Kg.m.

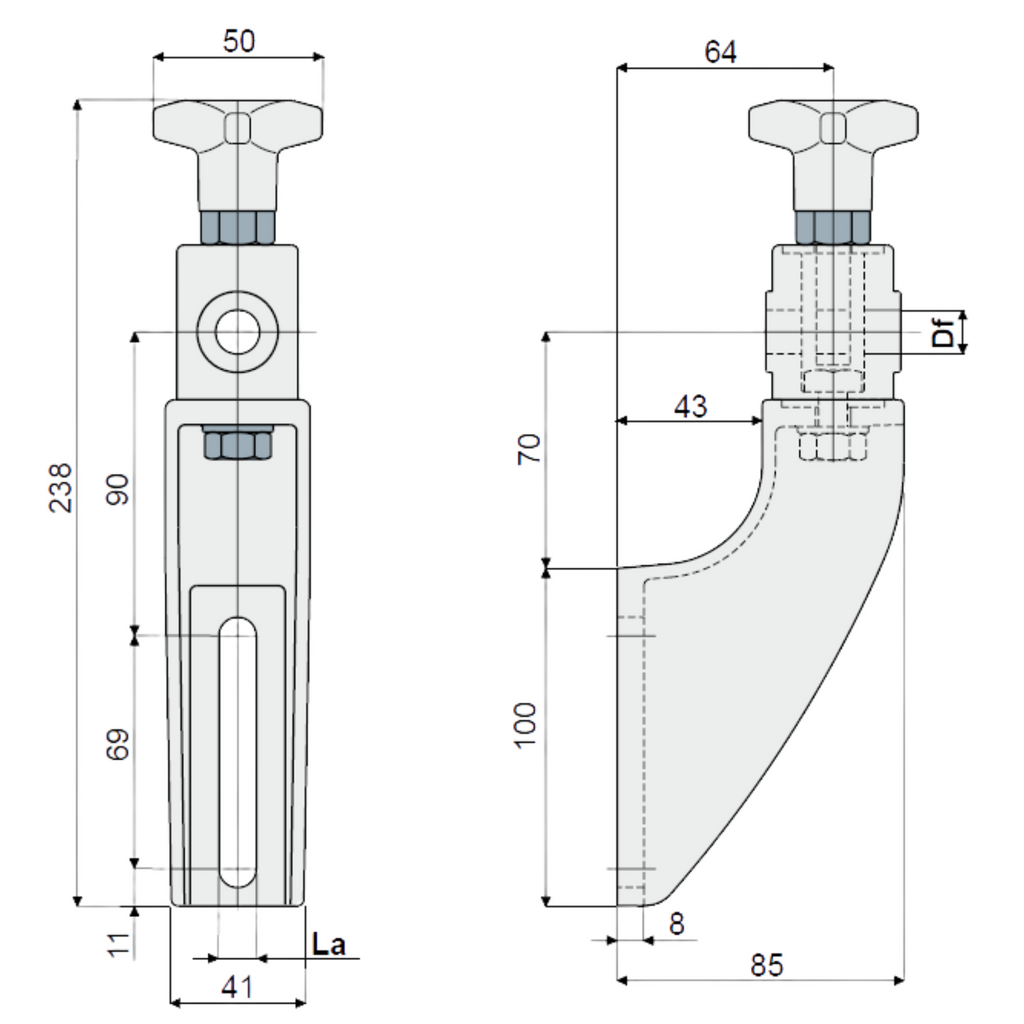

| Df Bore for pin of (mm) | La (9 mm slot) | La (11 mm slot) | Stock |
|---|---|---|---|
| 12 | 215 / 82106 | 215 / 80658 | Available on Request |
| 14 | 215 / 82108 | 215 / 80659 | Available on Request |
| 16 | 215 / 82110 | 215 / 80660 | Available on Request |
