Description
Part 223
Brand: Tecom

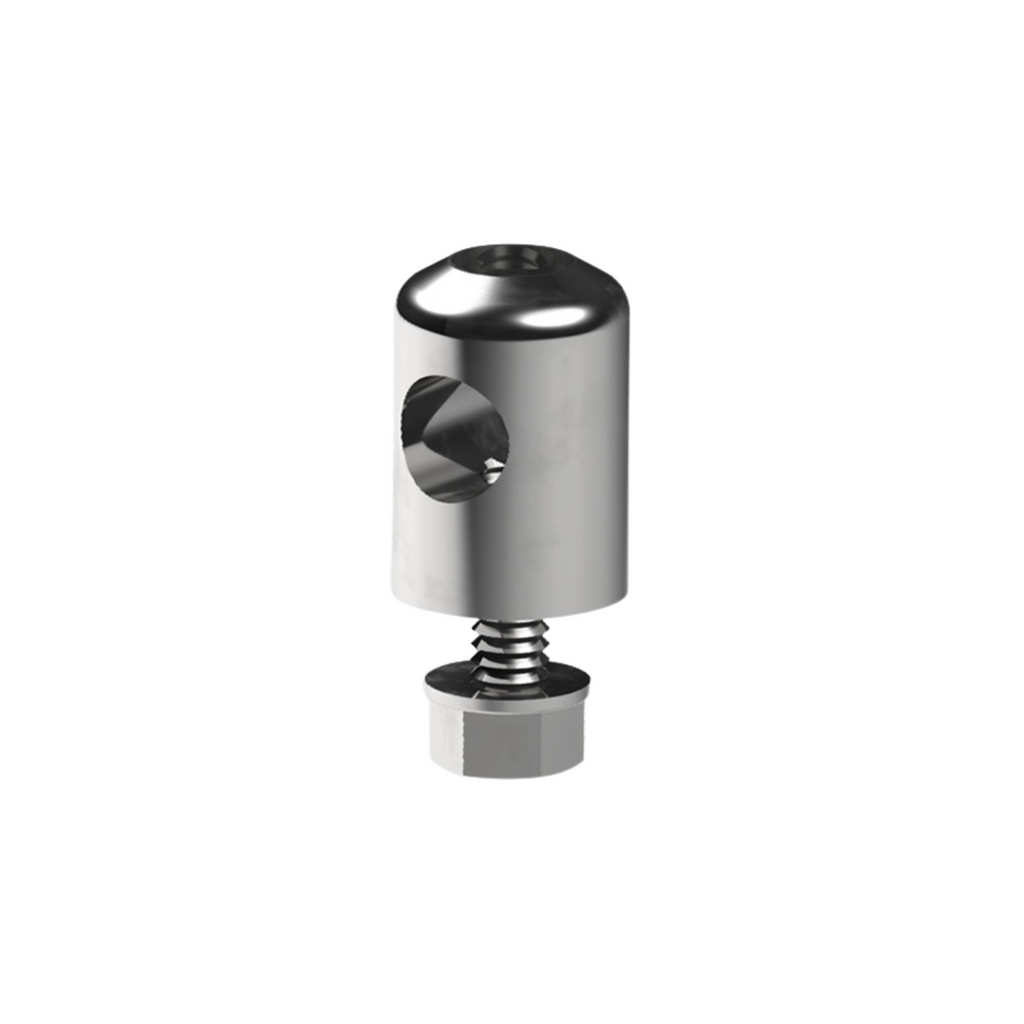

Head For Bracket
Material: Head made of stainless steel AISI 304. Screw and washer made of stainless steel AISI 304.
Information: Max tightening torque 4 kg.m.

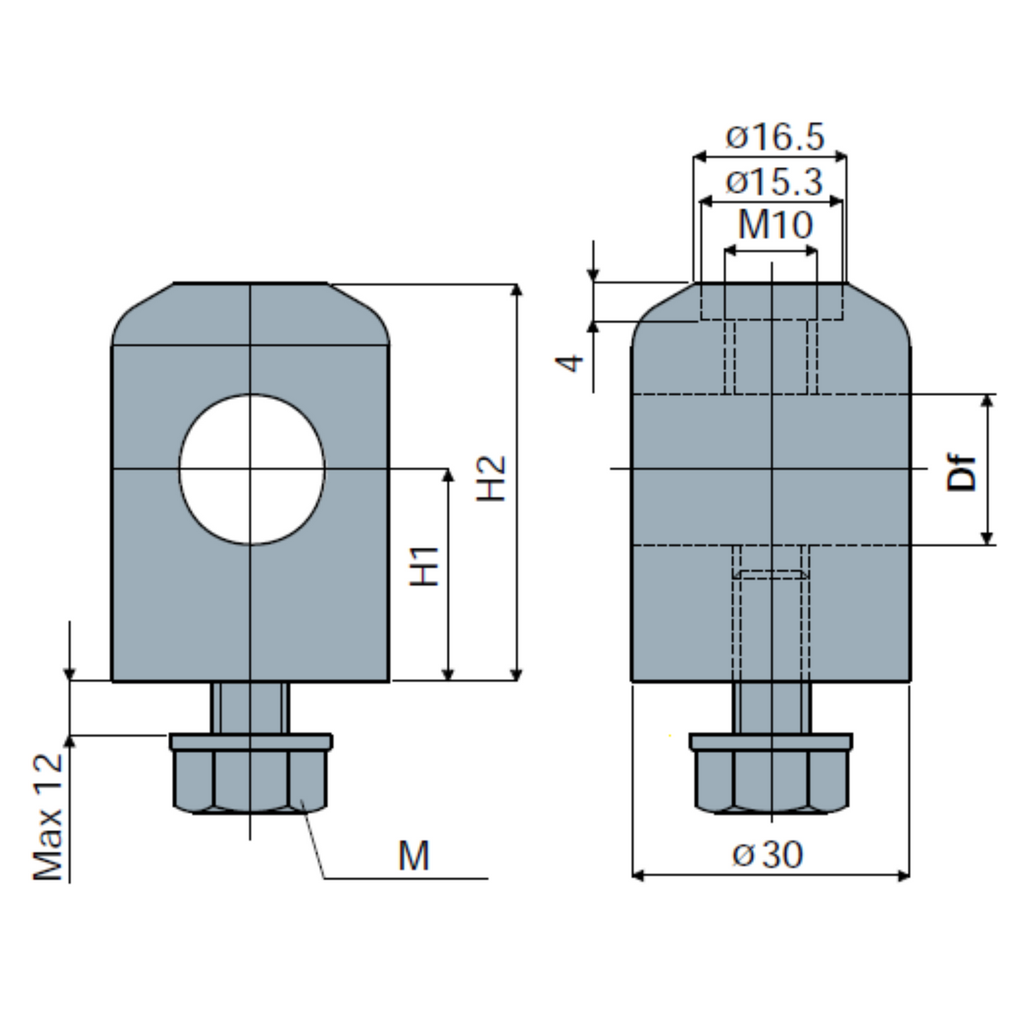

| M | Df Bore for Pin of (mm) | Df Bore for Pin of (inches) | H1 (mm) | H2 (mm) | Code | Stock |
|---|---|---|---|---|---|---|
| M8x16 | 14 - 16 | - | 23 | 43 | 223 / 84544 | Available on Request |
| M10x16 | 14 - 16 | - | 23 | 43 | 223 / 84226 | Available on Request |
| M10x20 | 12.7 | 1/2" | 23 | 43 | 223 / 84543 | Available on Request |
| M10x20 | 14 - 16 | - | 23 | 43 | 223 / 80675 | Available on Request |
| M10x20 | 14 - 16 | - | 40 | 60 | 223 / 84542 | Available on Request |
| M10x20 | 14 - 16 | - | 60 | 80 | 223 / 83640 | Available on Request |
