Part 236
Brand: Tecom

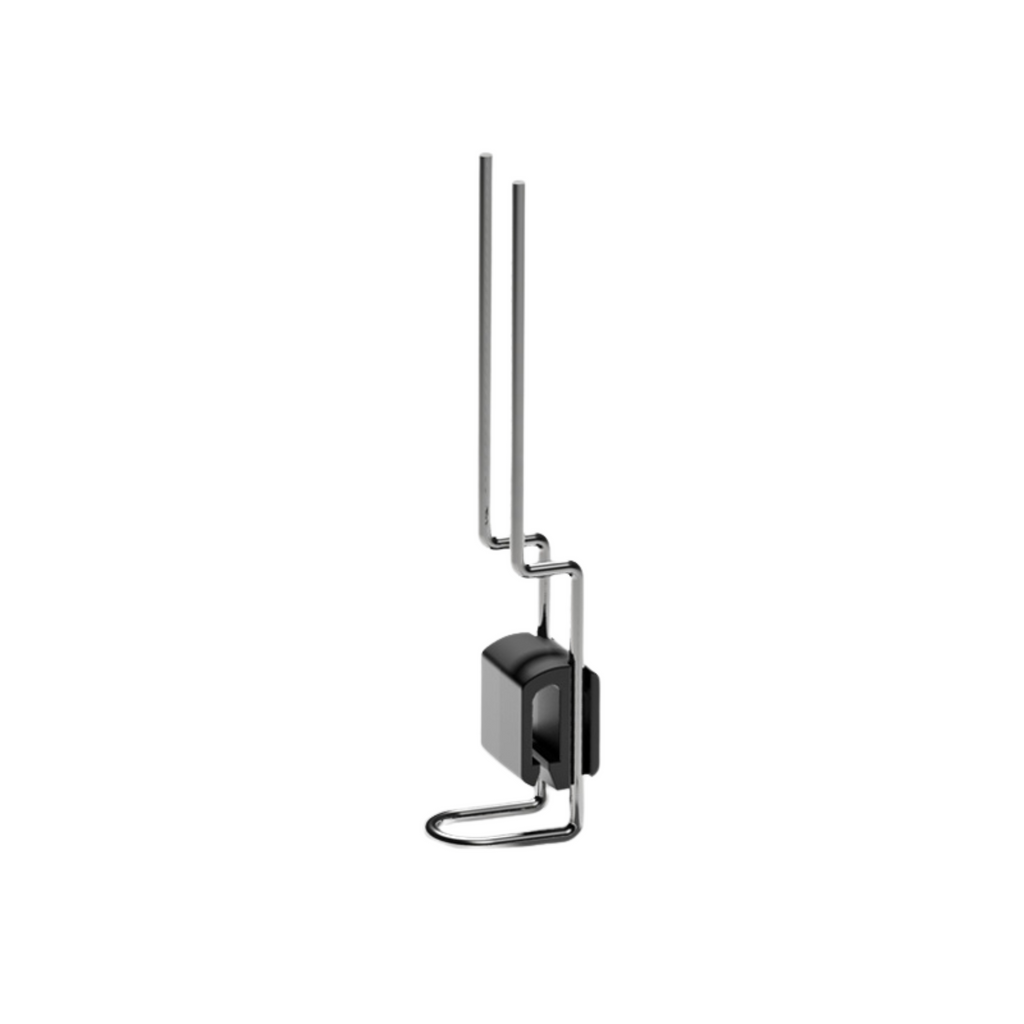

Drip Tray Support
Material: Support elements made of stainless steel AISI 304. Body of coupling made of reinforced polyamide.
| Type | L (mm) | B (mm) | A (mm) | Code | Stock |
|---|---|---|---|---|---|

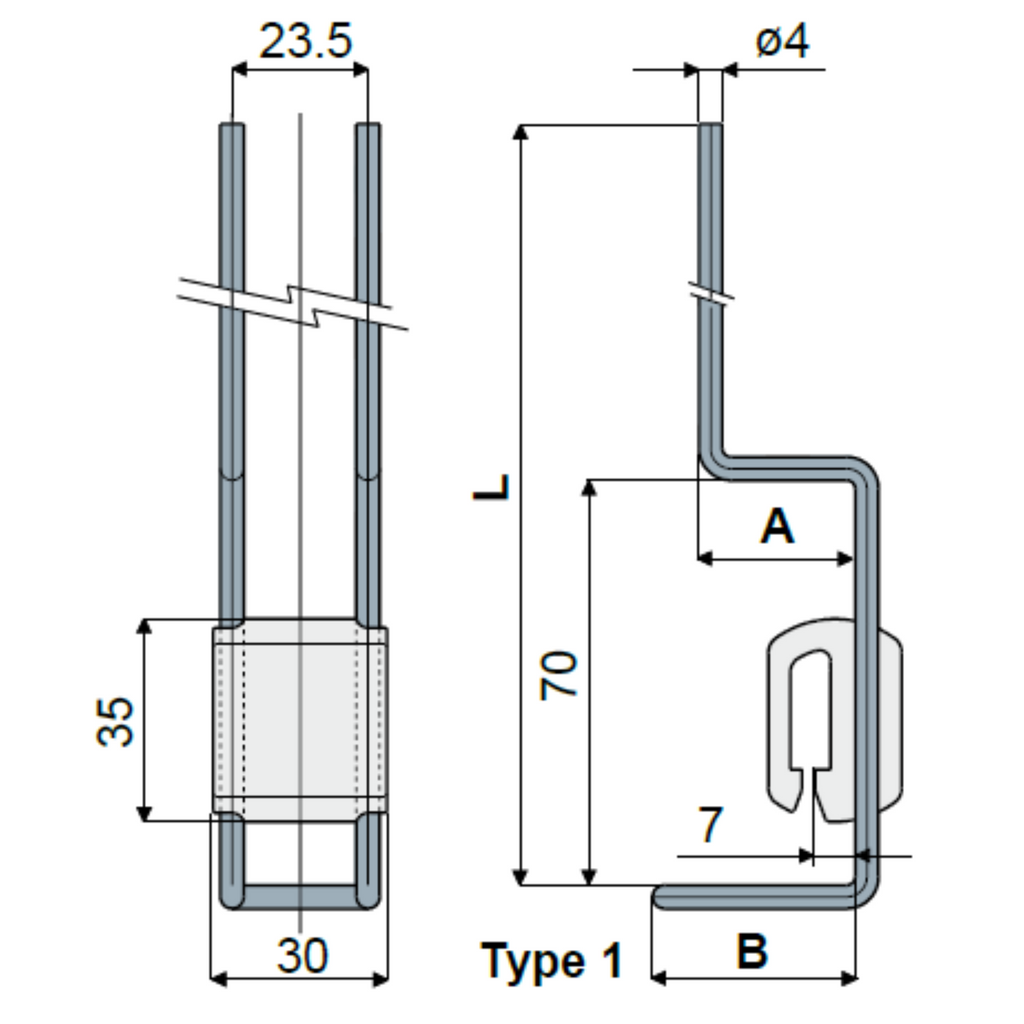

| Type 1 | 180 | 35 | 27 | 236 / 80779 | Available on Request |
| Type 1 | 180 | 35 | 17 | 236 / 81012 | Available on Request |
| Type 1 | 230 | 35 | 27 | 236 / 82683 | Available on Request |
| Type 1 | 310 | 35 | 18 | 236 / 88679 | Available on Request |

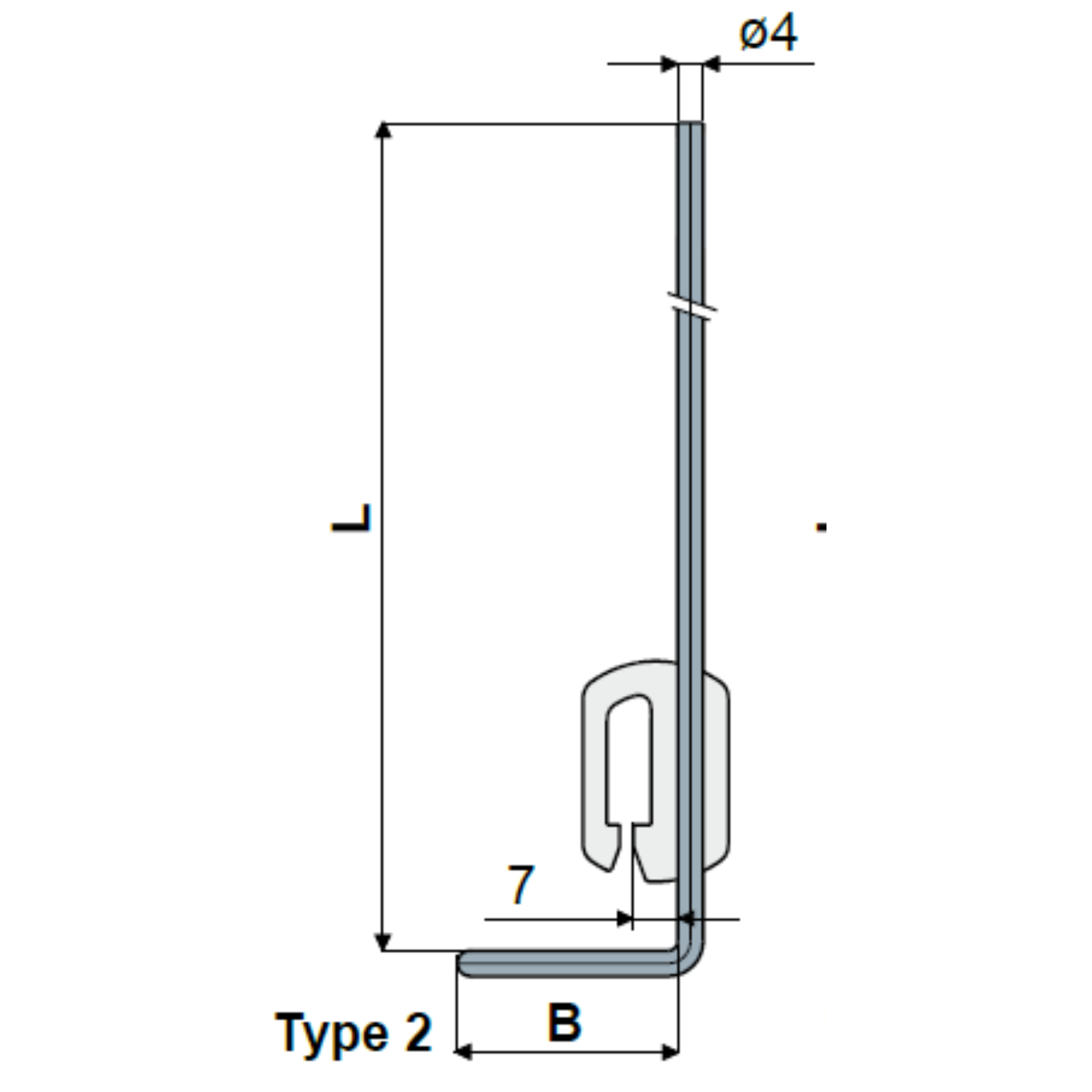

| Type 2 | 200 | 35 | – | 236 / 80780 | Available on Request |
| Type 2 | 246 | 35 | – | 236 / 81013 | Available on Request |

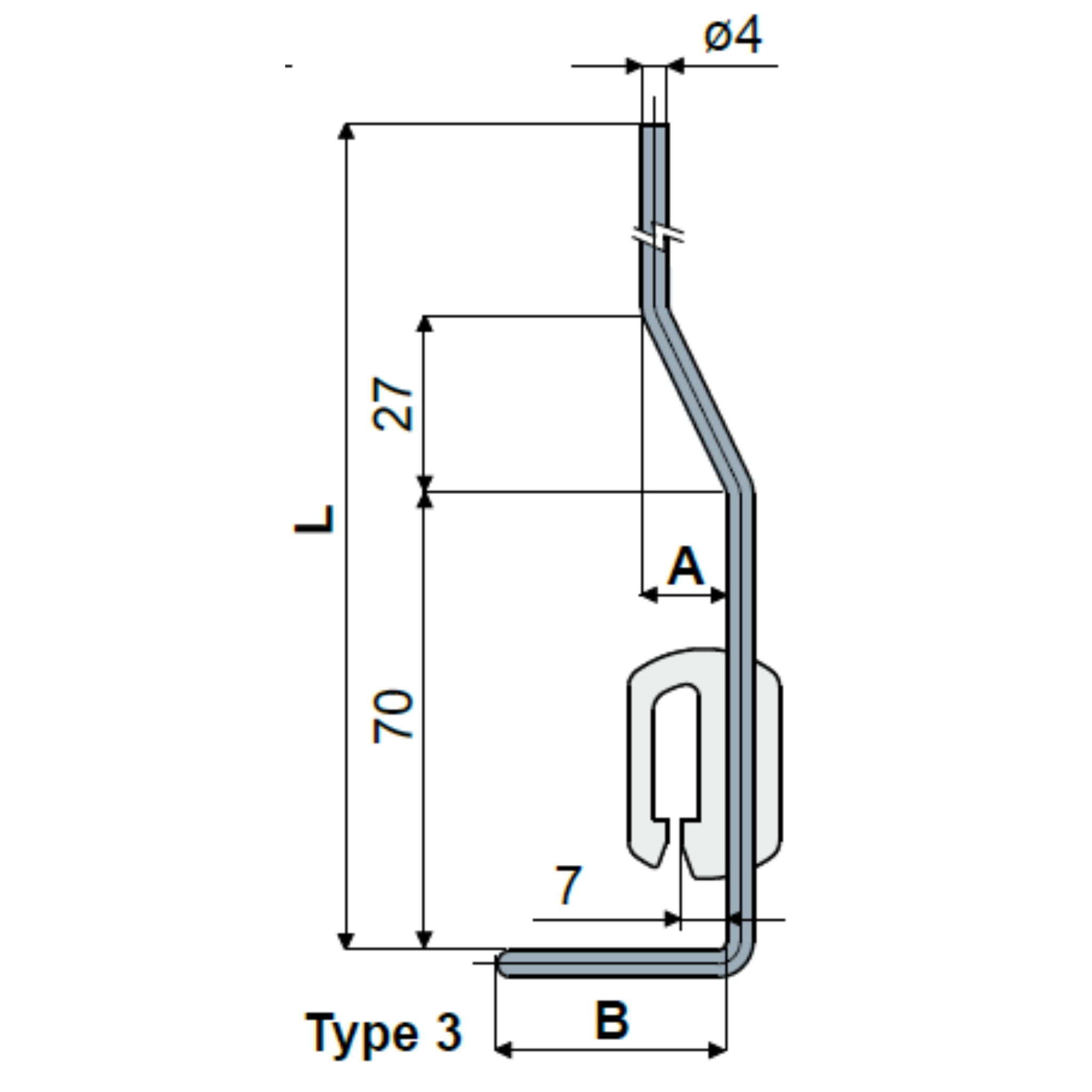

| Type 3 | 250 | 35 | 13 | 236 / 82640 | Available on Request |

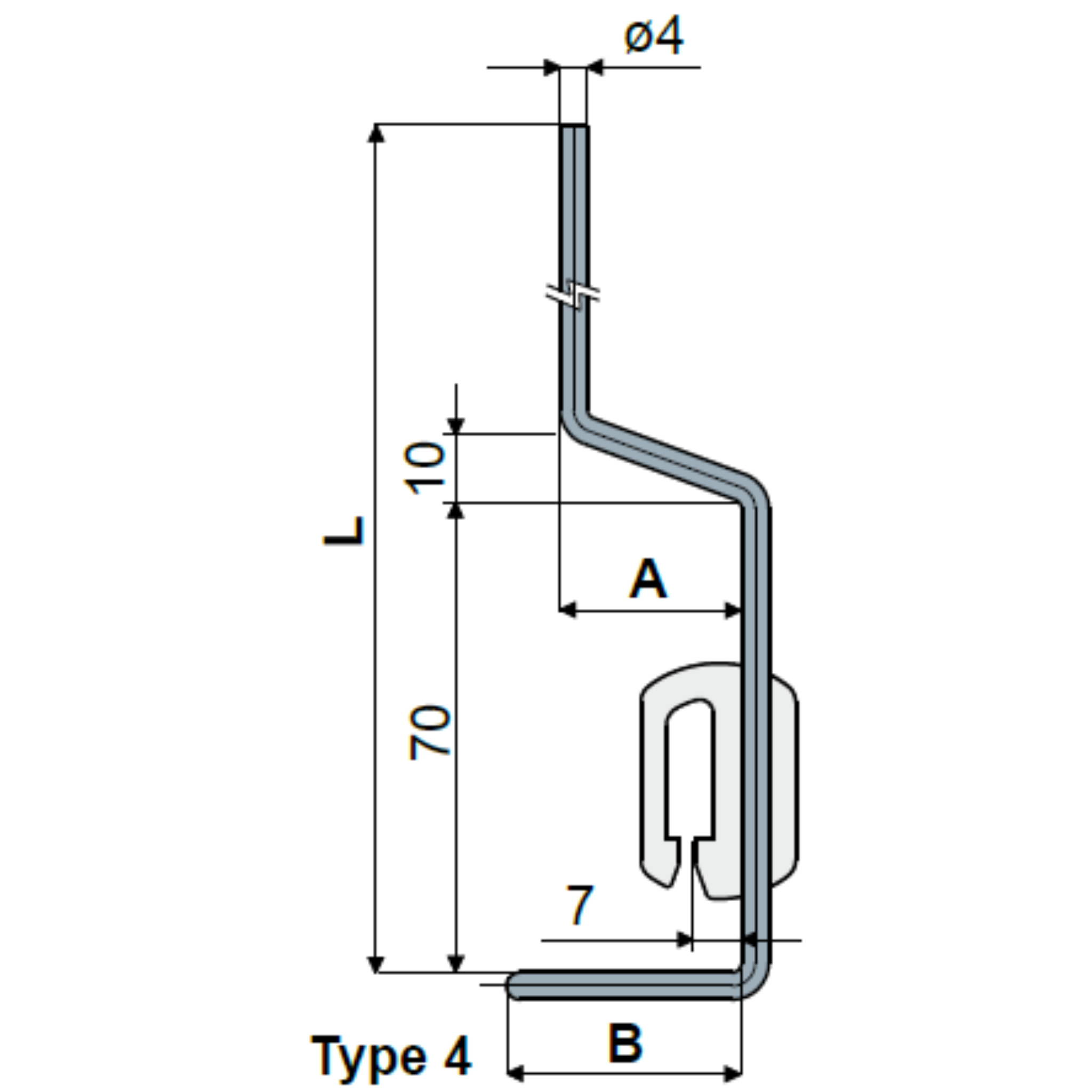

| Type 4 | 280 | 35 | 27 | 236 / 82949 | Available on Request |
