Description
Part 280
Brand: Tecom

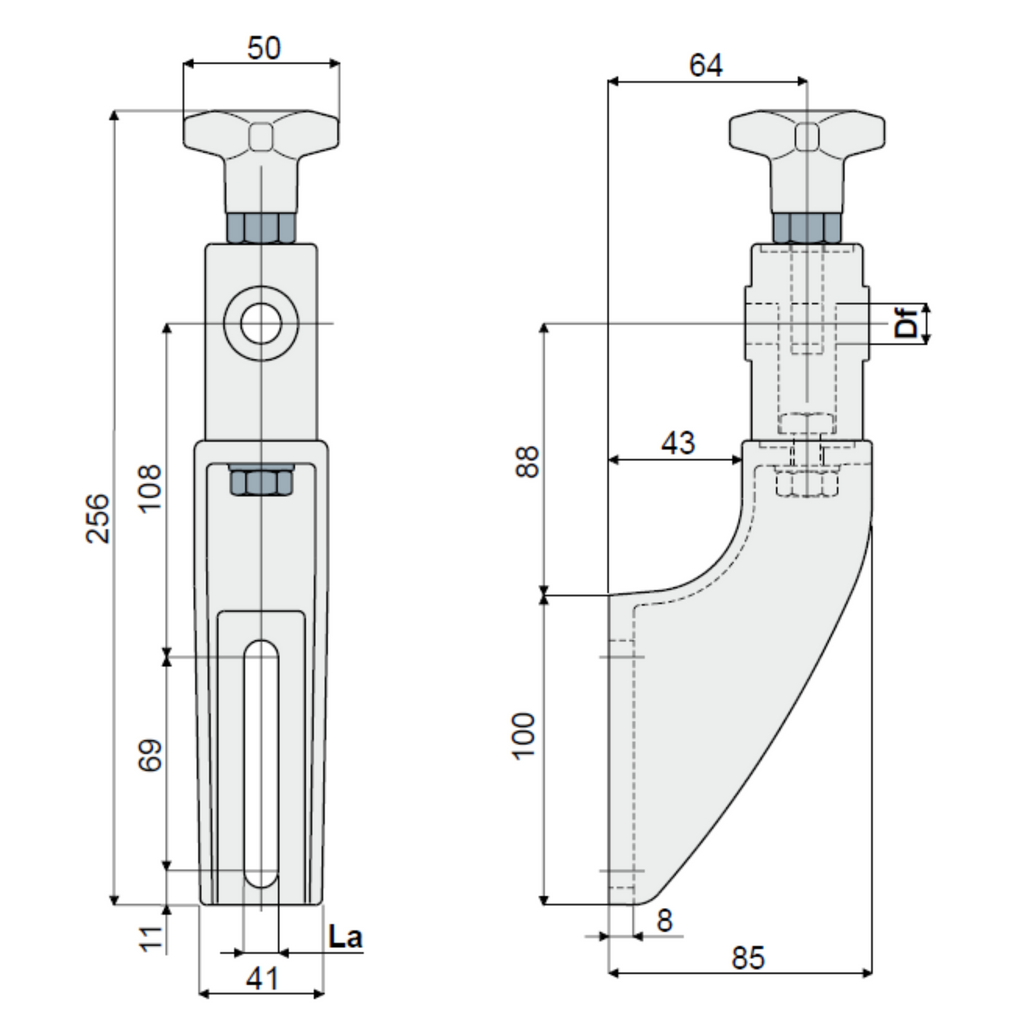

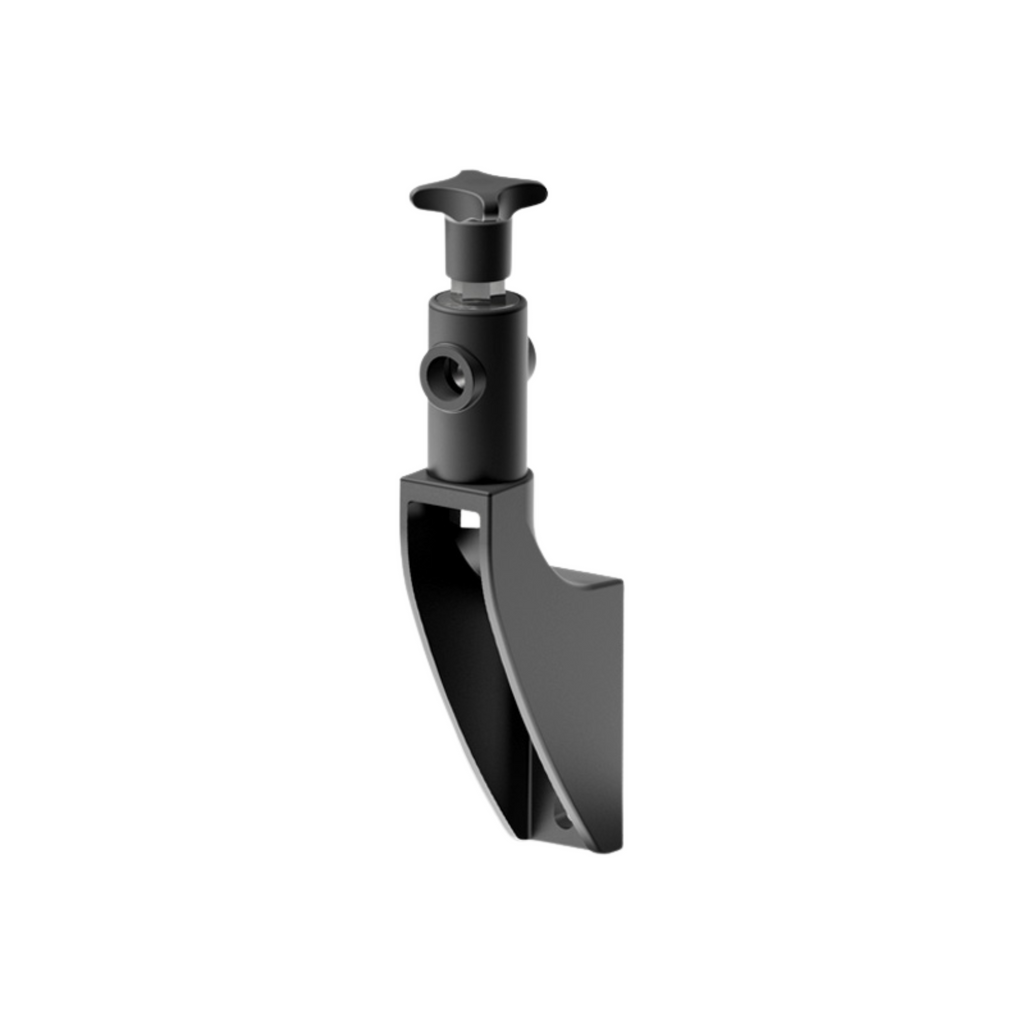

Guide Rail Bracket
Material: Bracket and head made of reinforced polyamide. Hexagonal insert made of nickel plated brass. Eyebolt, nut, screw and washer made of stainless steel AISI 304.
Colour: Black
Information: Max tightening torque 4 Kg.m.
| Df Bore for pin of (mm) | La (9 mm slot) Code | La (11 mm slot) Code | Stock |
|---|---|---|---|
| 12 | 280 / 82150 | 280 / 82127 | Available on Request |
| 14 | 280 / 82151 | 280 / 82128 | Available on Request |
| 16 | 280 / 82152 | 280 / 82129 | Available on Request |
