Description
Part 435
Brand: Tecom

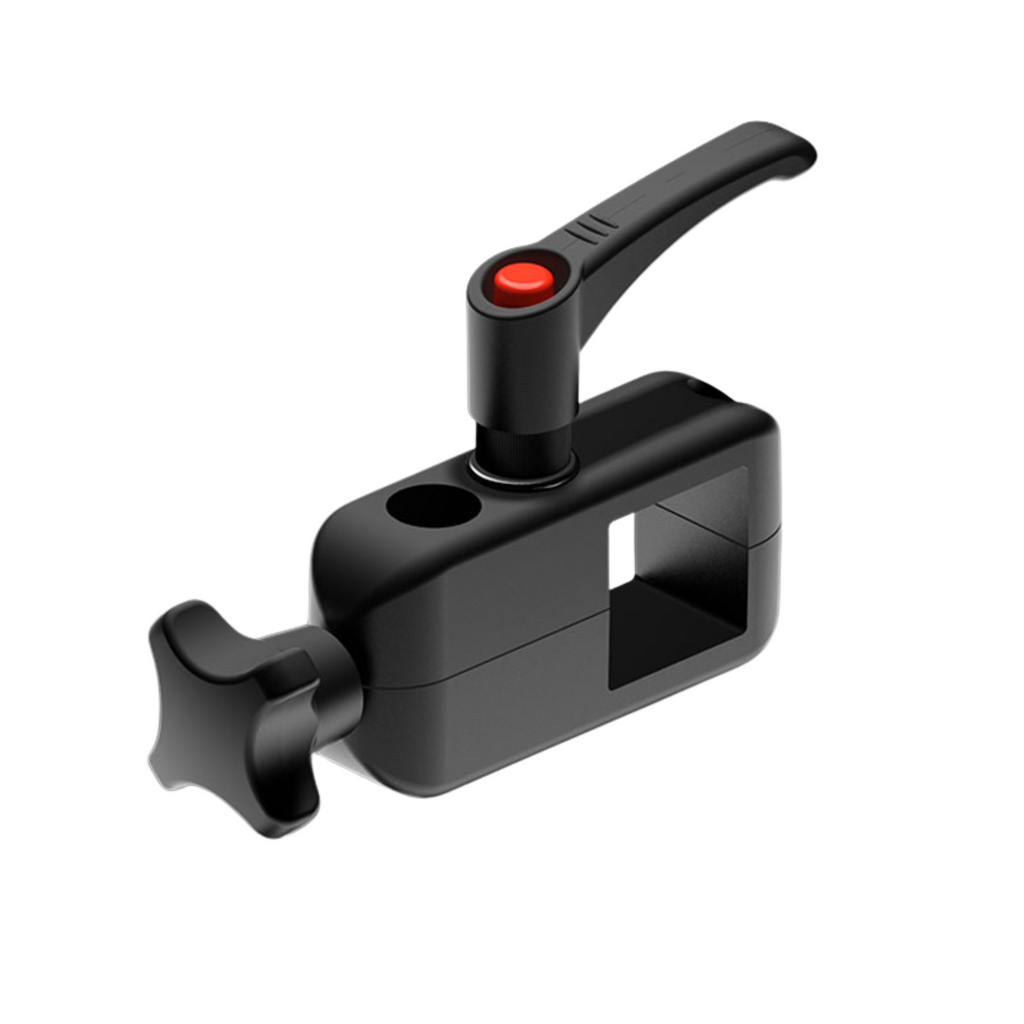

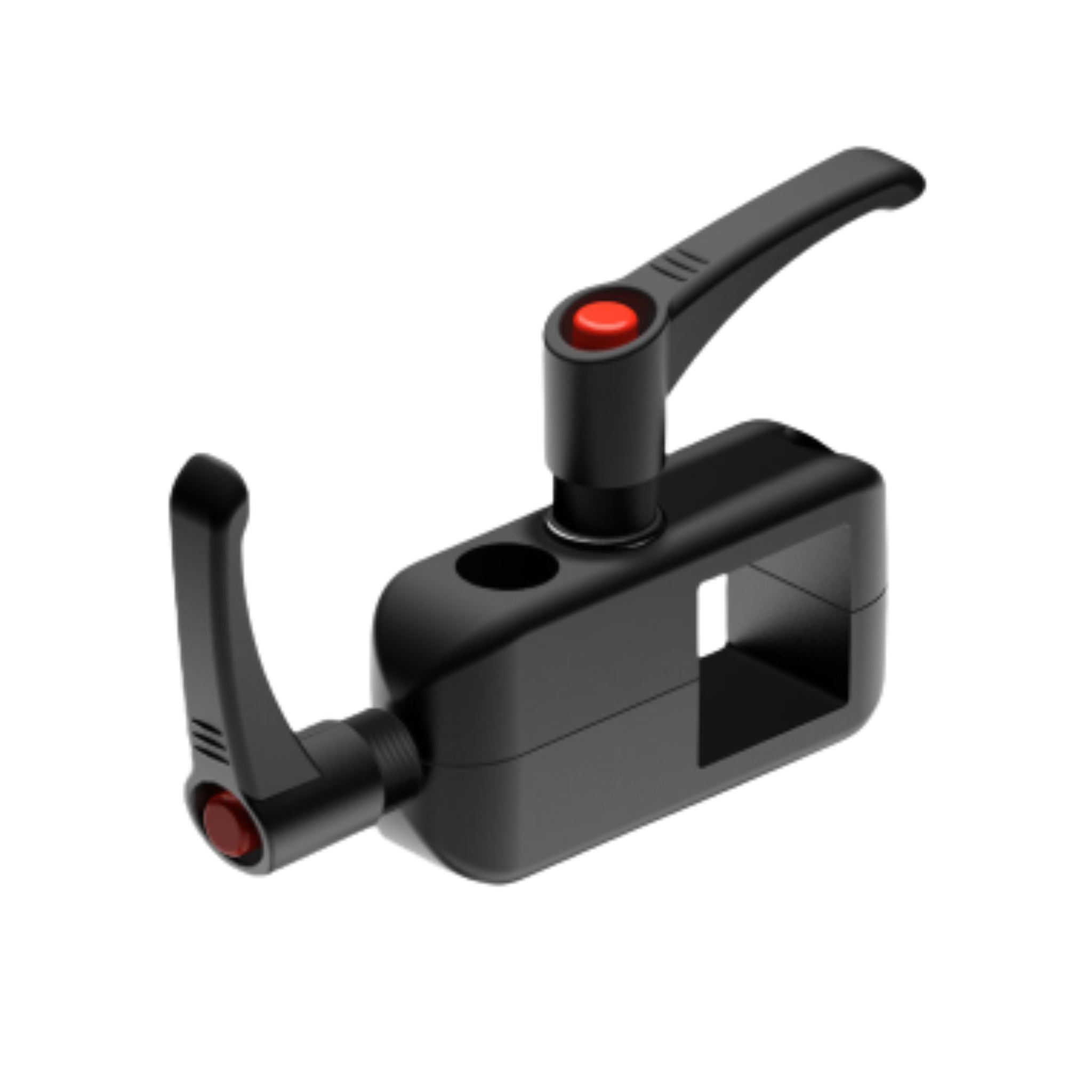

Cross Clamp For Central Roller Guide Support
Material: Clamp and handles made of reinforced polyamide. Nuts, screws and washer made of stainless steel AISI 304.
Colour: Black.

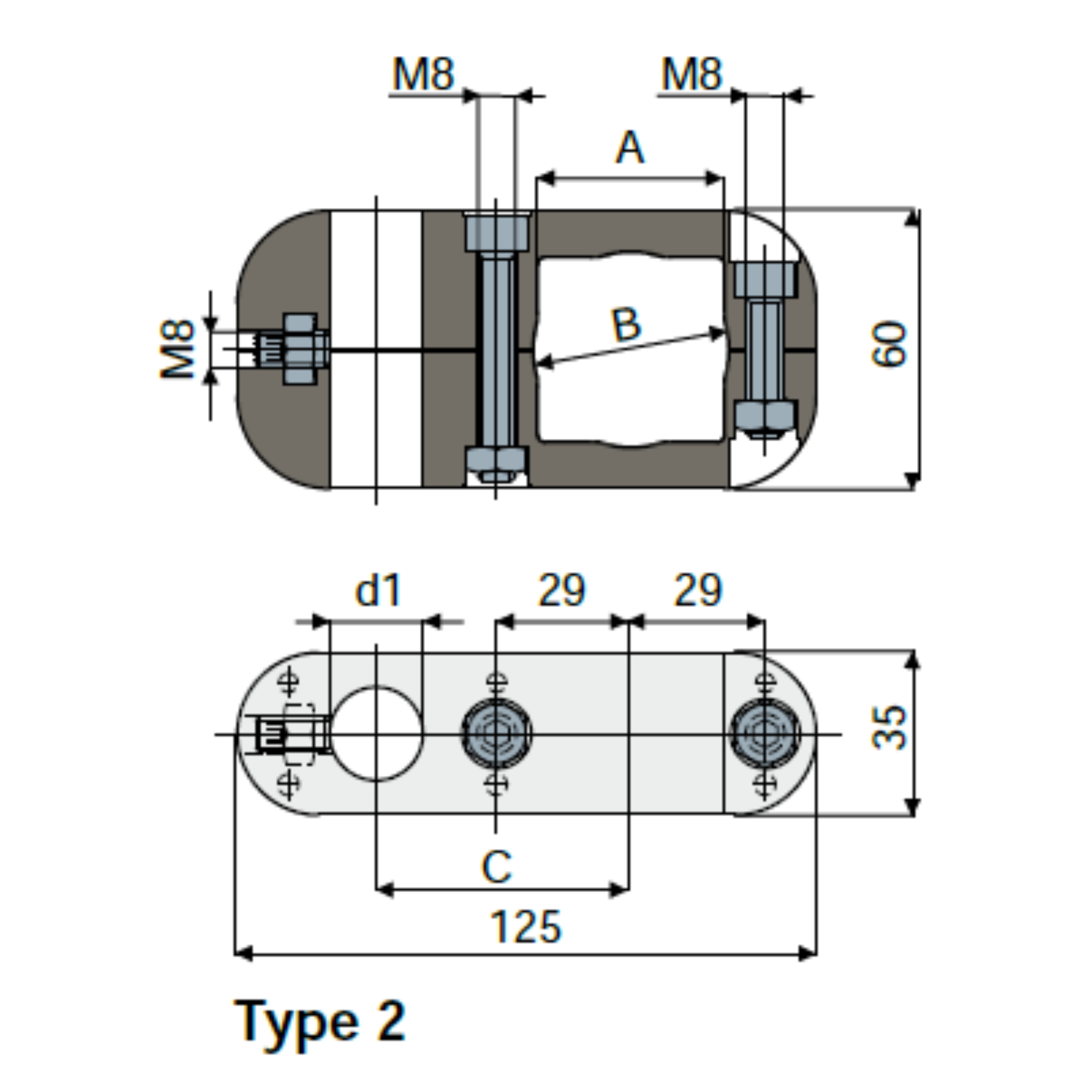

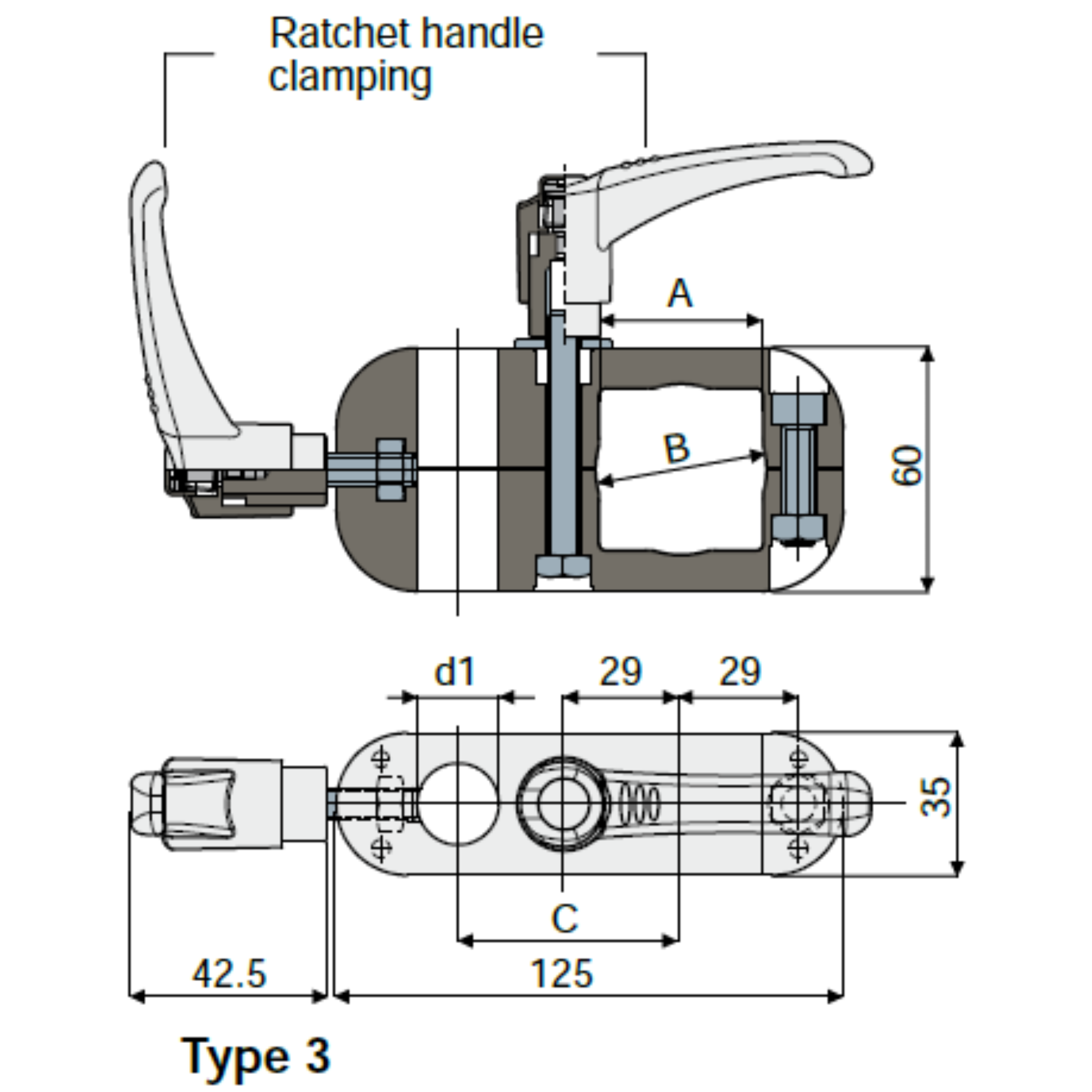

| Square Tube A (mm) | Round Tube B (mm) | C (mm) | Pin Ø d1 (mm) | Type 1 Code | Type 2 Code | Type 3 Code | Stock |
|---|---|---|---|---|---|---|---|
| 40 | 42.4 | 58 | 15–16 | 435 / 85166 | 435 / 85167 | 435 / 86692 | Available on Request |
| 40 | 42.4 | 56 | 20 | 435 / 85168 | 435 / 85169 | 435 / 86691 | Available on Request |
