Description
Part 408
Brand: Tecom

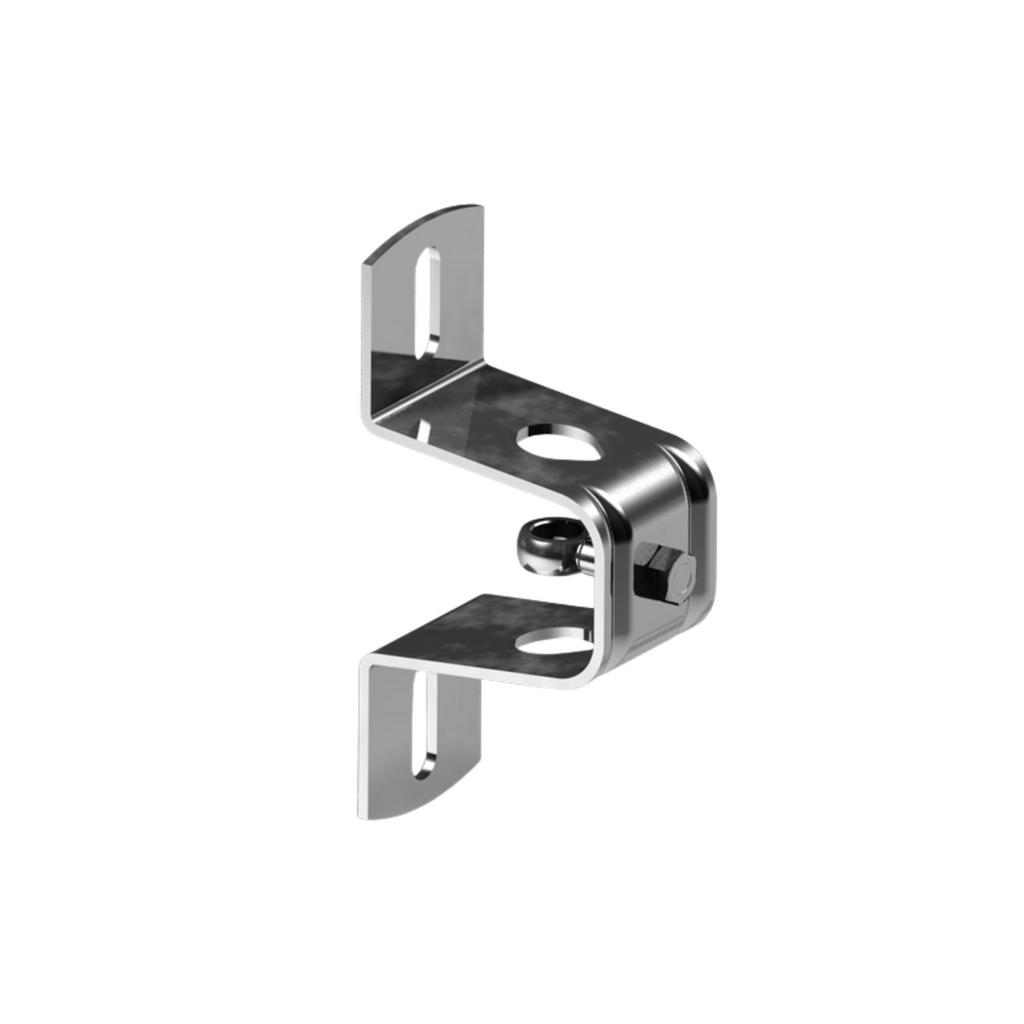

Guide Rail Bracket
Material: Bracket, eyebolt and nut made of stainless steel AISI 304

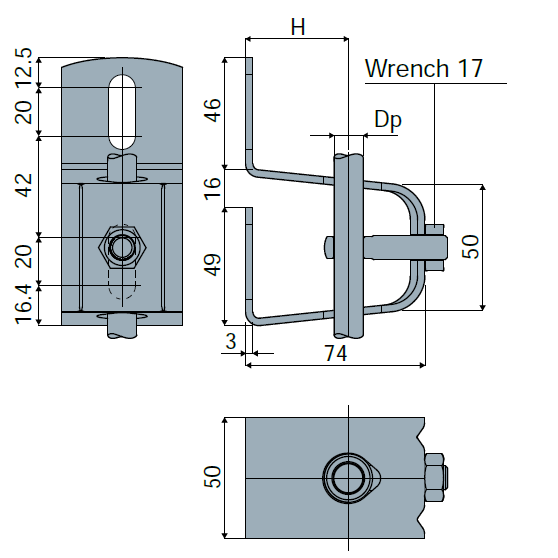

Compact Version
| Dp Pin Diameter (mm) | H (mm) | Code | Stock |
|---|---|---|---|
| 12 | 49 | 408 / 84337 | Available on Request |
| 14 | 47 | 408 / 84338 | Available on Request |
| 16 | 46 | 408 / 84339 | Available on Request |
| 20 | 43 | 408 / 88698 | Available on Request |

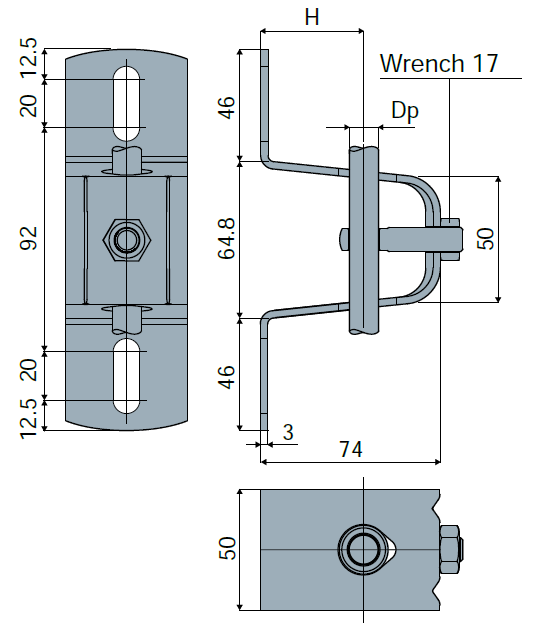

Standard Version
| Dp Pin Diameter (mm) | H (mm) | Code | Stock |
|---|---|---|---|
| 12 | 49 | 408 / 84334 | Available on Request |
| 14 | 47 | 408 / 84335 | Available on Request |
| 16 | 46 | 408 / 84336 | Available on Request |
| 20 | 43 | 408 / 88700 | Available on Request |
