Description

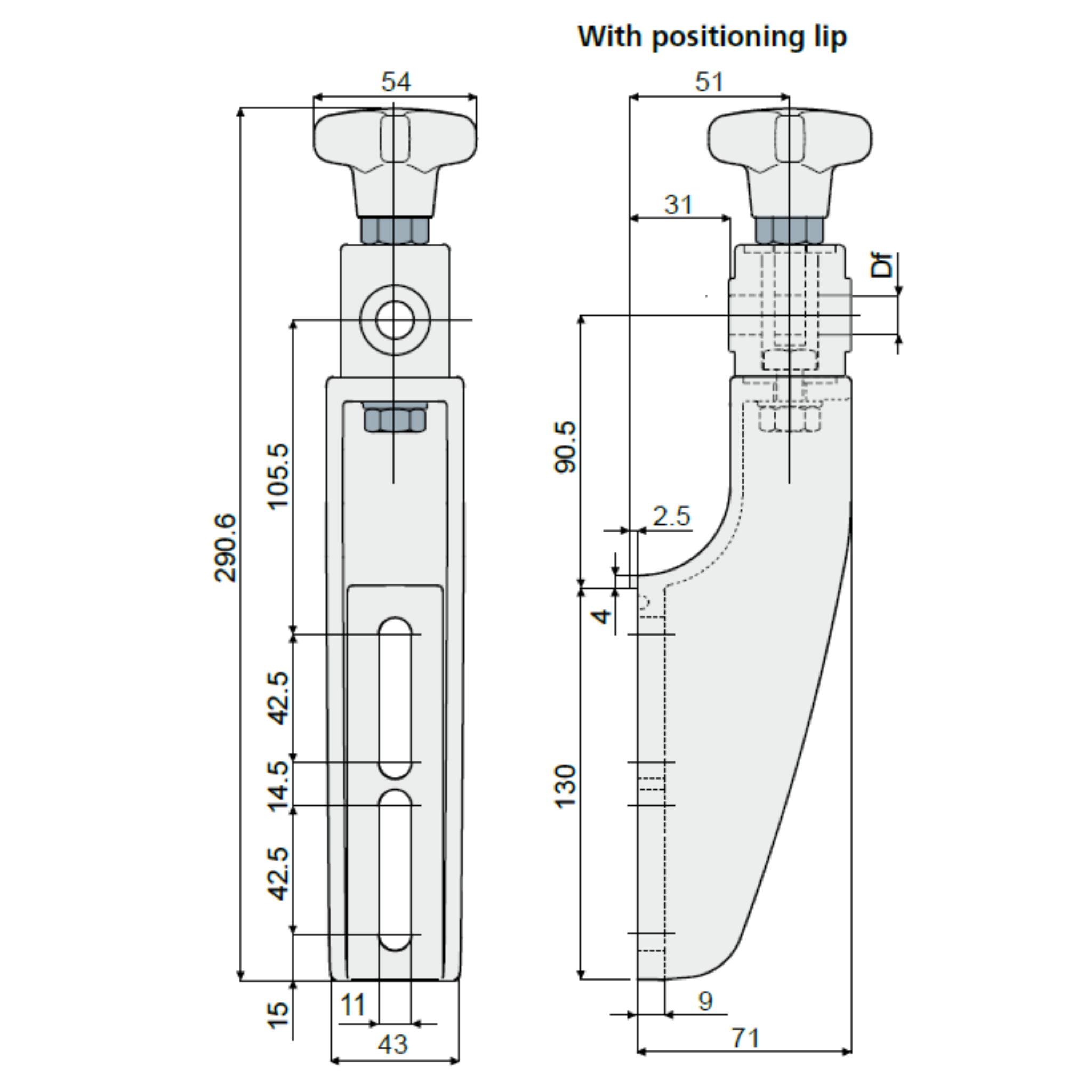

Part 488
Brand: Tecom

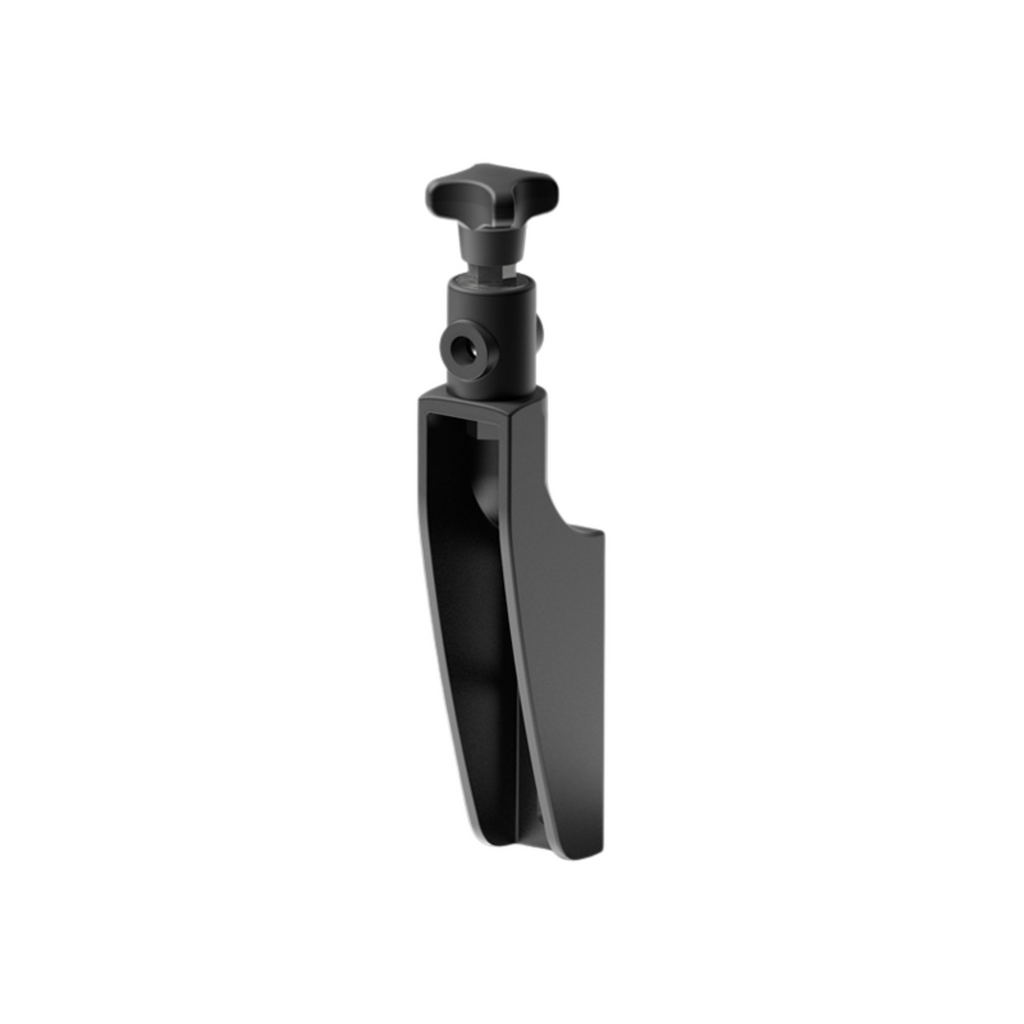

Guide Rail Bracket
Material: Bracket and knob made of reinforced polyamide. Hexagonal insert made of nickel plated brass. Eyebolt, nut, screw and washer made of stainless steel AISI 304.
Colour: Black
Information: Max tightening torque 4 Kg.m.
| Df Bore for Pin (mm) | With Positioning Lip | Without Positioning Lip | Stock Availability |
|---|---|---|---|
| 12 | 488 / 86193 | 488 / 86194 | Available on Request |
| 14 | 488 / 86195 | 488 / 86196 | Available on Request |
| 16 | 488 / 86197 | 488 / 86198 | Available on Request |
