Description
Part 210_SQ
Brand: Tecom
Connecting Joint For Square Tubes
Material: Joint made of reinforced polyamide. Bolts and nuts are made of stainless steel AISI 304 or zinc plated steel.
Colour: Black
Information: Max tightening torque 2 Kg.m.

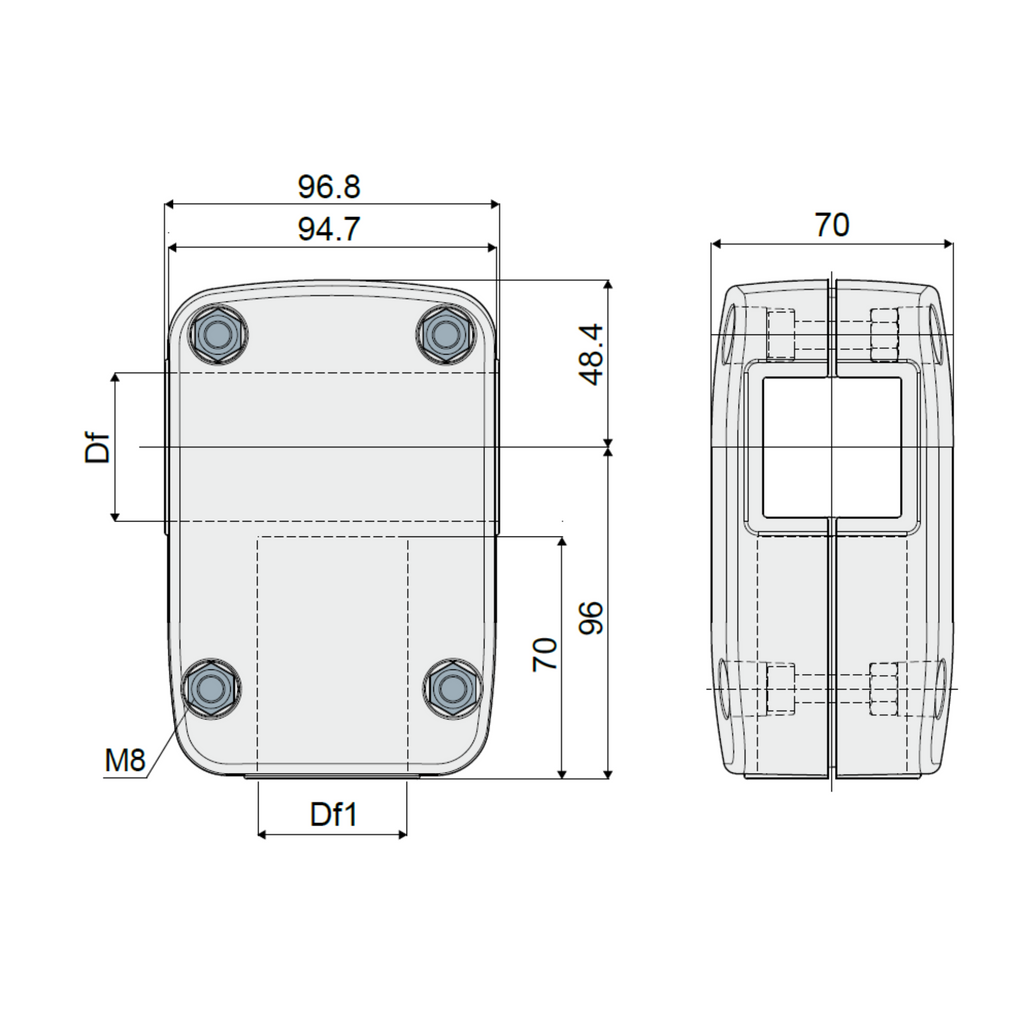

| Df Bore for tubes of (mm) | Df1 Bore for tubes of (mm) | Zinc-Plated Steel Bolts and Nuts | Stainless Steel AISI 304 | Stock |
|---|---|---|---|---|
| 40×40 | 40×40 | 210 / 85114 | 210 / 85115 | Available on Request |
| 45×45 | 45×45 | 210 / 84132 | 210 / 84133 | Available on Request |
