Description
Part 558
Brand: Tecom

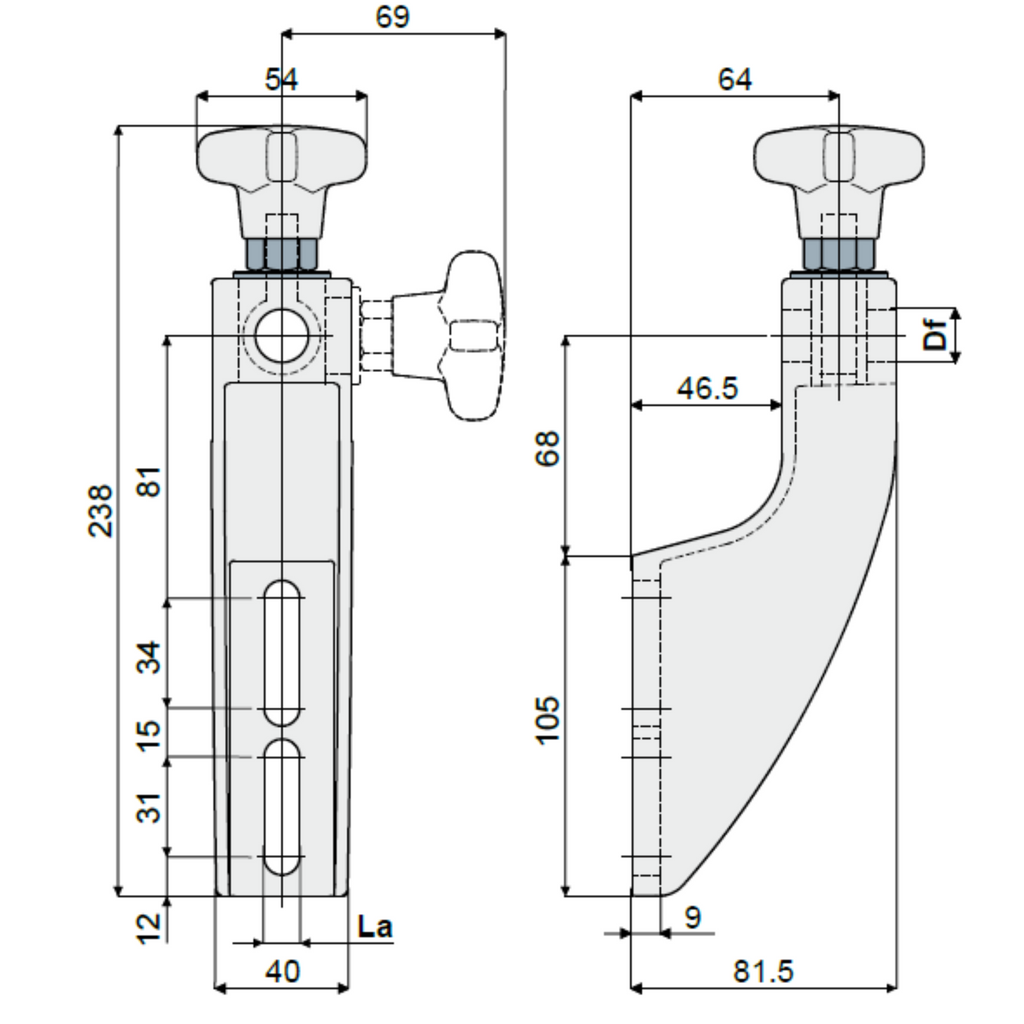

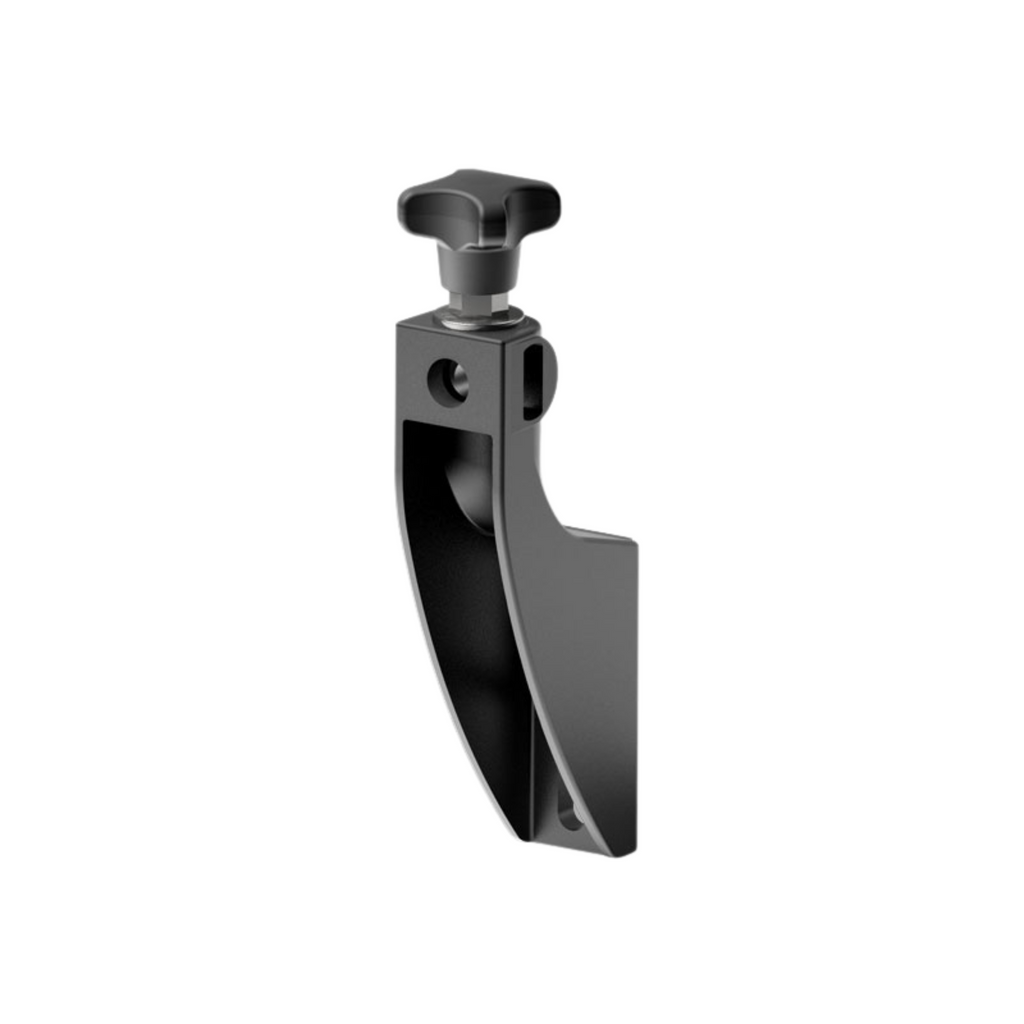

Guide Rail Bracket
Material: Bracket and knob made of reinforced polyamide. Hexagonal insert made of nickel plated brass. Eyebolt nut and washer made of stainless steel AISI 304.
Colour: Black
Information: Max tightening torque 4 Kg.m.
| Df Bore for Pin (mm) | La (9 mm slot) | La (11 mm slot) | Stock |
|---|---|---|---|
| 12 | 558 / 90810 | 558 / 90813 | Available on Request |
| 14 | 558 / 90811 | 558 / 90814 | Available on Request |
| 16 | 558 / 90812 | 558 / 90815 | Available on Request |
