Description
Part 201

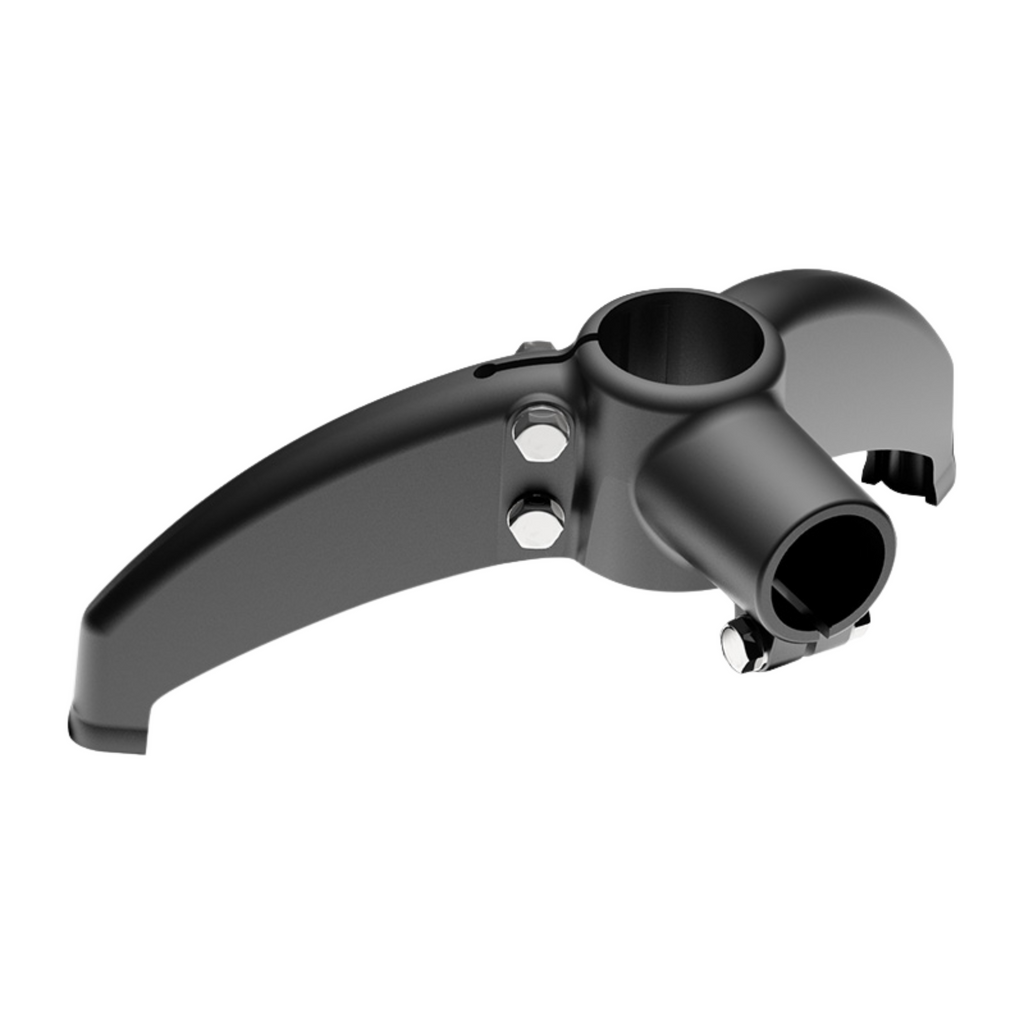

Support Base Bipod 120°
Brand: Tecom
Material: The base is made of reinforced polyamide. The threaded bushing is made of nickel-plated brass. Fixing bolts and nuts are made of stainless steel AISI 304 or zinc-plated steel.
Colour: Black
Information: Max tightening torque 3.6 Kg.m.

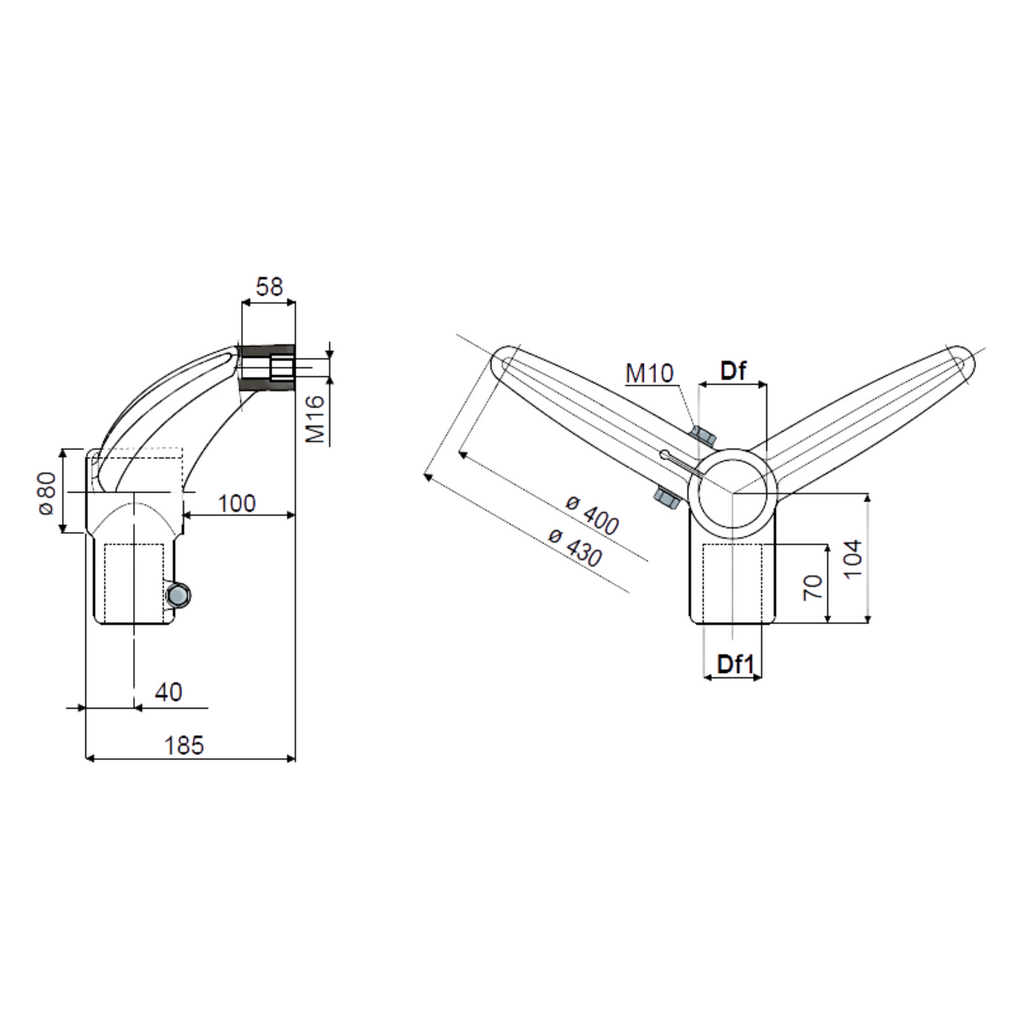

| Df – Bore for Tubes (mm) | Df1 – Bore for Tubes (mm) | Zinc Plated Steel Code | Stainless Steel Code | Stock |
|---|---|---|---|---|
| 60,3 | 48,3 | 201 / 80612 | 201 / 80613 | Available on Request |
| 60,3 | 42,4 | 201 / 80614 | 201 / 80615 | Available on Request |
| 50,8 | 48,3 | 201 / 83200 | 201 / 83201 | Available on Request |
| 50,8 | 42,4 | 201 / 83202 | 201 / 83203 | Available on Request |
| 48,3 | 48,3 | 201 / 80616 | 201 / 80617 | Available on Request |
| 48,3 | 42,4 | 201 / 80618 | 201 / 80619 | Available on Request |
| 42,4 | 42,4 | 201 / 80620 | 201 / 80621 | Available on Request |
