Description
Part 200

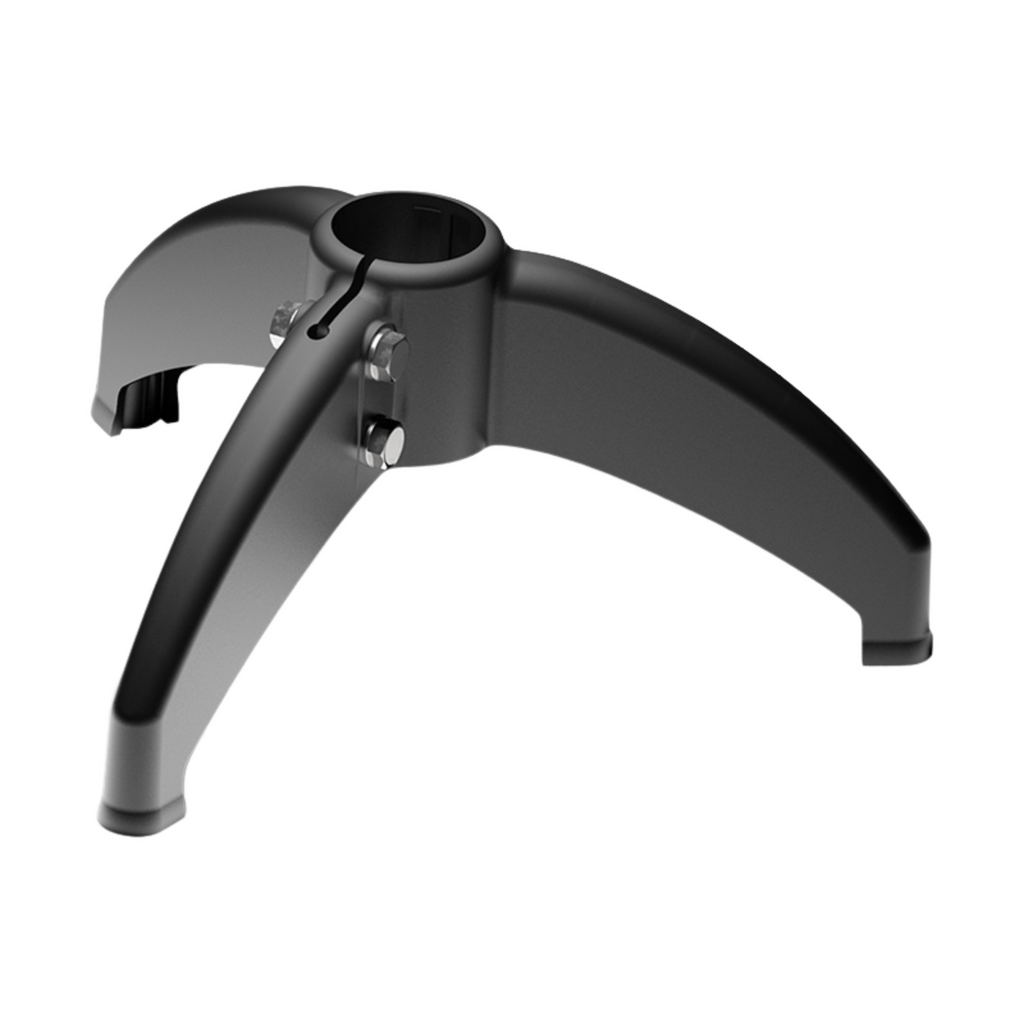

Support Base Tripod
Brand: Tecom
Material: The base is made of reinforced polyamide. Threaded bushing is made of nickel plated brass. Fixing bolts and nuts are made of stainless steel AISI 304 or zinc plated steel.
Colour: Black
Information: Max tightening torque 3.6 Kg.m.

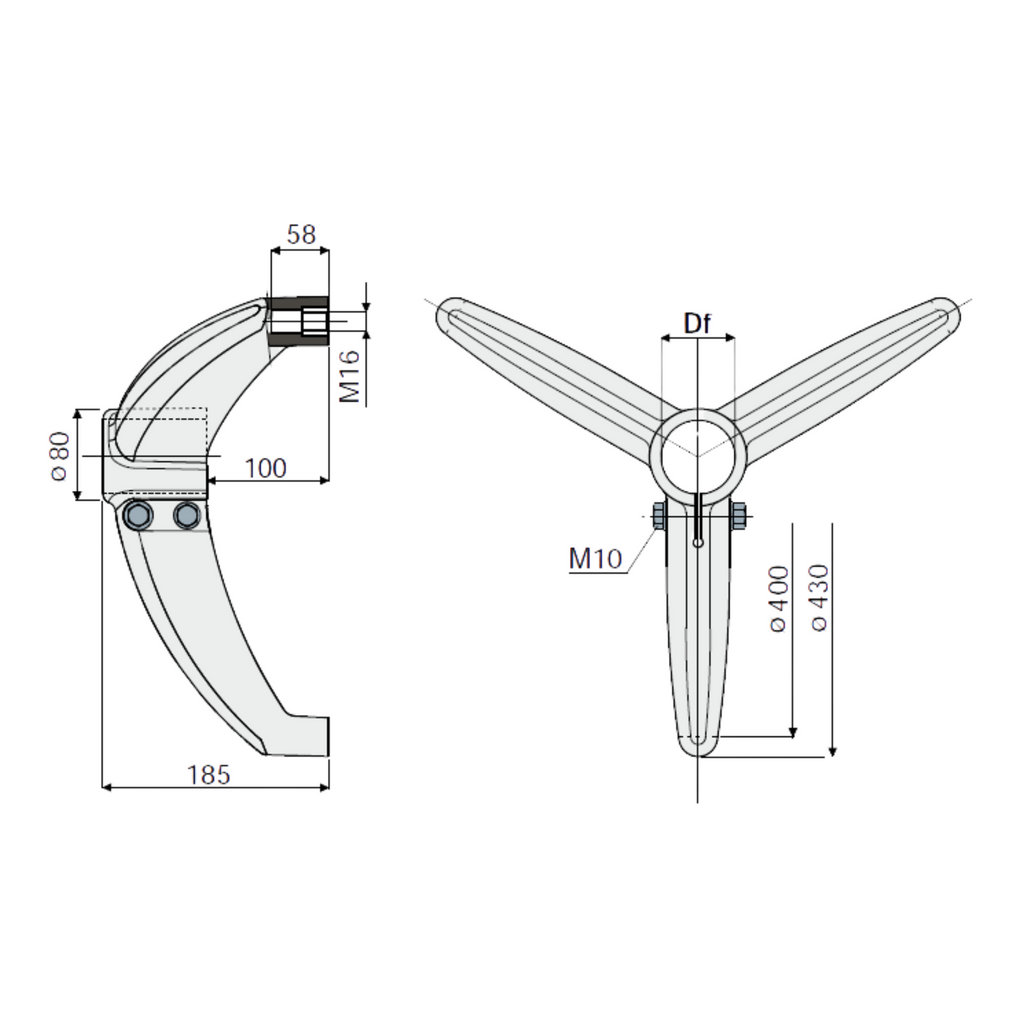

| Df – Bore for Tubes (mm) | Zinc Plated Steel Bolts & Nuts | Stainless Steel AISI 304 Bolts & Nuts | Stock |
|---|---|---|---|
| 60.3 | 200 / 80588 | 200 / 80598 | Available on request |
| 50.8 | 200 / 82070 | 200 / 82071 | Available on request |
| 48.3 | 200 / 80590 | 200 / 80591 | Available on request |
| 42.4 | 200 / 80592 | 200 / 80593 | Available on request |
| 40x40 | 200 / 85108 | 200 / 85109 | Available on request |
| 45x45 | 200 / 80271 | 200 / 80753 | Available on request |
