Description
Part 202

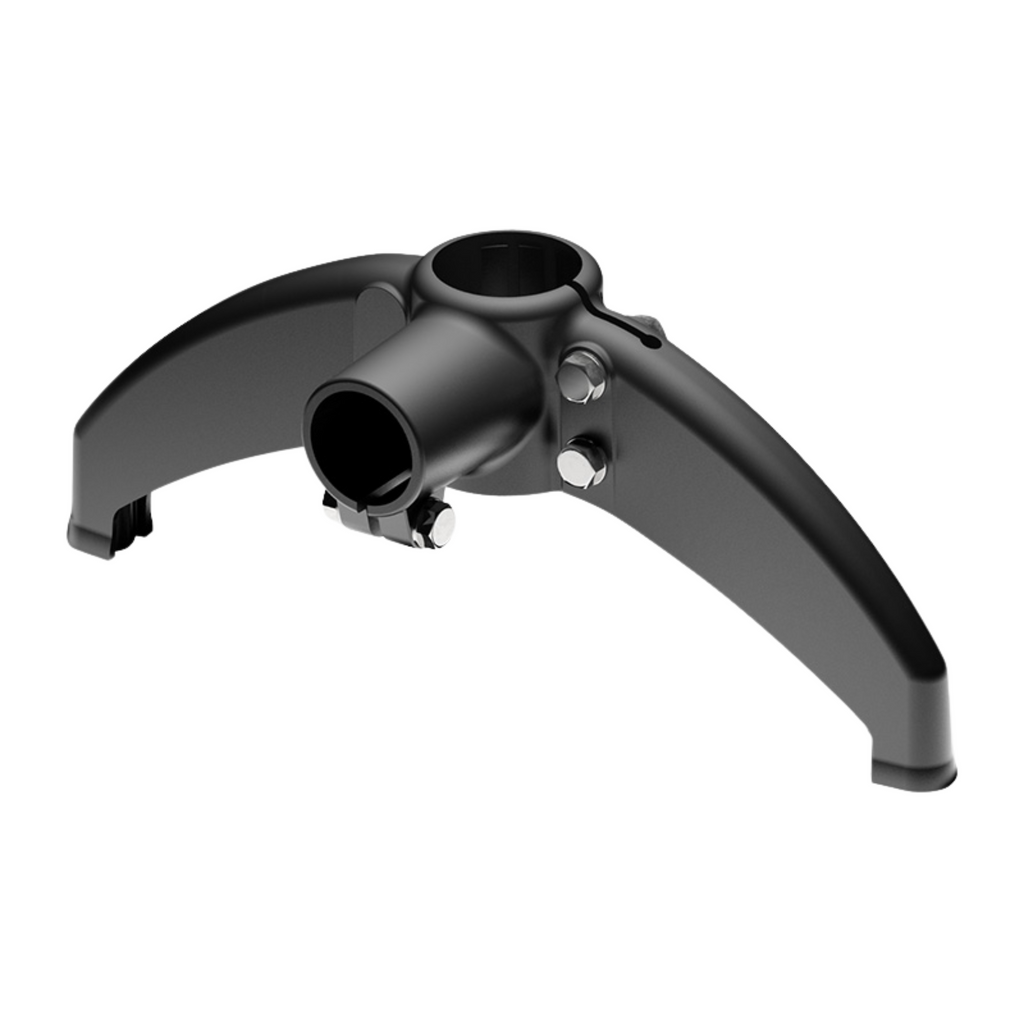

Support Base Bipod at 180°
Brand: Tecom
Material: The base is made of reinforced polyamide. Threaded bushing is made of nickel plated brass. Fixing bolts and nuts are made of stainless steel AISI 304 or zinc plated steel.
Colour: Black
Information: Max tightening torque 3.6 Kg.m.

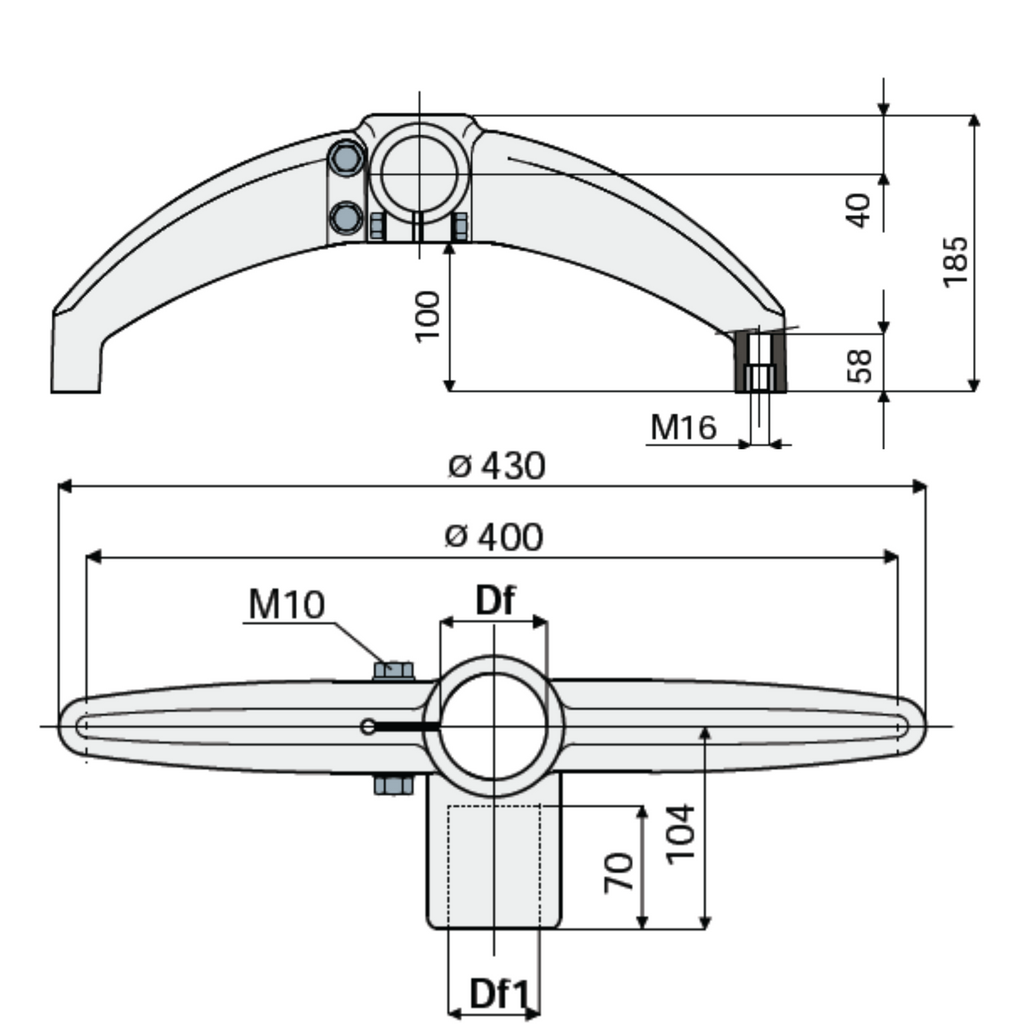

| Df – Bore for Tubes (mm) | Df1 – Bore for Tubes (mm) | Zinc Plated Steel Code | Stainless Steel Code | Stock |
|---|---|---|---|---|
| 60,3 | 48,3 | 202 / 80622 | 202 / 80623 | Available on Request |
| 60,3 | 42,4 | 202 / 80624 | 202 / 80625 | Available on Request |
| 50,8 | 48,3 | 202 / 83204 | 202 / 83205 | Available on Request |
| 50,8 | 42,4 | 202 / 83206 | 202 / 83207 | Available on Request |
| 48,3 | 48,3 | 202 / 80626 | 202 / 80627 | Available on Request |
| 48,3 | 42,4 | 202 / 80628 | 202 / 80629 | Available on Request |
| 42,4 | 42,4 | 202 / 80630 | 202 / 80631 | Available on Request |
