Description
878T Series
Product information
-

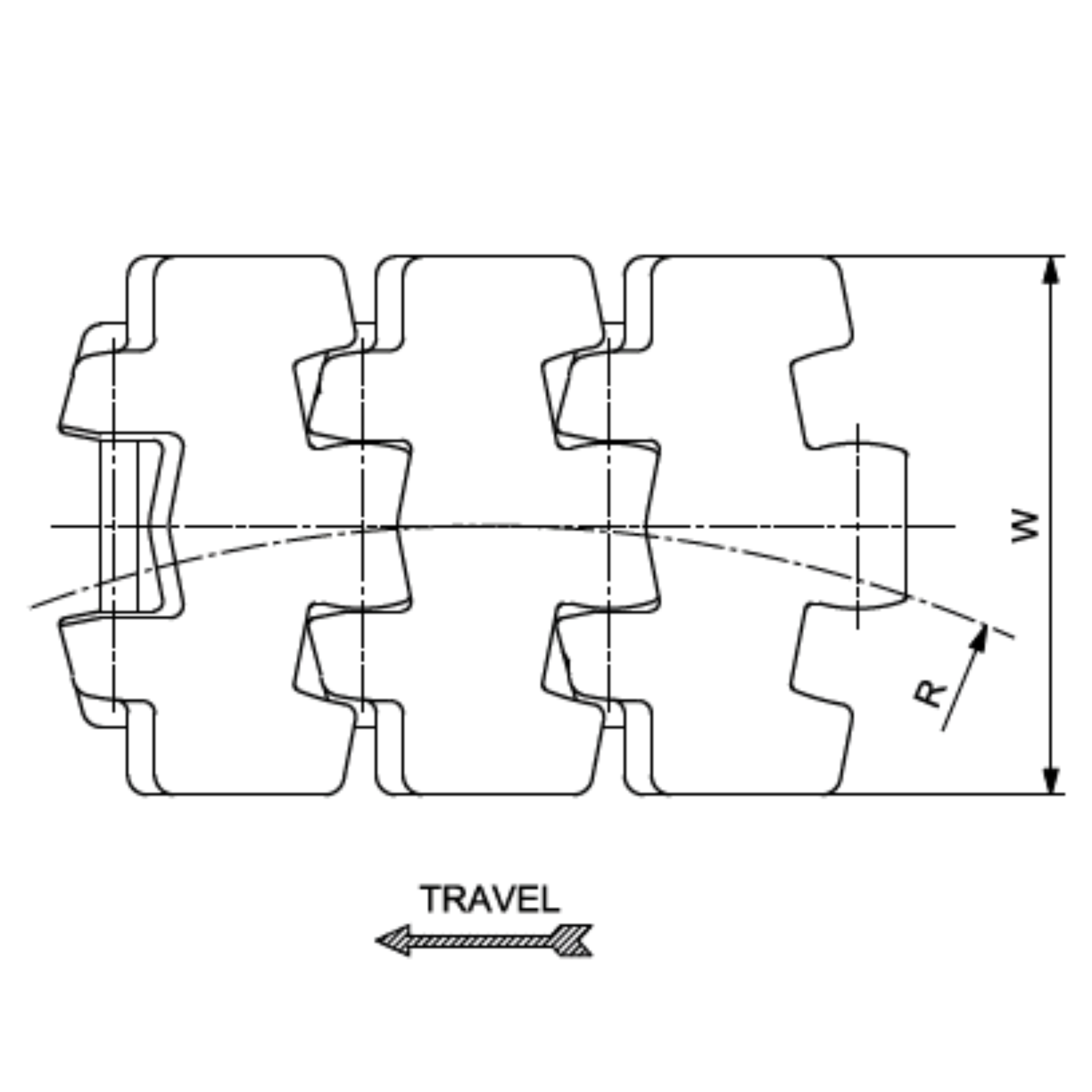

Sideflexing
-
TAB
-
Tight radius
-

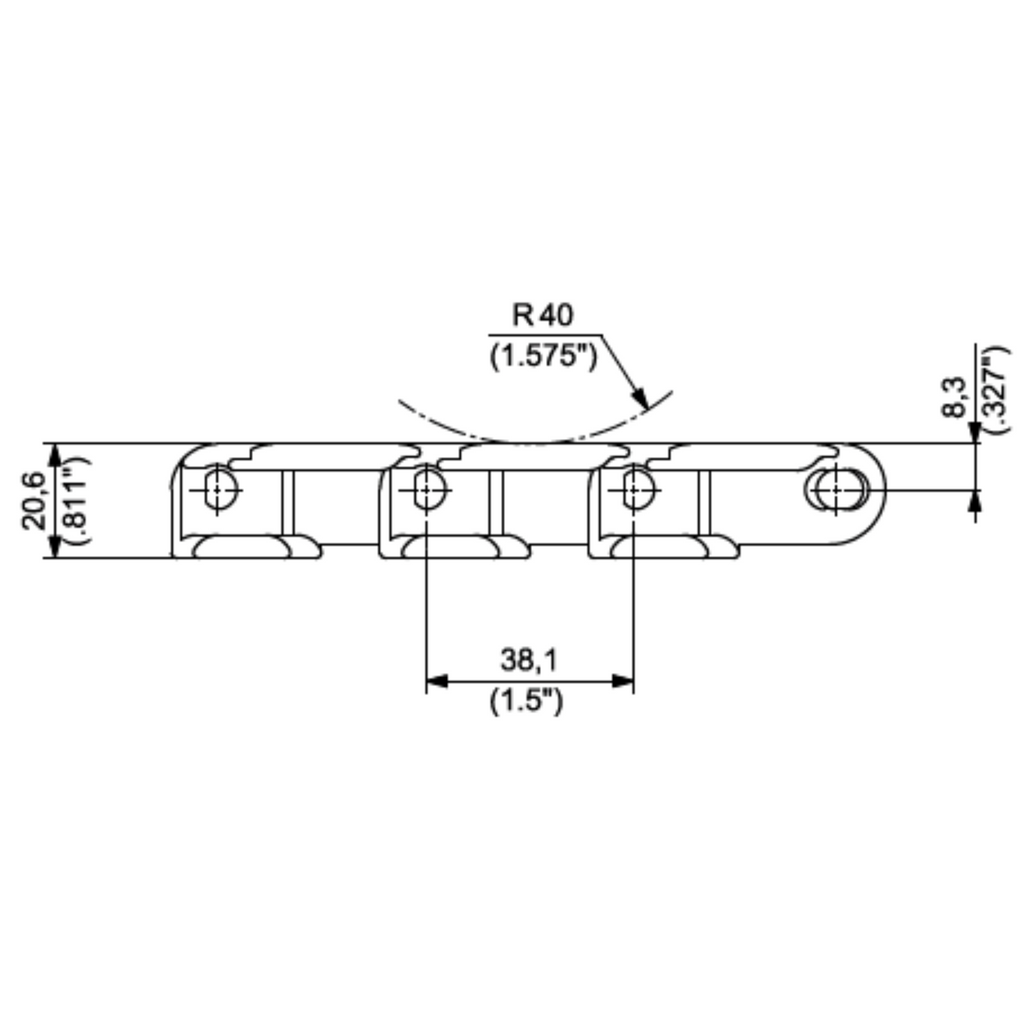

Pitch 1 ½” (38.1mm)
-

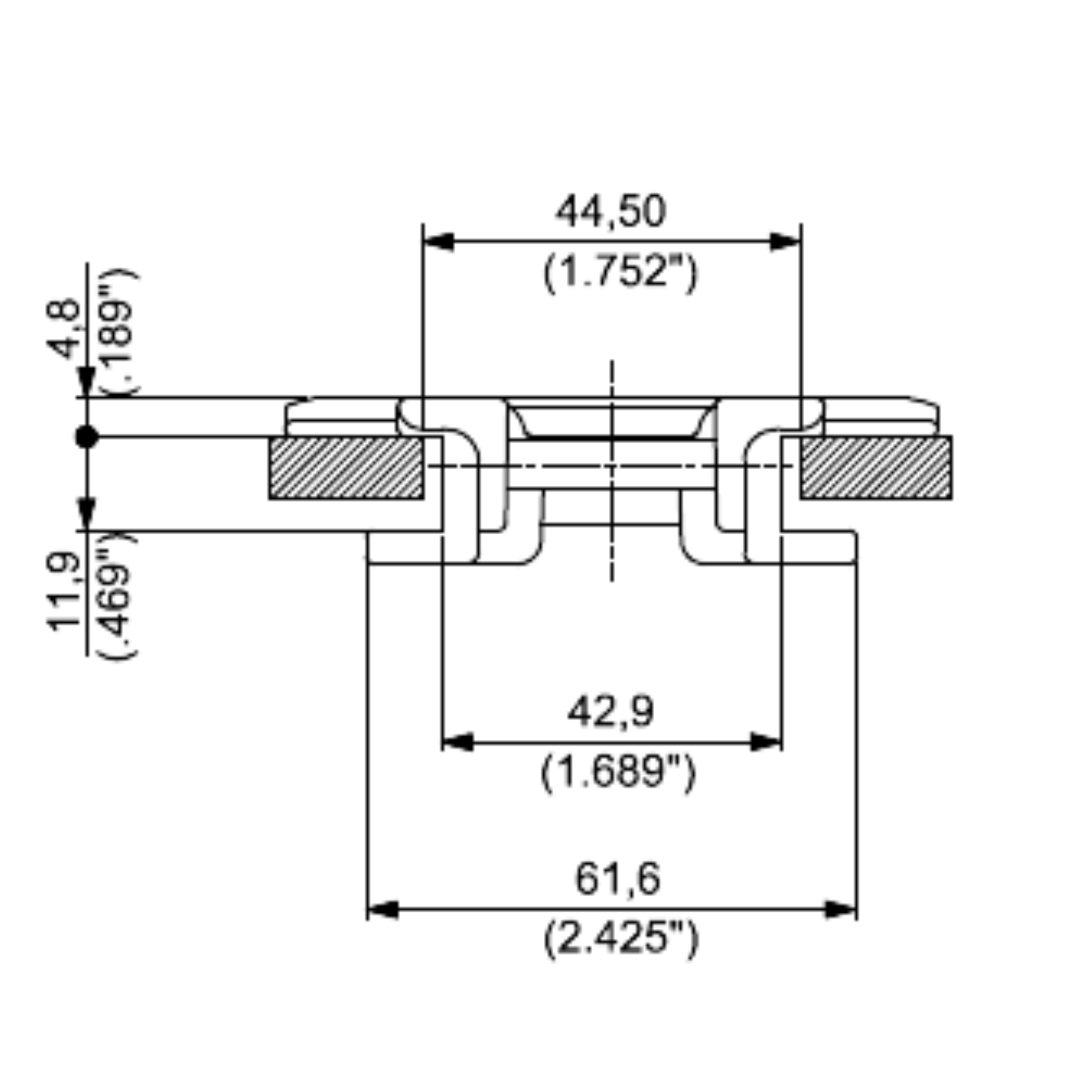

Thickness 4.8mm (0.189”)
-
Hinge 42.9mm (1.689””)
Standard packaging: Rolls of 3.048 meters
Information: Actual width can be up to 0.5% greater than nominal width
| Plate Material | Pin Material | Item Description | Part Number | Width (mm) | Width (inch) | Plate Thickness (mm) | Plate Thickness (inch) | Sideflexing Radius (mm) | Sideflexing Radius (inch) | Working Load (N) | Working Load (lbs) | Weight (kg/m) | Weight (lbs/ft) | Stock |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ultra Performance Homopolymer Delrin® (UP) | Austenitic Stainless Steel | UP 878TK 3 ¼ | UP878TKD/000 | 82.6 | 3.25 | 4.8 | 0.19 | 200 | 7.87 | 2000 | 450 | 1.08 | 0.73 | Available on Request |
| Special Delrin® Reinforced with Kevlar® (D2K) | Austenitic Stainless Steel | D2K 878TK 3 ¼ | D2K878TKD/000 | 82.6 | 3.25 | 4.8 | 0.19 | 200 | 7.87 | 2000 | 450 | 1.06 | 0.71 | Available on Request |
| Abrasion Resistant Polyamide (AR) | Austenitic Stainless Steel | AR 878TK 3 ¼ | AR878TKD/000 | 82.6 | 3.25 | 4.8 | 0.19 | 200 | 7.87 | 2000 | 450 | 0.89 | 0.60 | Available on Request |
