Regina
AR 1305G ATM Series

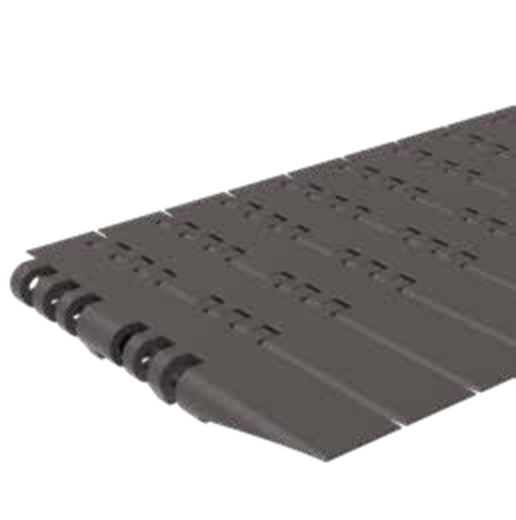

To be used in combination with 1305 belt series. Active transfer modules 1305G ATM series allow the transfer of the products between two 90° conveyor tracks without using dead plates. The special module profile, wing shaped, supports the products dynamically during transfer on the take-away belt. Available left and right version. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
1305GATMAR450LH |
160 mm (6.3")
|
12.7 mm
|
4600 N
|
1.9 kg
|
1305GATMAR450RH |
160 mm (6.3")
|
12.7 mm
|
4600 N
|
1.9 kg
|
1305GATMAR750LH |
236.2 mm (9.3")
|
12.7 mm
|
7800 N
|
2.96 kg
|
1305GATMAR750RH |
236.2 mm (9.3")
|
12.7 mm
|
7800 N
|
2.96 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- AR — Abrasion Resistant Polyamide
- Packaging
- Rolls of
3.048m
AR — Abrasion Resistance Polyamide
Suitable for glass manufacturing applications. Reinforced polyamide with excellent wear resistance and low dusting. Only for dry running applications.
Need help specifying this product?
Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
