Regina

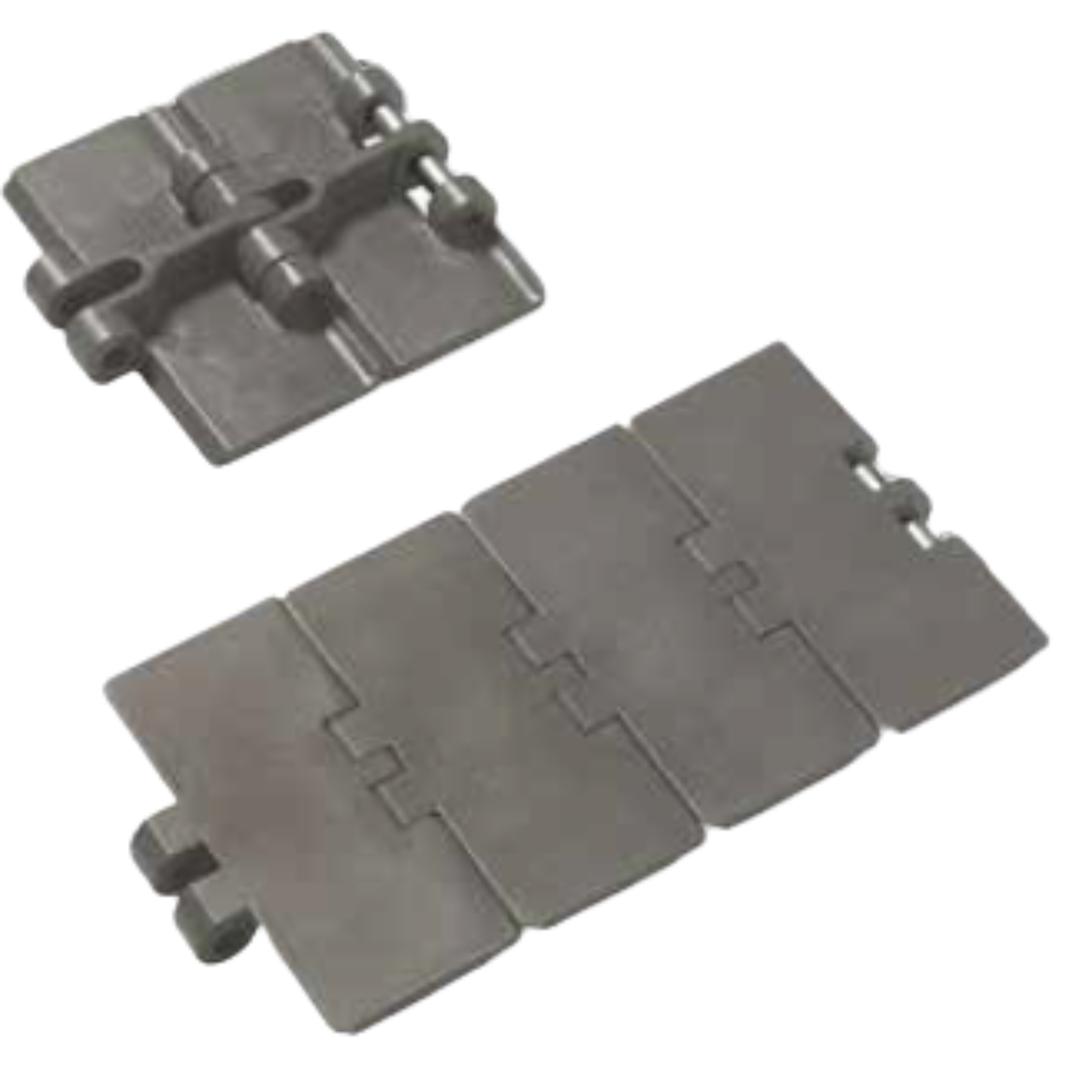

AR 820 Series
Product Configuration
Select a row to add it to your quote

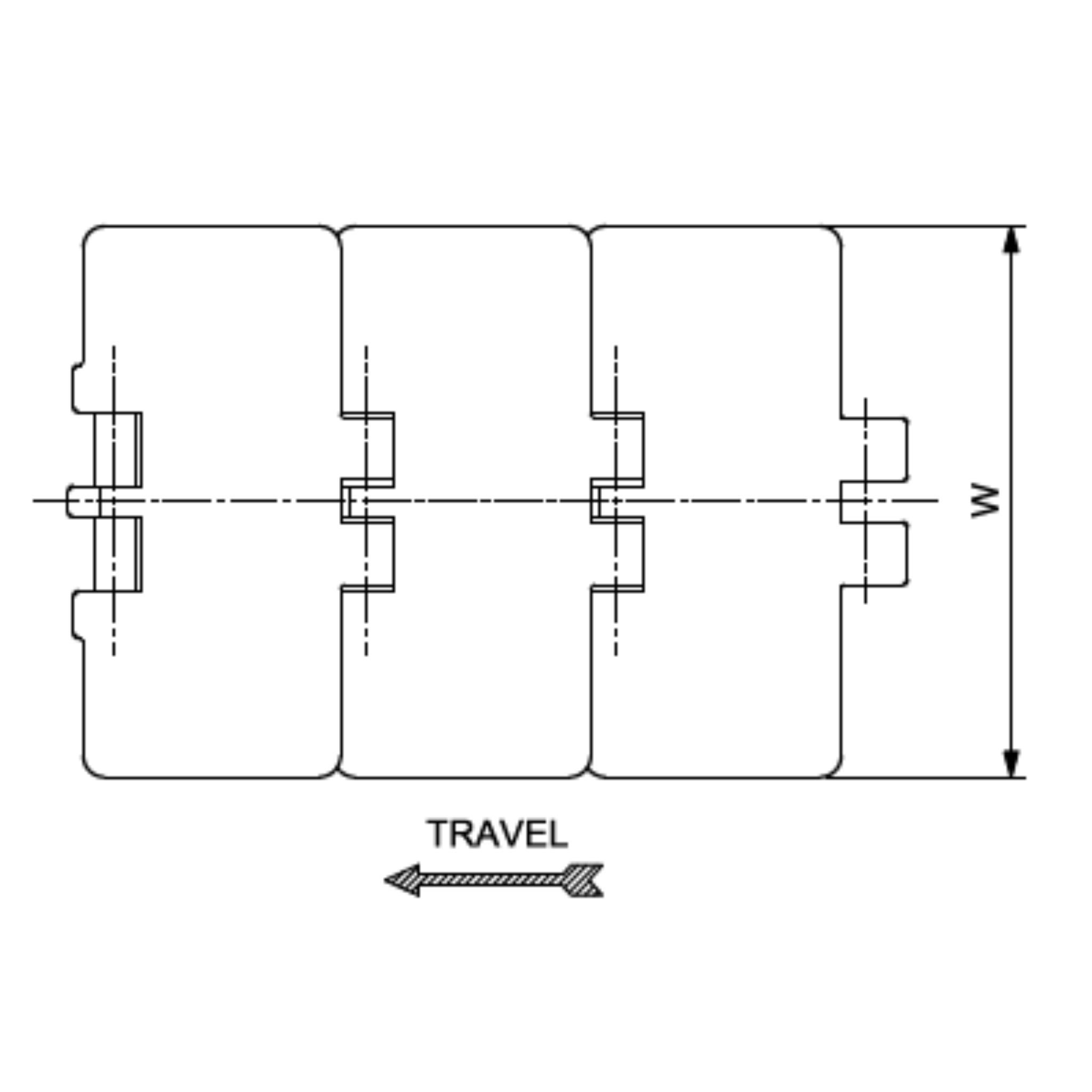

| Code | Width W | Pin | Working load | Weight |
|---|---|---|---|---|
AR820KD/000 |
K 3 ¼ (82.6 mm) | Austenitic Stainless Steel | 1600 N |
0.85 kg/m |
AR820KG/000 |
K 4 ½ (114.3 mm) | Austenitic Stainless Steel | 1600 N |
0.98 kg/m |
No products match the selected filters.
Product Information
- Type
- FliteTop
- Hinge
- Single Hinge

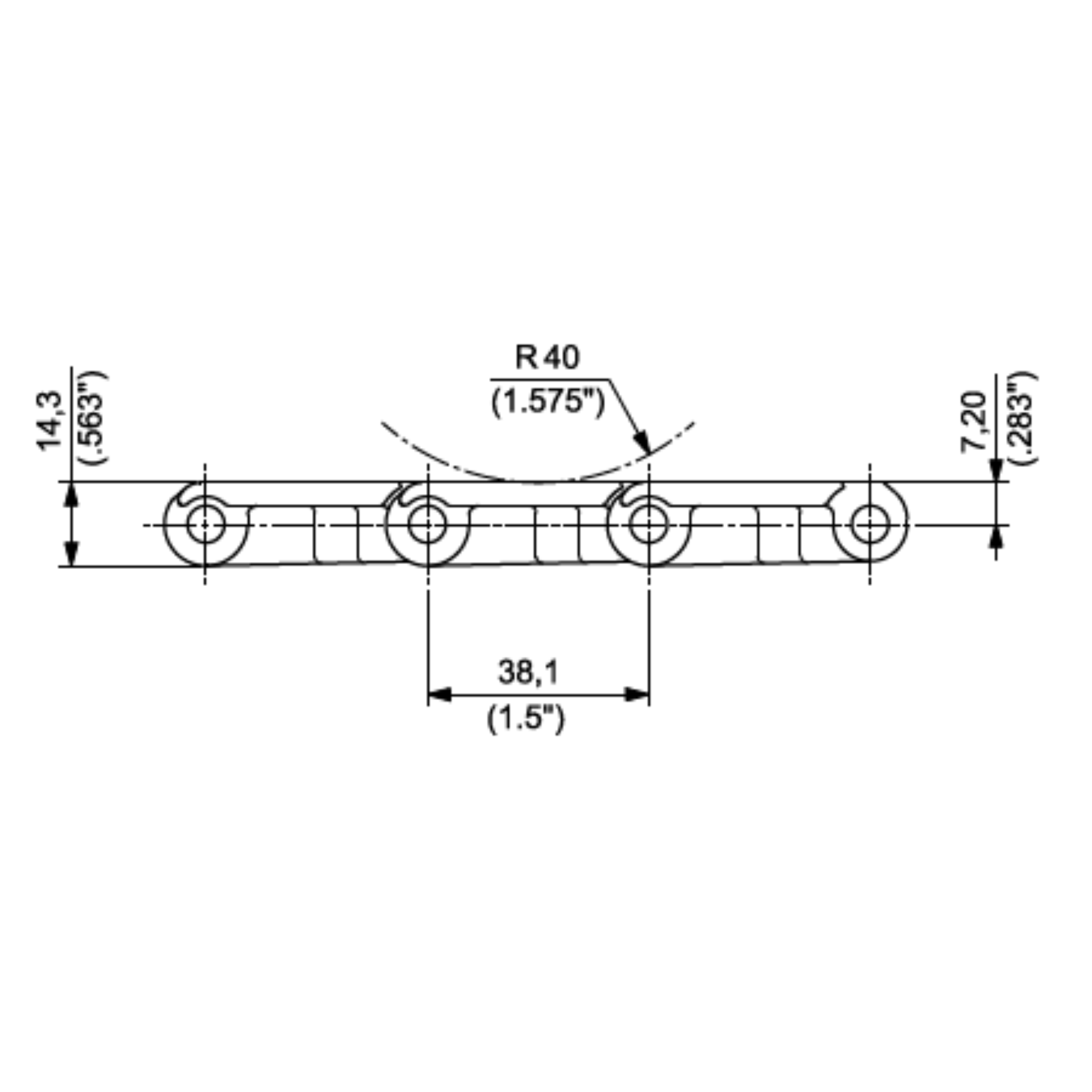

- Pitch

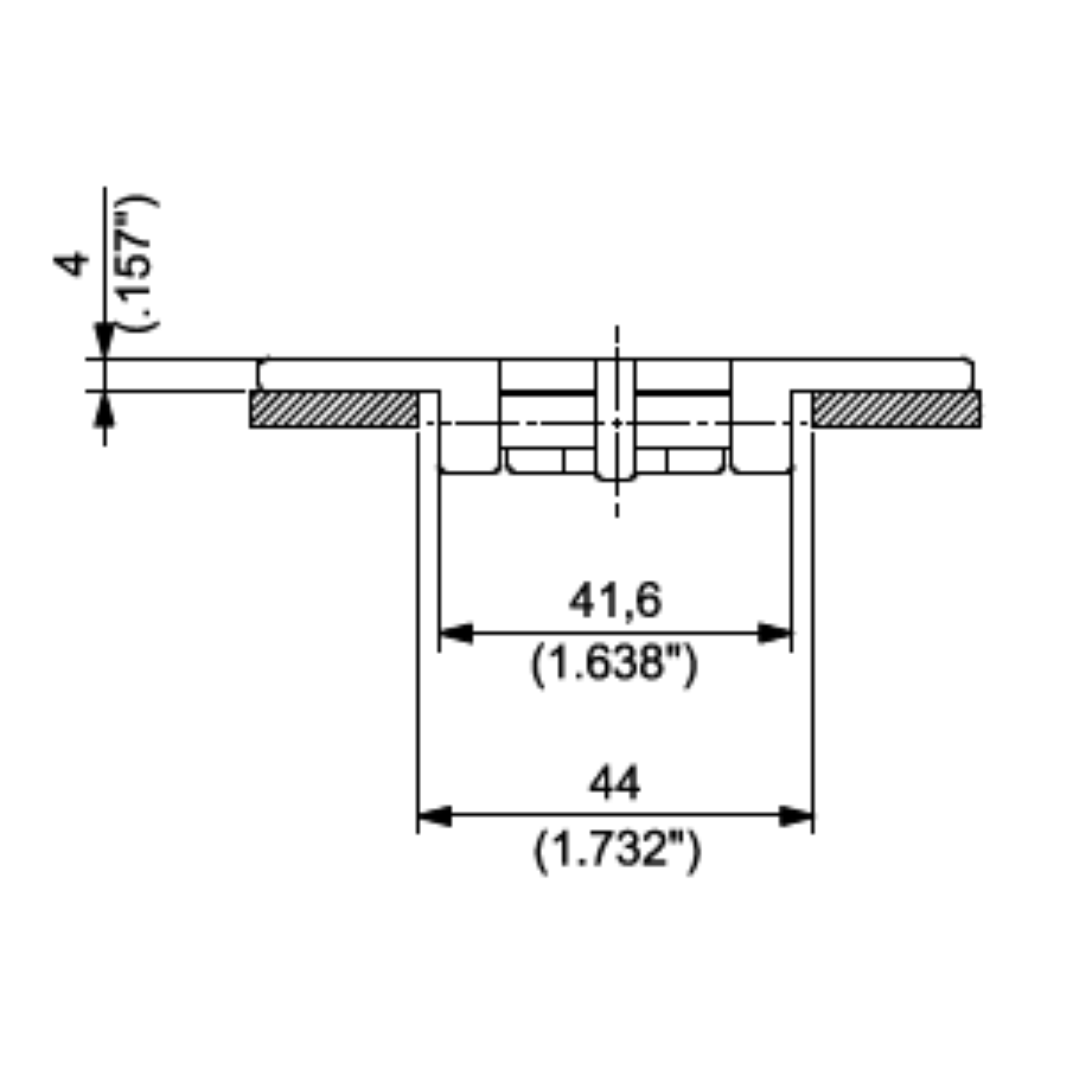

38.1mm- Thickness
4.0mm- Hinge Width
41.6mm- Material
- AR — Abrasion Resistant Polyamide
- Packaging
- Rolls of
3.048m
AR — Abrasion Resistance Polyamide
Suitable for glass manufacturing applications. Reinforced polyamide with excellent wear resistance and low dusting. Only for dry running applications.
Pin material (all variants): Austenitic Stainless Steel
