Regina
AR USPMG ATM Series

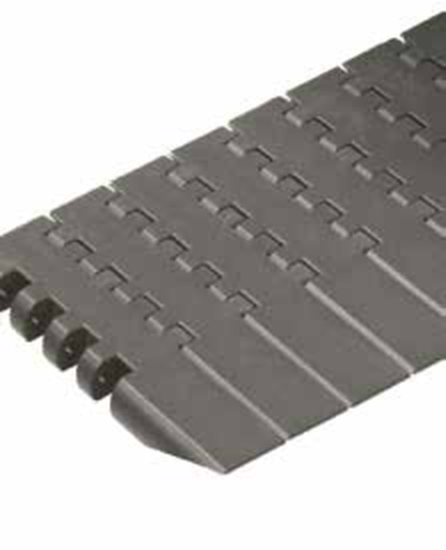

Active transfer modules USPMG ATM series allow the transfer of the products between two 90° conveyor tracks without using dead plates. Extremely good flatness, manufacturing accuracy and low coefficient of friction make the side transfer of the products very easy. Rolls of 3,048 m (10 feet).
Product Configuration
Select a row to add it to your quote
| Code | Width W | Plate thickness | Working load | Weight |
|---|---|---|---|---|
USPMGATMAR085S |
127.5 mm
|
12.7 mm
|
2975 N
|
1.5 kg
|
USPMGATMAR085D |
127.5 mm
|
12.7 mm
|
2975 N
|
1.5 kg
|
No products match the selected filters.
Product Information
- Type
- Matveyor
- Pitch
25.4mm- Thickness
12.7mm- Material
- AR — Abrasion Resistant Polyamide
- Packaging
- Rolls of
3.048m
AR — Abrasion Resistance Polyamide
Suitable for glass manufacturing applications. Reinforced polyamide with excellent wear resistance and low dusting. Only for dry running applications.
