Cast Iron Chain Sprocket GG 20 06B-1 Simplex (3/8″ × 7/32″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 06B-1 Simplex (3/8″ × 7/32″)
Brand: Chiaravalli

Chain Sprockets

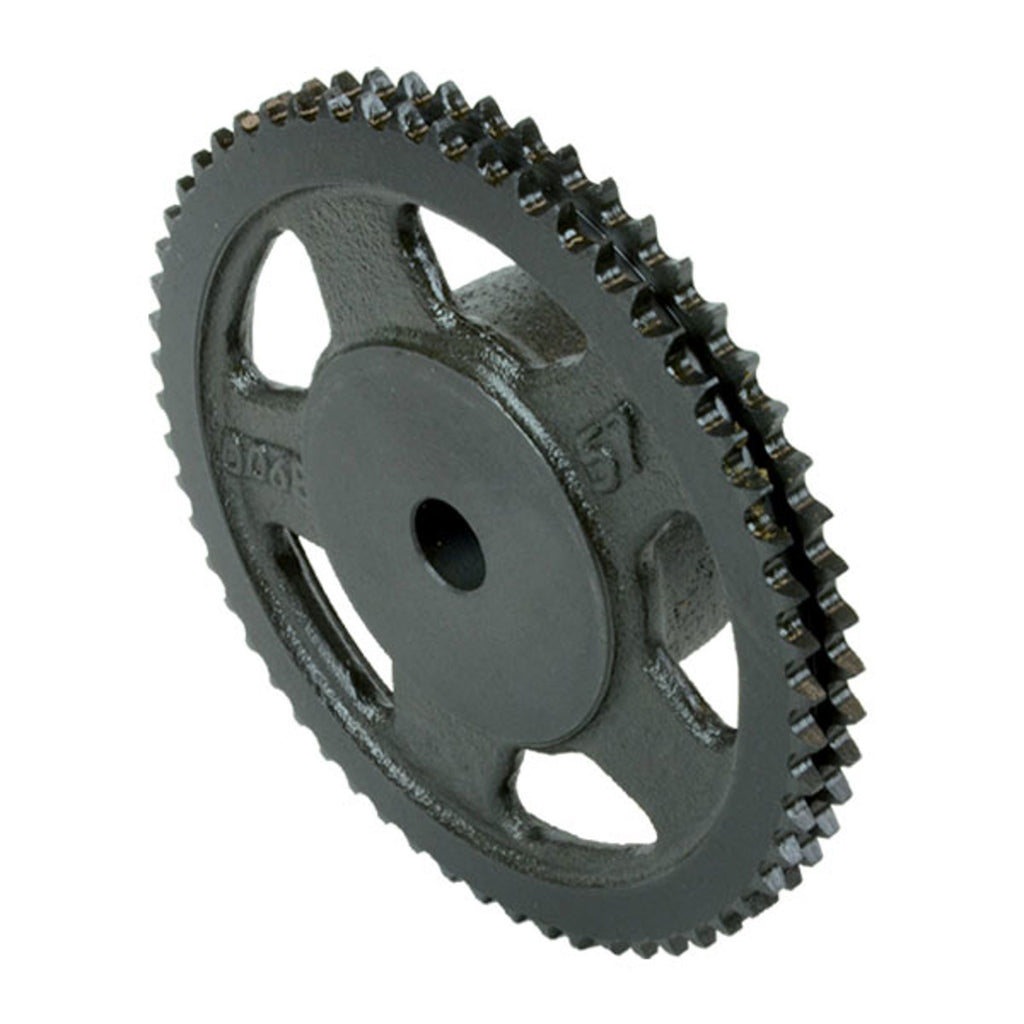

Simplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 06B-1 roller chain (3/8″ × 7/32″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

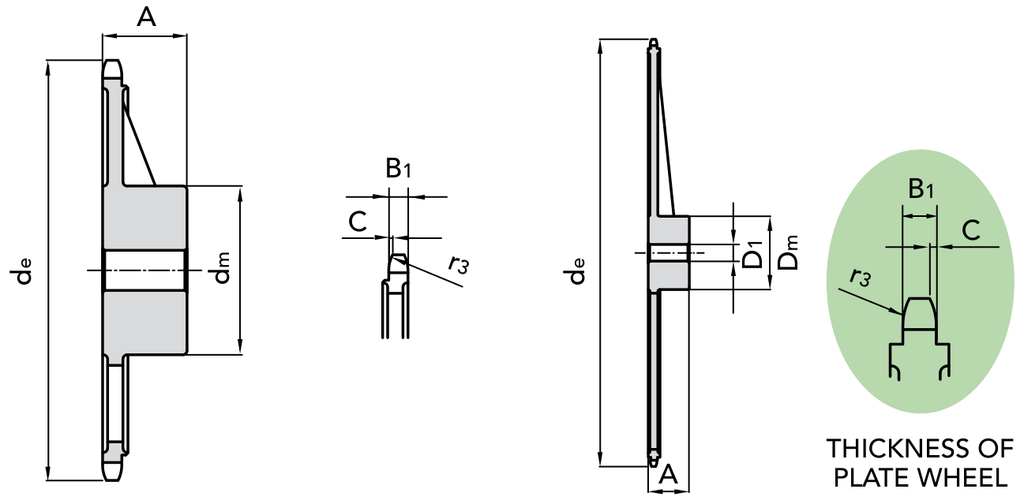

Code	Z	de	dp	dm	D1	A	Weight
`12109038`	`38`	`119.5` mm	`115.35` mm	`70` mm	`20` mm	`32` mm	`1.12` kg
`12109045`	`45`	`140.7` mm	`136.55` mm	`70` mm	`20` mm	`32` mm	`1.3` kg
`12109057`	`57`	`176.9` mm	`172.91` mm	`70` mm	`20` mm	`32` mm	`1.55` kg
`12109076`	`76`	`234.9` mm	`230.49` mm	`70` mm	`20` mm	`32` mm	`2.0` kg
`12109095`	`95`	`292.5` mm	`288.08` mm	`80` mm	`20` mm	`40` mm	`3.83` kg
`12109114`	`114`	`349.6` mm	`345.68` mm	`80` mm	`20` mm	`40` mm	`4.05` kg
`12109150`	`150`	`459.2` mm	`454.82` mm	`90` mm	`21` mm	`45` mm	`4.05` kg
