Chiaravalli

Cast Iron Chain Sprocket GG 20 06B-2 Duplex (3/8″ × 7/32″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 06B-2 Duplex (3/8″ × 7/32″)
Brand: Chiaravalli

Chain Sprockets

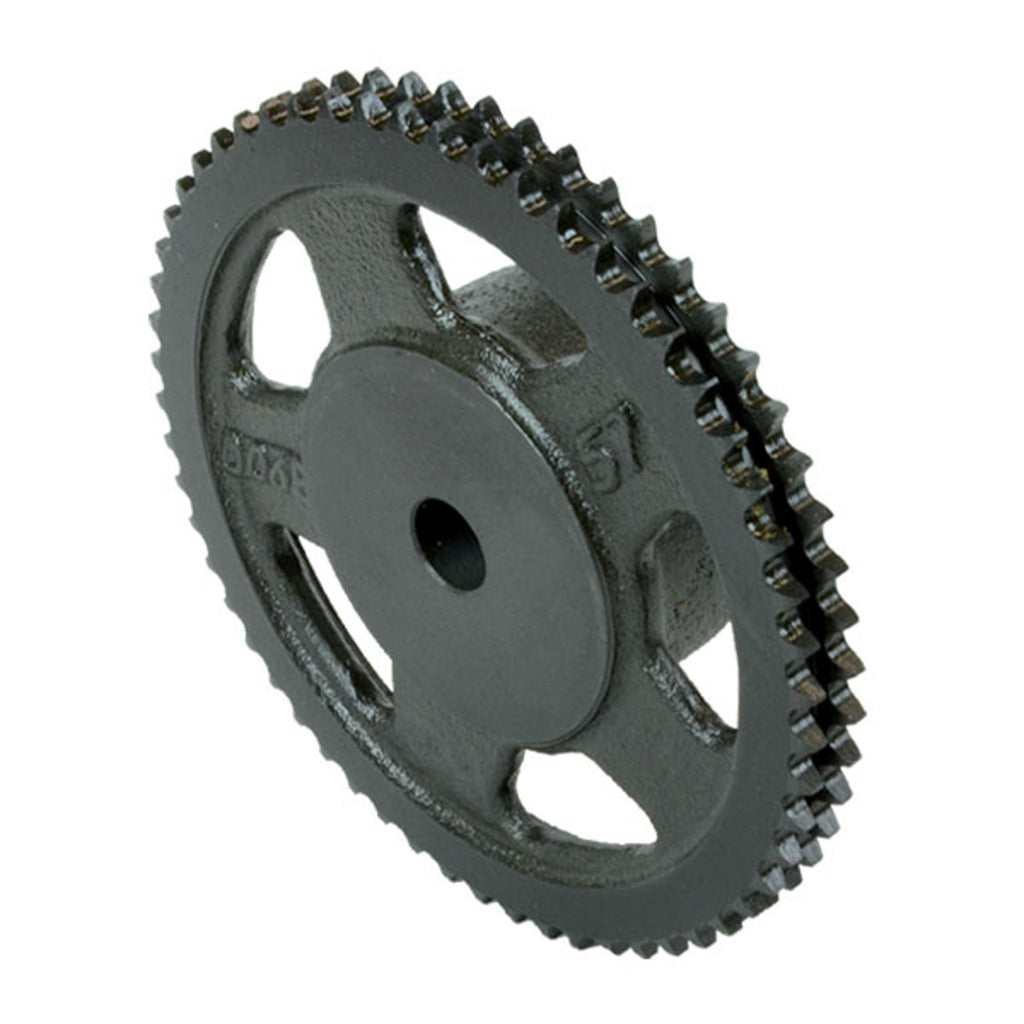

Duplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 06B-2 roller chain (3/8″ × 7/32″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

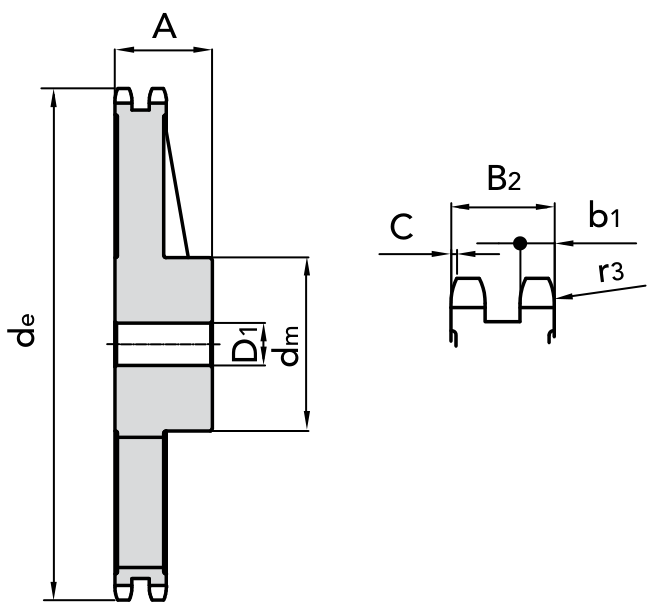

Code	Z	de	dp	dm	D1	A	Weight
`12209038`	`38`	`119.5` mm	`115.35` mm	`80` mm	`24` mm	`40` mm	`1.9` kg
`12209045`	`45`	`140.7` mm	`136.55` mm	`80` mm	`24` mm	`40` mm	`2.06` kg
`12209057`	`57`	`176.9` mm	`172.91` mm	`80` mm	`24` mm	`40` mm	`2.3` kg
`12209076`	`76`	`234.9` mm	`230.49` mm	`80` mm	`24` mm	`40` mm	`3.02` kg
`12209095`	`95`	`292.5` mm	`288.08` mm	`90` mm	`24` mm	`45` mm	`4.68` kg
`12209114`	`114`	`349.6` mm	`345.68` mm	`95` mm	`24` mm	`45` mm	`5.9` kg
`12209150`	`150`	`459.2` mm	`454.82` mm	`100` mm	`24` mm	`50` mm	`5.9` kg
