Cast Iron Chain Sprocket GG 20 06B-3 Triplex (3/8″ × 7/32″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 06B-3 Triplex (3/8″ × 7/32″)
Brand: Chiaravalli

Chain Sprockets

Triplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 06B-3 roller chain (3/8″ × 7/32″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

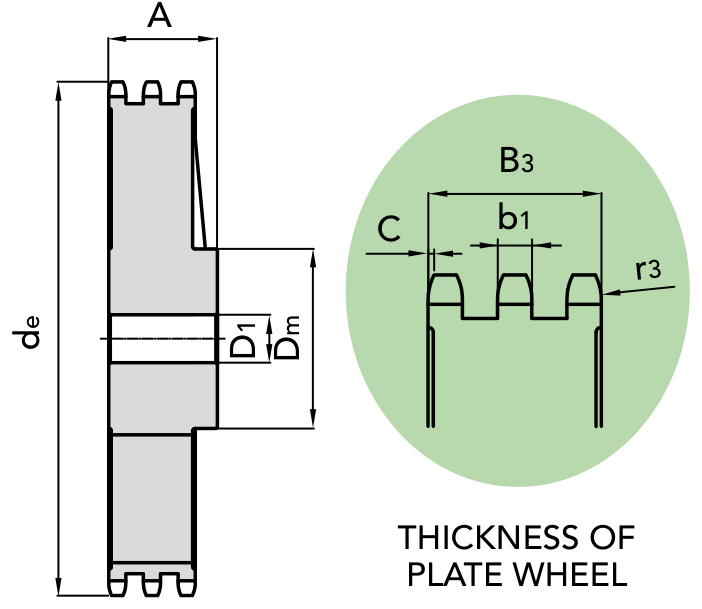

Code	Z	de	dp	dm	D1	A	Weight
`12309038`	`38`	`119.5` mm	`115.35` mm	`90` mm	`24` mm	`56` mm	`3.0` kg
`12309045`	`45`	`140.7` mm	`136.55` mm	`90` mm	`24` mm	`56` mm	`3.56` kg
`12309057`	`57`	`176.9` mm	`172.91` mm	`90` mm	`24` mm	`56` mm	`3.97` kg
`12309076`	`76`	`234.9` mm	`230.49` mm	`100` mm	`24` mm	`56` mm	`4.52` kg
`12309095`	`95`	`292.5` mm	`288.08` mm	`100` mm	`24` mm	`56` mm	`6.12` kg
`12309114`	`114`	`349.6` mm	`345.68` mm	`100` mm	`24` mm	`56` mm	`10.0` kg
`12309150`	`150`	`459.2` mm	`454.82` mm	`125` mm	`24` mm	`60` mm	`19.0` kg
