Cast Iron Chain Sprocket GG 20 08B-1 Simplex (1/2″ × 5/16″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 08B-1 Simplex (1/2″ × 5/16″)
Brand: Chiaravalli

Chain Sprockets

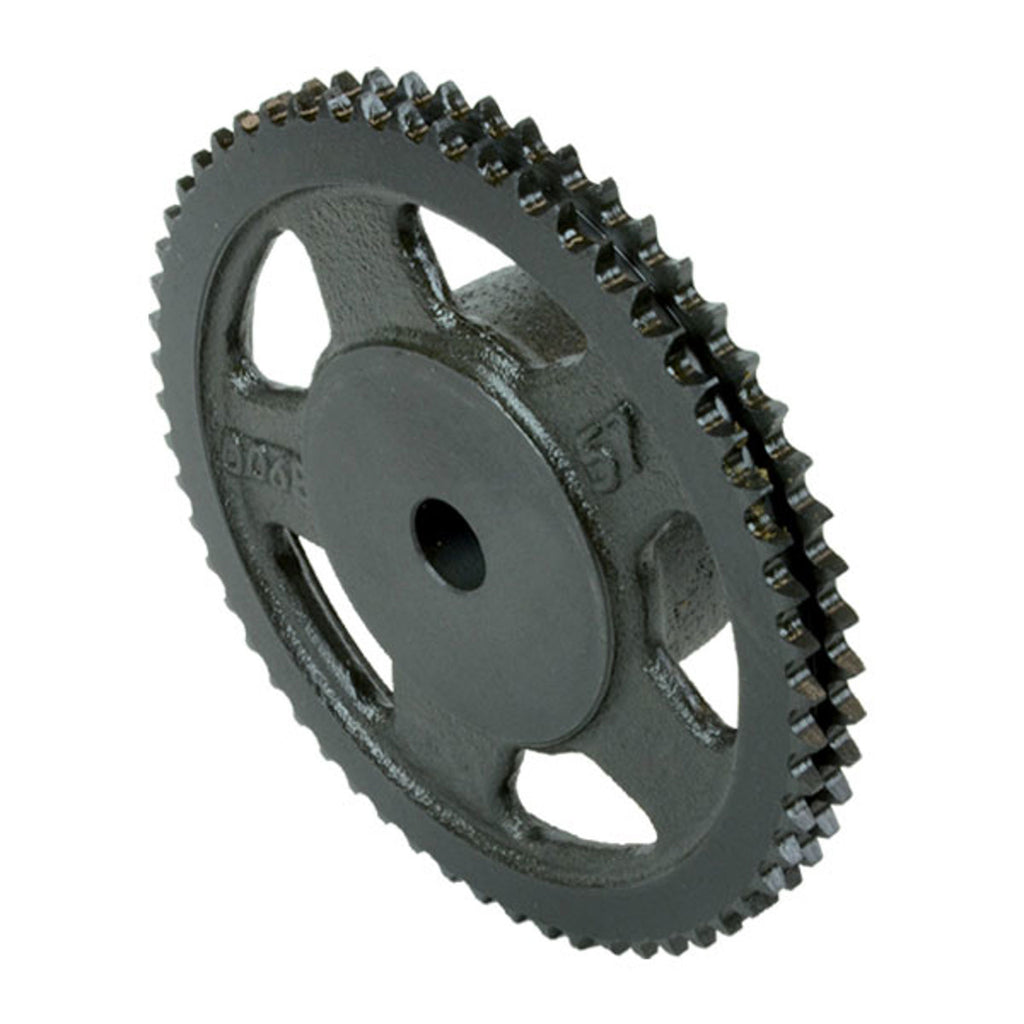

Simplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 08B-1 roller chain (1/2″ × 5/16″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

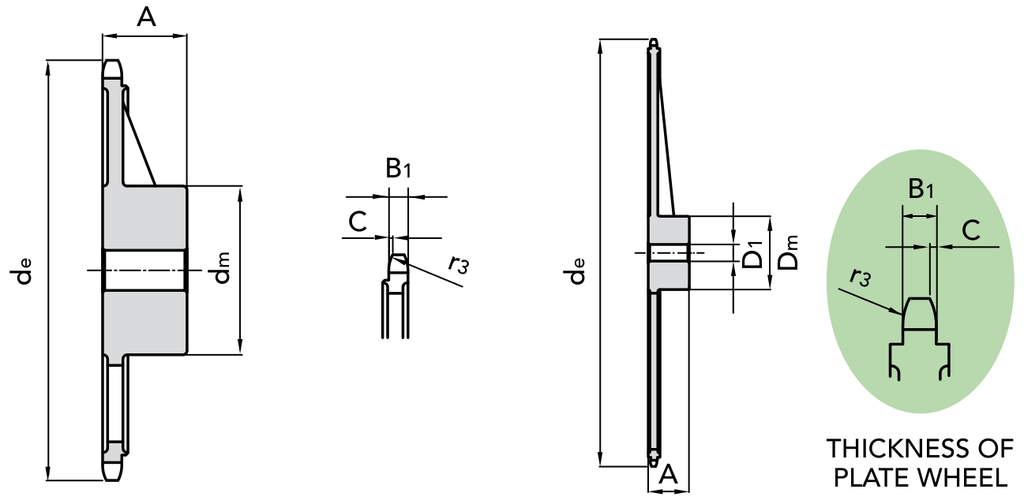

Code	Z	de	dp	dm	D1	A	Weight
`12112038`	`38`	`158.6` mm	`153.8` mm	`70` mm	`20` mm	`40` mm	`1.56` kg
`12112045`	`45`	`188` mm	`182` mm	`70` mm	`20` mm	`40` mm	`1.95` kg
`12112057`	`57`	`236.4` mm	`230.54` mm	`70` mm	`20` mm	`40` mm	`2.46` kg
`12112076`	`76`	`313.3` mm	`307.33` mm	`80` mm	`24` mm	`40` mm	`4.2` kg
`12112095`	`95`	`390.1` mm	`384.11` mm	`80` mm	`24` mm	`45` mm	`5.45` kg
`12112114`	`114`	`466.9` mm	`460.9` mm	`91` mm	`24` mm	`45` mm	`8.35` kg
