Chiaravalli Cast Iron Chain Sprocket GG 20 08B-2 Duplex (1/2″ × 5/16″)
Chiaravalli

Cast Iron Chain Sprocket GG 20 08B-2 Duplex (1/2″ × 5/16″)

Chain Sprockets

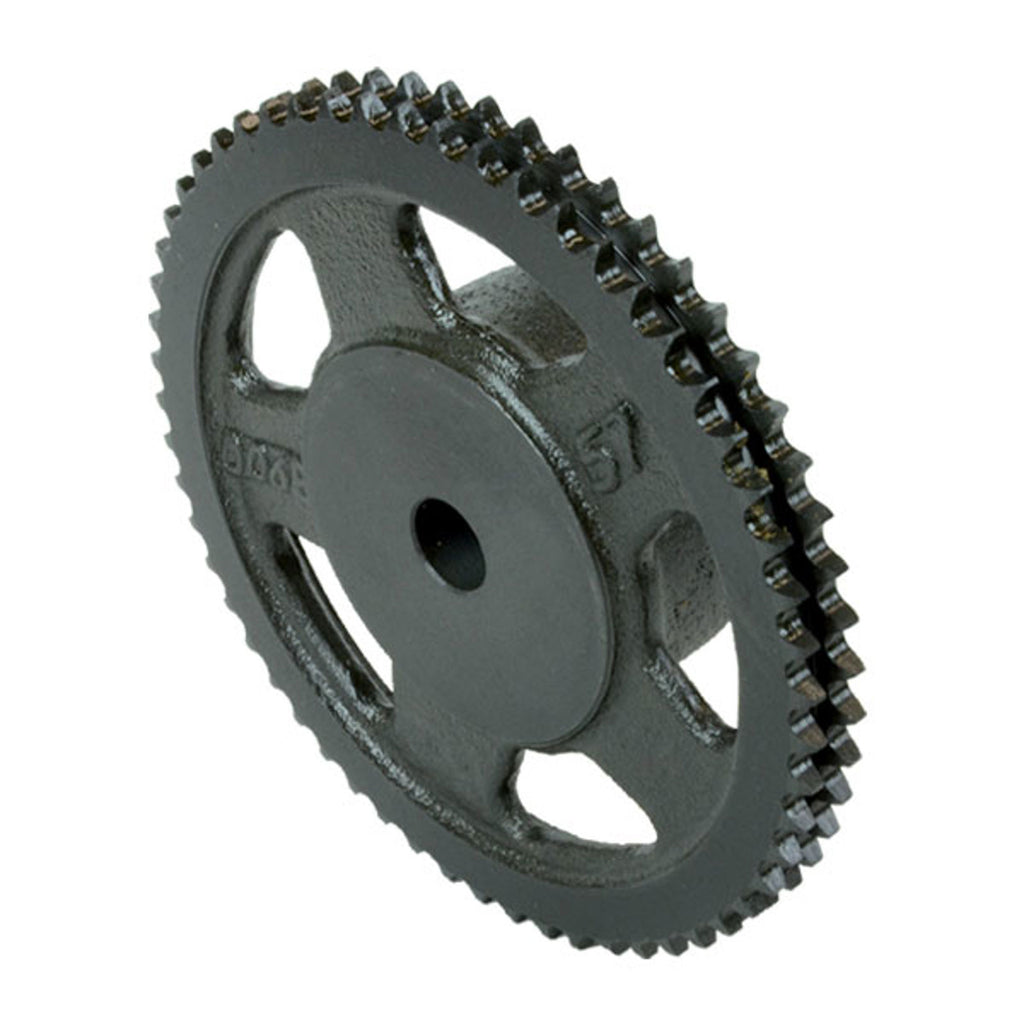

Duplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 08B-2 roller chain (1/2″ × 5/16″). Simple chain sprockets with duplex reinforce.

Product Configuration

Select a row to add it to your quote

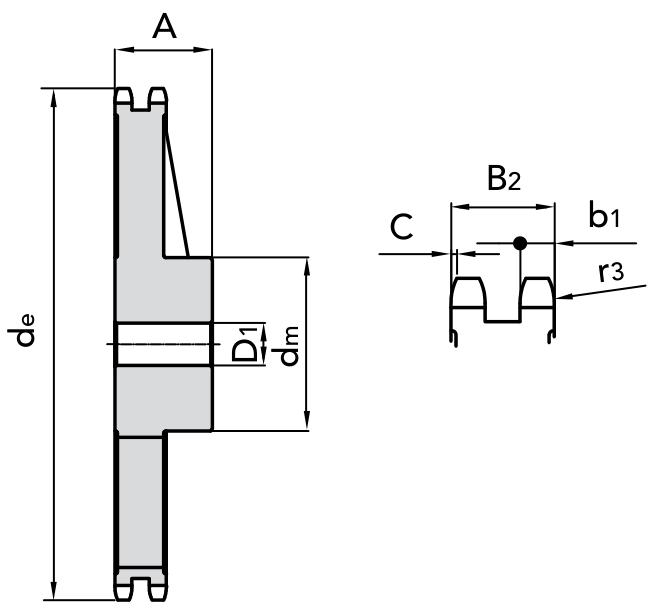

Code ZdedpdmD1A Weight CAD
12212038 38 158.6 mm 153.8 mm 90 mm 24 mm 50 mm 3.15 kg
12212045 45 188 mm 182 mm 90 mm 24 mm 50 mm 3.56 kg
12212057 57 236.4 mm 230.54 mm 90 mm 24 mm 50 mm 4.0 kg
12212076 76 313.3 mm 307.33 mm 100 mm 24 mm 56 mm 6.35 kg
12212095 95 390.1 mm 384.11 mm 100 mm 24 mm 56 mm 8.0 kg
12212114 114 466.9 mm 460.9 mm 100 mm 24 mm 63 mm 11.9 kg

Product Information

Material
Cast iron GG 20 UNI 5007

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
