Chiaravalli Cast Iron Chain Sprocket GG 20 08B-3 Triplex (1/2″ × 5/16″)
Chiaravalli

Cast Iron Chain Sprocket GG 20 08B-3 Triplex (1/2″ × 5/16″)

Chain Sprockets

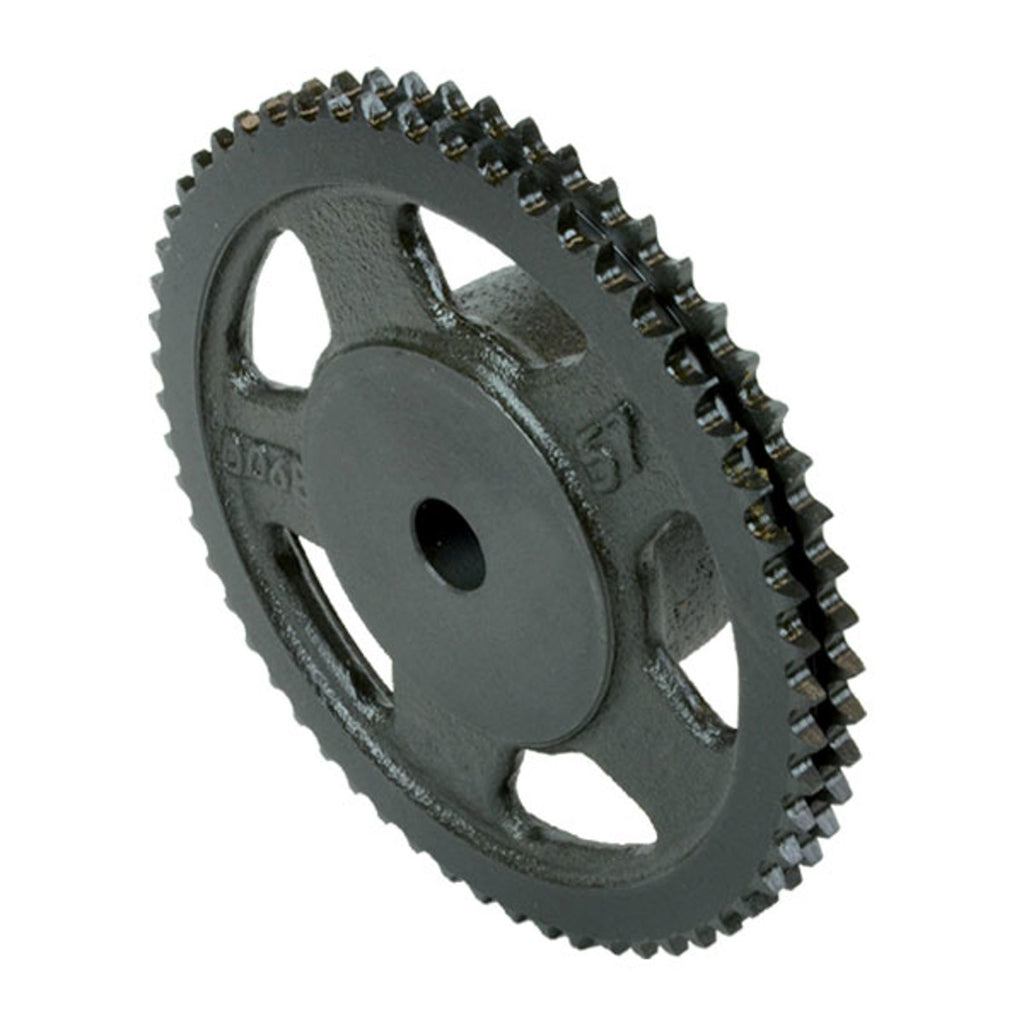

Triplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 08B-3 roller chain (1/2″ × 5/16″). Simple chain sprockets with duplex reinforce.

Product Configuration

Select a row to add it to your quote

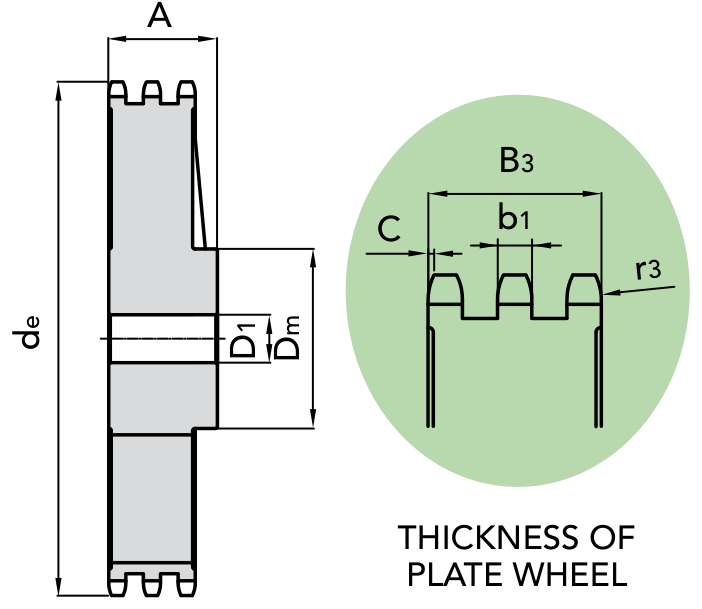

Code ZdedpdmD1A Weight CAD
12312038 38 158.6 mm 153.8 mm 100 mm 24 mm 60 mm 4.45 kg
12312045 45 188 mm 182 mm 100 mm 24 mm 60 mm 5.85 kg
12312057 57 236.4 mm 230.54 mm 100 mm 24 mm 60 mm 6.28 kg
12312076 76 313.3 mm 307.33 mm 100 mm 24 mm 60 mm 8.6 kg
12312095 95 390.1 mm 384.11 mm 120 mm 24 mm 67 mm 11.9 kg
12312114 114 466.9 mm 460.9 mm 120 mm 24 mm 67 mm 15.0 kg

Product Information

Material
Cast iron GG 20 UNI 5007

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
