Chiaravalli

Cast Iron Chain Sprocket GG 20 10B-1 Simplex (5/8″ × 3/8″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 10B-1 Simplex (5/8″ × 3/8″)
Brand: Chiaravalli

Chain Sprockets

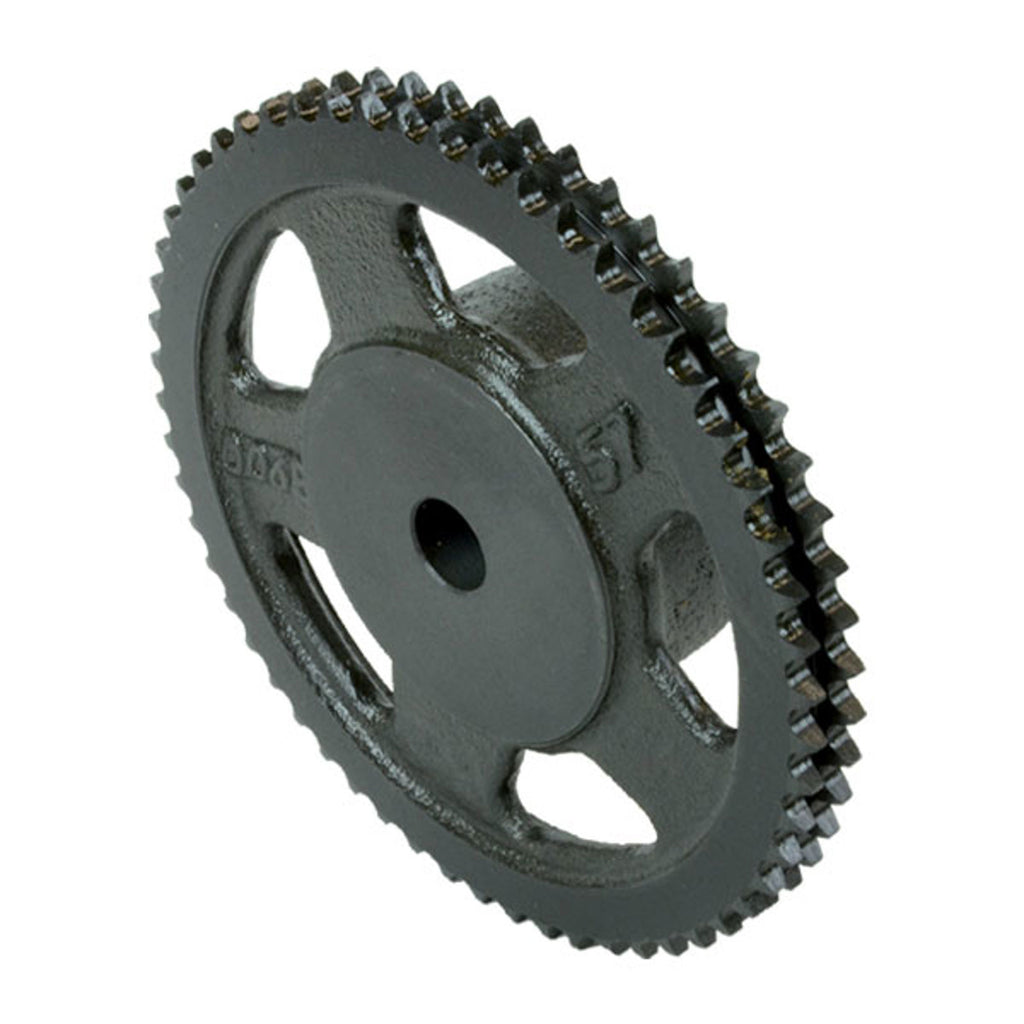

Simplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 10B-1 roller chain (5/8″ × 3/8″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

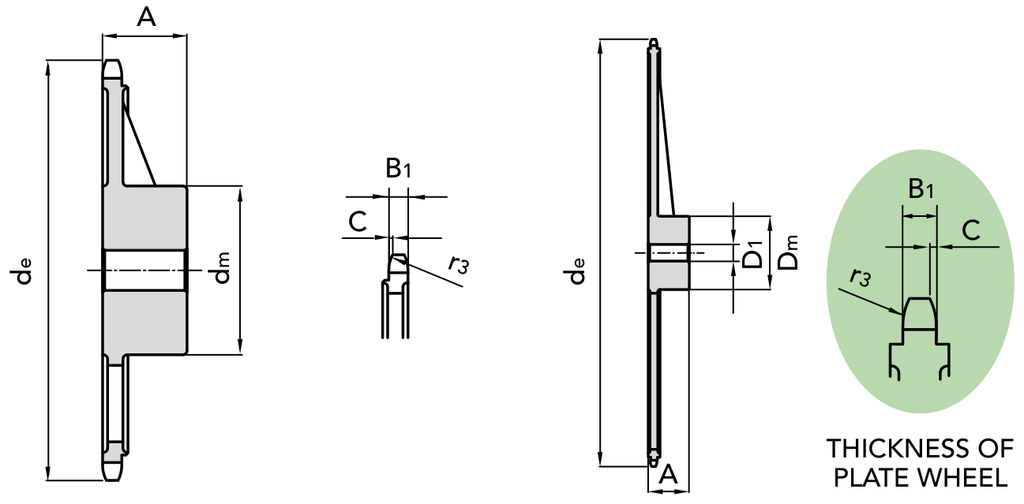

Code	Z	de	dp	dm	D1	A	Weight
`12115038`	`38`	`199.2` mm	`192.24` mm	`80` mm	`20` mm	`40` mm	`2.32` kg
`12115045`	`45`	`235` mm	`227.58` mm	`80` mm	`20` mm	`40` mm	`2.88` kg
`12115057`	`57`	`296` mm	`288.18` mm	`90` mm	`24` mm	`45` mm	`4.3` kg
`12115076`	`76`	`392.1` mm	`384.16` mm	`90` mm	`24` mm	`50` mm	`7.0` kg
`12115095`	`95`	`488.5` mm	`480.14` mm	`100` mm	`24` mm	`56` mm	`10.65` kg
`12115114`	`114`	`584.1` mm	`576.13` mm	`100` mm	`24` mm	`56` mm	`14.5` kg
