Chiaravalli Cast Iron Chain Sprocket GG 20 10B-2 Duplex (5/8″ × 3/8″)
Chiaravalli

Cast Iron Chain Sprocket GG 20 10B-2 Duplex (5/8″ × 3/8″)

Chain Sprockets

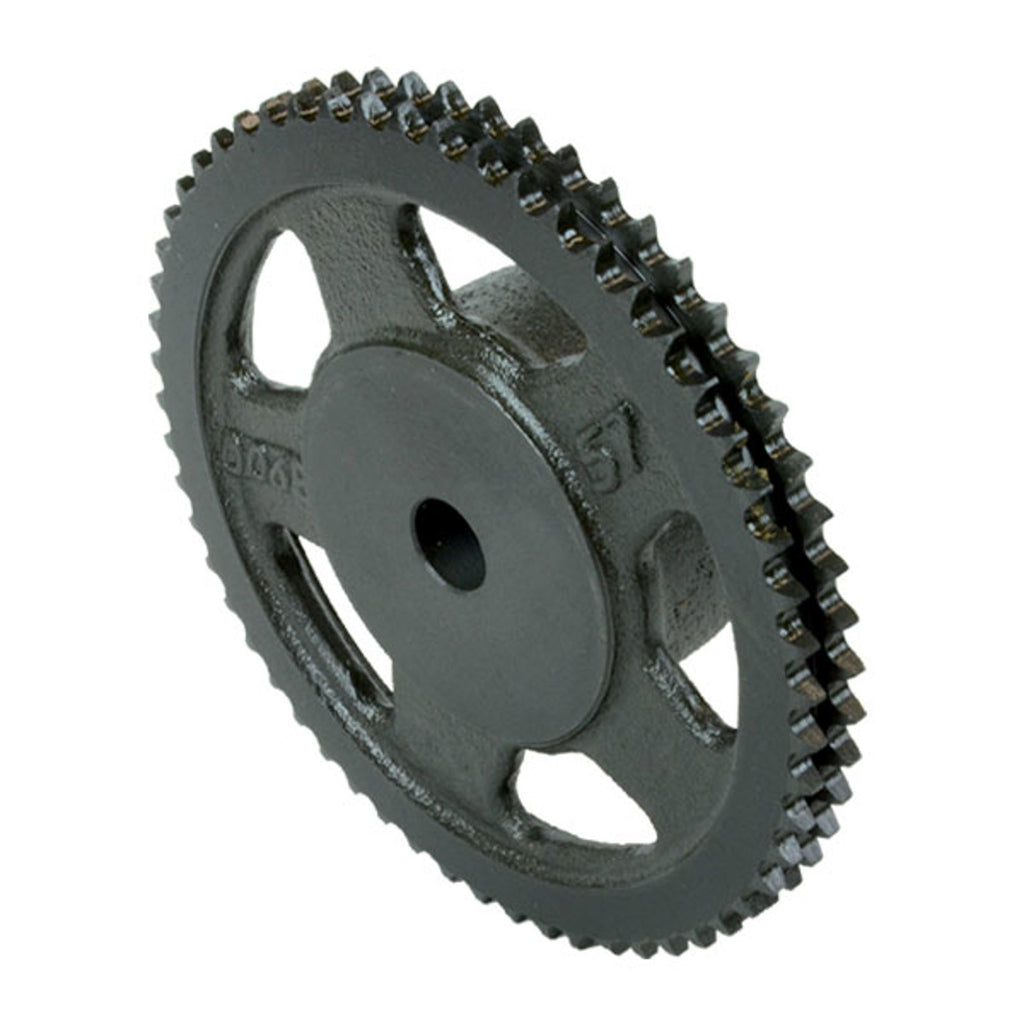

Duplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 10B-2 roller chain (5/8″ × 3/8″). Simple chain sprockets with duplex reinforce.

Product Configuration

Select a row to add it to your quote

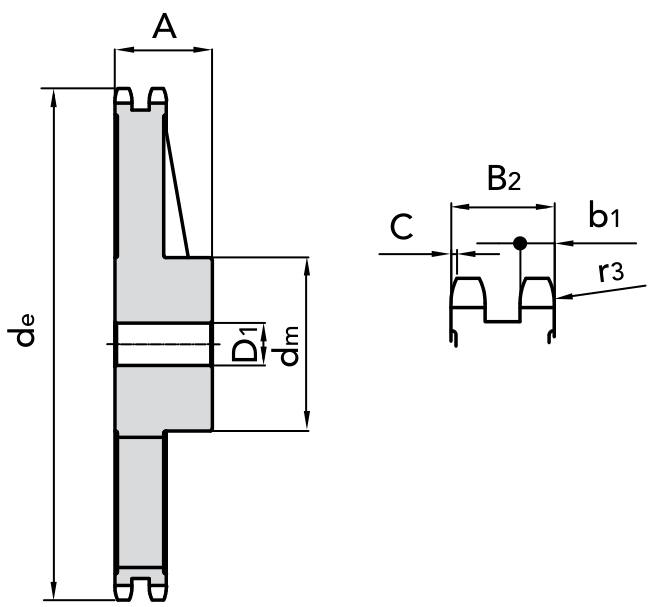

Code ZdedpdmD1A Weight CAD
12215038 38 199.2 mm 192.24 mm 100 mm 30 mm 50 mm 4.56 kg
12215045 45 235 mm 227.58 mm 100 mm 30 mm 50 mm 4.93 kg
12215057 57 296 mm 288.18 mm 100 mm 30 mm 56 mm 6.5 kg
12215076 76 392.1 mm 384.16 mm 100 mm 30 mm 63 mm 9.1 kg
12215095 95 488.5 mm 480.14 mm 110 mm 30 mm 63 mm 12.6 kg
12215114 114 584.1 mm 576.13 mm 125 mm 30 mm 70 mm 17.8 kg

Product Information

Material
Cast iron GG 20 UNI 5007
