Chiaravalli Cast Iron Chain Sprocket GG 20 10B-3 Triplex (5/8″ × 3/8″)
Chiaravalli

Cast Iron Chain Sprocket GG 20 10B-3 Triplex (5/8″ × 3/8″)

Chain Sprockets

Triplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 10B-3 roller chain (5/8″ × 3/8″). Simple chain sprockets with duplex reinforce.

Product Configuration

Select a row to add it to your quote

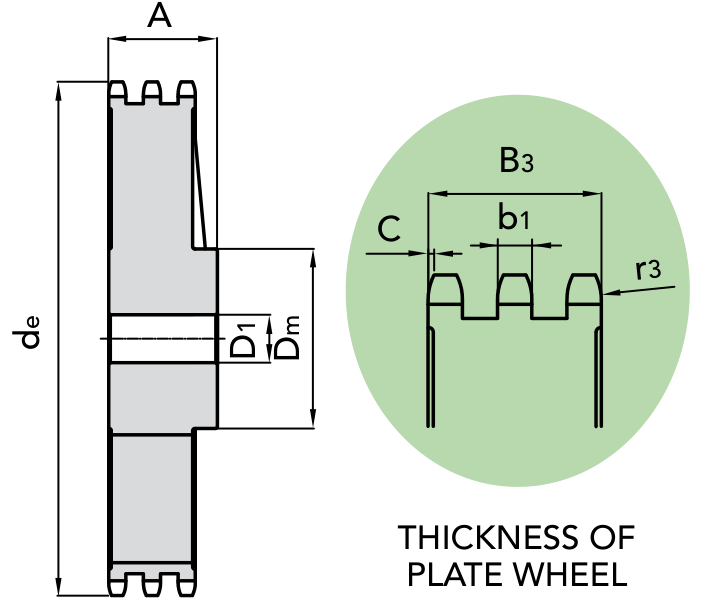

Code ZdedpdmD1A Weight CAD
12315038 38 199.2 mm 192.24 mm 100 mm 32 mm 60 mm 6.5 kg
12315045 45 235 mm 227.58 mm 100 mm 32 mm 60 mm 7.04 kg
12315057 57 296 mm 288.18 mm 100 mm 32 mm 63 mm 8.0 kg
12315076 76 392.1 mm 384.16 mm 110 mm 35 mm 67 mm 12.0 kg
12315095 95 488.5 mm 480.14 mm 125 mm 35 mm 70 mm 19.4 kg
12315114 114 584.1 mm 576.13 mm 125 mm 35 mm 80 mm 24.0 kg

Product Information

Material
Cast iron GG 20 UNI 5007
