Chiaravalli Cast Iron Chain Sprocket GG 20 12B-1 Simplex (3/4″ × 7/16″)
Chiaravalli

Cast Iron Chain Sprocket GG 20 12B-1 Simplex (3/4″ × 7/16″)

Chain Sprockets

Simplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 12B-1 roller chain (3/4″ × 7/16″). Simple chain sprockets with duplex reinforce.

Product Configuration

Select a row to add it to your quote

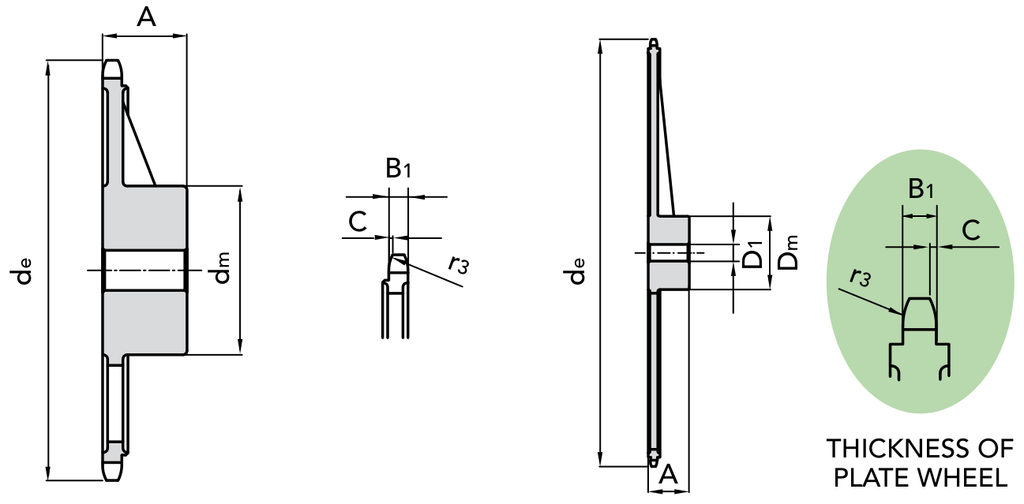

Code ZdedpdmD1A Weight CAD
12119038 38 239 mm 230.69 mm 100 mm 24 mm 56 mm 4.75 kg
12119045 45 282.5 mm 273.1 mm 100 mm 24 mm 56 mm 5.9 kg
12119057 57 354 mm 345.81 mm 100 mm 30 mm 56 mm 6.45 kg
12119076 76 469.9 mm 460.99 mm 100 mm 30 mm 56 mm 12.3 kg
12119095 95 585.1 mm 576.17 mm 100 mm 30 mm 56 mm 15.4 kg
12119114 114 700.6 mm 691.36 mm 100 mm 30 mm 56 mm 24.8 kg

Product Information

Material
Cast iron GG 20 UNI 5007
