Chiaravalli

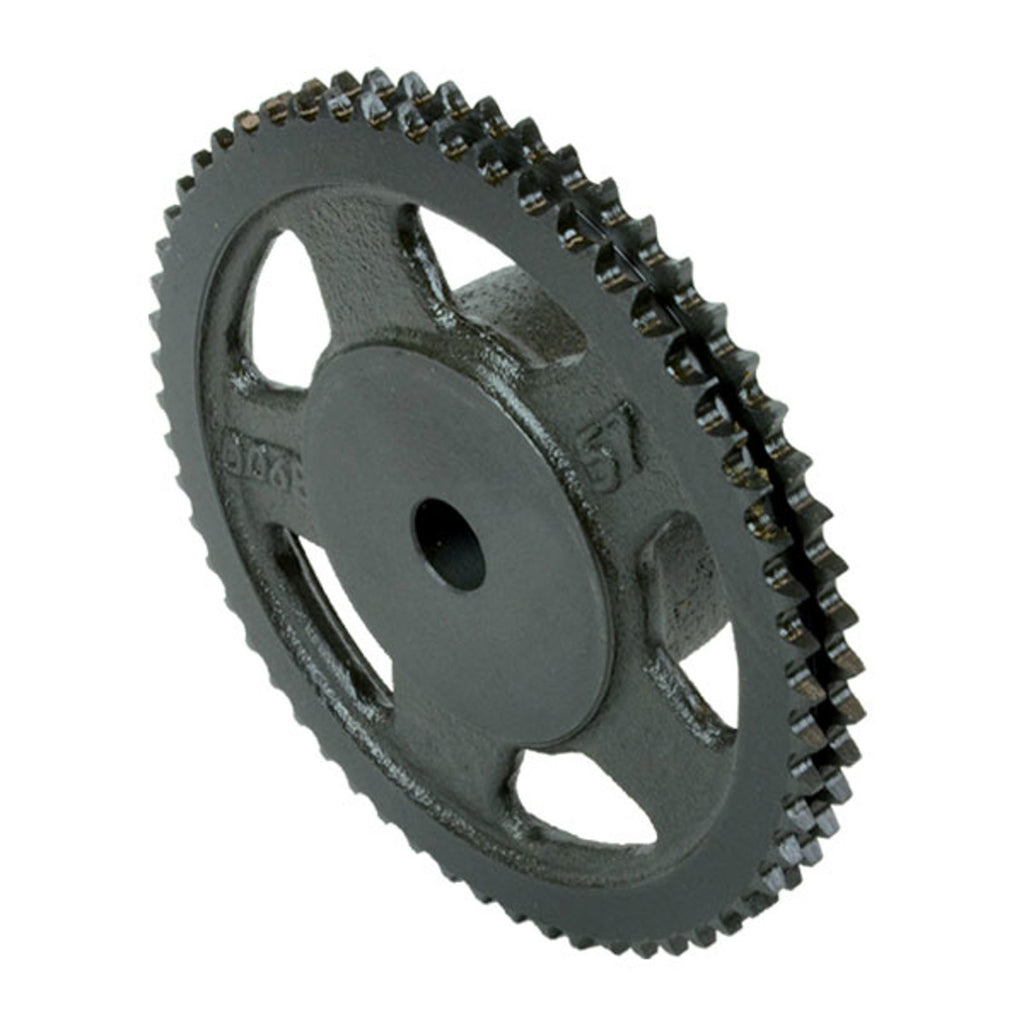

Cast Iron Chain Sprocket GG 20 12B-2 Duplex (3/4″ × 7/16″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 12B-2 Duplex (3/4″ × 7/16″)
Brand: Chiaravalli

Chain Sprockets

Duplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 12B-2 roller chain (3/4″ × 7/16″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

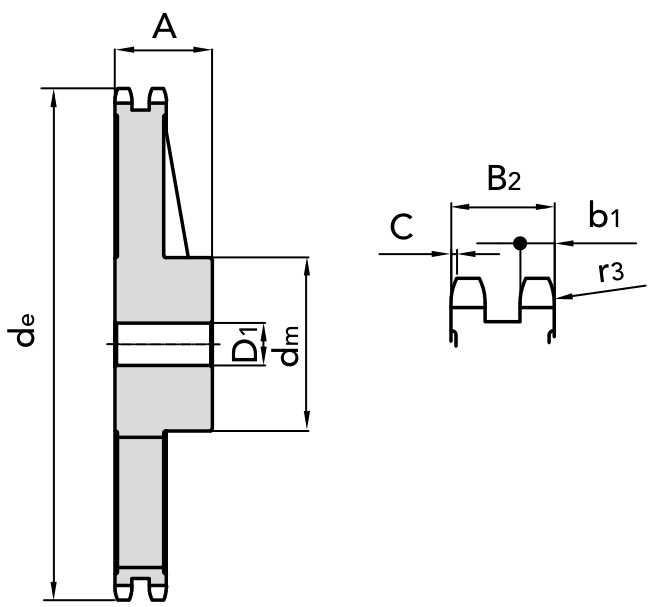

Code	Z	de	dp	dm	D1	A	Weight
`12219038`	`38`	`239` mm	`230.69` mm	`110` mm	`24` mm	`63` mm	`7.5` kg
`12219045`	`45`	`282.5` mm	`273.1` mm	`110` mm	`24` mm	`63` mm	`8.3` kg
`12219057`	`57`	`354` mm	`345.81` mm	`120` mm	`30` mm	`63` mm	`10.3` kg
`12219076`	`76`	`469.9` mm	`460.99` mm	`135` mm	`30` mm	`63` mm	`15.2` kg
`12219095`	`95`	`585.1` mm	`576.17` mm	`135` mm	`30` mm	`70` mm	`21.2` kg
`12219114`	`114`	`700.6` mm	`691.36` mm	`135` mm	`30` mm	`70` mm	`30.4` kg
