Chiaravalli

Cast Iron Chain Sprocket GG 20 12B-3 Triplex (3/4″ × 7/16″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 12B-3 Triplex (3/4″ × 7/16″)
Brand: Chiaravalli

Chain Sprockets

Triplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 12B-3 roller chain (3/4″ × 7/16″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

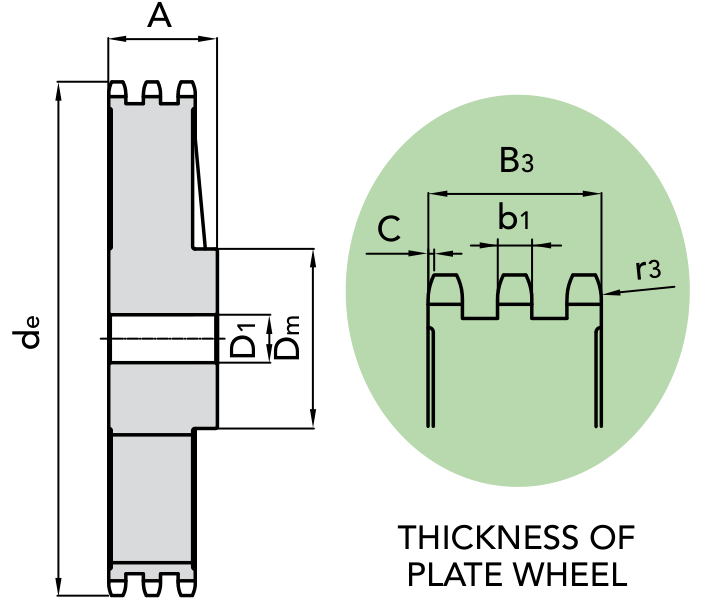

Code	Z	de	dp	dm	D1	A	Weight
`12319038`	`38`	`239` mm	`230.69` mm	`140` mm	`31` mm	`70` mm	`10.0` kg
`12319045`	`45`	`282.5` mm	`273.1` mm	`140` mm	`31` mm	`70` mm	`13.3` kg
`12319057`	`57`	`354` mm	`345.81` mm	`140` mm	`39` mm	`70` mm	`15.25` kg
`12319076`	`76`	`469.9` mm	`460.99` mm	`160` mm	`39` mm	`75` mm	`27.2` kg
`12319095`	`95`	`585.1` mm	`576.17` mm	`170` mm	`39` mm	`82` mm	`36.4` kg
`12319114`	`114`	`700.6` mm	`691.36` mm	`170` mm	`49` mm	`82` mm	`41.1` kg
