Cast Iron Chain Sprocket GG 20 16B-1 Simplex (1″ × 17.02)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 16B-1 Simplex (1″ × 17.02)
Brand: Chiaravalli

Chain Sprockets

Simplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 16B-1 roller chain (1″ × 17.02). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

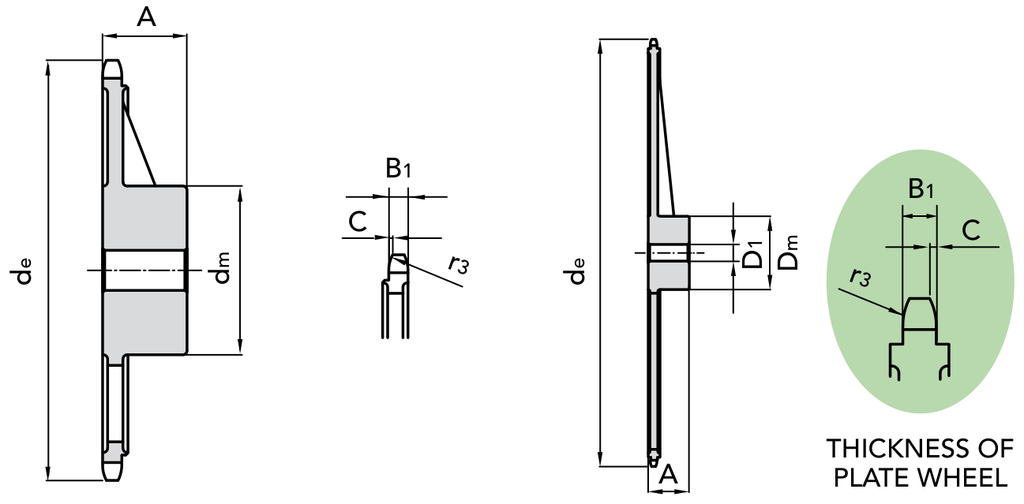

Code	Z	de	dp	dm	D1	A	Weight
`12125030`	`30`	`254` mm	`243` mm	`110` mm	`29` mm	`65` mm	`7.0` kg
`12125038`	`38`	`320` mm	`307.59` mm	`110` mm	`29` mm	`65` mm	`8.26` kg
`12125045`	`45`	`377` mm	`364.13` mm	`125` mm	`29` mm	`70` mm	`10.75` kg
`12125057`	`57`	`474` mm	`461.08` mm	`125` mm	`34` mm	`70` mm	`12.9` kg
`12125076`	`76`	`627` mm	`614.65` mm	`140` mm	`34` mm	`80` mm	`24.7` kg
`12125095`	`95`	`781` mm	`768.22` mm	`140` mm	`39` mm	`80` mm	`32.0` kg
`12125114`	`114`	`933` mm	`921.81` mm	`150` mm	`39` mm	`80` mm	`45.5` kg
