Cast Iron Chain Sprocket GG 20 16B-2 Duplex (1″ × 17.02)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 16B-2 Duplex (1″ × 17.02)
Brand: Chiaravalli

Chain Sprockets

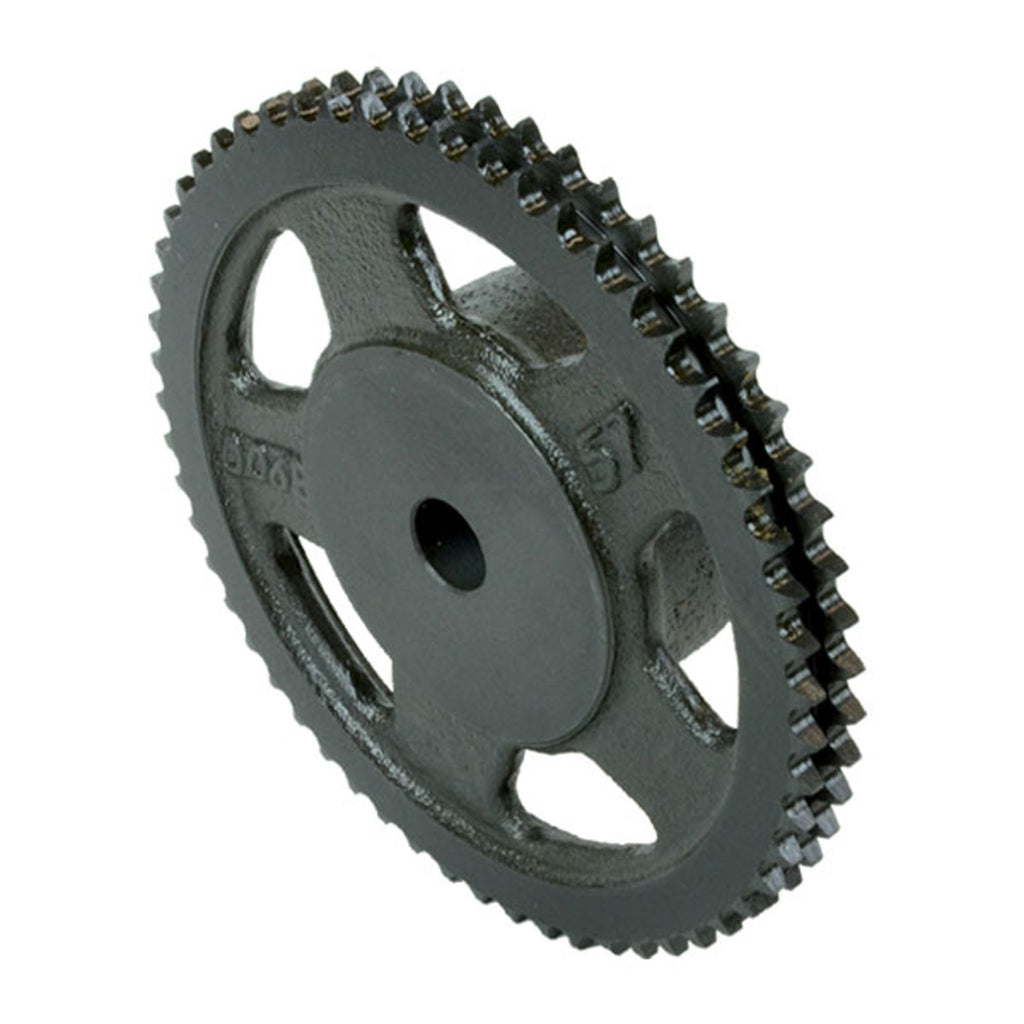

Duplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 16B-2 roller chain (1″ × 17.02). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

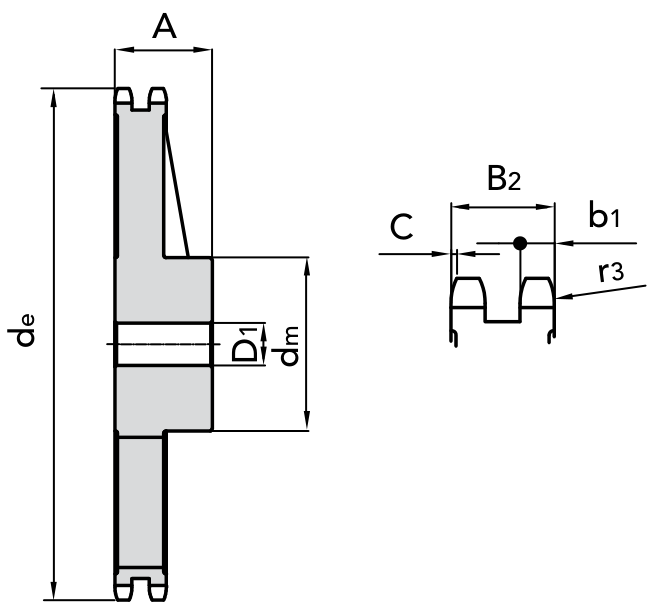

Code	Z	de	dp	dm	D1	A	Weight
`12225030`	`30`	`254` mm	`243` mm	`125` mm	`39` mm	`75` mm	`13.3` kg
`12225038`	`38`	`320` mm	`307.59` mm	`140` mm	`39` mm	`75` mm	`16.45` kg
`12225045`	`45`	`377` mm	`364.13` mm	`150` mm	`39` mm	`75` mm	`19.2` kg
`12225057`	`57`	`474` mm	`461.08` mm	`170` mm	`39` mm	`90` mm	`29.5` kg
`12225076`	`76`	`627` mm	`614.65` mm	`175` mm	`39` mm	`95` mm	`46.3` kg
`12225095`	`95`	`781` mm	`768.22` mm	`175` mm	`44` mm	`95` mm	`53.0` kg
`12225114`	`114`	`933` mm	`921.81` mm	`175` mm	`44` mm	`95` mm	`74.0` kg
