Cast Iron Chain Sprocket GG 20 16B-3 Triplex (1″ × 17.02)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 16B-3 Triplex (1″ × 17.02)
Brand: Chiaravalli

Chain Sprockets

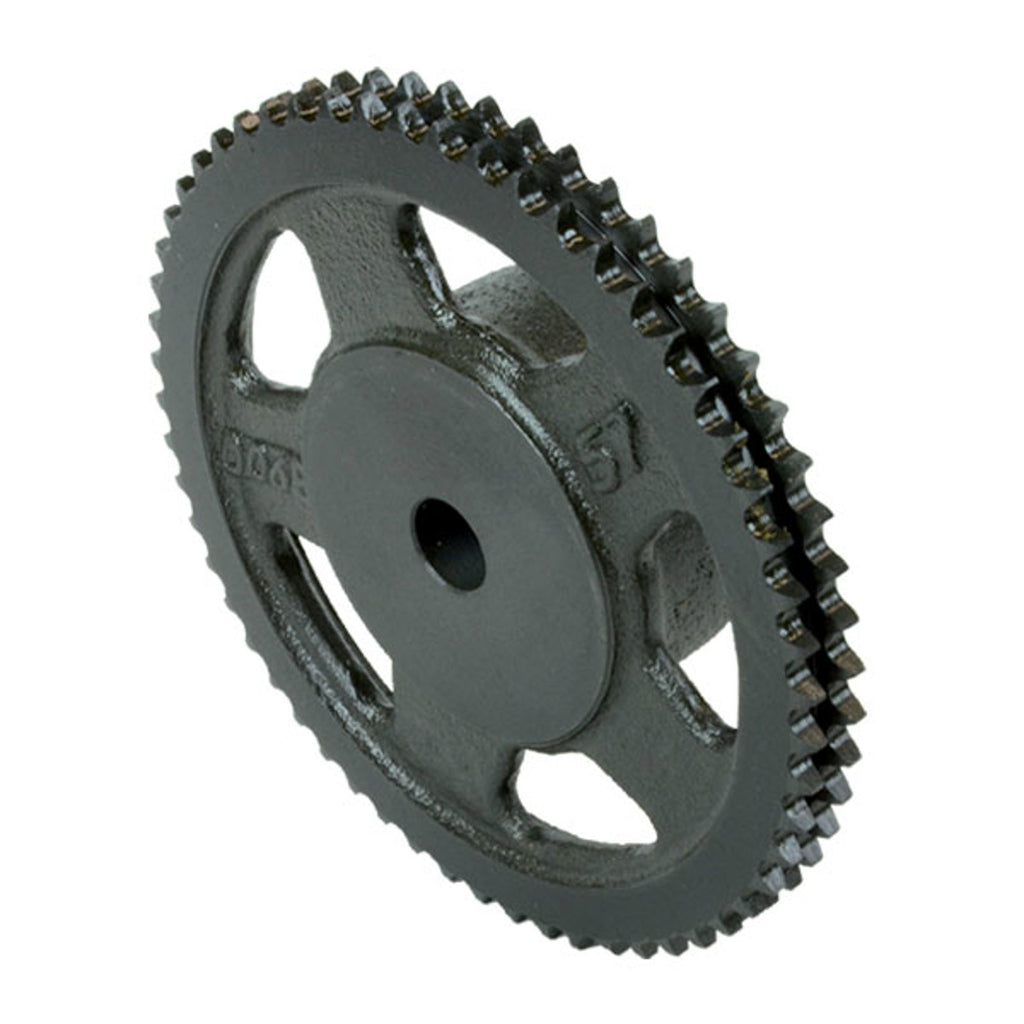

Triplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 16B-3 roller chain (1″ × 17.02). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

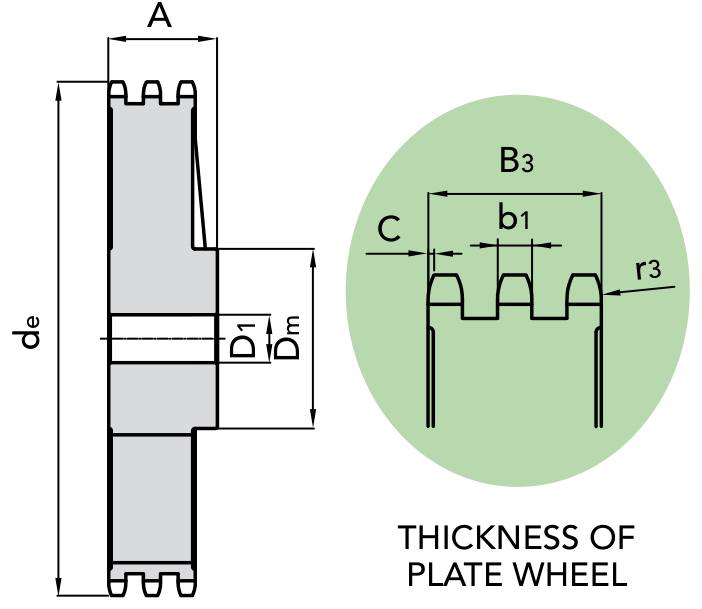

Code	Z	de	dp	dm	D1	A	Weight
`12325030`	`30`	`254` mm	`243` mm	`145` mm	`39` mm	`90` mm	`20.0` kg
`12325038`	`38`	`320` mm	`307.59` mm	`160` mm	`44` mm	`100` mm	`25.4` kg
`12325045`	`45`	`377` mm	`364.13` mm	`160` mm	`44` mm	`100` mm	`33.6` kg
`12325057`	`57`	`474` mm	`461.08` mm	`165` mm	`44` mm	`100` mm	`44.7` kg
`12325076`	`76`	`627` mm	`614.65` mm	`200` mm	`44` mm	`110` mm	`63.1` kg
`12325095`	`95`	`781` mm	`768.22` mm	`200` mm	`49` mm	`110` mm	`77.0` kg
`12325114`	`114`	`933` mm	`921.81` mm	`200` mm	`49` mm	`115` mm	`97.0` kg
