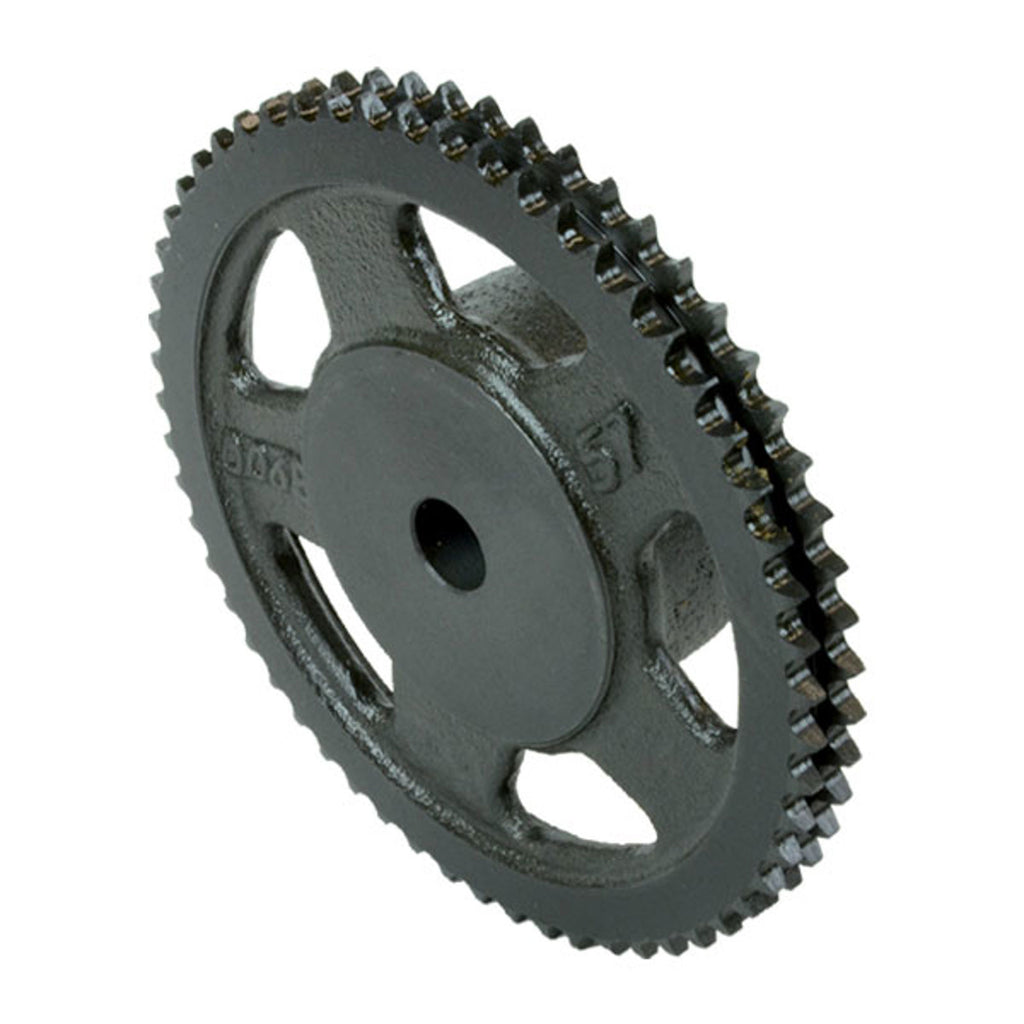

Cast Iron Chain Sprocket GG 20 20B-1 Simplex (1″1/4 × 3/4″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 20B-1 Simplex (1″1/4 × 3/4″)
Brand: Chiaravalli

Chain Sprockets

Simplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 20B-1 roller chain (1″1/4 × 3/4″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

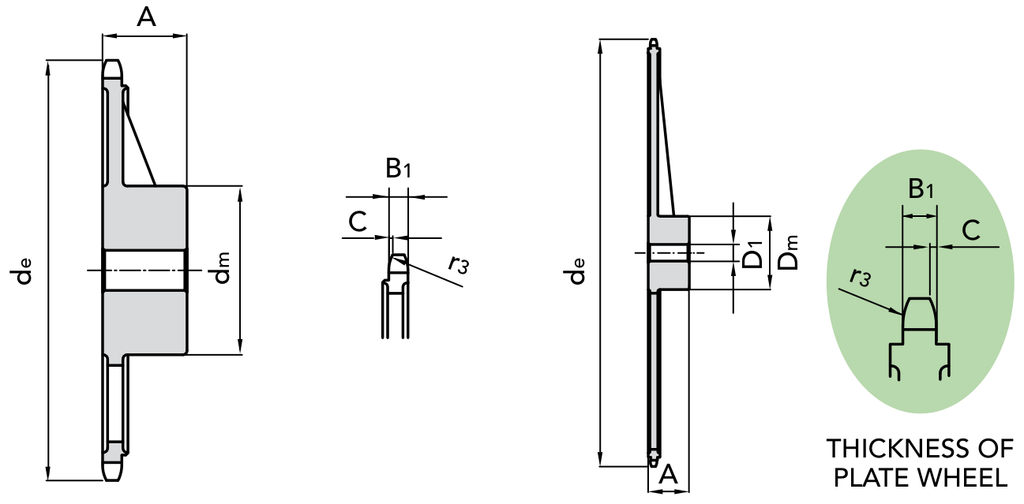

Code	Z	de	dp	dm	D1	A	Weight
`12131030`	`30`	`318.9` mm	`303.75` mm	`115` mm	`34` mm	`70` mm	`8.5` kg
`12131038`	`38`	`399.6` mm	`384.49` mm	`125` mm	`34` mm	`70` mm	`12.3` kg
`12131045`	`45`	`470.3` mm	`455.17` mm	`125` mm	`34` mm	`70` mm	`18.0` kg
`12131057`	`57`	`591.5` mm	`576.36` mm	`135` mm	`39` mm	`80` mm	`25.6` kg
`12131076`	`76`	`783.5` mm	`768.32` mm	`140` mm	`49` mm	`90` mm	`29.1` kg
