Cast Iron Chain Sprocket GG 20 20B-3 Triplex (1″1/4 × 3/4″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 20B-3 Triplex (1″1/4 × 3/4″)
Brand: Chiaravalli

Chain Sprockets

Triplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 20B-3 roller chain (1″1/4 × 3/4″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

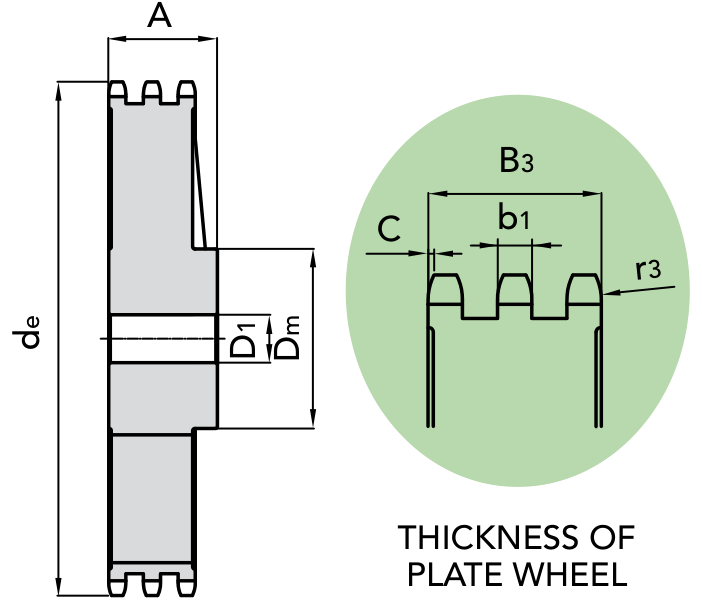

Code	Z	de	dp	dm	D1	A	Weight	CAD
`12331038`	`38`	`399.6` mm	`384.49` mm	`170` mm	`55` mm	`110` mm	`52.0` kg
`12331057`	`57`	`591.5` mm	`576.36` mm	`180` mm	`62` mm	`125` mm	`71.5` kg
