Cast Iron Chain Sprocket GG 20 24B-1 Simplex (1″1/2 × 1″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 24B-1 Simplex (1″1/2 × 1″)
Brand: Chiaravalli

Chain Sprockets

Simplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 24B-1 roller chain (1″1/2 × 1″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

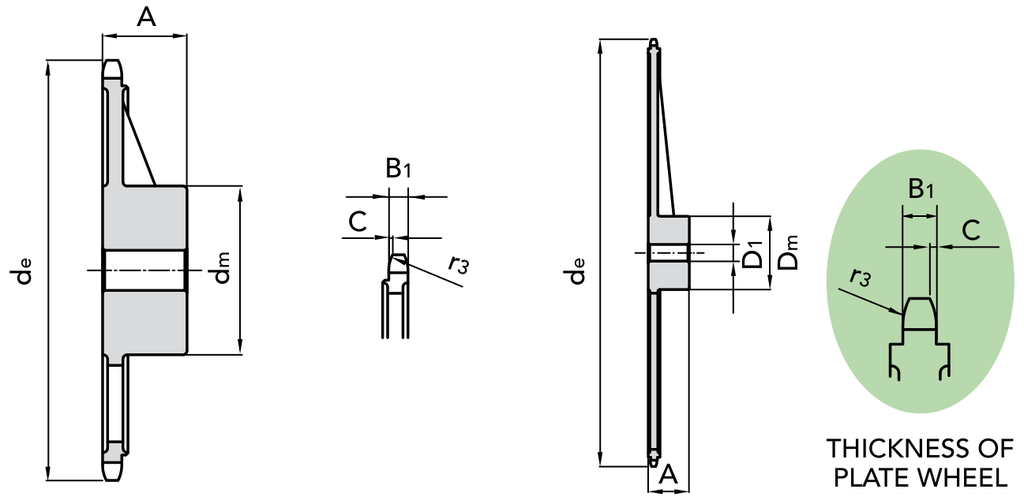

Code	Z	de	dp	dm	D1	A	Weight
`12138030`	`30`	`379.5` mm	`364.5` mm	`130` mm	`39` mm	`85` mm	`18.5` kg
`12138038`	`38`	`476.2` mm	`461.39` mm	`140` mm	`44` mm	`90` mm	`21.8` kg
`12138045`	`45`	`561.2` mm	`546.2` mm	`140` mm	`44` mm	`90` mm	`30.0` kg
`12138057`	`57`	`706.5` mm	`691.63` mm	`160` mm	`44` mm	`100` mm	`46.2` kg
`12138076`	`76`	`936.9` mm	`921.98` mm	`170` mm	`44` mm	`100` mm	`63.6` kg
