Cast Iron Chain Sprocket GG 20 24B-2 Duplex (1″1/2 × 1″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 24B-2 Duplex (1″1/2 × 1″)
Brand: Chiaravalli

Chain Sprockets

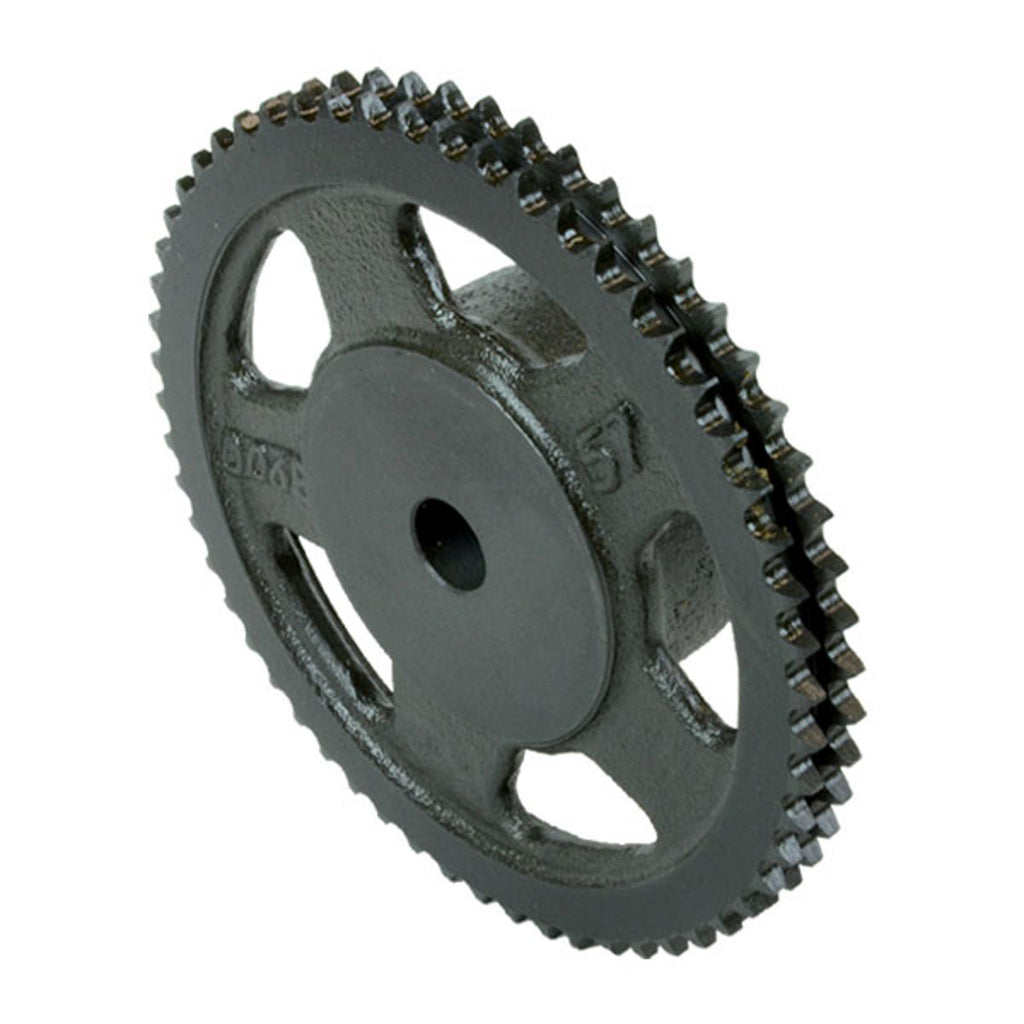

Duplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 24B-2 roller chain (1″1/2 × 1″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

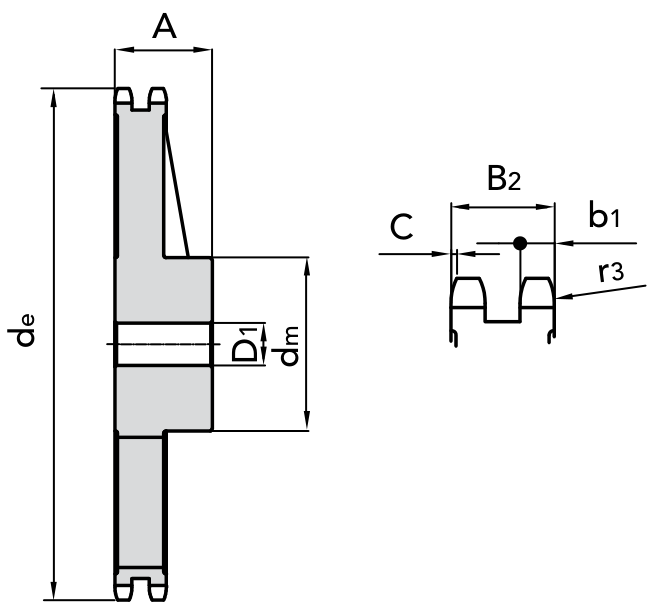

Code	Z	de	dp	dm	D1	A	Weight
`12238038`	`38`	`476.2` mm	`461.39` mm	`180` mm	`44` mm	`100` mm	`42.2` kg
`12238057`	`57`	`706.5` mm	`691.63` mm	`200` mm	`54` mm	`110` mm	`72.7` kg
`12238076`	`76`	`936.9` mm	`921.98` mm	`220` mm	`54` mm	`120` mm	`125.0` kg
