Chiaravalli

Cast Iron Chain Sprocket GG 20 24B-3 Triplex (1″1/2 × 1″)

Name: Chiaravalli Cast Iron Chain Sprocket GG 20 24B-3 Triplex (1″1/2 × 1″)
Brand: Chiaravalli

Chain Sprockets

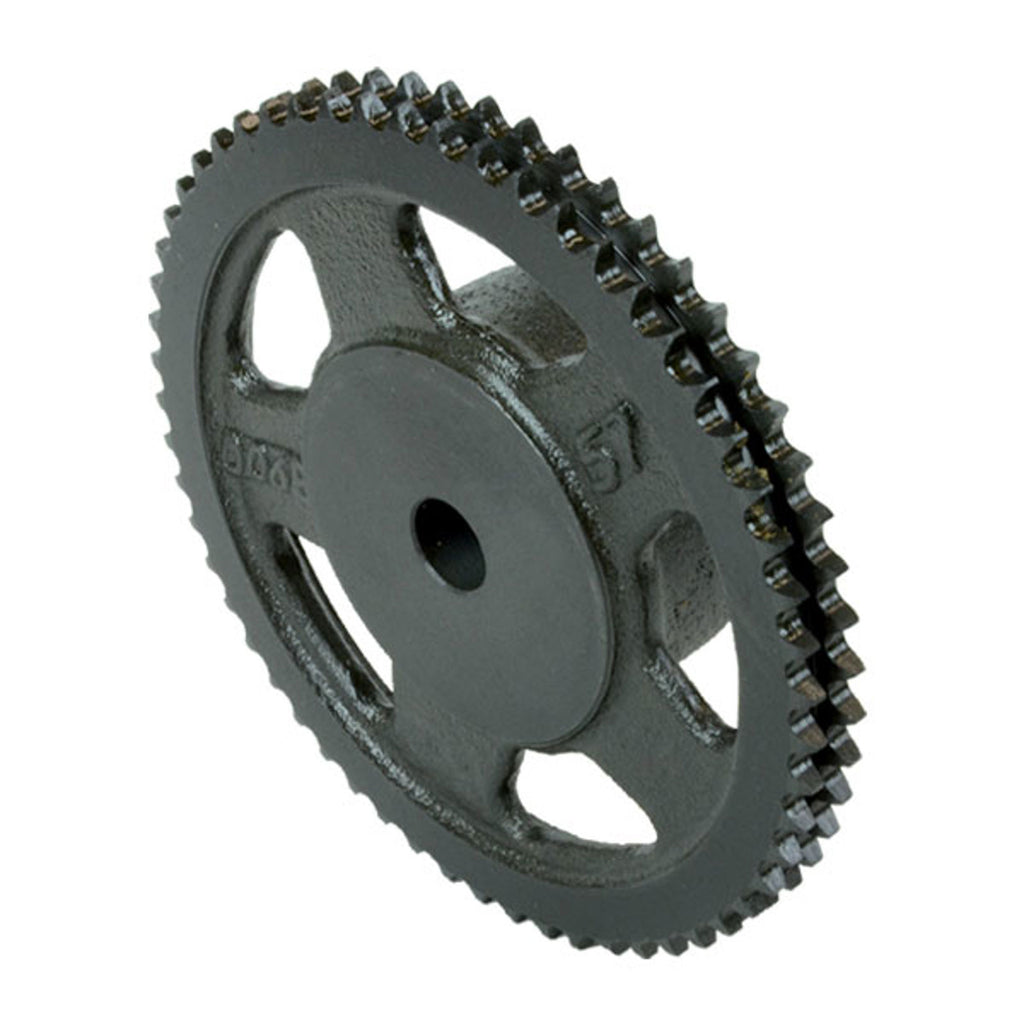

Triplex plate-wheel chain sprocket in cast iron GG 20 UNI 5007 for 24B-3 roller chain (1″1/2 × 1″). Simple chain sprockets with duplex reinforce.

Select a row to add it to your quote

Teeth

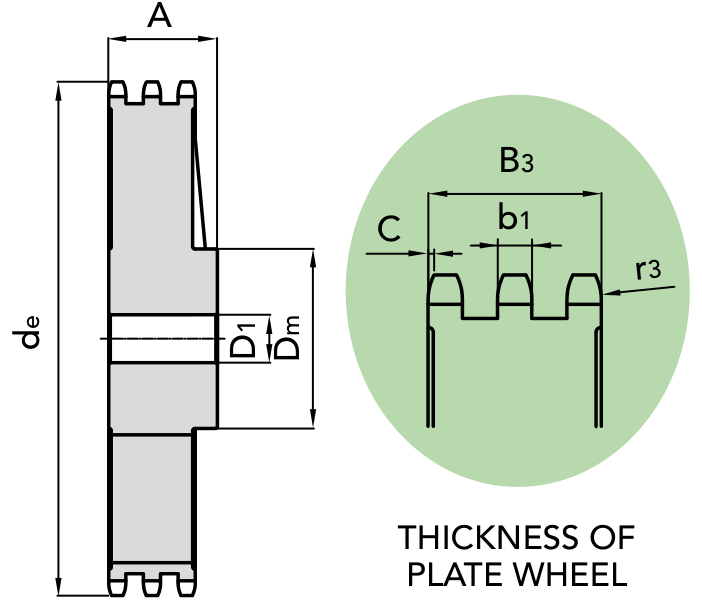

Code	Z	de	dp	dm	D1	A	Weight
`12338038`	`38`	`476.2` mm	`461.39` mm	`200` mm	`62` mm	`150` mm	`42.5` kg
`12338057`	`57`	`706.5` mm	`691.63` mm	`200` mm	`62` mm	`150` mm	`119.4` kg
`12338076`	`76`	`936.9` mm	`921.98` mm	`250` mm	`69` mm	`150` mm	`150.0` kg
